Makes 🢒 Chevrolet 🢒 1999 🢒 Monte Carlo 🢒 Transmission/Transaxle 🢒 Automatic Transaxle - 4T60-E 🢒 Horn Component Views
Figure 1:

Steering Wheel
Object Number: 298866 Size: SH
(1)Steering Wheel Radio Control Switch
(2)Horn Switch

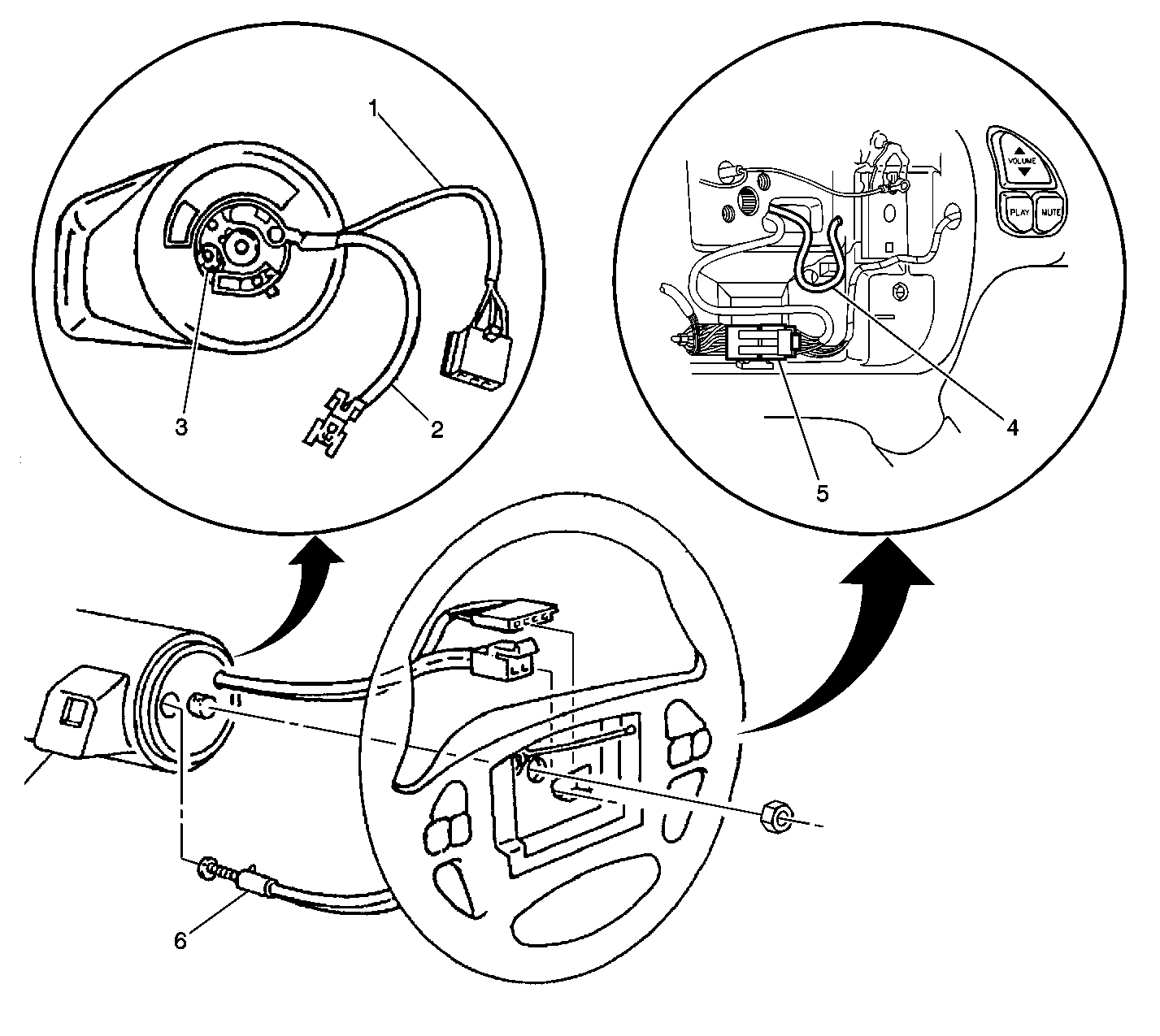

Figure 2:

Steering Wheel Component View
Object Number: 399285 Size: LF
(1)Steering Wheel Radio Control Switch Connector
(2)Inflator Restraint Steering Wheel Module Connection
(3)Horn Spring Opening
(4)Inflator Restraint Steering Wheel Module Wiring Harness
(5)Steering Wheel Radio Controls Connector
(6)Horn Switch Spring Loaded Contact

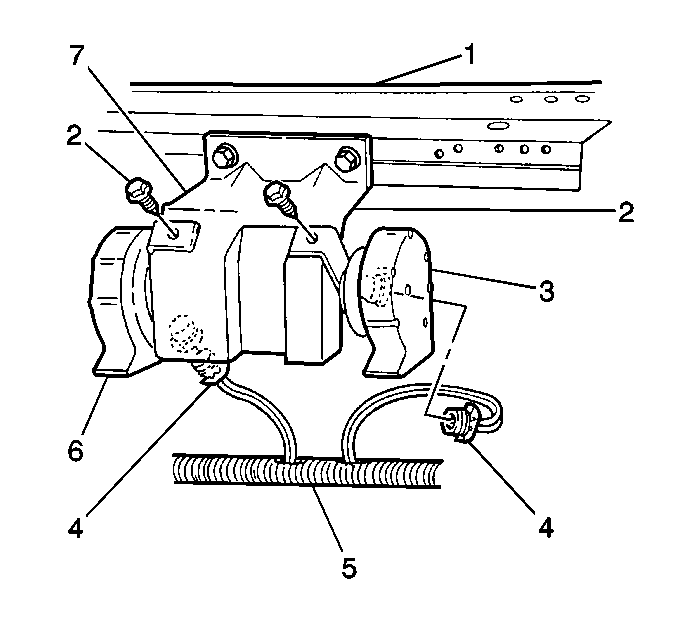

Figure 3:

Front Of Vehicle
Object Number: 292196 Size: SH
(1)Cross-Car Beam
(2)Support Bracket and Bolt
(3)LH Horn
(4)Horn Connector
(5)Forward Lamp Wiring Harness
(6)Horn
(7)Support Bracket
