Instrument Panel, Gages, and Console Component Views. Chevrolet Monte Carlo 1999

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1999 🢒 Monte Carlo 🢒 Transmission/Transaxle 🢒 Automatic Transaxle - 4T60-E 🢒 Instrument Panel, Gages, and Console Component Views

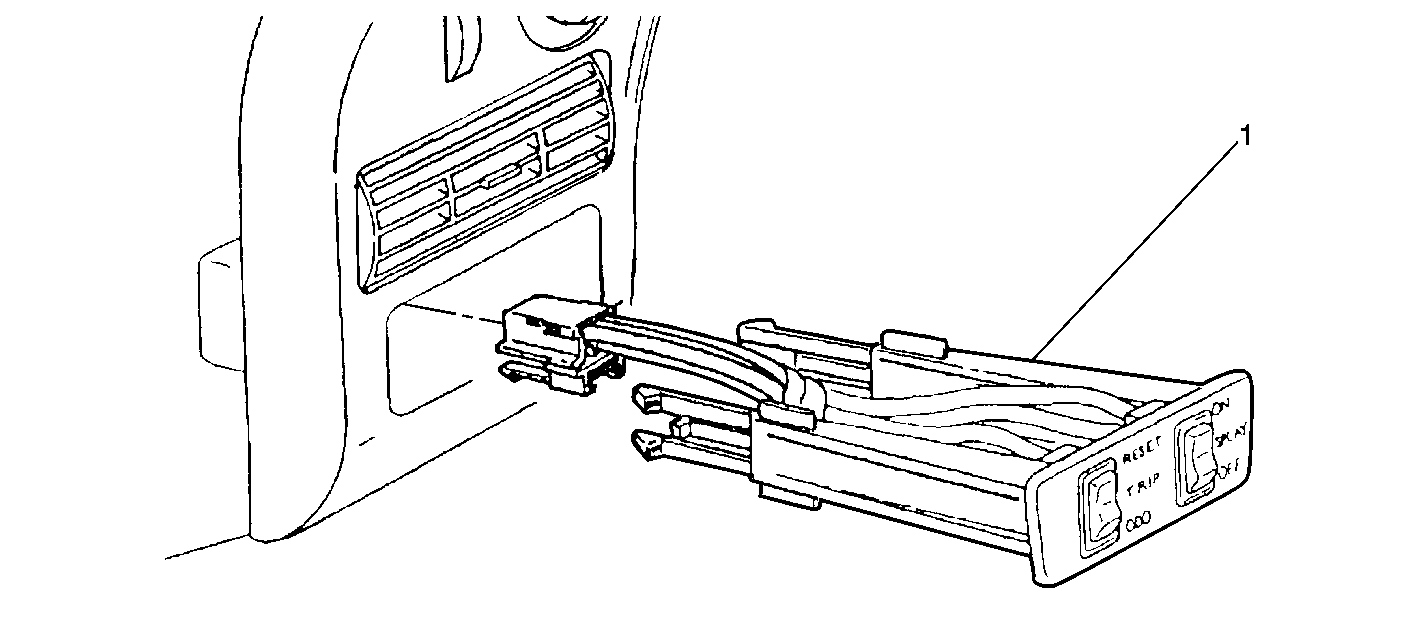

Figure 1:


(1)	Accessory Switch

Figure 2:


(1)	Brake Fluid Level Indicator Switch

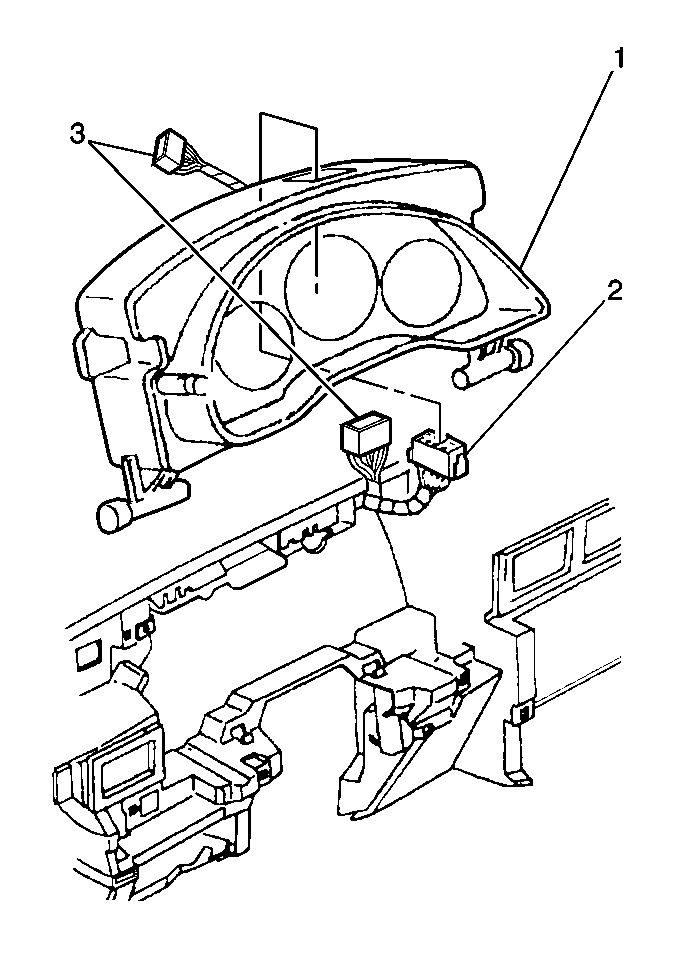

Figure 3:


(1)	Instrument Cluster
(2)	Instrument Cluster Connector
(3)	Digital Speedometer Connector (SEO)

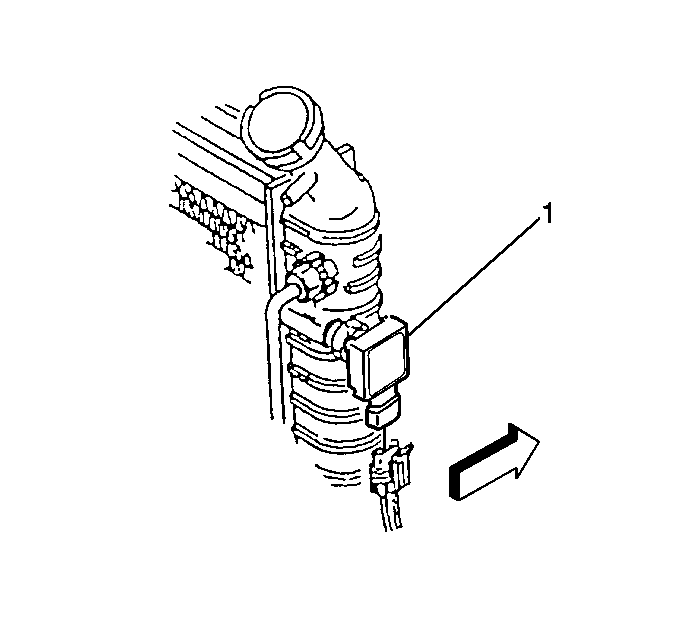

Figure 4:


(1)	Right Front of Engine Compartment

Figure 5:


(1)	Positive Battery Cable
(2)	G113/G117 Engine Grounds
(3)	Starter Assembly
(4)	Engine Oil Level Indicator Switch
(5)	Knock Sensor (Bank 1)

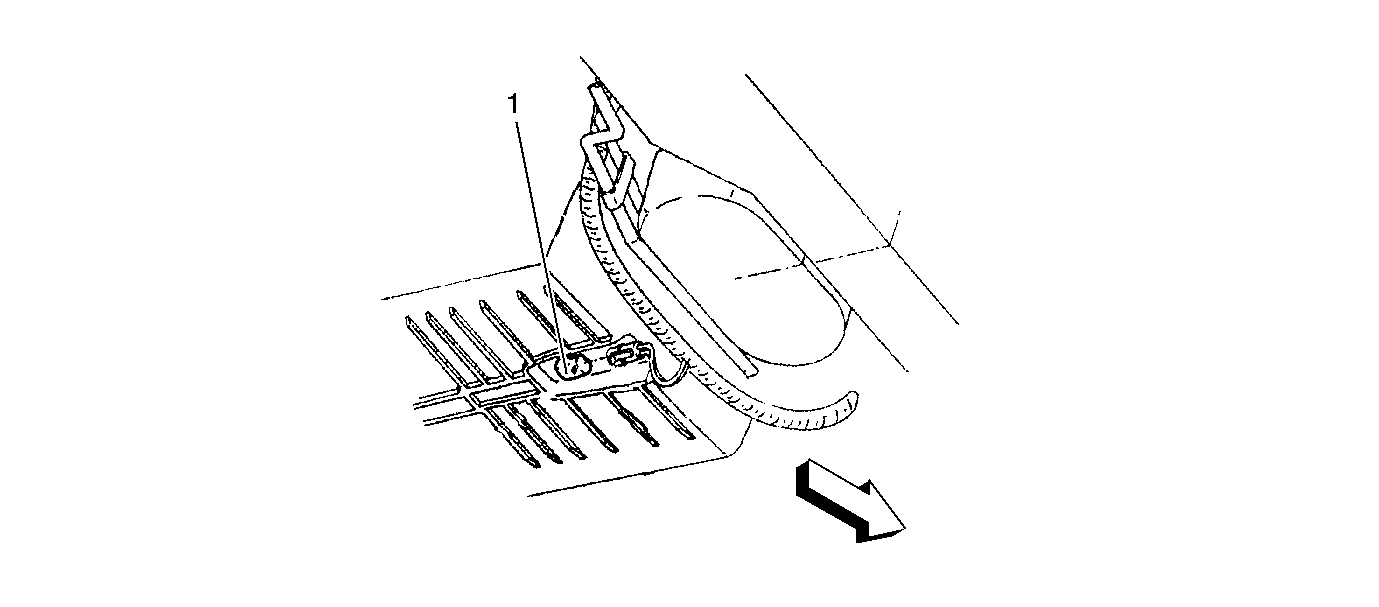

Figure 6:


(1)	Engine Oil Level Switch

Figure 7:


(1)	Power Steering Pump
(2)	Engine Oil Pressure Indicator Switch
(3)	Vehicle Speed Sensor (VSS)
(4)	Rack and Pinion Assembly

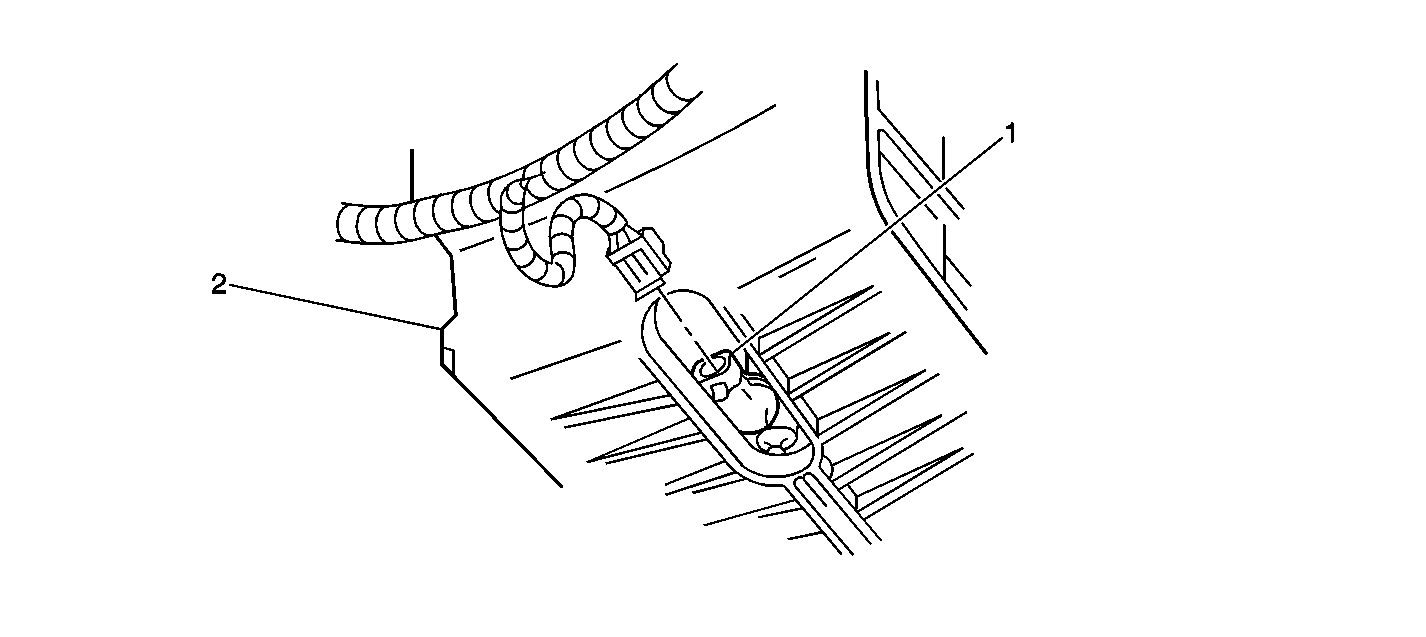

Figure 8:


(1)	Engine Oil Level Indicator Switch
(2)	Engine Oil Pan

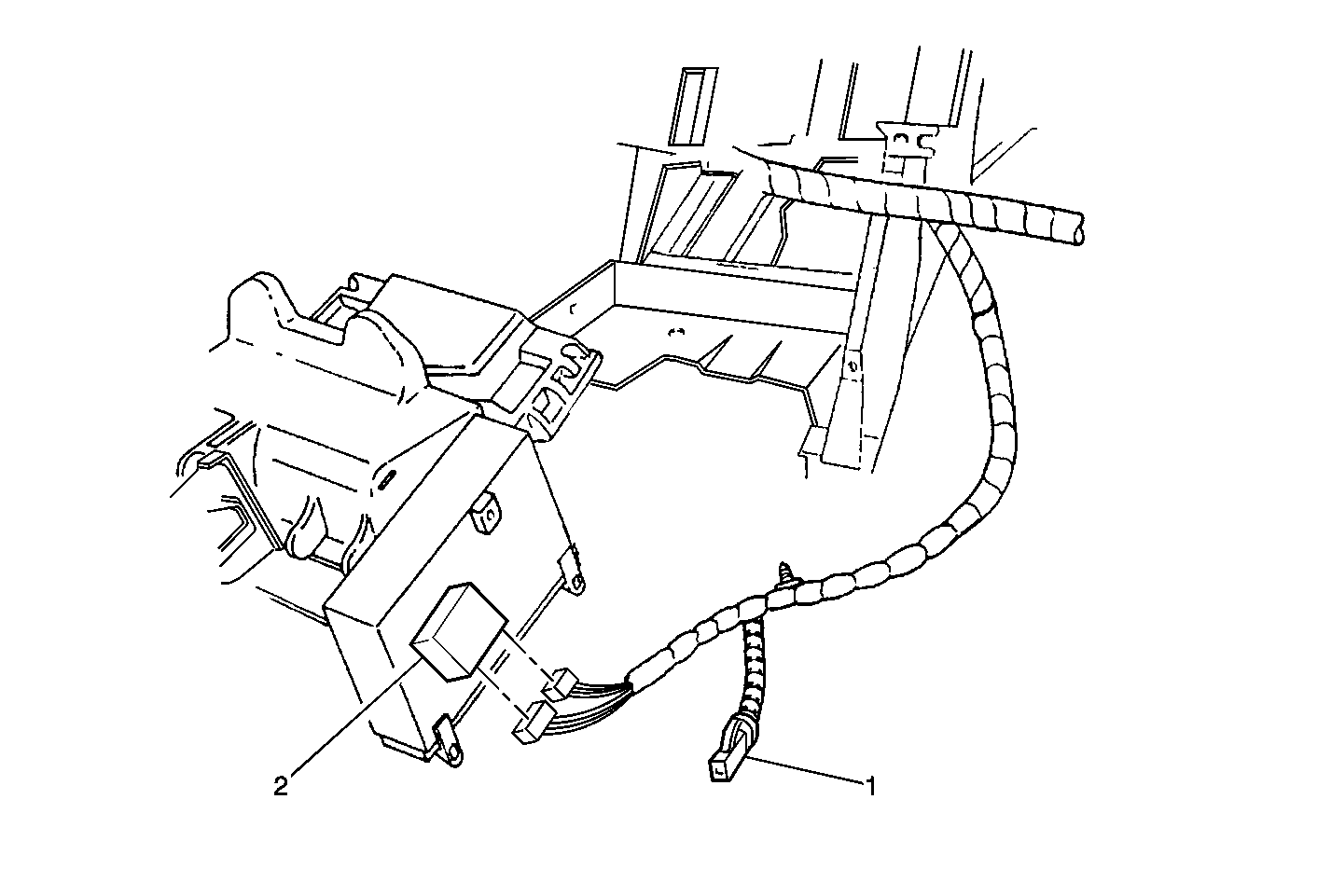

Figure 9:


(1)	Park Brake Switch Connector
(2)	DRL Module

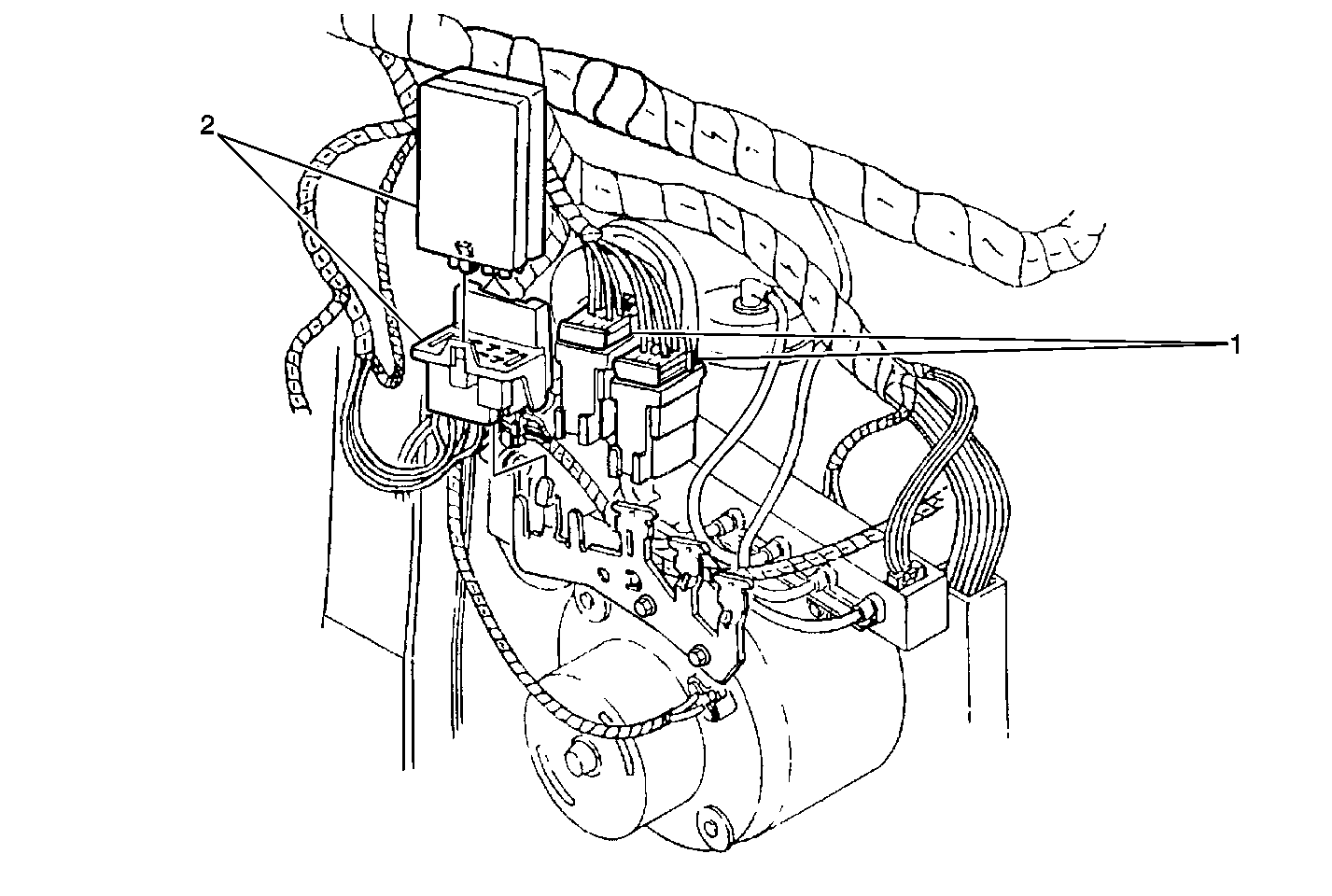

Figure 10:


(1)	Blower Motor Relay and Rear Window Defogger Relay
(2)	Seatbelt/ Ignition Key/ Lamps Alarm and Connector
