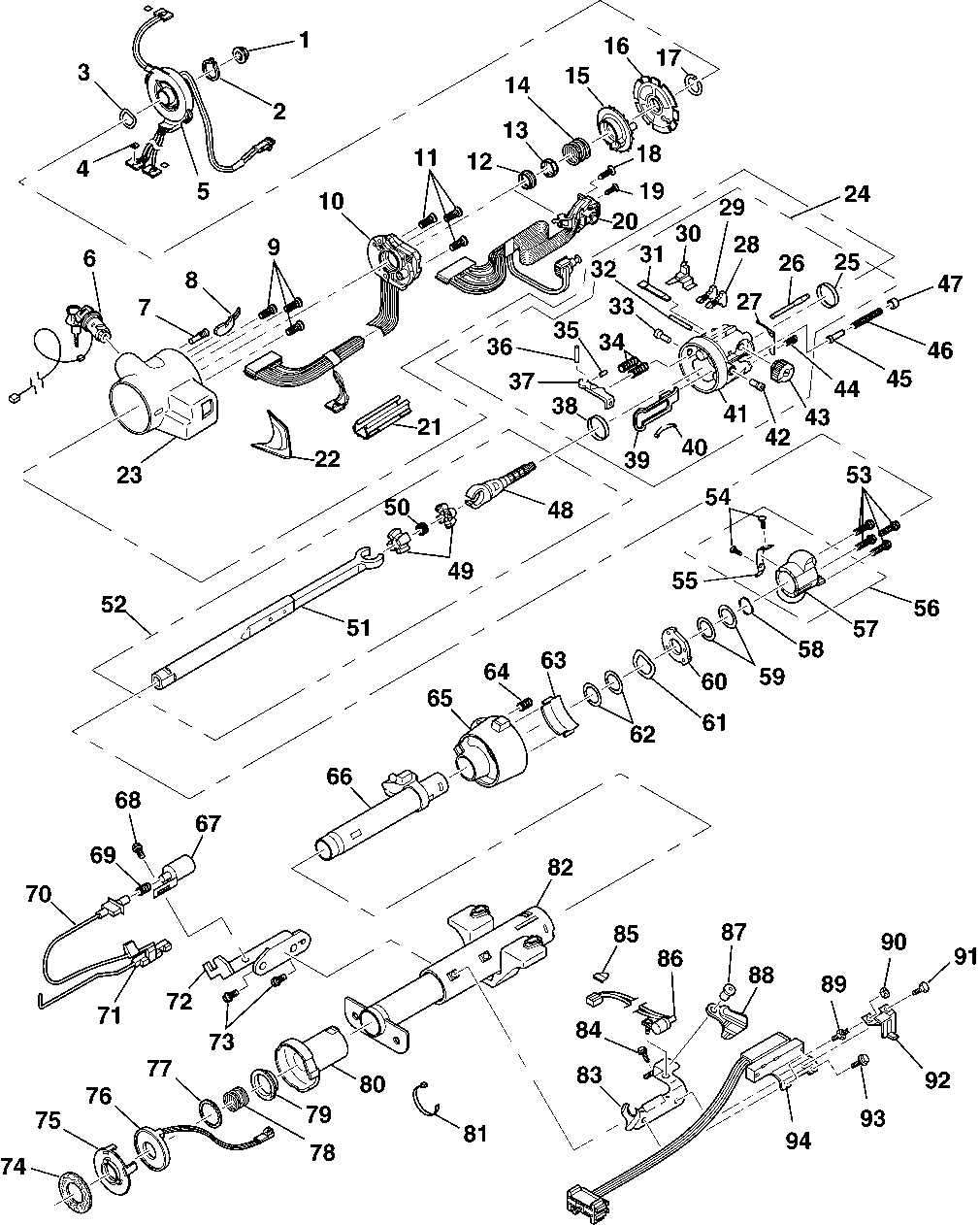

| (1) | Flanged Prevailing Torque Nut |
| (2) | Retaining Ring |
| (3) | Wave Washer |
| (4) | Connector Shroud |
| (5) | SIR Coil Assembly |
| (6) | Steering Column Lock Cylinder Set |
| (7) | Lock Retaining Screw |
| (8) | Buzzer Switch Assembly |
| (9) | Pan Head 6-Lobed Socket Tap
Screw |
| (10) | Turn Signal Switch Assembly |
| (11) | Pan Head 6-Lobed Socket Screw |
| (12) | Inner Race |
| (13) | Upper Bearing Inner Race Seat |
| (14) | Upper Bearing Spring |
| (15) | Turn Signal
Cancel Cam Assembly |
| (16) | Shaft Lock |
| (17) | Bearing Retainer |
| (18) | Round Washer Head Screw |
| (19) | Flat
Head Screw |
| (20) | Pivot and Pulse Dimmer Switch Assembly |
| (21) | Wiring Protector |
| (22) | Housing Cover
End Cap |
| (23) | Lock Housing Sleeve and Cover Assembly |
| (24) | Steering Column Housing Assembly |
| (25) | Bearing Assembly |
| (26) | Shaft Lock Bolt Assembly |
| (27) | Lock Bolt
Spring |
| (28) | Steering Wheel Lock Shoe |
| (29) | Steering Wheel Lock Shoe |
| (30) | Protector Wire Shield |
| (31) | Drive Shaft |
| (32) | Dowel Pin |
| (33) | Pivot Pin |
| (34) | Shoe Spring |
| (35) | Release Lever Spring |
| (36) | Release Lever
Pin |
| (37) | Shoe Release Lever Assembly |
| (38) | Bearing Assembly |
| (39) | Switch Actuator
Rack |
| (40) | Rack Preload Spring |
| (41) | Steering Column Housing |
| (42) | Pivot Pin |
| (43) | Switch Actuator Sector |
| (44) | Hexagon Washer Head Screw |
| (45) | Spring Guide |
| (46) | Tilt Spring |
| (47) | Spring Retainer |
| (48) | Race and Upper
Shaft Assembly |
| (49) | Centering Sphere |
| (50) | Joint Preload Spring |
| (51) | Lower Steering
Shaft Assembly |
| (52) | Steering Shaft Assembly |
| (53) | Support Screw |
| (54) | Oval Head
Cross Recess Screw |
| (55) | Shift Lever Gate |
| (56) | Steering Column Housing Support
Assembly |
| (57) | Steering Column Housing Support |
| (58) | Shift Tube Retaining Ring |
| (59) | Thrust Washer |
| (60) | Lock Plate |
| (61) | Wave Washer |
| (62) | Thrust Washer |
| (63) | Shift Bowl Protector |
| (64) | Shift Lever
Spring |
| (65) | Gear Shift Lever Bowl Assembly |
| (66) | Shift Tube Assembly |
| (67) | Interlock
Solenoid Assembly |
| (68) | Hexagon Washer Head Screw |
| (69) | Ball Joint Spring |
| (70) | BTSI Cable
Assembly |
| (71) | Ignition Switch Actuator Assembly |
| (72) | Solenoid Adapter Bracket |
| (73) | Hexagon Washer Head Screw |
| (74) | Steering Shaft Seal |
| (75) | Sensor Retainer |
| (76) | Steering
Wheel Speed Sensor Assembly |
| (77) | Lower Spring Retainer |
| (78) | Lower Bearing Spring |
| (79) | Lower Bearing
Seat |
| (80) | Adapter and Bearing Assembly |
| (81) | Wire Harness Strap |
| (82) | Steering
Column Jacket Assembly |
| (83) | Stud and Bracket Assembly |
| (84) | Torx Washer
Head Screw |
| (85) | Axial Position Assurance Connector |
| (86) | Park Position Switch Assembly |
| (87) | Cam Retainer |
| (88) | Cable Shift Cam Assembly |
| (89) | Dimmer Switch Mounting Stud |
| (90) | Hexagon Nut |
| (91) | Hexagon Washer Head Screw |
| (92) | PRNDL Adjuster Assembly |
| (93) | Torx Washer Head Screw |
| (94) | Ignition Switch Assembly |
