Makes 🢒 Chevrolet 🢒 1999 🢒 Monte Carlo 🢒 Body and Accessories 🢒 Doors 🢒 Front Side Door Wiring Conduit Replacement

Removal Procedure
  1. Remove the carpet retainer under the instrument panel.
  2. Pull back the carpet.
  3. Disconnect the door wiring harness from the body harness.
  4. Remove the conduit from the hinge pillar opening.

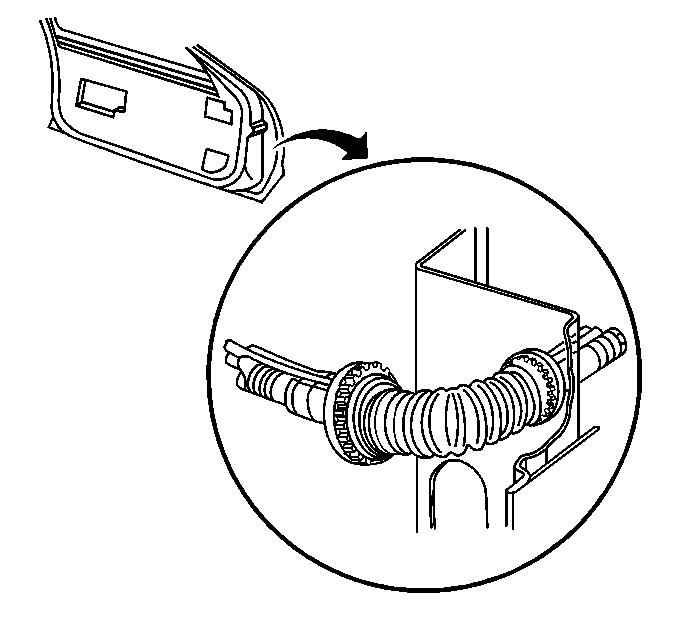

    5. Object Number: 294491 Size: SH
  5. Remove the front door conduit from the door.
  6. Pull the wiring harness through the conduit.

Installation Procedure

    Object Number: 294491 Size: SH
  1. Position the front door conduit by the front door.
  2. Install the wiring harness through the conduit.
  3. Reconnect the door wiring harness to the body harness.
  4. Install the conduit to the hinge pillar opening.
  5. Install the conduit to the door.
  6. Reposition the carpet.
  7. Install the carpet retainer.
