Removal Procedure
  1. Remove the rear seat back. Refer to Rear Seat Back Replacement .
  2. Open the rear compartment.
  3. Remove the rear compartment mat.
  4. Remove the spare tire cover.
  5. Remove the spare tire.
  6. Remove the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement .
  7. Fold each side of the trim panel toward the center of the car.

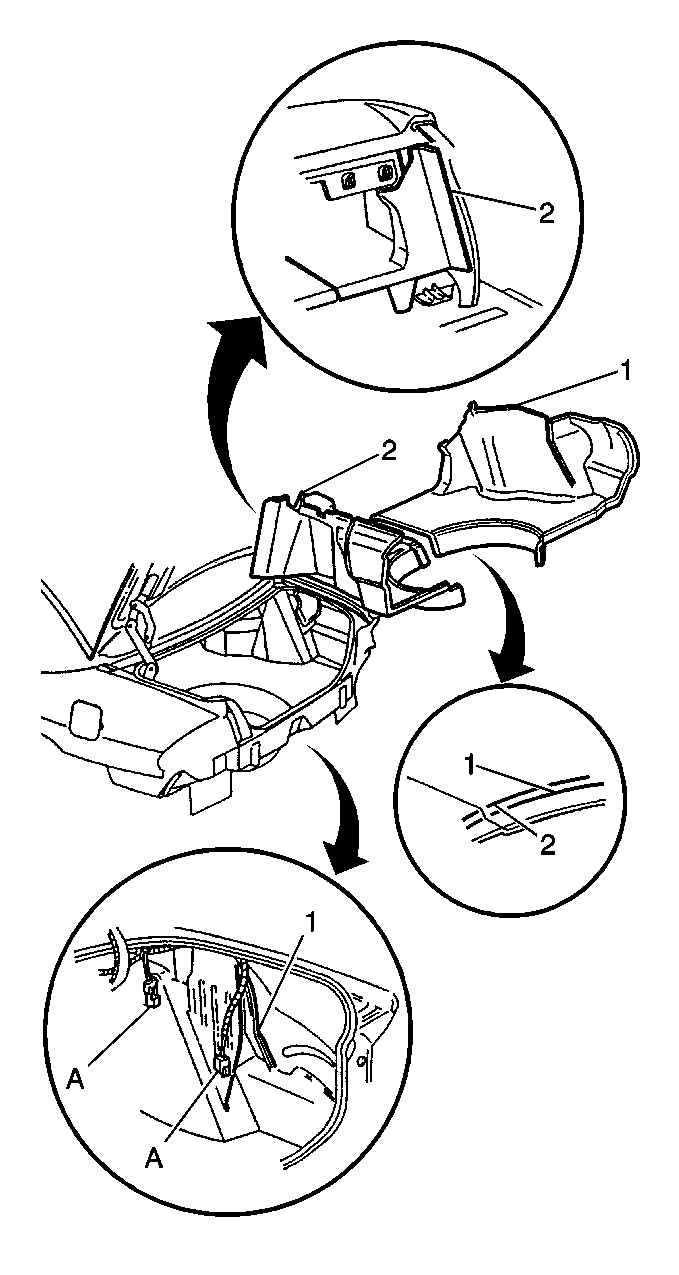

    8. Object Number: 292038 Size: LH
  8. Remove the right (1) side trim.

Installation Procedure

    Object Number: 292038 Size: LH
  1. Install the right side trim (1) to the wheelhouse panel and the rear seat support brace.
  2. Insert the right side trim over the left side trim.
  3. Wrap the trim around the support brace and behind the compartment brace.
  4. Pull the tail lamp wiring harness inboard of trim.
  5. Smooth out the trim to fit the body contour.
  6. Install the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement .
  7. Install the spare tire and cover.
  8. Install the rear compartment mat.
  9. Install the rear seat back. Refer to Rear Seat Back Replacement .
  10. Close the rear compartment.
