Engine Controls Component Views. Chevrolet Monte Carlo 2003

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2003 🢒 Monte Carlo 🢒 Engine 🢒 Engine Controls - 3.8L 🢒 Engine Controls Component Views

Figure 1:


(1)	Air Cleaner/PCM Housing
(2)	A/C Refrigerant Pressure Sensor
(3)	Powertrain Control Module (PCM), C2
(4)	Powertrain Control Module (PCM), C1
(5)	Powertrain Control Module (PCM)

Figure 2:

Figure 3:


(1)	Mass Air Flow (MAF) Sensor
(2)	Idle Air Control (IAC) Valve
(3)	Throttle Position (TP) Sensor
(4)	Fuel Pressure Test Connector
(5)	Engine Coolant Temperature (ECT) Sensor
(6)	Fuel Injector 5
(7)	Evaporative Emission (EVAP) Canister Purge Solenoid
(8)	Engine Oil Level Switch
(9)	Crankshaft Position (CKP) Sensor
(10)	Camshaft Position (CMP) Sensor-Behind Water Pump Pulley
(11)	Ignition Control Module (ICM)
(12)	Positive Crankcase Ventilation (PCV) Valve-Under MAP Sensor
(13)	Manifold Absolute Pressure (MAP) Sensor
(14)	C110
(15)	Fuel Pressure Regulator

Figure 4:


(1)	Fuel Injector 3
(2)	Evaporative Emission (EVAP) Canister Purge Solenoid
(3)	Fuel Injector 5
(4)	Idle Air Control (IAC) Valve
(5)	Throttle Position (TP) Sensor
(6)	Mass Air Flow (MAF) Sensor
(7)	S106
(8)	Engine Coolant Temperature (ECT) Sensor Connector
(9)	C110
(10)	A/C Compressor Clutch Diode
(11)	To A/C Compressor
(12)	Ignition Control Module (ICM)
(13)	To Manifold Absolute Pressure (MAP) Sensor
(14)	Fuel Injector 1 Connector

Figure 5:


(1)	Manifold Absolute Pressure (MAP) Sensor Connector

Figure 6:


(1)	Ignition Coils
(2)	Ignition Control Module (ICM)
(3)	G111
(4)	Ignition Control Module (ICM) Wiring Harness

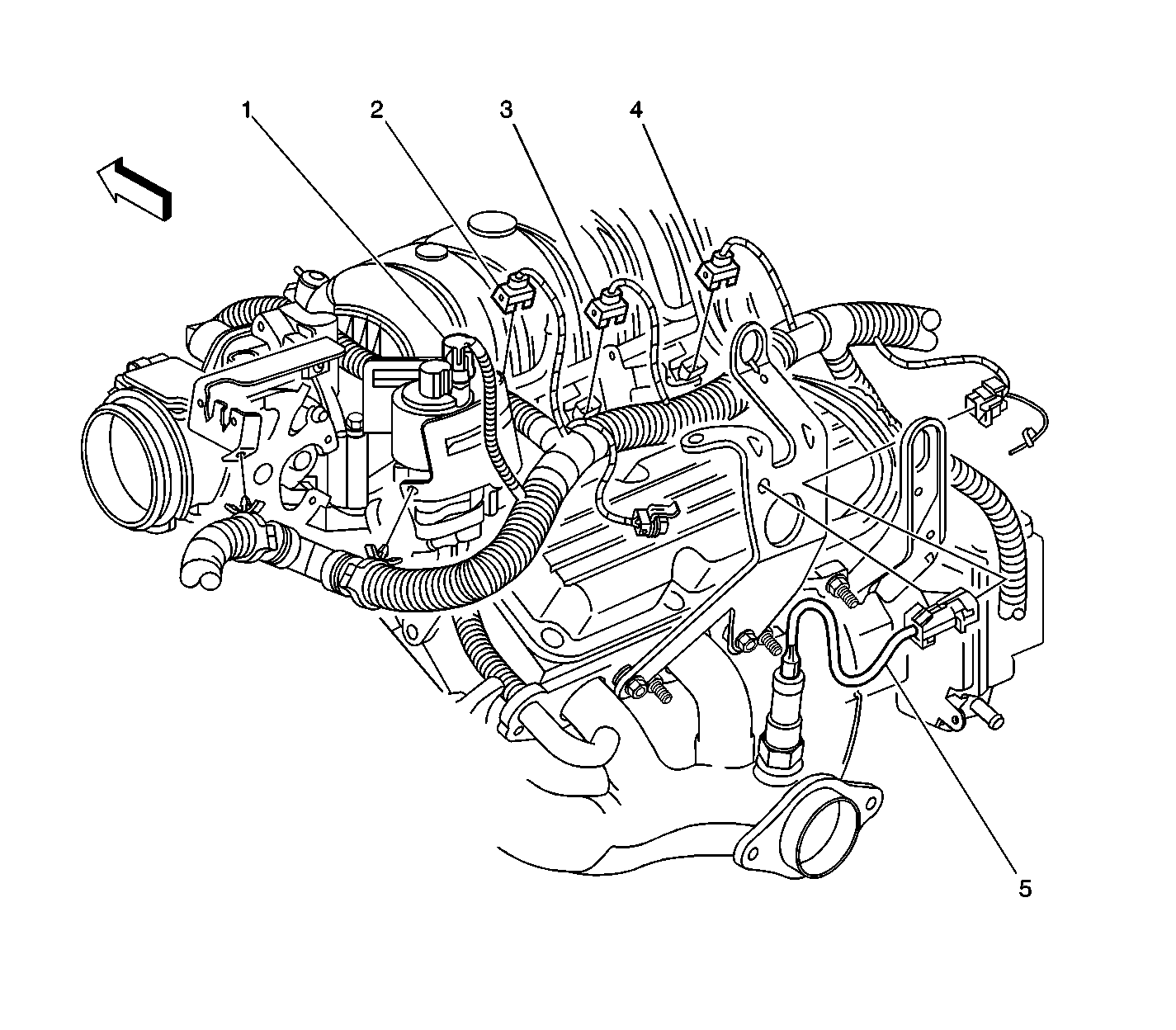

Figure 7:


(1)	Exhaust Gas Recirculation (EGR) Valve
(2)	Fuel Injector 6 Connector
(3)	Fuel Injector 4 Connector
(4)	Fuel Injector 2 Connector
(5)	Heated Oxygen Sensor (HO2S) Sensor 1

Figure 8:


(1)	Knock Sensor (KS) 1
(2)	Starter

Figure 9:


(1)	C110
(2)	C126
(3)	Evaporative Emission (EVAP) Canister Purge Solenoid

Figure 10:


(1)	C125-Knock Sensor Jumper Harness
(2)	Engine Oil Pressure (EOP) Switch
(3)	Vehicle Speed Sensor
(4)	C125-Engine Harness

Figure 11:


(1)	Camshaft Position (CMP) Sensor

Figure 12:


(1)	Knock Sensor (KS) 2

Figure 13:


(1)	Heat Shield
(2)	Catalytic Converter
(3)	Heated Oxygen Sensor (HO2S) Sensor 2

Figure 14:


(1)	Fuel Line Quick Connector
(2)	Fuel Pump
(3)	Base Plate
(4)	Fuel Strainer
(5)	Fuel Level Sensor
(6)	Springs
(7)	Fuel Tank Pressure (FTP) Sensor

Figure 15:


(1)	Evaporative Emission (EVAP) Canister Vent Solenoid Connector
(2)	Evaporative Emission (EVAP) Canister Vent Solenoid
