Makes 🢒 Chevrolet 🢒 2003 🢒 Monte Carlo 🢒 Body and Accessories 🢒 Wipers/Washer Systems 🢒 Windshield Washer Hose Replacement

Removal Procedure
  1. Open the hood.
  2. Remove the right front fender liner. Refer to Front Fender Liner Replacement in Body Front End.

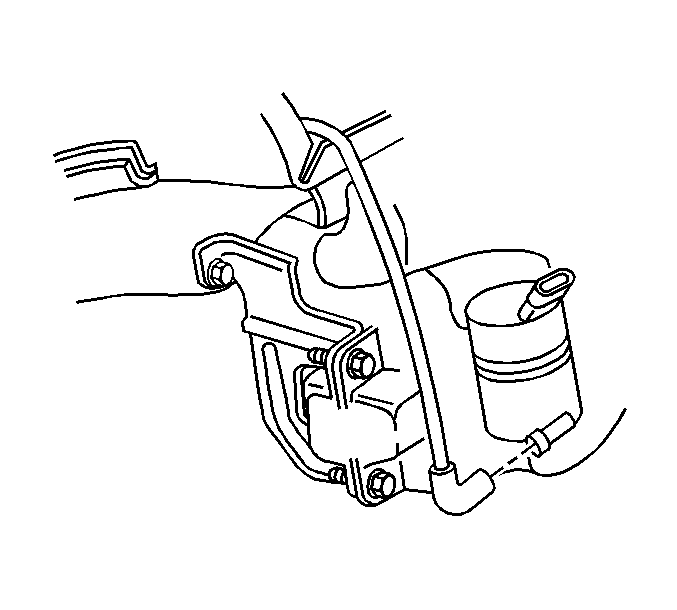

    3. Object Number: 815217 Size: SH
  3. Disconnect the washer hose from the washer pump.
  4. Lower the Vehicle.

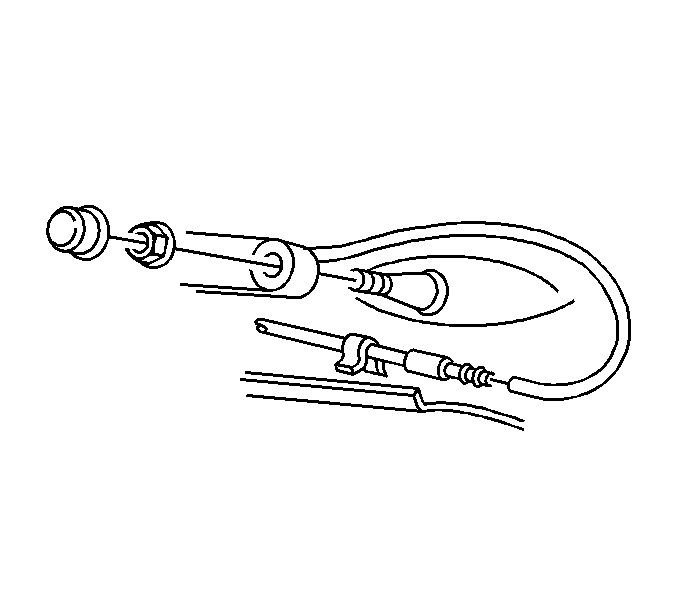

    5. Object Number: 815210 Size: SH
  5. Disconnect the washer hose from the wiper arms.

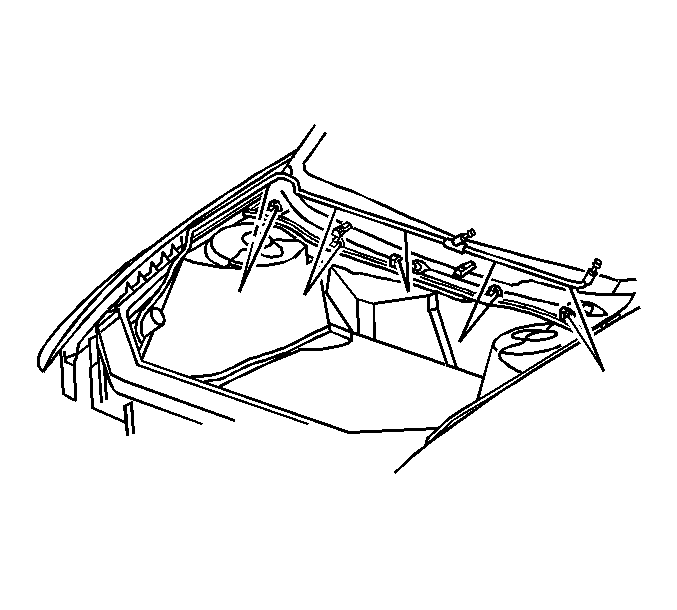

    6. Object Number: 815215 Size: SH
  6. Disconnect the washer hose from the air inlet grille panel.
  7. Pull the washer pump hose out from along side the right front inner fender and into the engine compartment.
  8. Remove the washer hose from the vehicle.

Installation Procedure

    Object Number: 815215 Size: SH
  1. Position the washer hose to the vehicle.
  2. Route the washer pump hose down along side the right front inner fender and into the front inner fender area.
  3. Connect the washer hose to the air inlet grille panel.

    4. Object Number: 815210 Size: SH
  4. Connect the washer hose to the wiper arms.

    5. Object Number: 815217 Size: SH
  5. Raise the vehicle.
  6. Connect the washer hose to the washer pump.
  7. Install the right front fender liner. Refer to Front Fender Liner Replacement in Body Front End.
  8. Close the hood.
