Quarter Panel Emblem/Nameplate Replacement Monte Carlo

Tools Required

J 25070 Heat Gun

1. Apply tape for alignment marks to aid in the installation of the emblem/nameplate.
2. Use the tape to protect the mounting surface during removal.
3. Heat the emblem/nameplate using the J 25070 . Apply heat using a circular motion for about 30 seconds.




Notice: Use a plastic, flat-bladed tool to prevent paint damage when removing an emblem/name plate.

4. Use a plastic, flat-bladed tool to remove the emblem/nameplate from the panel surface.
5. When replacing a emblem/nameplate, remove all adhesive as follows:

•	For body panels use a 3M™ Scotch Brite molding adhesive remover disk 3M™ P/N 07502 or equivalent.

•	For plastic panels use a lint-free cloth and Varnish Makers and Painters (VMP) naptha or a 50/50 mixture by volume of isopropyl alcohol and water to remove the adhesive.

Important: Apply the emblem/nameplate in an environment that is free from dust or other dirt that could come into contact with the sticky backing. Foreign material may cause improper adhesion.

1. Ensure the area where the emblem/nameplate will be installed is clean and dry.

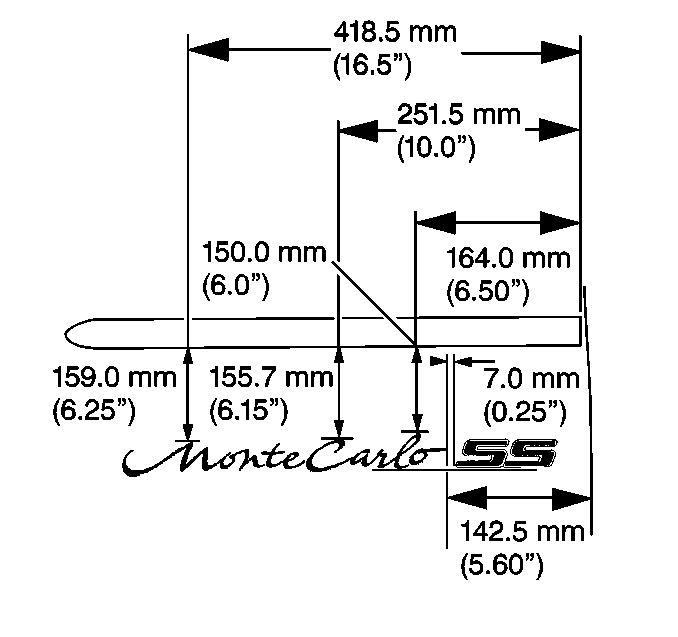

2. Apply tape and mark the location as shown for the right side Monte Carlo quarter panel nameplate.

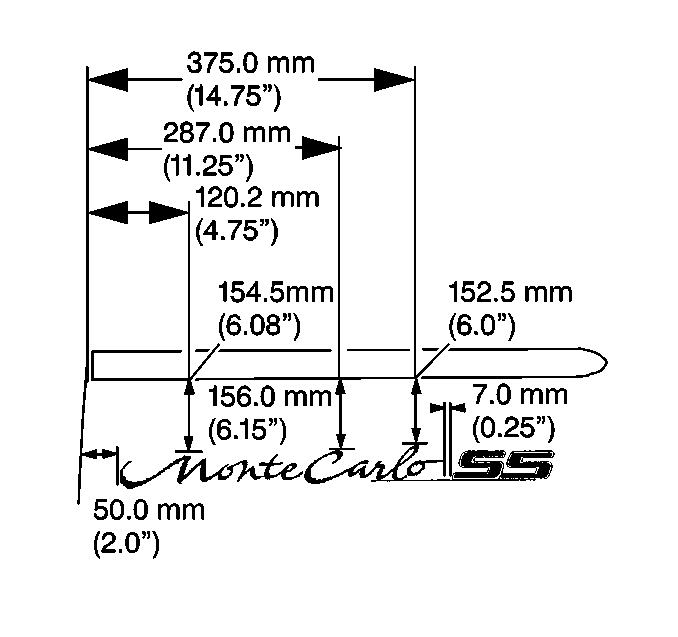

3. Apply tape and mark the location as shown for the left side Monte Carlo quarter panel nameplate.

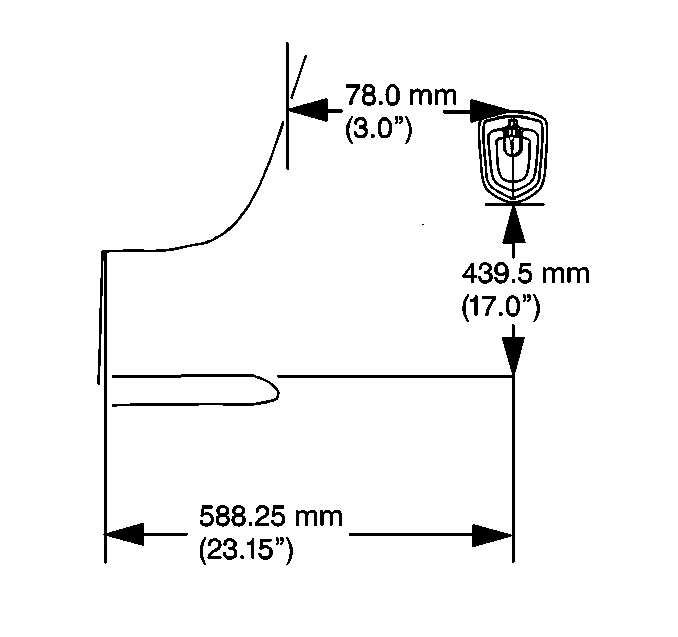

4. Apply tape and mark the location as shown for the left or right side Monte Carlo quarter panel emblem.
5. Heat the mounting surface to approximately 27-41°C (80-105°F) using the J 25070 , if necessary.
6. Ensure that the temperature of the emblem/nameplate is approximately 29-32°C (85-90°F).

Important: Do not touch the adhesive backing of the emblem/nameplate.

7. Remove the protective liner from the back of the emblem/nameplate.
8. Position the emblem/nameplate to the location marks and press the emblem/nameplate to the mounting surface.
9. Apply equal pressure along the emblem/nameplate to uniformly bond the item to the mounting surface.
10. Remove the protective tape from the mounting surface.

Quarter Panel Emblem/Nameplate Replacement Impala

Tools Required

J 25070 Heat Gun

1. Apply tape for alignment marks to aid in the installation of the emblem/nameplate.
2. Use the tape to protect the mounting surface during removal.
3. Heat the emblem/nameplate using the J 25070 . Apply heat using a circular motion for about 30 seconds.




Notice: Use a plastic, flat-bladed tool to prevent paint damage when removing an emblem/name plate.

4. Use a plastic, flat-bladed tool to remove the emblem/nameplate from the panel surface.
5. When replacing a emblem/nameplate, remove all adhesive as follows:

•	For body panels use a 3M™ Scotch Brite molding adhesive remover disk 3M™ P/N 07502 or equivalent.

•	For plastic panels use a lint-free cloth and Varnish Makers and Painters (VMP) naptha or a 50/50 mixture by volume of isopropyl alcohol and water to remove the adhesive.

Important: Apply the emblem/nameplate in an environment that is free from dust or other dirt that could come into contact with the sticky backing. Foreign material may cause improper adhesion.

1. Ensure the area where the emblem/nameplate will be installed is clean and dry.



2. Apply tape and mark the location as shown for the left or right side Impala quarter panel emblem/nameplate.
3. Heat the mounting surface to approximately 27-41°C (80-105°F) using the J 25070 , if necessary.
4. Ensure that the temperature of the emblem/nameplate is approximately 29-32°C (85-90°F).

Important: Do not touch the adhesive backing of the emblem/nameplate.

5. Remove the protective liner from the back of the emblem/nameplate.
6. Position the emblem/name plate to the location marks and press the emblem/nameplate to the mounting surface.
7. Apply equal pressure along the emblem/nameplate to uniformly bond the item to the mounting surface.
8. Remove the protective tape from the mounting surface.
