Front Seat Cushion Cover Replacement Bucket Seat

1. Remove the front seat from the vehicle. Refer to Front Seat Replacement - Bucket .
2. Remove the front seat back. Refer to Front Seat Back Replacement .

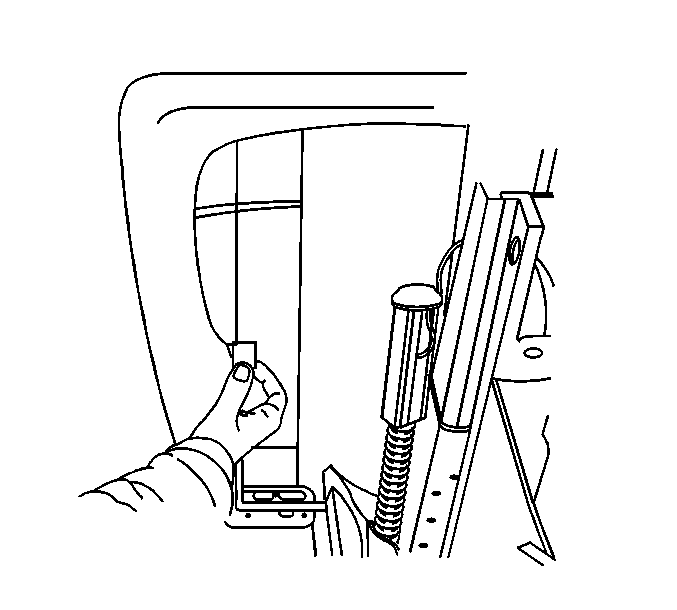

3. Remove the front seat outer trim bracket.

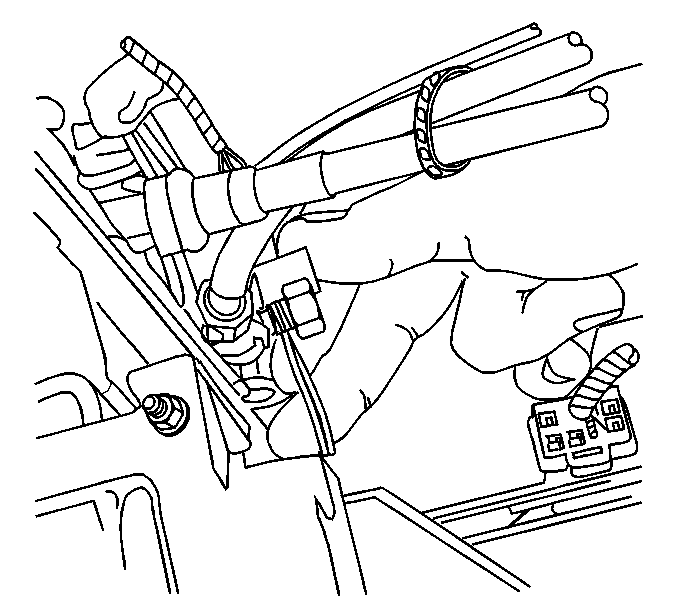

4. Disconnect the electrical connector for the heated seat, if equipped.

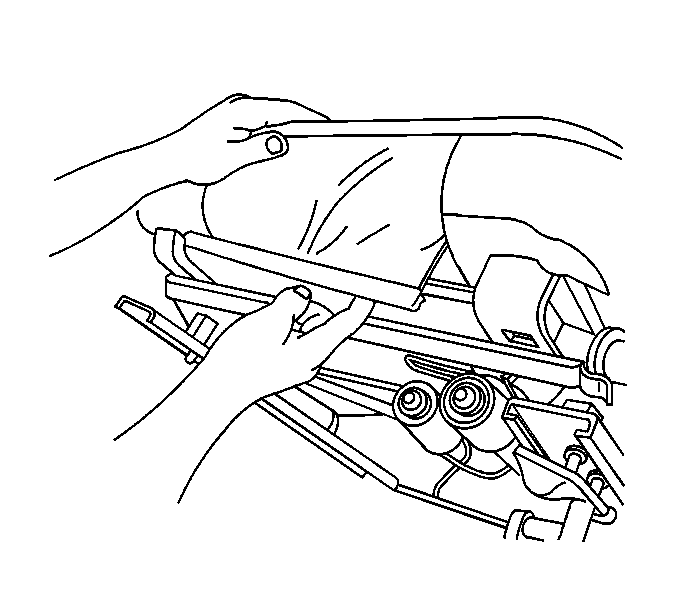

5. Unfasten the J-hook retainers on all sides of the front seat cushion cover.

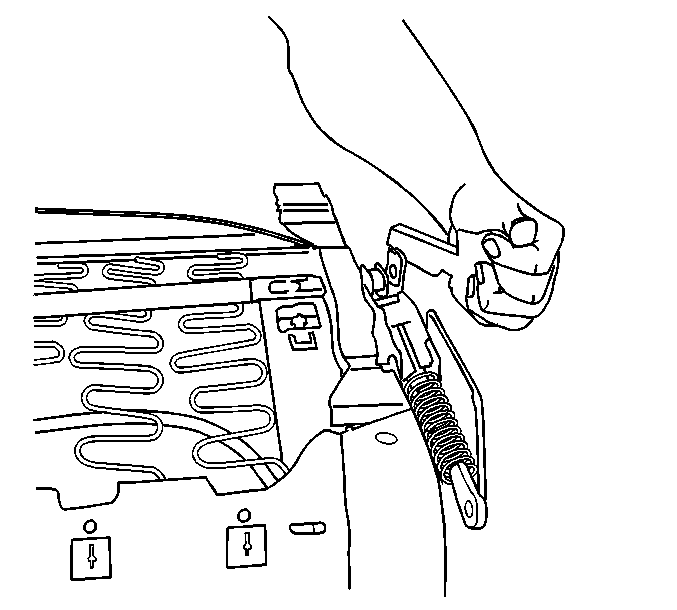

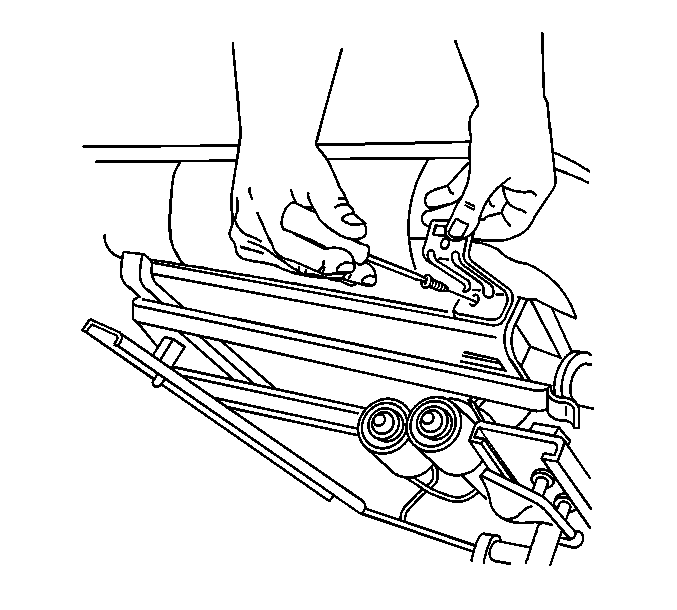

6. Remove the hog rings from the rear of the front seat cushion cover.

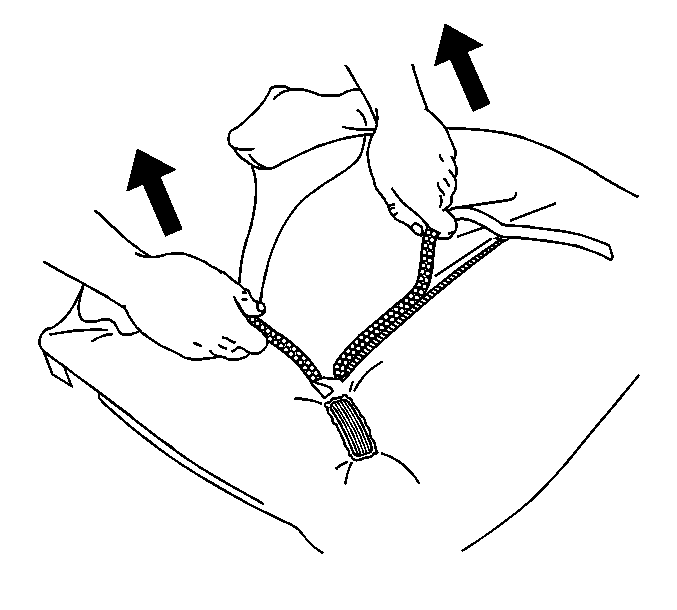

7. Unfasten the hook and the loop retainers securing the seat cushion cover to the cushion.



8. Remove the front seat cushion cover from the front seat cushion.



9. Remove the J-hook retainers from the front seat frame, if required.

1. Install the J-hook retainers to the front seat frame, if required.



2. Align the front seat cushion cover to the front seat cushion.



3. Install the seat cushion cover onto the front seat cushion.



4. Install the hog rings to the rear of the front seat cushion cover.



5. Fasten the J-hook retainers on all sides of the front seat cushion cover.



6. Fasten the hook and the loop retainers securing the seat cushion cover to the cushion, by pressing in place until fully seated.



7. Connect the electrical connector for the heated seat, if equipped.



8. Install the front seat outer trim bracket.
9. Install the front seat back. Refer to Front Seat Back Replacement .
10. Install the front seat to the vehicle. Refer to Front Seat Replacement - Bucket .

Front Seat Cushion Cover Replacement Split Bench

1. Remove the front seat from the vehicle. Refer to Split Bench Seat Replacement .
2. Remove the front seat armrest from the front seat. Refer to Front Seat Armrest Replacement .
3. Remove the front seat back. Refer to Front Seat Back Replacement .



4. Remove the front seat outer trim bracket.



5. Disconnect the electrical connector for the heated seat, if equipped.



6. Unfasten the J-hook retainers on all sides of the front seat cushion cover.



7. Unfasten the retainers from the seat frame on the bottom of the front seat cushion.
8. Unfasten the retainer from the front seat frame at the seat belt.



9. Remove the hog rings from the rear of the front seat cushion cover.



10. Unfasten the hook and the loop retainers securing the front seat cushion cover to the cushion.



11. Remove the front seat cushion cover from the front seat cushion.



12. Remove the J-hook retainers from the front seat frame, if required.

1. Install the J-hook retainers to the front seat frame, if required.



2. Align the front seat cushion cover to the front seat cushion.



3. Install the front seat cushion cover onto the front seat cushion.



4. Install the hog rings to the rear of the front seat cushion cover.



5. Fasten the J-hook retainers on all sides of the front seat cushion cover.



6. Fasten the retainers to the front seat frame on the bottom of the front seat cushion.
7. Fasten the retainer to the front seat frame at the seat belt.



8. Fasten the hook and the loop retainers securing the front seat cushion cover to the cushion, by pressing in place until fully seated.



9. Connect the electrical connector for the heated seat, if equipped.



10. Install the front seat outer trim bracket.
11. Install the front seat armrest from the front seat. Refer to Front Seat Armrest Replacement .
12. Install the front seat back. Refer to Front Seat Back Replacement .
13. Install the front seat to the vehicle. Refer to Split Bench Seat Replacement .
