Makes 🢒 Chevrolet 🢒 2003 🢒 Monte Carlo 🢒 Body and Accessories 🢒 Seats 🢒 Driver or Passenger Seat Recliner Handle Replacement

Removal Procedure

    Object Number: 522228 Size: SH
  1. Use a small flat-bladed tool in order to release the snap-ring retainer from the base of the front seat back recliner handle.
  2. Remove the seat back recliner handle from the front seat.

Installation Procedure

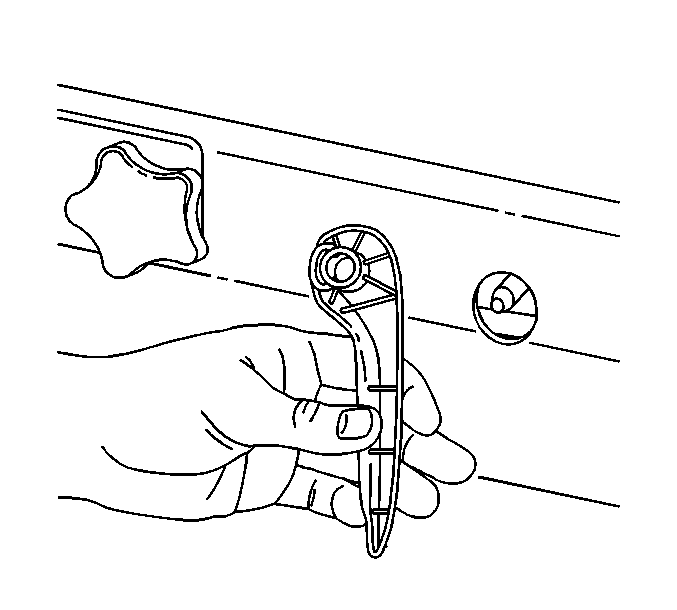

    Object Number: 522212 Size: SH
  1. Install the snap-ring retainer to the base of the front seat back recliner handle.

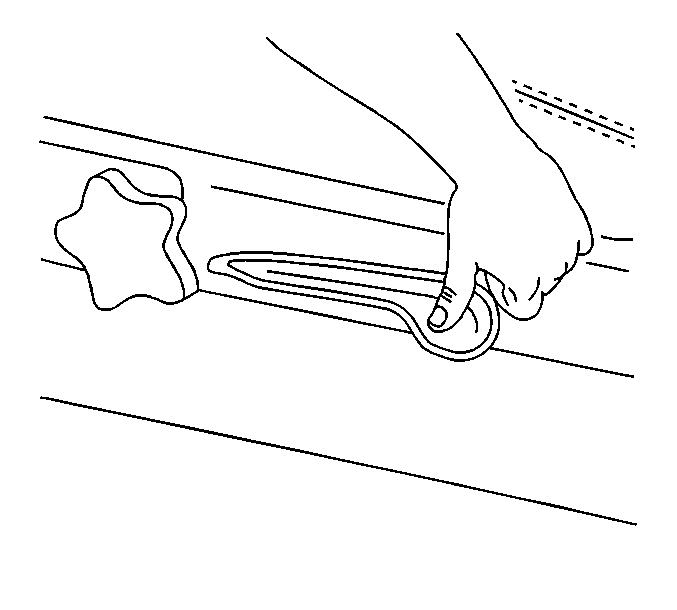

    2. Object Number: 523662 Size: SH
  2. Install the front seat back recliner handle to the front seat, pressing into place until fully seated.
