Evaporative Emission Canister Purge Solenoid Valve Replacement L36

Removal Procedure
  1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement in Engine Mechanical - 3.8L.

    2. Object Number: 486596 Size: SH
  2. Disconnect the evaporative emission (EVAP) canister purge valve electrical connector.
  3. Disconnect the EVAP canister purge valve purge pipe and vacuum supply hose.

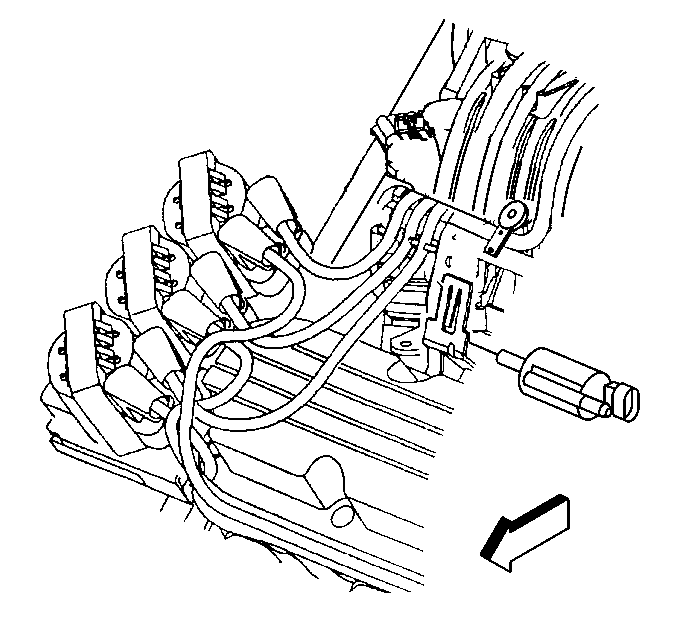

    4. Object Number: 217748 Size: SH
  4. Release the retaining tab on the EVAP canister purge mounting bracket and remove the EVAP canister purge valve.

Installation Procedure

    Object Number: 217748 Size: SH
  1. Install the EVAP canister purge valve onto the EVAP canister purge valve mounting bracket.

    2. Object Number: 486596 Size: SH
  2. Connect the EVAP canister purge valve purge pipe and vacuum supply hose.
  3. Connect the EVAP canister purge valve harness connector.
  4. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement in Engine Mechanical - 3.8L.

Evaporative Emission Canister Purge Solenoid Valve Replacement L67

Removal Procedure
  1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement in Engine Mechanical - 3.8L.

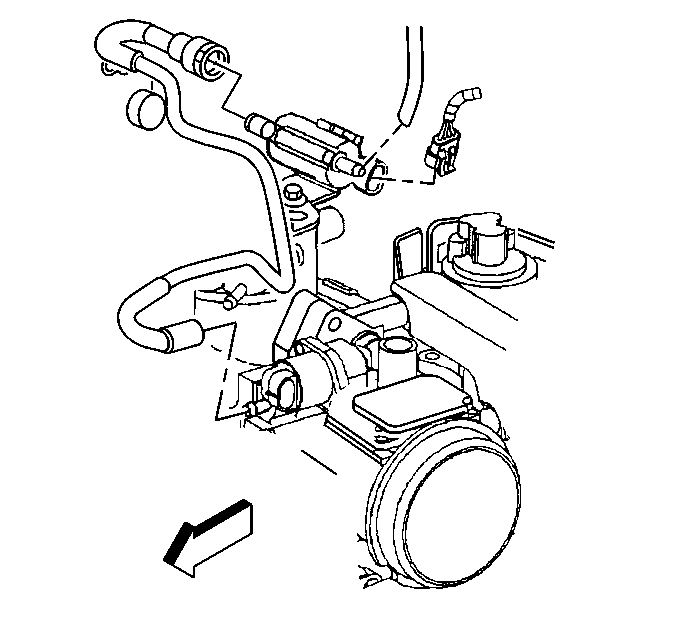

    2. Object Number: 217753 Size: SH
  2. Disconnect the evaporative emission (EVAP) canister purge valve electrical connector.
  3. Disconnect the EVAP canister purge valve purge pipe and the vacuum supply hose.

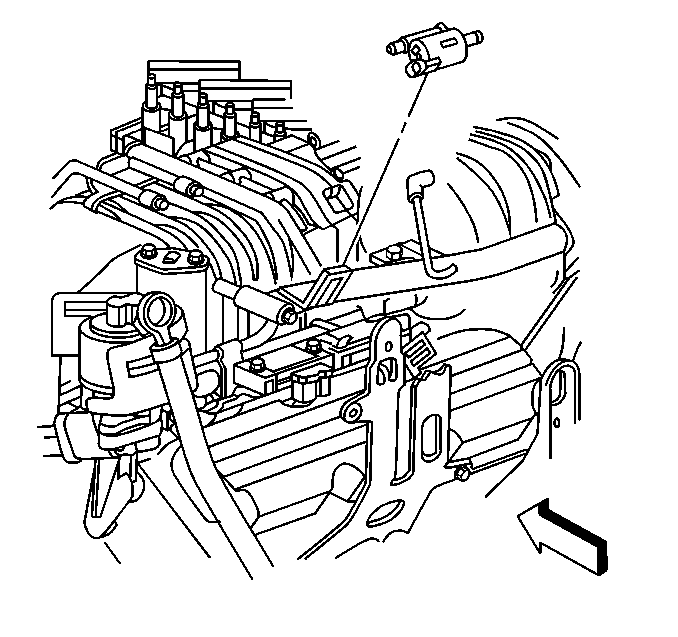

    4. Object Number: 217755 Size: SH
  4. Release the tab on the EVAP canister purge valve mounting bracket and remove the EVAP canister purge valve.

Installation Procedure

    Object Number: 217755 Size: SH
  1. Install the EVAP canister purge valve on the EVAP canister purge valve mounting bracket.

    2. Object Number: 217753 Size: SH
  2. Connect the EVAP canister purge valve purge pipe and the vacuum supply hose.
  3. Connect the EVAP canister purge valve electrical connector.
  4. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement in Engine Mechanical - 3.8L.
