| Figure 1: |

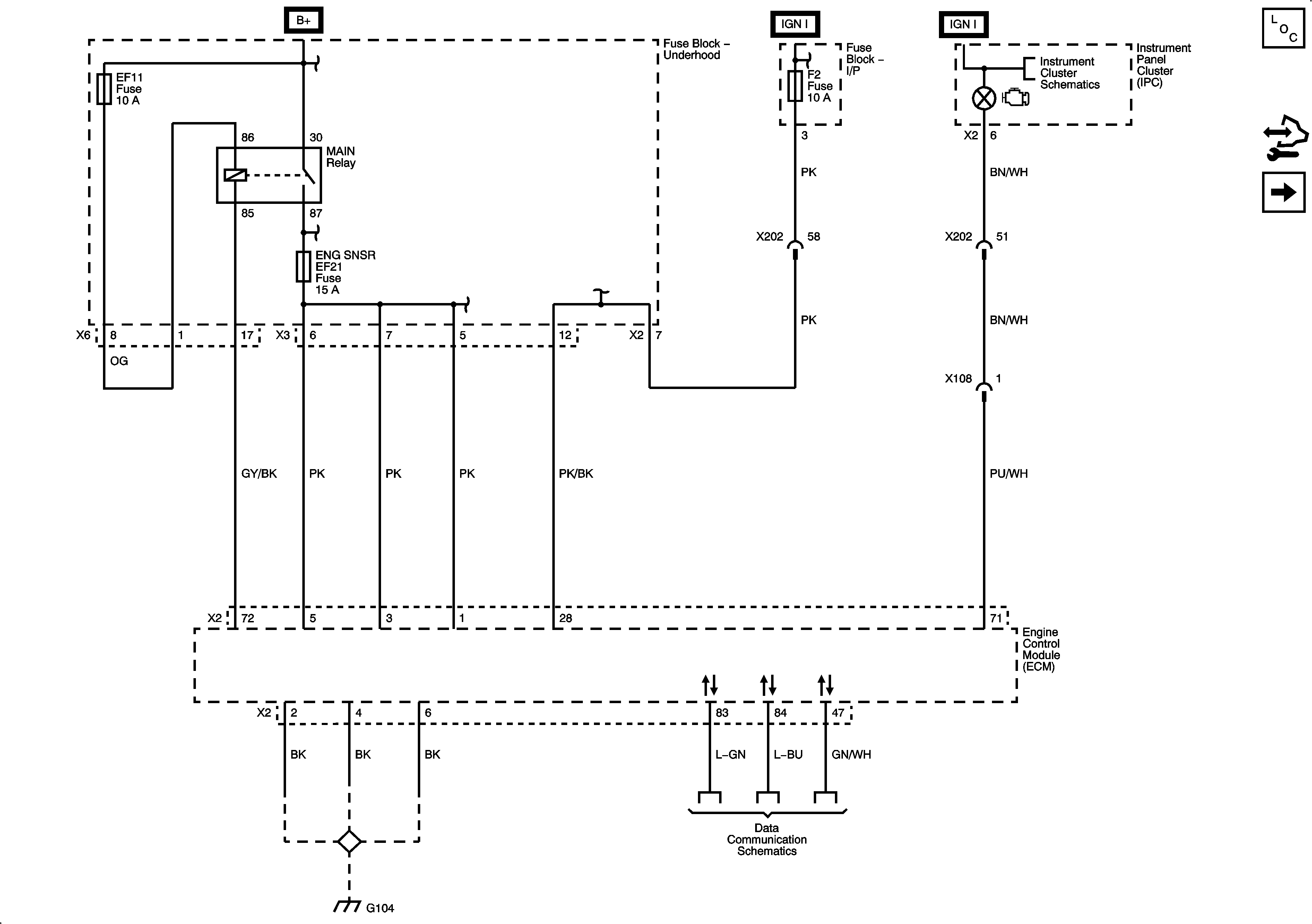

ECM Power and Ground, Serial Data, MIL Control
|
| Figure 2: |

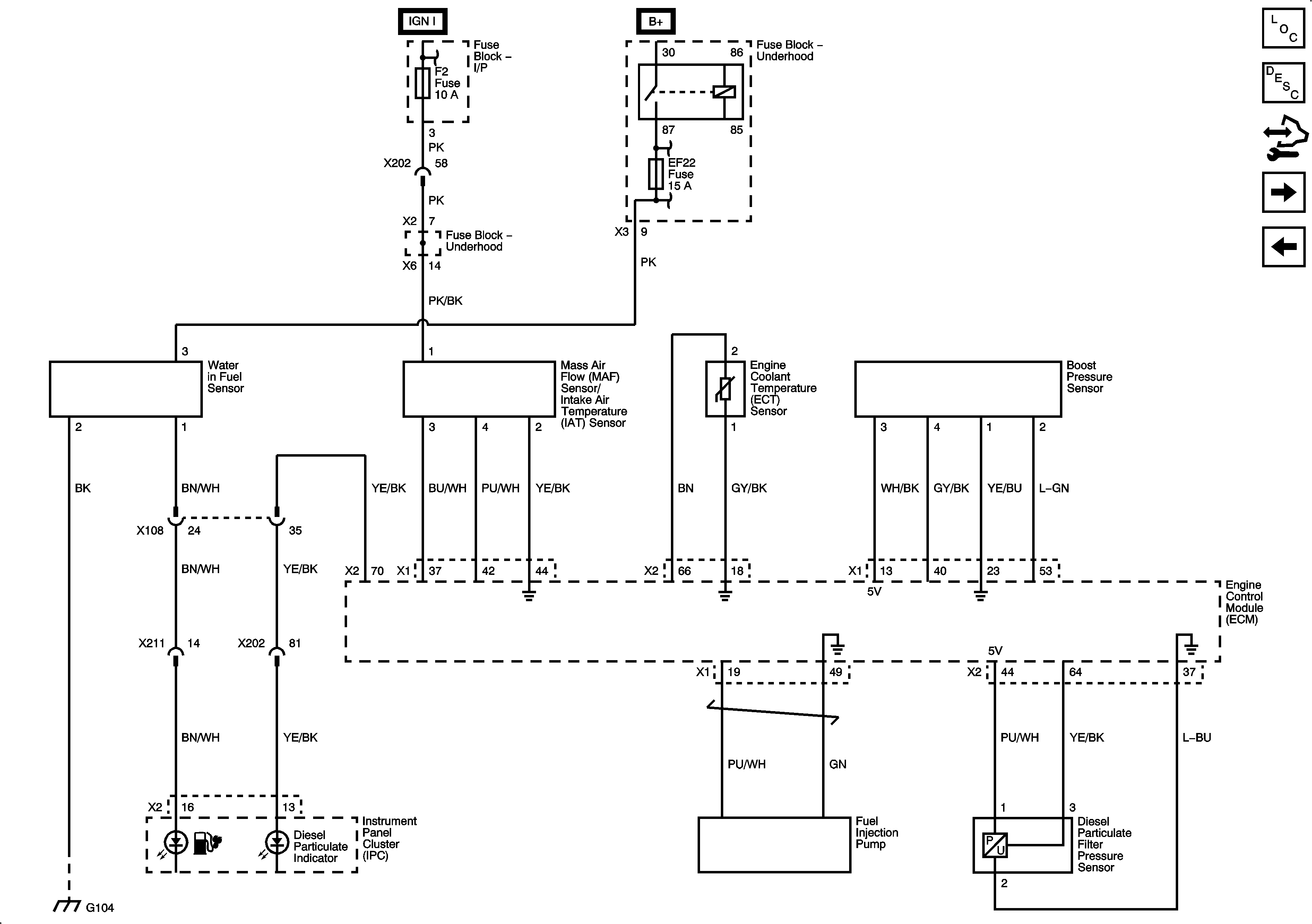

Water in Fuel, MAF, IAT, ECT, Boost Pressure, Refrigerant Pressure Sensors, Fuel Injection Pump
|
| Figure 3: |

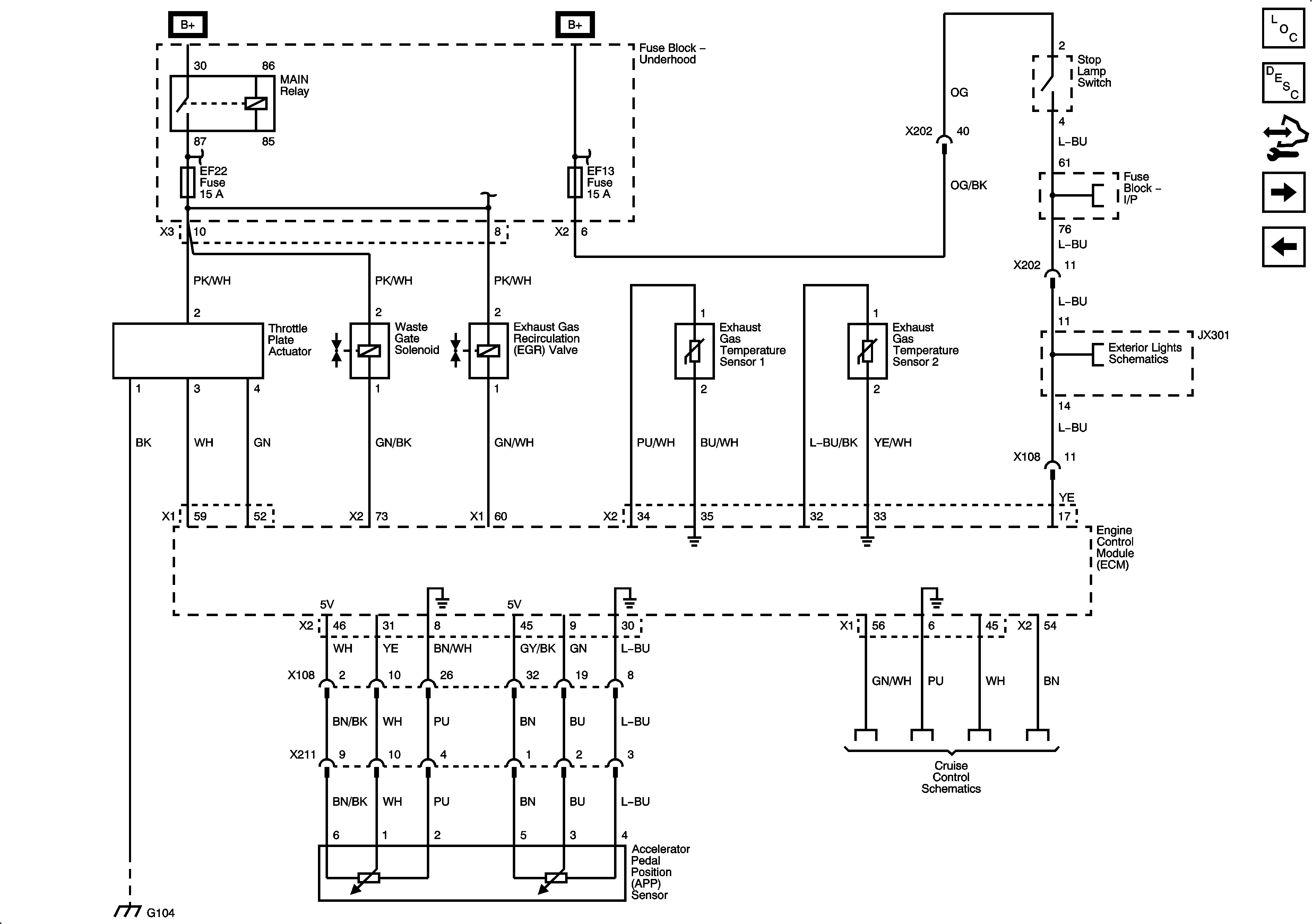

Throttle Plate Actuator, APP Sensor, EGR Valve, Exhaust Gas Temperature Sensors, Waste Gate Solenoid
|
| Figure 4: |
Glow Plug Control, CKP, CMP Sensors, Clutch Start Switch
|
| Figure 5: |
Fuel Pump
|
| Figure 6: |

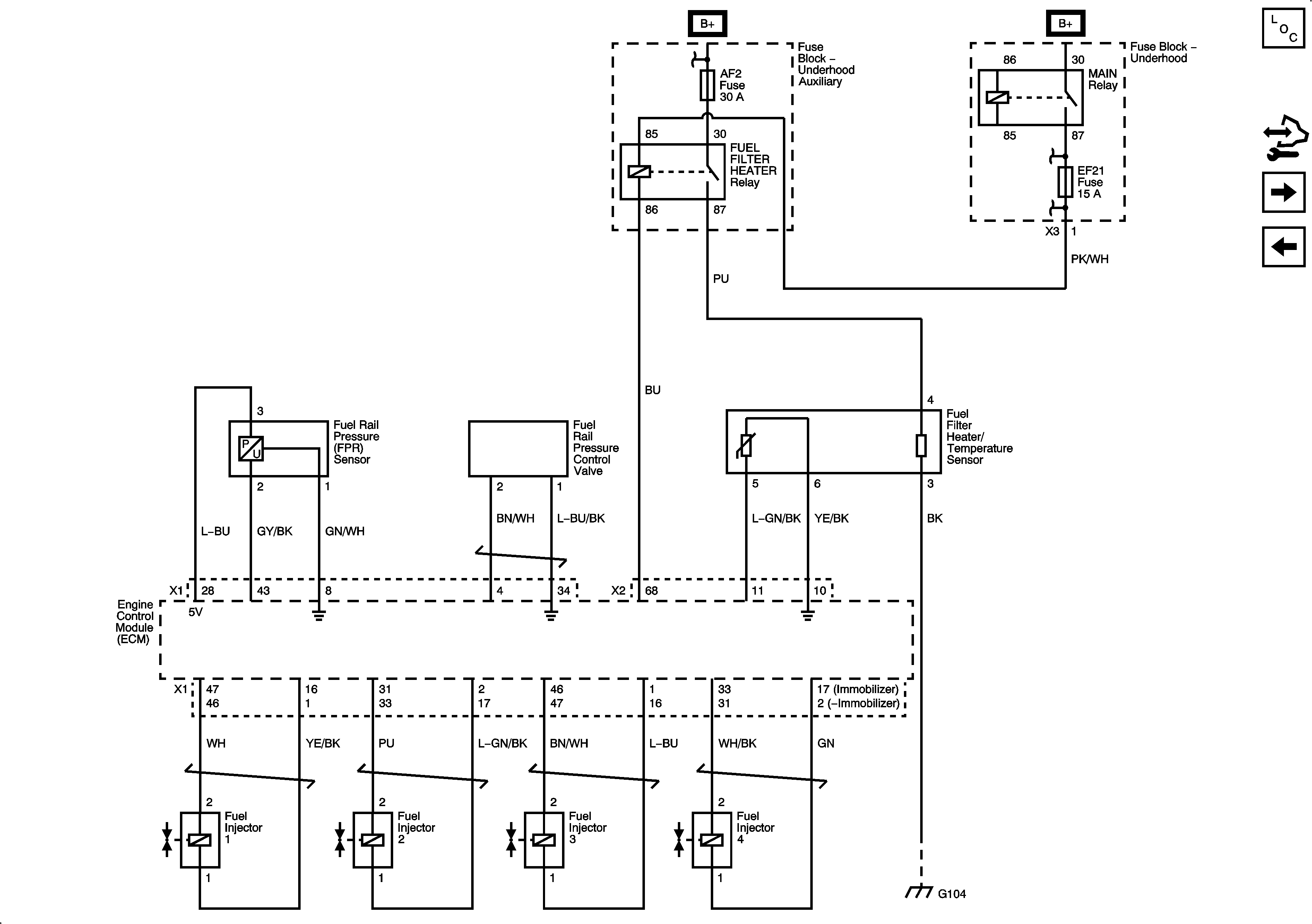

Fuel Rail Pressure Sensor and Control Valve, Fuel Filter Heater/Temperature Sensor, Fuel Injectors
|
| Figure 7: |
PTC Heater
|
| Figure 8: |

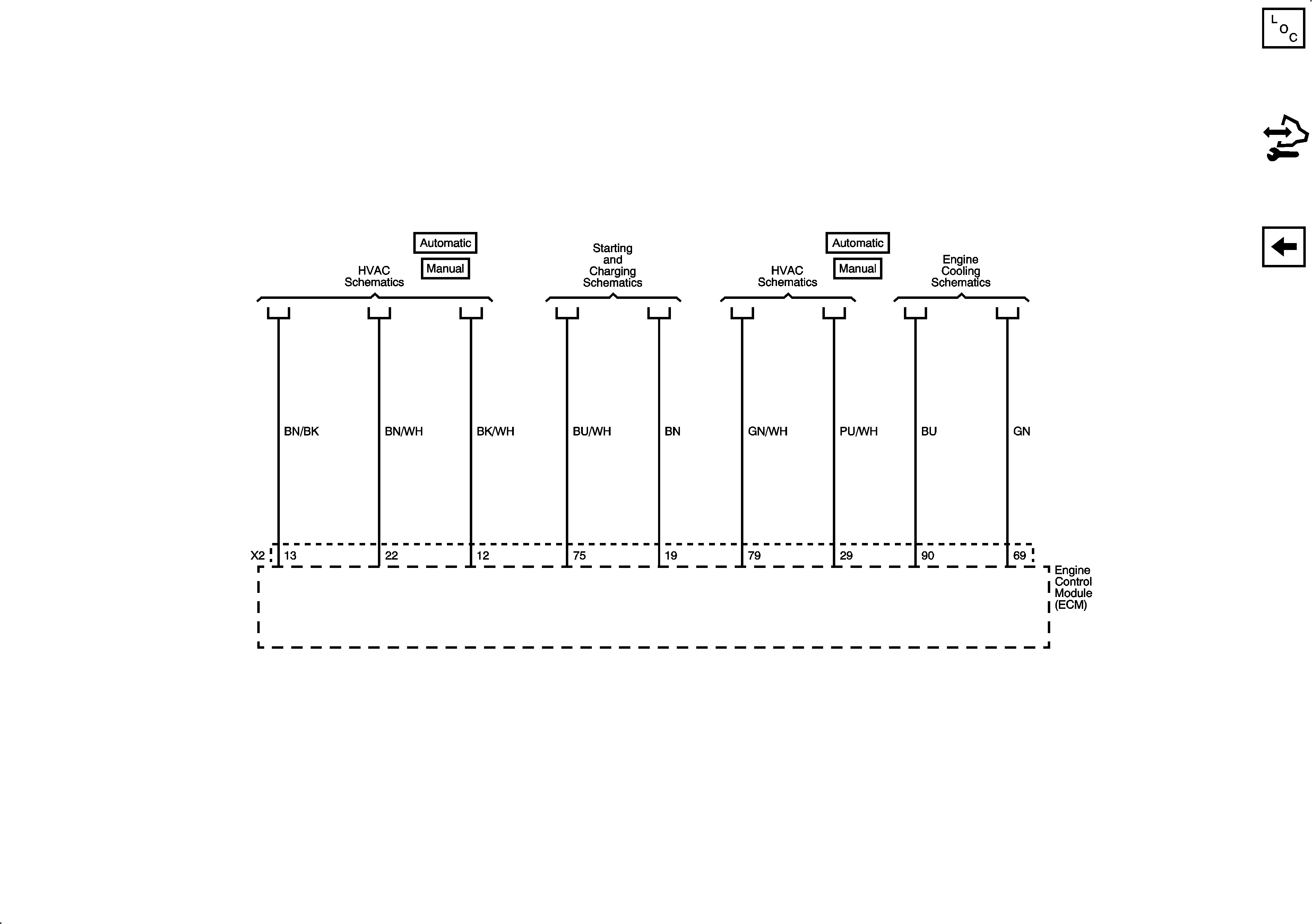

Controlled/Monitored Subsystem References
|
