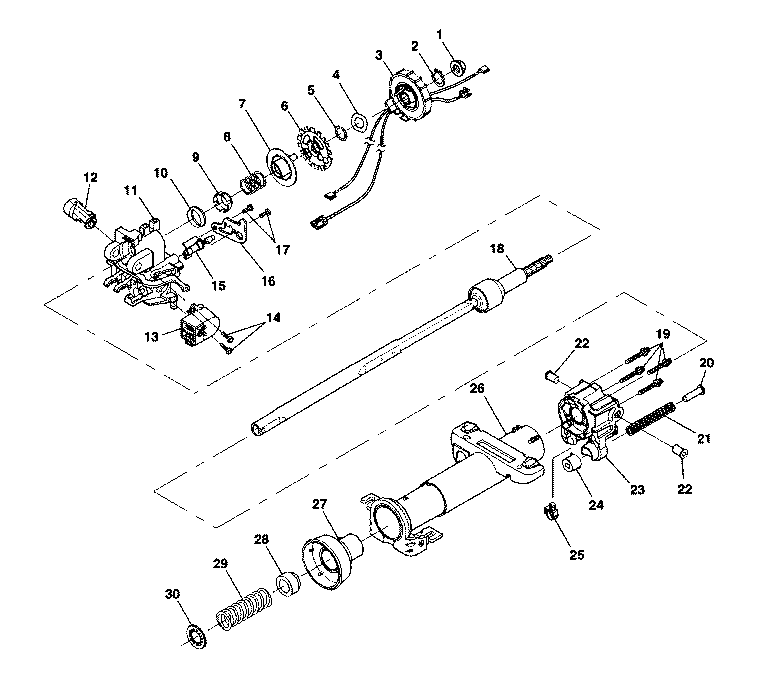

| (1) | Flanged Prevailing Torque Nut |
| (2) | Snap Ring |
| (3) | Inflatable Restraint Steering Wheel
Module Coil |
| (4) | Wave Washer |
| (5) | Bearing Retainer |
| (6) | Shaft Lock |
| (7) | Turn Signal
Cancel Cam Assembly |
| (8) | Upper Bearing Spring |
| (9) | Upper Bearing Inner Race Seat |
| (10) | Inner
Race |
| (11) | Bearing and Housing Assembly |
| (12) | Ignition Lock Actuator Assembly |
| (13) | Ignition
Switch Assembly |
| (14) | Tapping Screw |
| (15) | Lock Bolt Assembly |
| (16) | Lock Bolt Support
Bracket |
| (17) | Tapping Screw |
| (18) | Steering Column Shaft Assembly |
| (19) | Support Screw |
| (20) | Spring Guide |
| (21) | Wheel Tilt Spring |
| (22) | Pivot Pin |
| (22) | Pivot Pin |
| (23) | Steering Column Support Assembly |
| (24) | Spring Retainer |
| (25) | Wire Restraint Clip |
| (26) | Steering Column Jacket Assembly |
| (27) | Adapter and Bearing Assembly |
| (28) | Lower Bearing Seat |
| (29) | Lower Bearing Spring |
| (30) | Lower Spring
Retainer |
