Power Distribution Schematics. Chevrolet Prizm 2000

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Prizm 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Power Distribution Schematics

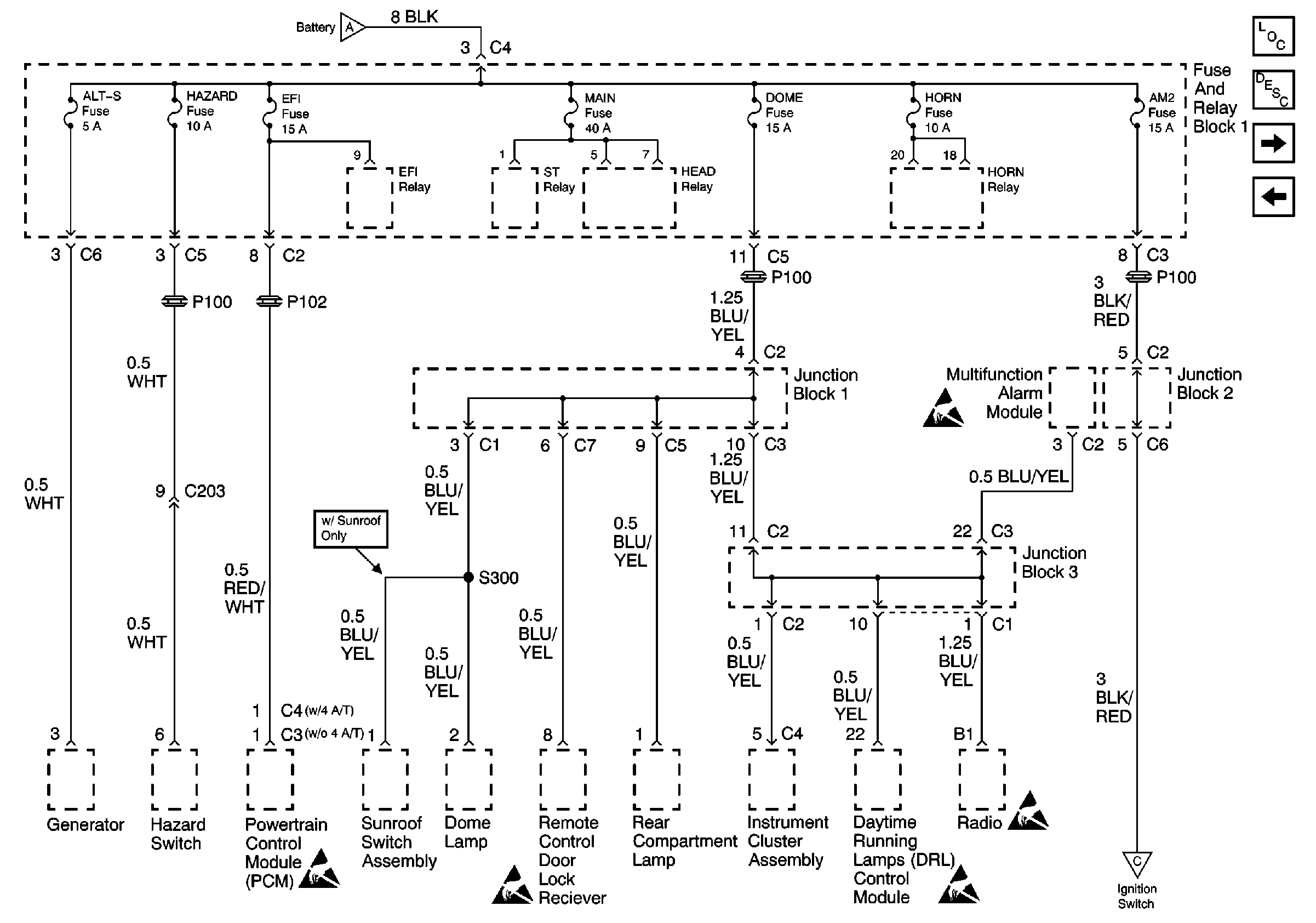

Figure 1:	ABS, Alt, AM1, Def, D/L, ECU-B, HTR, OBD, Power, and Stop Fuses Power and Grounding Components Alt-S, AM2, Dome, EFI, Hazard, Horn, and Main Fuses Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

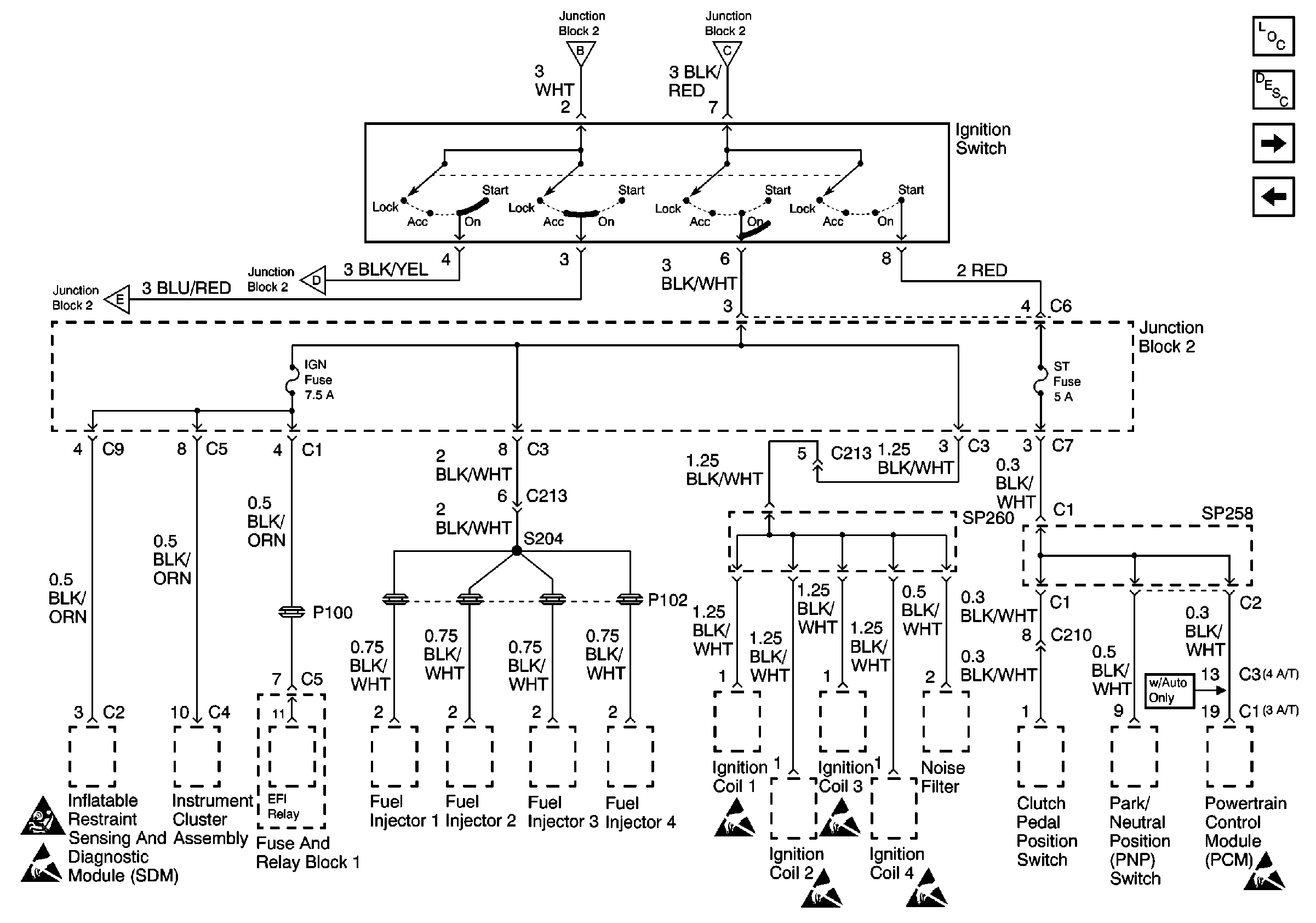

Figure 2:	Alt-S, AM2, Dome, EFI, Hazard, Horn, and Main Fuses Power and Grounding Components Ignition Switch, IGN Fuse, and ST Fuse ABS, Alt, AM1, Def, D/L, ECU-B, HTR, OBD, Power, and Stop Fuses Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 3:	Ignition Switch, IGN Fuse, and ST Fuse Power and Grounding Components Alt-S, AM2, Dome, EFI, Hazard, Horn, and Main Fuses CIG Fuse Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice SIR Caution
Figure 4:	CIG Fuse Power and Grounding Components ECU-IG, Turn, WIP Fuse Ignition Switch, IGN Fuse, and ST Fuse Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice SIR Caution
Figure 5:	ECU-IG, Turn, WIP Fuse Power and Grounding Components Gauge Fuse CIG Fuse Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

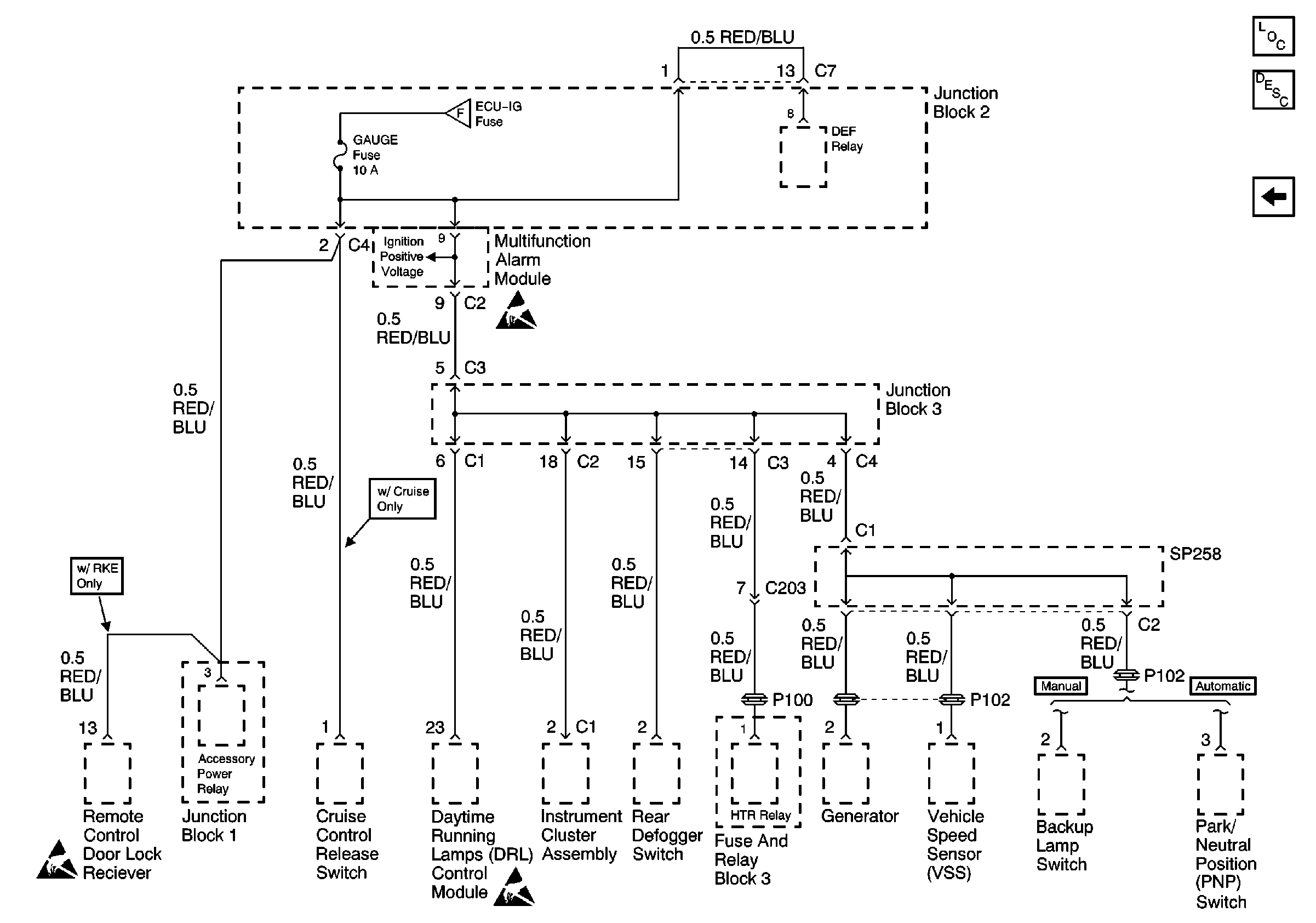

Figure 6:	Gauge Fuse Power and Grounding Components ECU-IG, Turn, WIP Fuse Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
