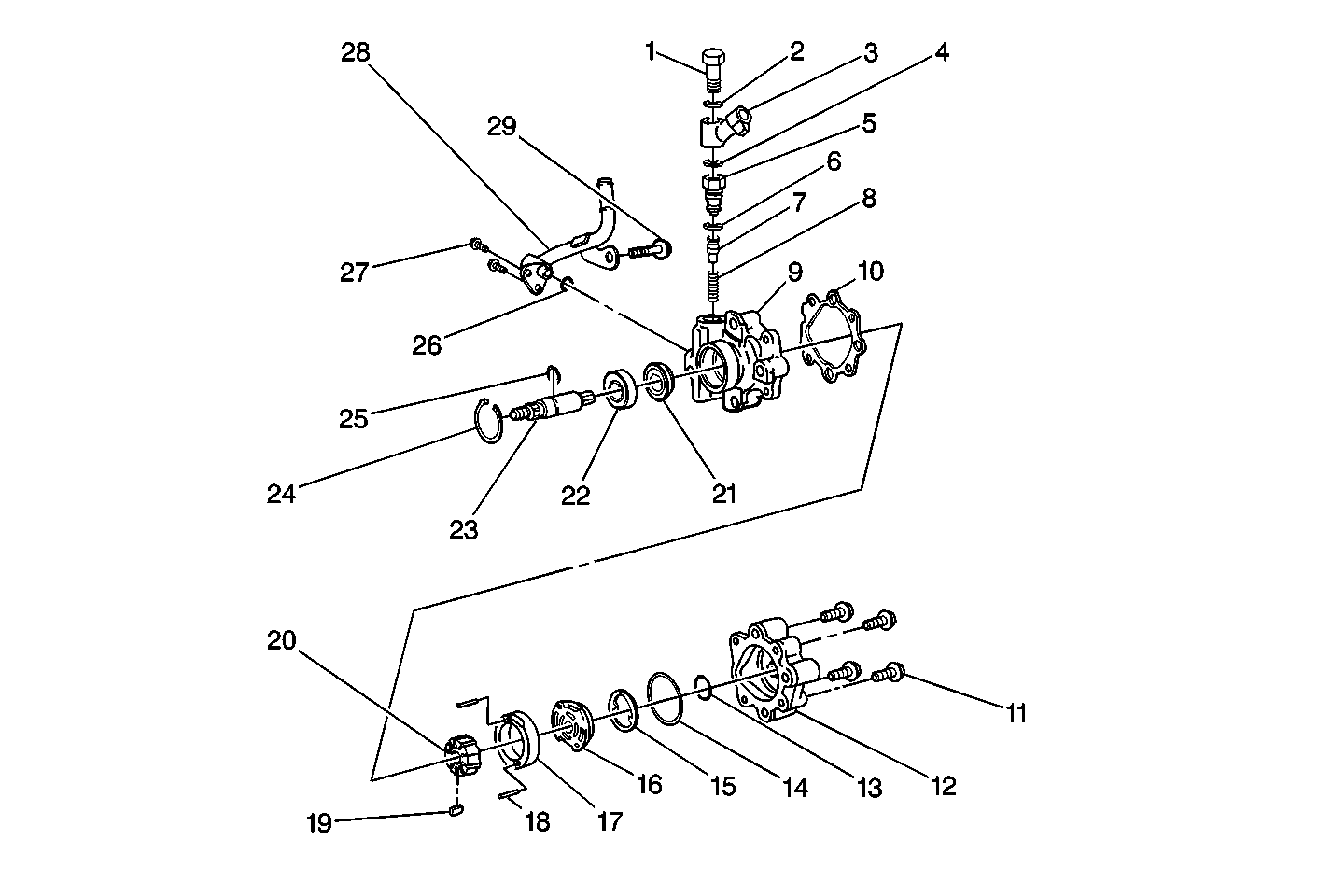

| (1) | Power Steering Pump Inlet Pipe Fitting |
| (2) | Power Steering Pump Inlet Pipe Fitting Gasket |
| (3) | Power Steering Pump Inlet Tube |
| (4) | Power Steering Pump Inlet Pipe Fitting Gasket |
| (5) | Power Steering Pump Fitting |
| (6) | Power Steering Pump Fitting Seal |
| (7) | Power Steering Pump Flow Control Valve |
| (8) | Power Steering Pump Spring |
| (9) | Power Steering Pump Front Housing |
| (10) | Power Steering Pump Housing Gasket |
| (11) | Power Steering Pump Bolt |
| (12) | Power Steering Pump Rear Housing |
| (13) | Power Steering Pump Pressure Plate
Seal |
| (14) | Power Steering Pump Pressure Plate Seal |
| (15) | Power Steering Pump Pressure Plate
Washer |
| (16) | Power Steering Pump Pressure Plate |
| (17) | Power Steering Pump Ring |
| (18) | Power Steering Pump Ring Pin |
| (19) | Power Steering Pump Vane |
| (20) | Power Steering
Pump Rotor |
| (21) | Power Steering Pump Shaft Seal |
| (22) | Power Steering Pump Shaft Bearing |
| (23) | Power Steering Pump Shaft |
| (24) | Power Steering Pump Shaft Bearing Retainer Ring |
| (25) | Power Steering Pump Shaft Retainer Ring |
| (26) | Power Steering Pump Inlet Tube Seal |
| (27) | Power Steering Pump Inlet Tube Bolt |
| (28) | Power Steering Pump Inlet Tube |
| (29) | Power
Steering Pump Inlet Tube Bolt |
