A/C Inoperative (Repair Wires and Reroute Harness)
| Subject: | A/C Inoperative (Repair Wires and Reroute Harness) |
| Models: | 2000 Chevrolet and GMC S Truck Models |
| With 2.2L Engine (VIN 4 -- RPO LN2) |
| Built at Shreveport Assembly Plant (Plant Code 8) and Prior to VIN Breakpoint Y8302995 |
Condition
Some customers may comment on no A/C.
Cause
This condition may be caused by the A/C compressor clutch coil wire being pinched between the coolant outlet pipe and the air cleaner resonator assembly, resulting in damage to the wires.
Correction
Repair any damaged wires. Reroute the A/C compressor clutch coil and engine coolant temperature (ECT) sensor wire harnesses to a new location. Use the procedure listed below.
- Remove the air cleaner outlet resonator. Refer to the Engine Controls sub-section of the Service Manual for removal procedures.

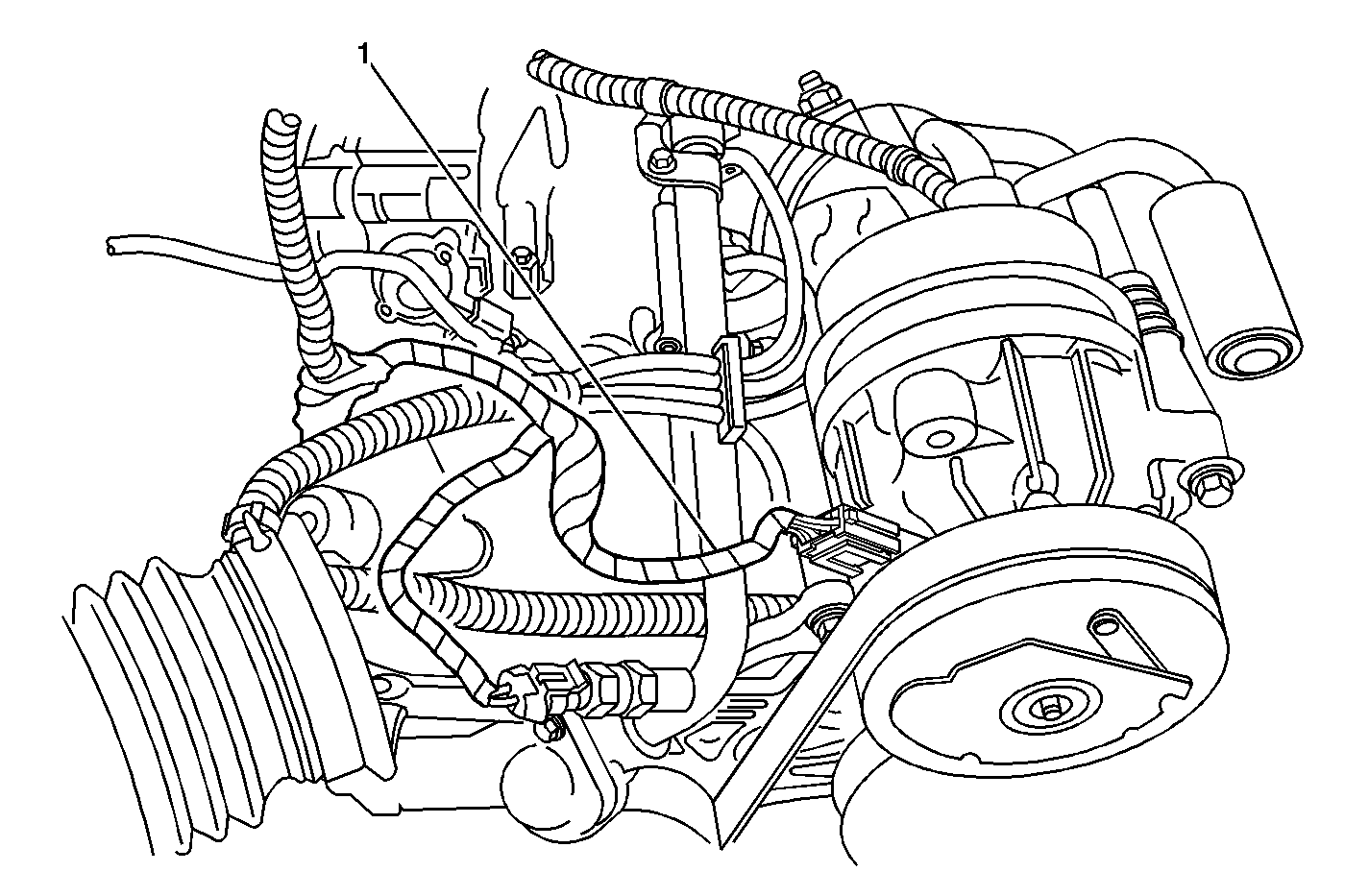

- Inspect the harness at the pinched location (1) and repair any damaged wires. Refer to Wiring Repairs in the Wiring Systems sub-section of the Service Manual.

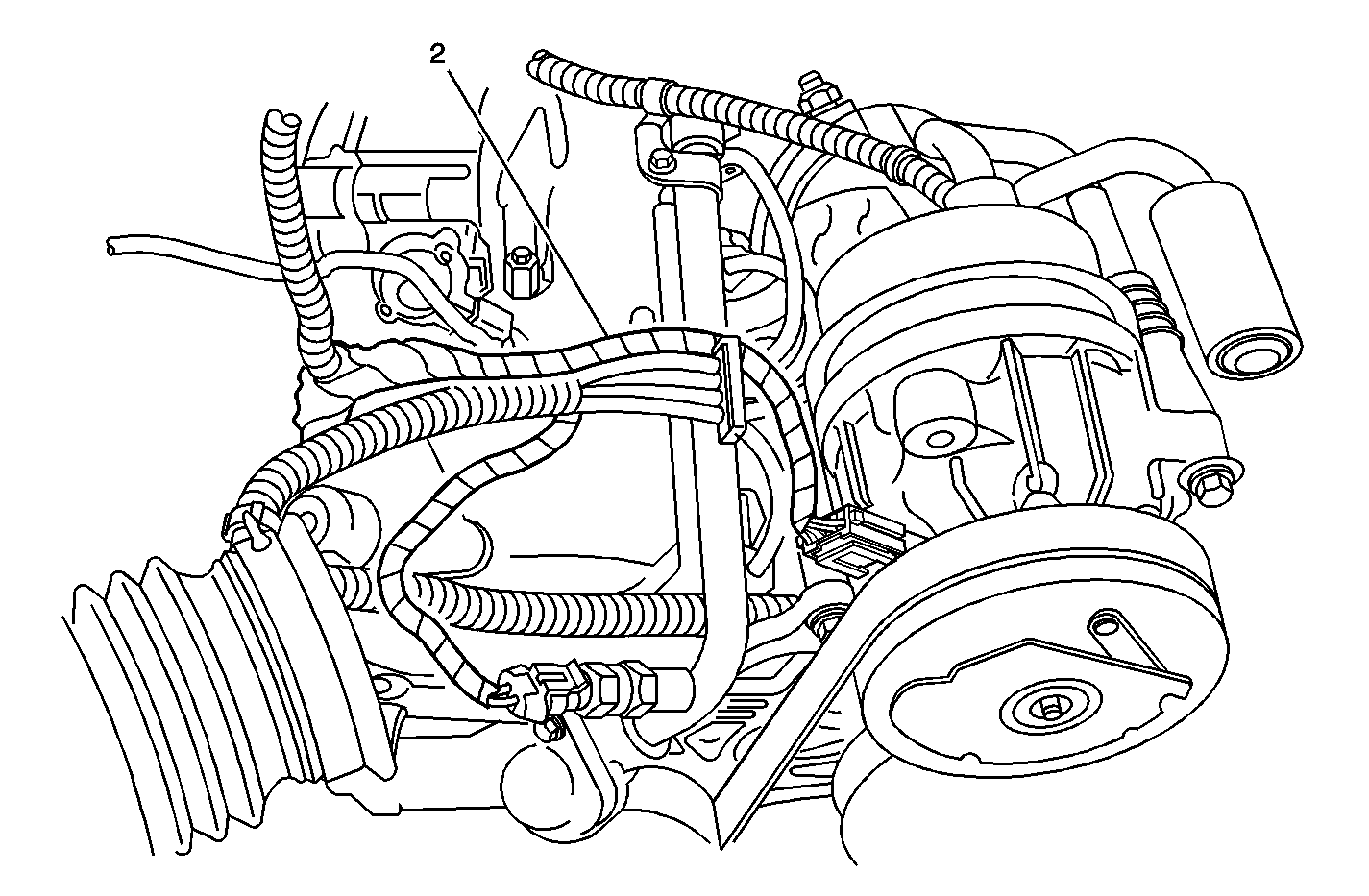

- Reroute the harness to the new location (2).
- Install the air cleaner outlet resonator. Refer to the Engine Controls sub-section of the Service Manual for installation procedures.
| • | Disconnect the A/C compressor clutch coil connector. |
| • | Route the harness over the coolant outlet pipe and run the harness along the back side of the spark plug wire hold down. |
| • | Reconnect the A/C compressor clutch coil connector. |
| • | Disconnect the ECT sensor connector. |
| • | Route the harness underneath the spark plug wires and reconnect the ECT sensor connector. |
Warranty Information
For vehicles repaired under warranty, use:
Labor Operation | Description | Labor Time |
|---|---|---|
N6642 | HVAC System, Wiring and/or Connector - Repair | Use published labor operation time |
In Other Labor Hours, add 0.3 hr for removal and installation of the air cleaner resonator. Authorization required. | ||
