Makes 🢒 Chevrolet 🢒 2003 🢒 S10 Pickup - 2WD 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Vanity Mirror Lamp Replacement

Removal Procedure

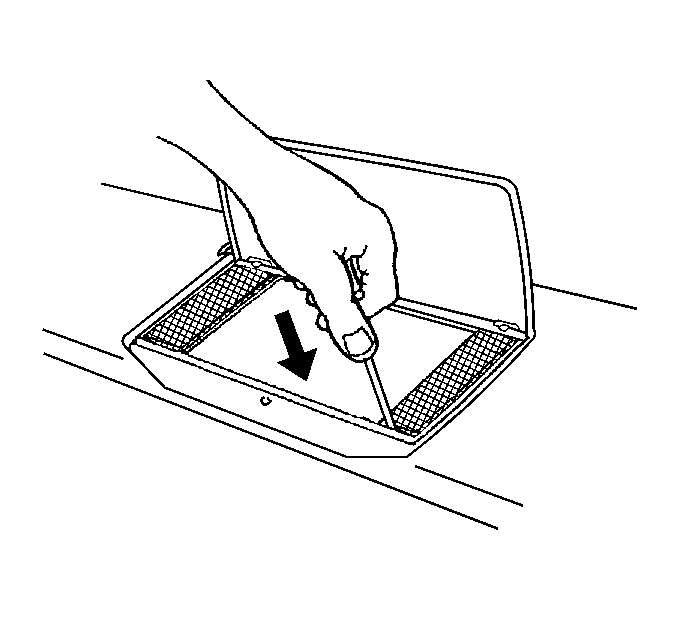

    Object Number: 293834 Size: SH
  1. Perform the following steps in order to remove the lens from the sunshade:
    2. 1.1. Insert a flat-bladed tool into the center slot at the bottom of the lens.
    1.2. Gently pry downward in order to lift out the lens.
  2. Pry out the bulb.

Installation Procedure
  1. Press in the new bulb.

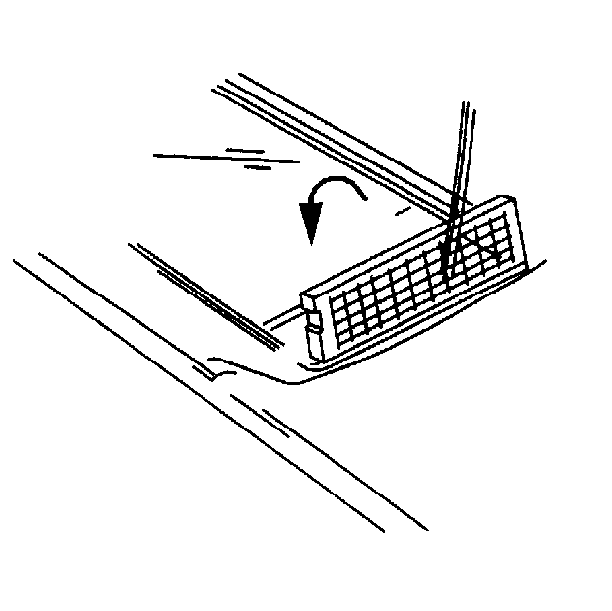

    2. Object Number: 3998 Size: SH
  2. Perform the following steps in order to install the lens:
    3. 2.1. Slide the side tabs of the lens under the side of the vanity assembly frame.
    2.2. Rotate the lens downward.
    2.3. Snap the lens into the frame.
