Exterior Lights Schematics. Chevrolet S10 Pickup

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2003 🢒 S10 Pickup - 4WD 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Exterior Lights Schematics

Figure 1:	Center High Mounted Stop Lamp Master Electrical Component List Exterior Lighting Systems Description and Operation Multifunction Switch and Turn Signal Lamp Flasher B+ Bus Bar Stop, Turn and Hazard Bus Bar G102 - Except Export VECHMSL, TRCHMSL Fuses and CHMSL Relay G202 - Pickup Except Crew Cab G420, G450 and S427 - Utility and Crew Cab Tail, Stop and License Lamps - Export Multifunction Switch and Turn Signal Lamp Flasher
Figure 2:	Multifunction Switch and Turn Signal Lamp Flasher Master Electrical Component List Exterior Lighting Systems Description and Operation Instrument Cluster Turn Signal Indicators Center High Mounted Stop Lamp Center High Mounted Stop Lamp B+ Bus Bar Ign RUN and START Bus Bar Instrument Cluster Turn Signal Indicators Turn Signal Fuses G205 - Utility and Crew Cab G205 - Utility and Crew Cab
Figure 3:	Instrument Cluster Turn Signal Indicators Master Electrical Component List Exterior Lighting Systems Description and Operation Turn Signal Fuses Multifunction Switch and Turn Signal Lamp Flasher Park/Turn Signal Lamps, Marker Lamps and Turn Signal Fuses, Front Multifunction Switch and Turn Signal Lamp Flasher Park/Turn Signal Lamps, Marker Lamps and Turn Signal Fuses, Front Multifunction Switch and Turn Signal Lamp Flasher G203 and G204 - Pickup G203 and G204 - Utility w/Manual A/C G203 and G204 - Pickup
Figure 4:	Turn Signal Fuses Master Electrical Component List Exterior Lighting Systems Description and Operation Park/Turn Signal Lamps, Marker Lamps and Turn Signal Fuses, Front Instrument Cluster Turn Signal Indicators Multifunction Switch and Turn Signal Lamp Flasher Park and License Lamps, Rear - Utility Park/Turn Signal Lamp, Marker and License Lamps, Rear - Pickup Park and License Lamps, Rear - Utility Park/Turn Signal Lamp, Marker and License Lamps, Rear - Pickup
Figure 5:	Park/Turn Signal Lamps, Marker Lamps and Turn Signal Fuses, Front Master Electrical Component List Exterior Lighting Systems Description and Operation Park Lamp Control Turn Signal Fuses Instrument Cluster Turn Signal Indicators Park/Turn Signal Lamp, Marker and License Lamps, Rear - Pickup Park and License Lamps, Rear - Utility Tail, Stop and License Lamps - Export G111 and G112 - Except Export G111 and G112 - Export FR PRK, LR PRK, RR PRK Fuses and Fog Lamp Relay - Pickup
Figure 6:	Park Lamp Control Master Electrical Component List Exterior Lighting Systems Description and Operation Park/Turn Signal Lamp, Marker and License Lamps, Rear - Pickup Park/Turn Signal Lamps, Marker Lamps and Turn Signal Fuses, Front B+ Bus Bar ILLUM, STG WHL ILLUM, and PARK LP Fuses Headlamp Switch Headlamp Switched Interior Lamps Park/Turn Signal Lamp, Marker and License Lamps, Rear - Pickup Park and License Lamps, Rear - Utility Tail, Stop and License Lamps - Export
Figure 7:	Park/Turn Signal Lamp, Marker and License Lamps, Rear - Pickup Master Electrical Component List Exterior Lighting Systems Description and Operation Park and License Lamps, Rear - Utility Park Lamp Control Park Lamp Control Park/Turn Signal Lamps, Marker Lamps and Turn Signal Fuses, Front FR PRK, LR PRK, RR PRK Fuses and Fog Lamp Relay - Pickup G402, G422 and G475 - Fleetside Pickup G402, G422 and G475 - Fleetside Pickup Turn Signal Fuses
Figure 8:	Park and License Lamps, Rear - Utility Master Electrical Component List Exterior Lighting Systems Description and Operation Tail, Stop and License Lamps - Export Park/Turn Signal Lamp, Marker and License Lamps, Rear - Pickup Park Lamp Control FR PRK, LR PRK, RR PRK Fuses and Fog Lamp Relay - Pickup Park/Turn Signal Lamps, Marker Lamps and Turn Signal Fuses, Front Turn Signal Fuses Turn Signal Fuses G420, G450 and S427 - Utility and Crew Cab G402 and G421 - Utility
Figure 9:	Tail, Stop and License Lamps - Export Master Electrical Component List Exterior Lighting Systems Description and Operation Backup Lamps - Utility Park and License Lamps, Rear - Utility Park Lamp Control FR PRK, LR PRK, RR PRK Fuses and Fog Lamp Relay - Pickup Park/Turn Signal Lamps, Marker Lamps and Turn Signal Fuses, Front Center High Mounted Stop Lamp S313 and S419 S320 and S420 G420, G450 and S427 - Utility and Crew Cab G402 and G421 - Utility

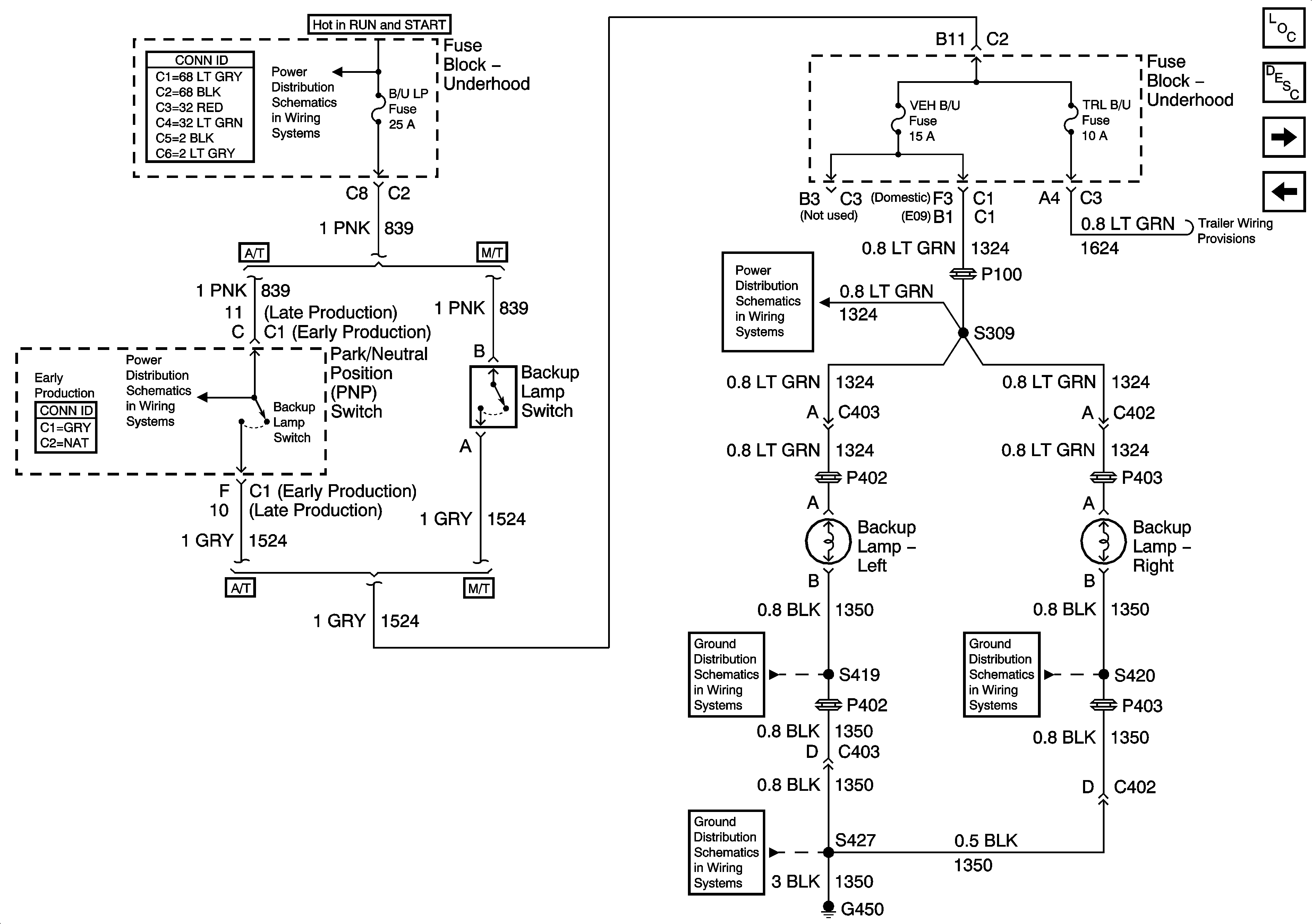

Figure 10:	Backup Lamps - Utility Master Electrical Component List Exterior Lighting Systems Description and Operation Backup Lamps - Pickup Tail, Stop and License Lamps - Export Ign RUN and START Bus Bar B/U LP, TRL B/U and BTSI Fuses - Automatic Transmission B/U LP, TRL B/U and BTSI Fuses - Automatic Transmission S313 and S419 G420, G450 and S427 - Utility and Crew Cab S320 and S420

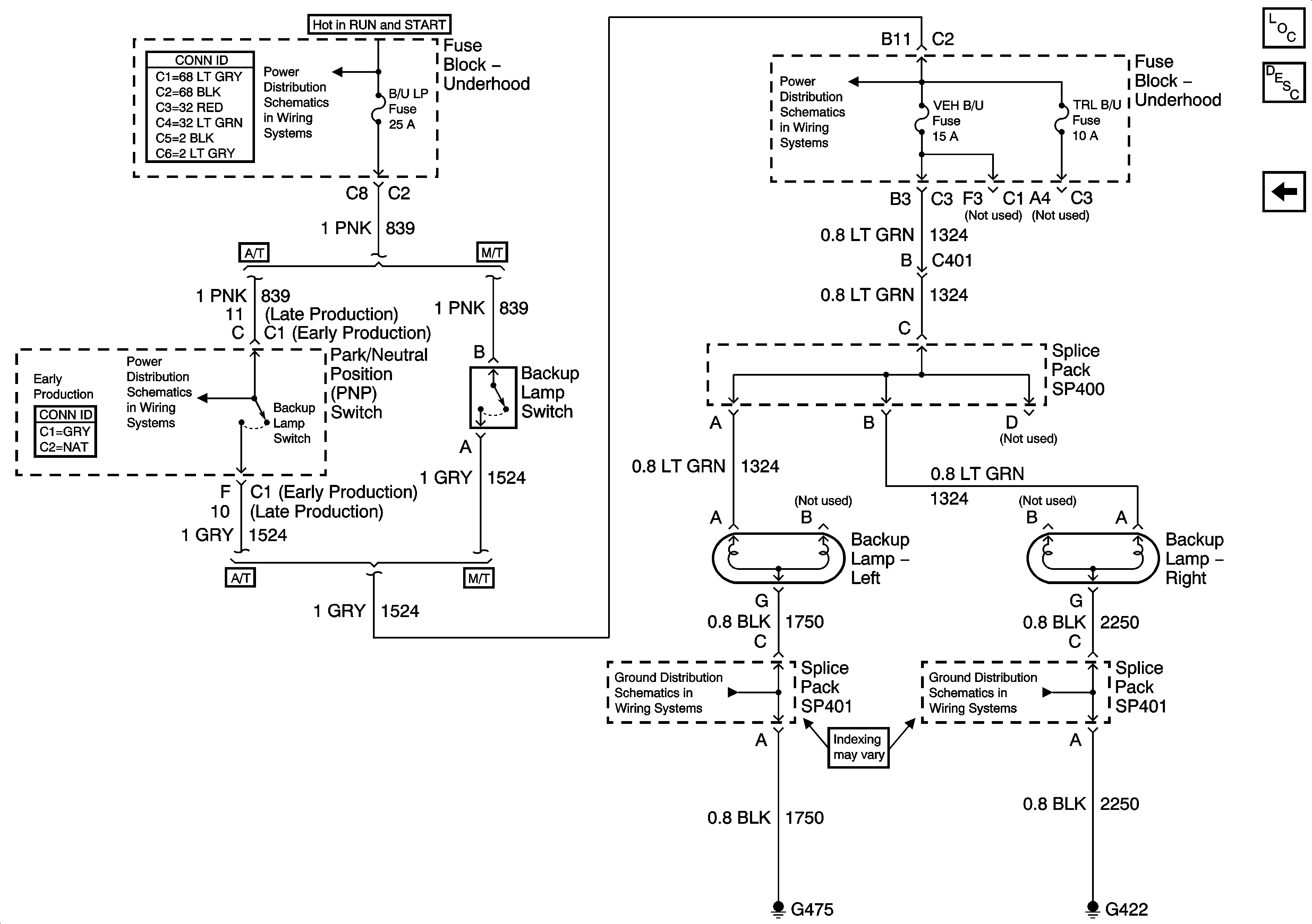

Figure 11:	Backup Lamps - Pickup Master Electrical Component List Exterior Lighting Systems Description and Operation Backup Lamps - Utility Ign RUN and START Bus Bar B/U LP, TRL B/U and BTSI Fuses - Automatic Transmission B/U LP, TRL B/U and BTSI Fuses - Automatic Transmission G402, G422 and G475 - Fleetside Pickup G402, G422 and G475 - Fleetside Pickup
