Makes 🢒 Chevrolet 🢒 1999 🢒 S10 - Electric 🢒 Steering 🢒 Power Steering System 🢒 Electro Hydraulic Power Steering Components Views

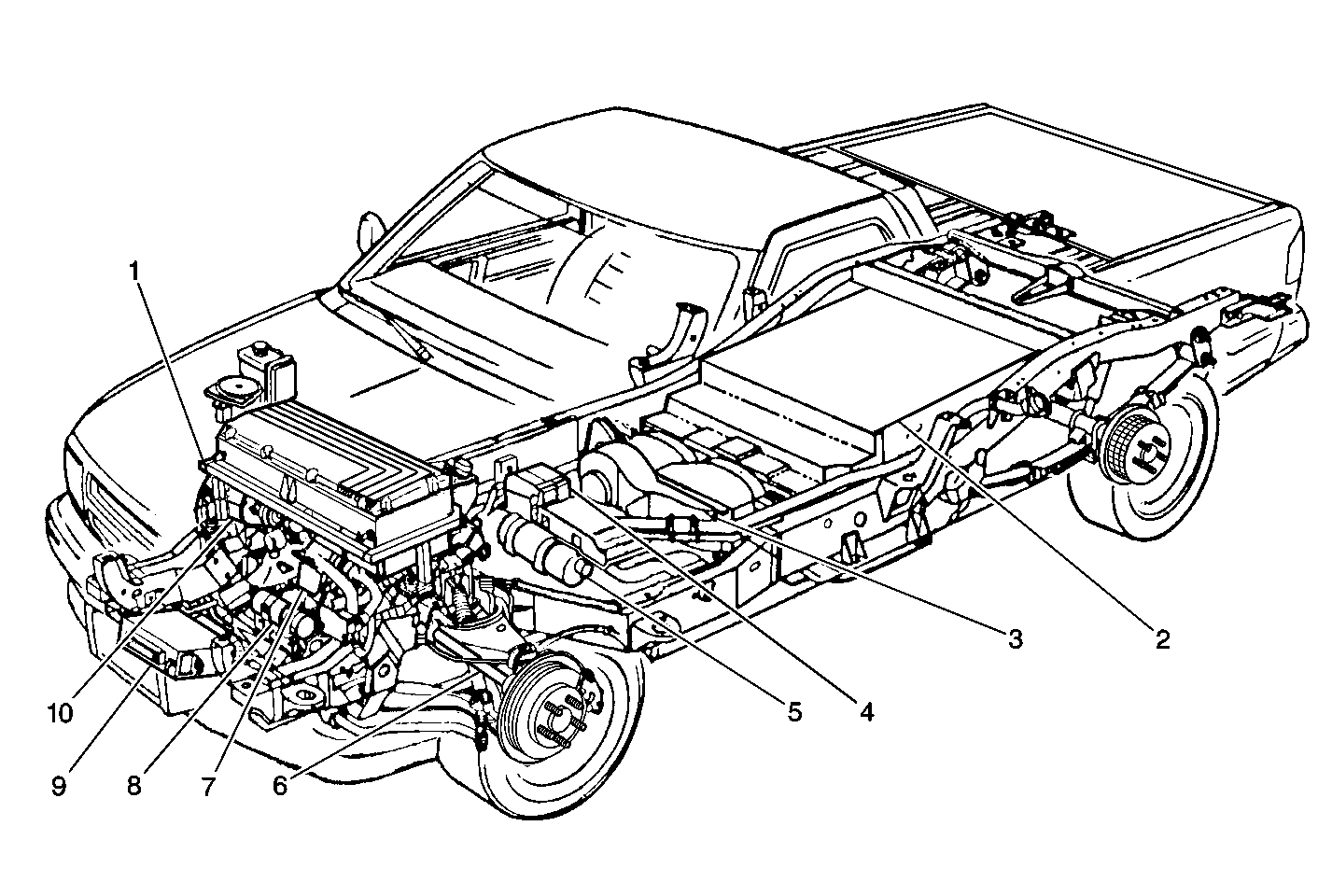

Figure 1:

Vehicle Side View
Object Number: 363611 Size: MF
(1)Power Electronics Bay (PEB)
(2)Drive Motor Battery Assembly
(3)Battery Thermal Module
(4)Auxiliary Heater Assembly
(5)P/B Booster Vacuum Switch
(6)Front Drive Shaft
(7)Drive Motor Assembly
(8)Coolant Pump
(9)Charge Receptacle
(10)Power Steering Pump Motor

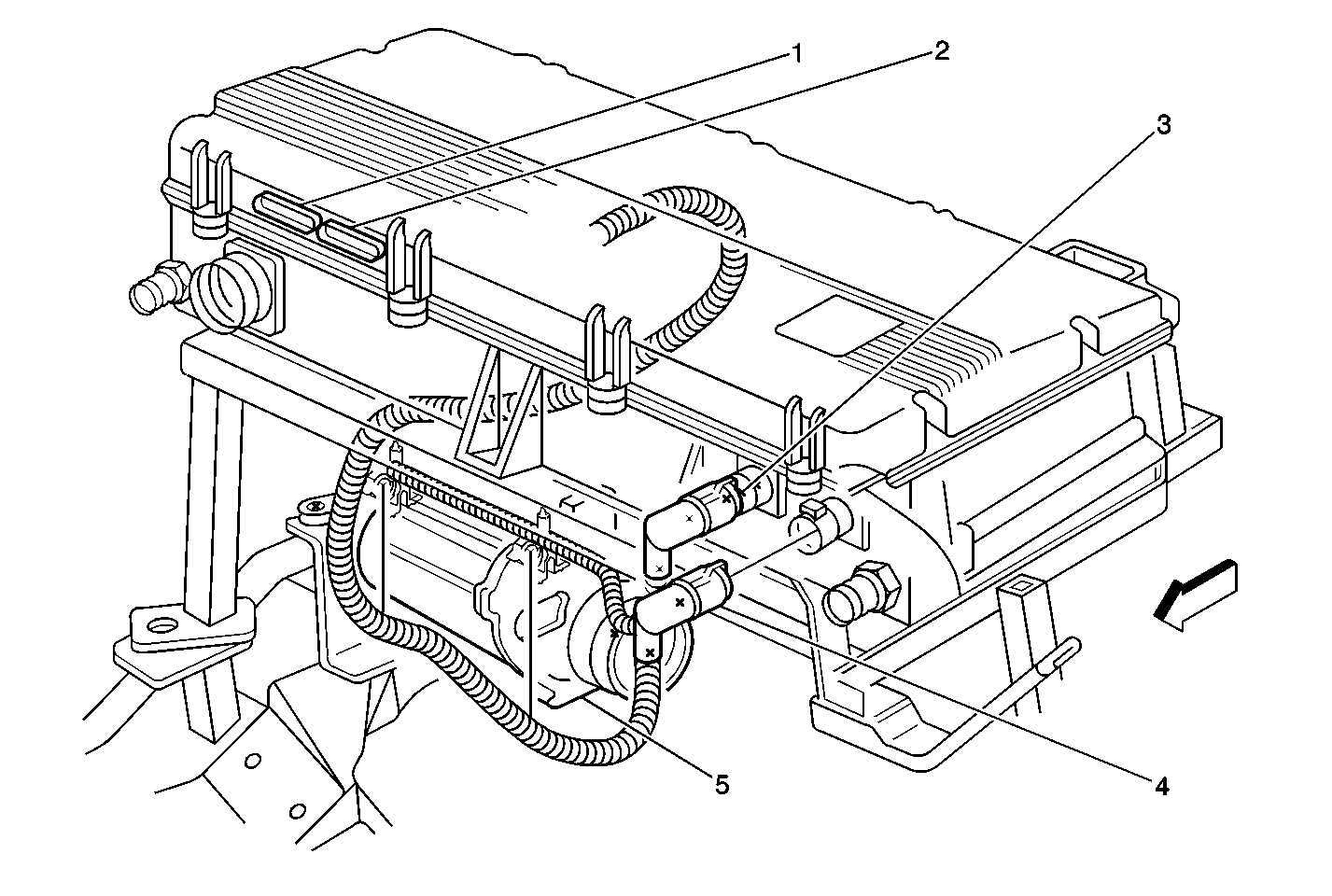

Figure 2:

Power Inverter Module (PIM) and Power Steering Pump
Object Number: 397723 Size: MF
(1)Power Inverter Module - C1
(2)Power Inverter Module - C2
(3)A/C Compressor High Voltage Connector
(4)Power Steering High Voltage Connector
(5)Power Steering Pump
