Harness Routing Views. Chevrolet SSR 2005

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2005 🢒 SSR 🢒 Engine 🢒 Engine Controls - 6.0L 🢒 Harness Routing Views

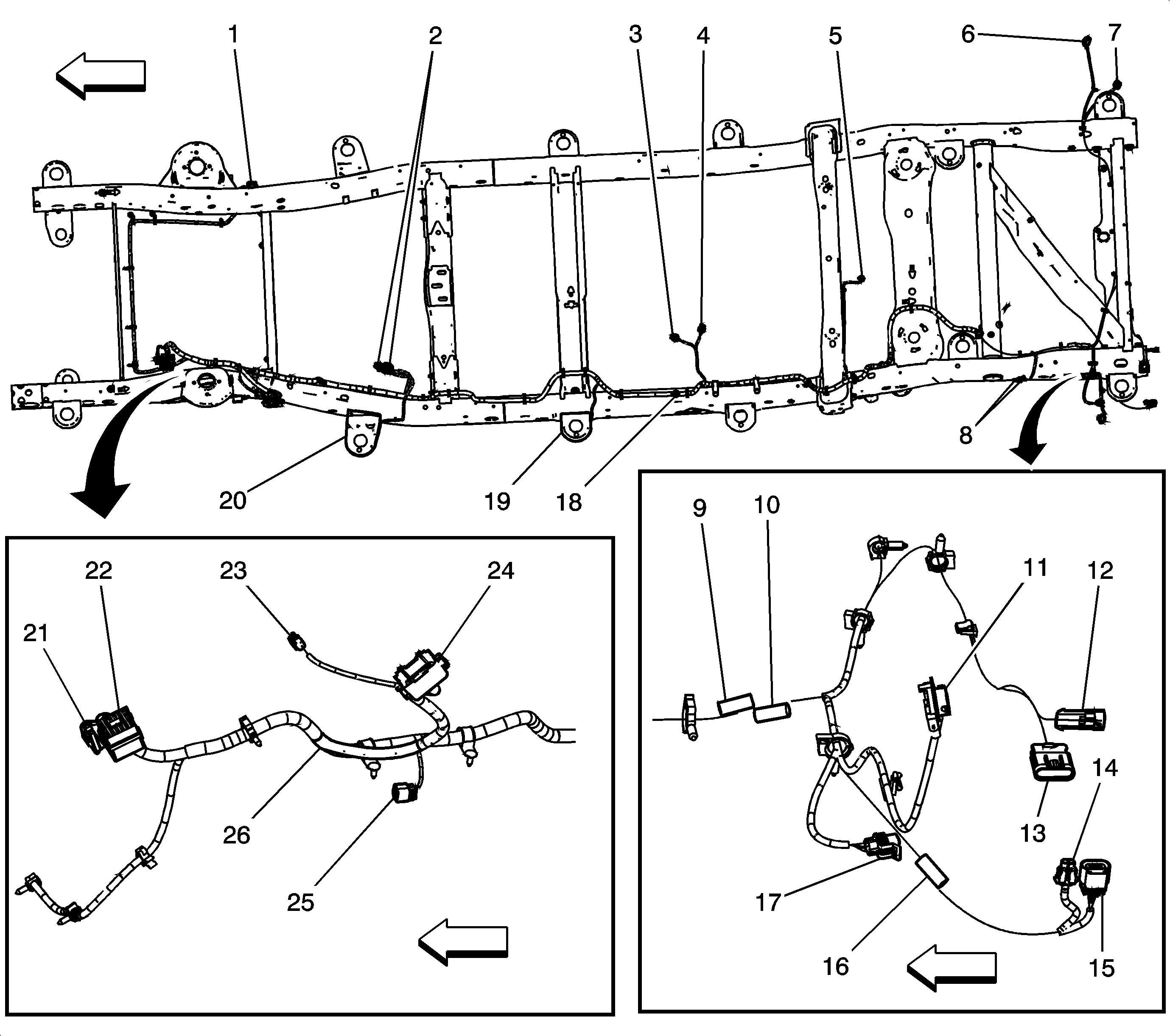

Figure 1:

Chassis Harness Routing


(1)	Wheel Speed Sensor (WSS) - RF
(2)	Electronic Brake Control Module (EBCM)
(3)	Fuel Pump and Sender Assembly
(4)	Fuel Tank Pressure (FTP) Sensor
(5)	Evaporative Emission (EVAP) Canister Vent Solenoid
(6)	Tail/Stop and Turn Signal Lamp - Right
(7)	C402
(8)	G402, G403
(9)	S400
(10)	S401 (ERK)
(11)	Tail/Stop and Turn Signal Lamp - Left
(12)	C400
(13)	C401
(14)	Rear Compartment Ajar Switch
(15)	Rear Compartment Lid Release Switch/Actuator - Exterior
(16)	Trailer Tow Blunt Cut
(17)	C404
(18)	S403
(19)	G401
(20)	G400
(21)	Fuse Block - Underhood C7
(22)	Fuse Block - Underhood C3
(23)	Brake Fluid Level Switch
(24)	C105
(25)	Wheel Speed Sensor (WSS) - LF
(26)	S406

Figure 2:

Body Harness Routing/Components Views


(1)	C303
(2)	C600
(3)	C601
(4)	G301
(5)	Seat Belt Pretensioner - Right
(6)	Inflatable Restraint Side Impact Module - Right
(7)	C306
(8)	S303
(9)	C308
(10)	Roof/Door Module
(11)	Roof/Door Module
(12)	Relay Block - Rear
(13)	Daytime Running Lamp (DRL) Diode
(14)	Speaker - LR
(15)	Audio Amplifier C3
(16)	Audio Amplifier C1
(17)	Splice Pack SP300 (Premium Radio)
(18)	Audio Amplifier C2
(19)	Splice Pack SP300
(20)	Speaker - RR
(21)	C309
(22)	C202
(23)	C204
(24)	C200
(25)	Fuse Block - Rear C2
(26)	Fuse Block - Rear C3
(27)	S301
(28)	S306
(29)	S302
(30)	G302

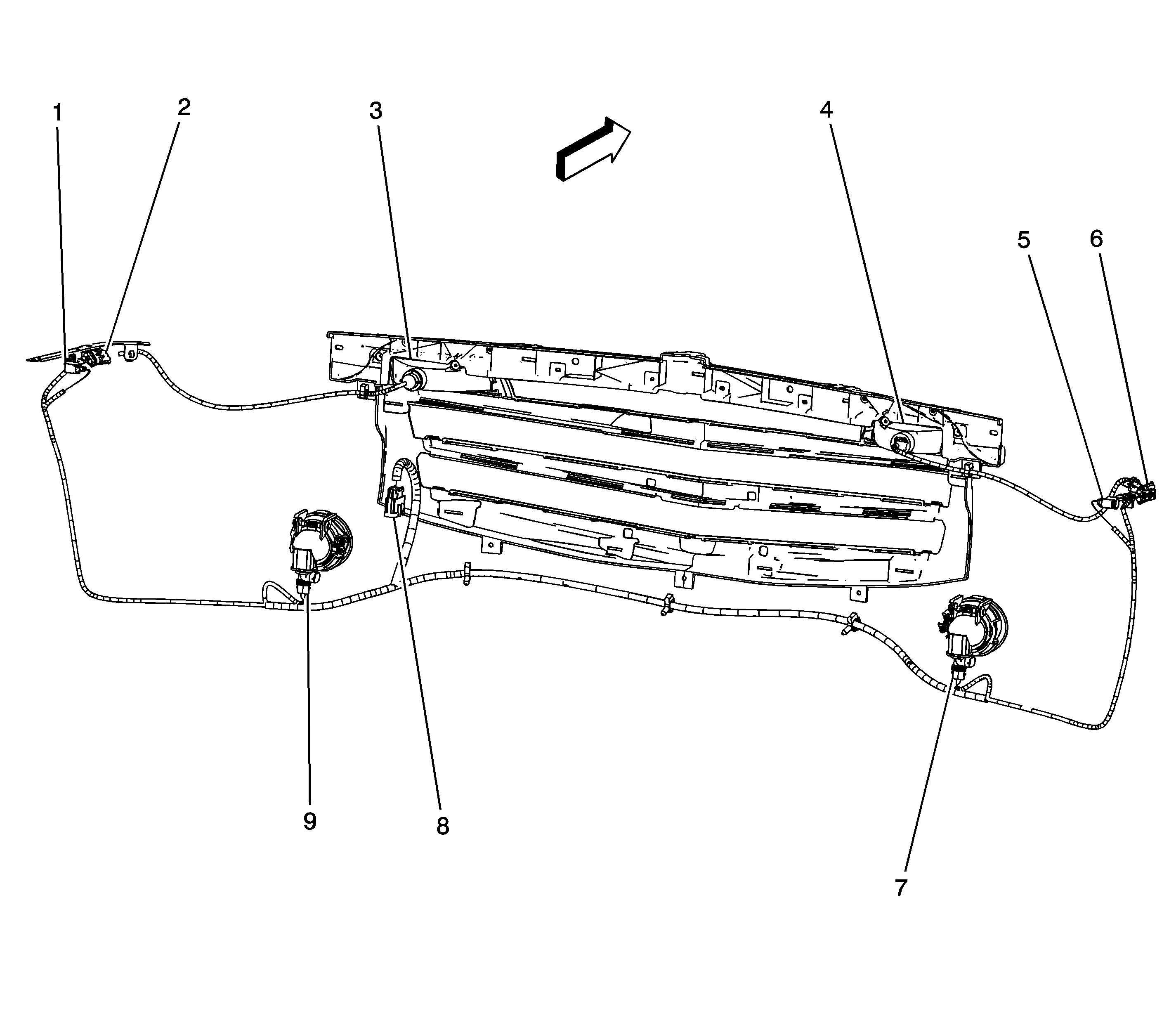

Figure 3:

Front Fascia Harness Routing


(1)	Marker Lamp - LF
(2)	C107
(3)	Park/Turn Signal Lamp - LF
(4)	Park/Turn Signal Lamp - RF
(5)	Marker Lamp - RF
(6)	C106
(7)	Fog Lamp - RF
(8)	C104
(9)	Fog Lamp - LF

Figure 4:

Forward Lamp Harness Routing


(1)	C103
(2)	Fuse Block - Underhood C4
(3)	Battery Feed
(4)	Headlamp - Low Beam Left
(5)	Headlamp - High Beam Left
(6)	S111
(7)	Cooling Fan 2 Relay
(8)	G105
(9)	Cooling Fan 1 Relay
(10)	S106
(11)	Cooling Fan
(12)	S104
(13)	S103
(14)	Ambient Air Temperature Sensor
(15)	Headlamp - High Beam Right
(16)	Headlamp - Low Beam Right
(17)	Horn Assembly
(18)	S105

Figure 5:

Engine Harness Routing (M12)


(1)	S100
(2)	C109
(3)	C100
(4)	Fuse Block - Underhood C1
(5)	G101
(6)	Engine Control Module (ECM)
(7)	G100
(8)	C110
(9)	G102
(10)	C108
(11)	S117
(12)	S102

Figure 6:

Engine Harness Components (M32)


(1)	S100
(2)	C109
(3)	C100
(4)	Fuse Block - Underhood C1
(5)	S112
(6)	S114
(7)	S101
(8)	S116
(9)	Engine Control Module (ECM)
(10)	Transmission Control Module (TCM)
(11)	S115
(12)	G101
(13)	G100
(14)	C110
(15)	G102
(16)	S102
(17)	C108
(18)	C175

Figure 7:

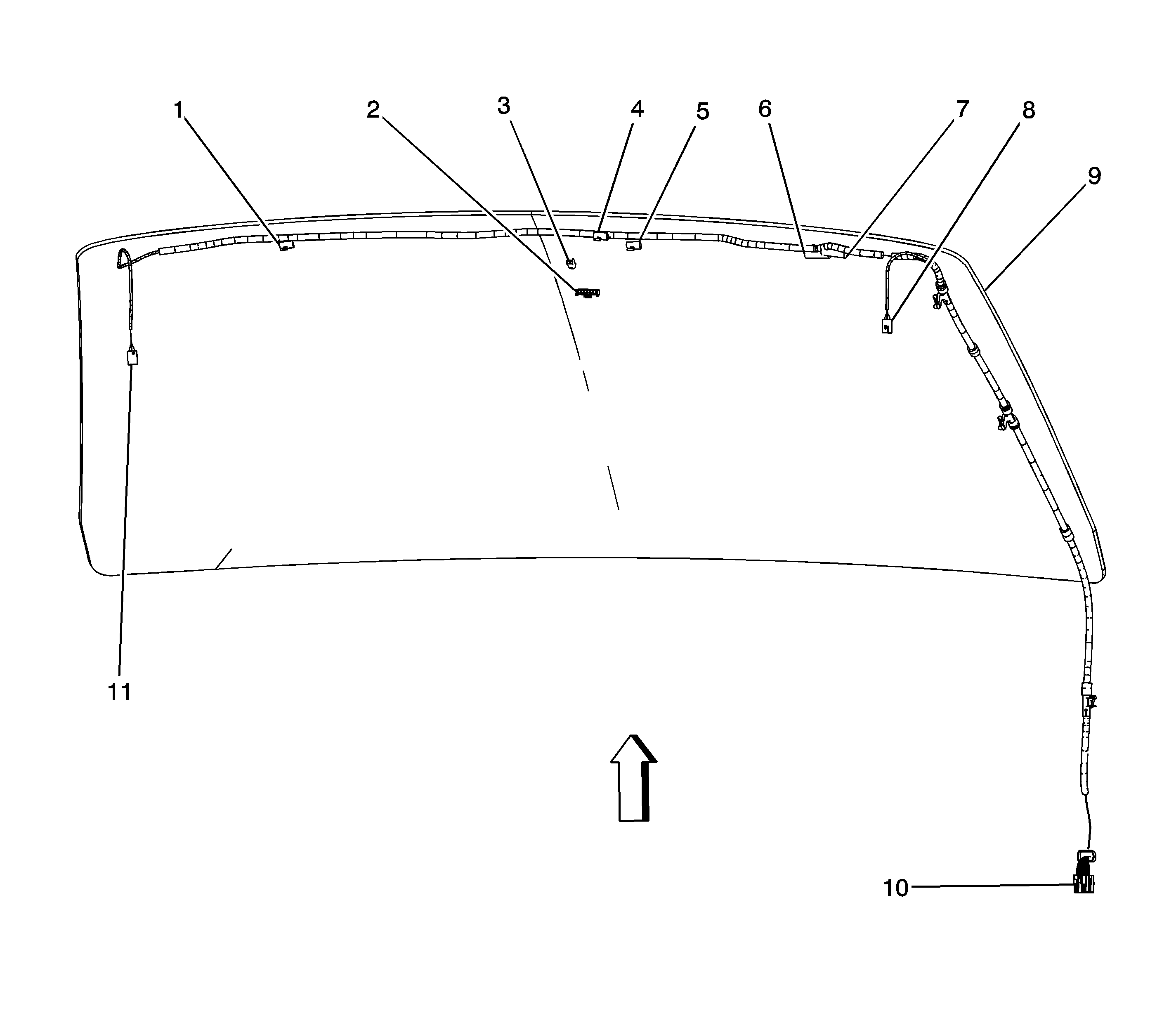

Header Harness Routing


(1)	Folding Top Outer Latch Striker Position Switch
(2)	Rear View Mirror
(3)	C304
(4)	Folding Top Outer Latch Actuator
(5)	Folding Top Panel Outer Latch Position Switch
(6)	S320
(7)	S304
(8)	Vanity Mirror - RF
(9)	Windshield
(10)	C303
(11)	Vanity Mirror - LF

Figure 8:

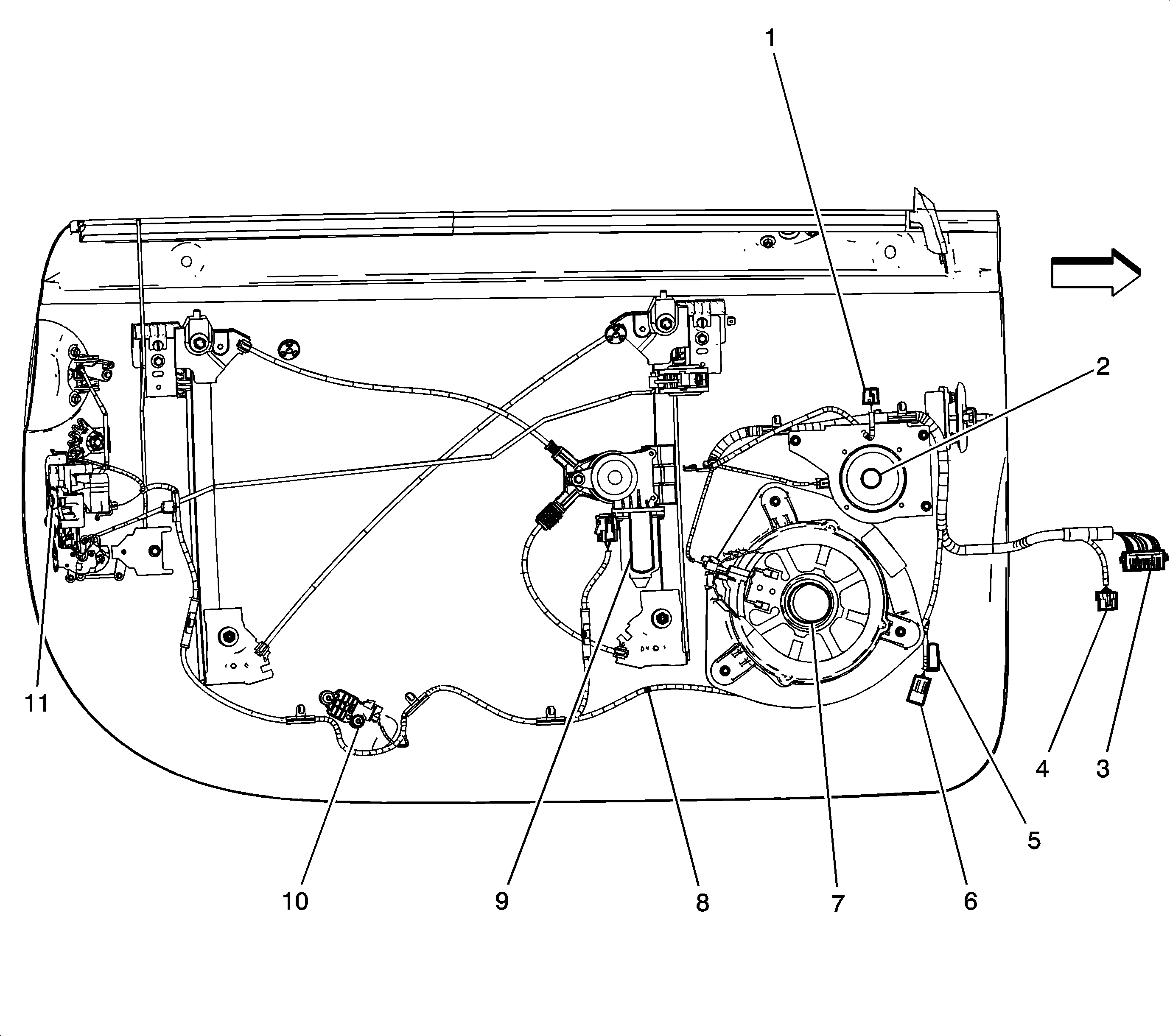

Driver Door Harness Routing


(1)	Outside Rear View Mirror Switch
(2)	Speaker - LF Door Midrange (Premium Radio)
(3)	C500
(4)	C501
(5)	S500
(6)	Outside Rear View Mirror - Driver
(7)	Speaker - LF Door (Premium Radio)/Speaker Assembly - LF Door (Base Radio)
(8)	S501
(9)	Window Motor - Driver
(10)	Inflatable Restraint Side Impact Sensor (SIS) - Left
(11)	Door Latch Assembly - Driver

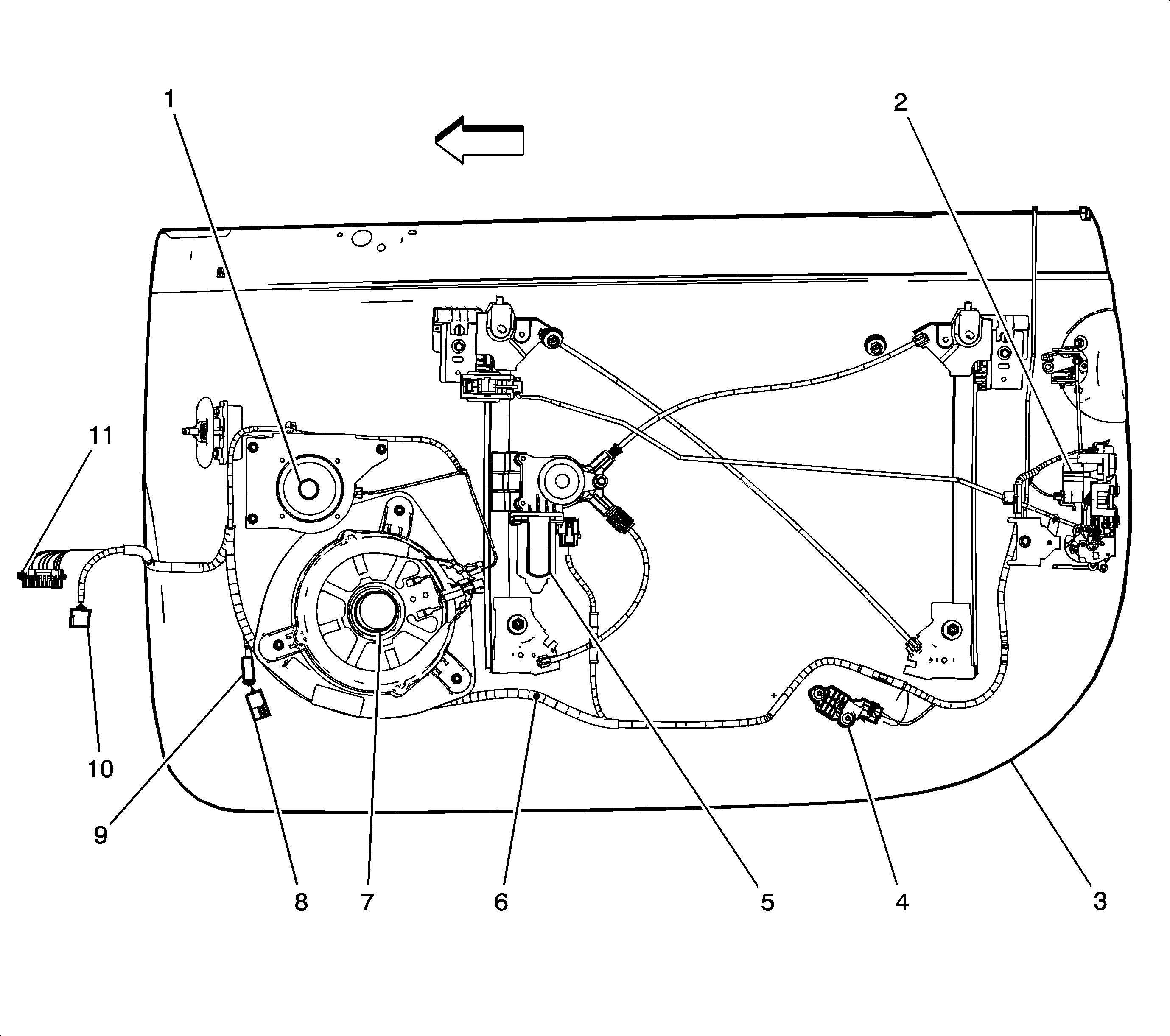

Figure 9:

Passenger Door Harness Routing


(1)	Speaker - RF Door Midrange (Premium Radio)
(2)	Door Latch Assembly - Passenger
(3)	Passenger Door
(4)	Inflatable Restraint Side Impact Sensor (SIS) - Right
(5)	Window Motor - Passenger
(6)	S601
(7)	Speaker - RF Door (Premium Radio)/Speaker Assembly - RF Door (Base Radio)
(8)	Outside Rear View Mirror - Passenger
(9)	S600
(10)	C601
(11)	C600

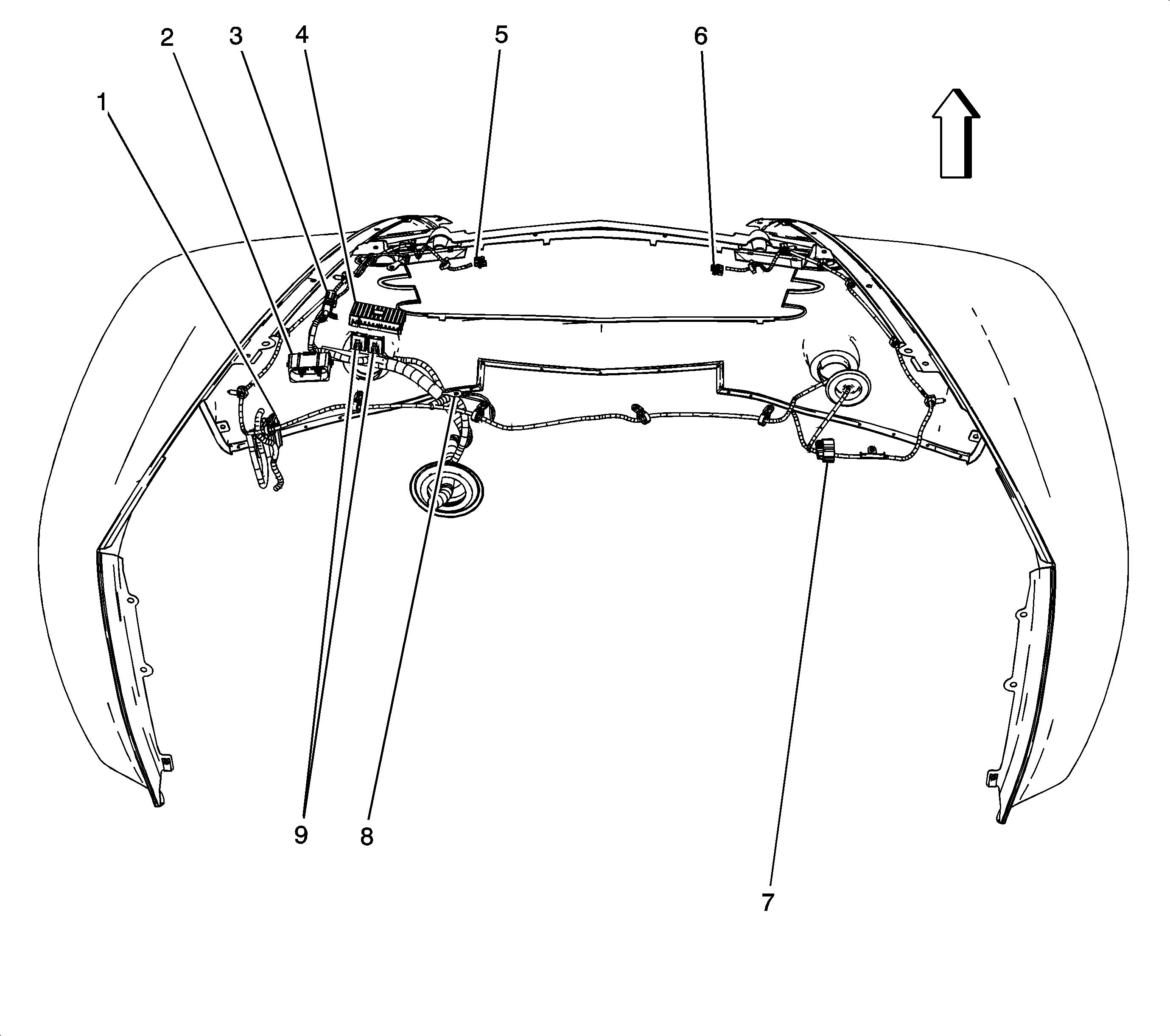

Figure 10:

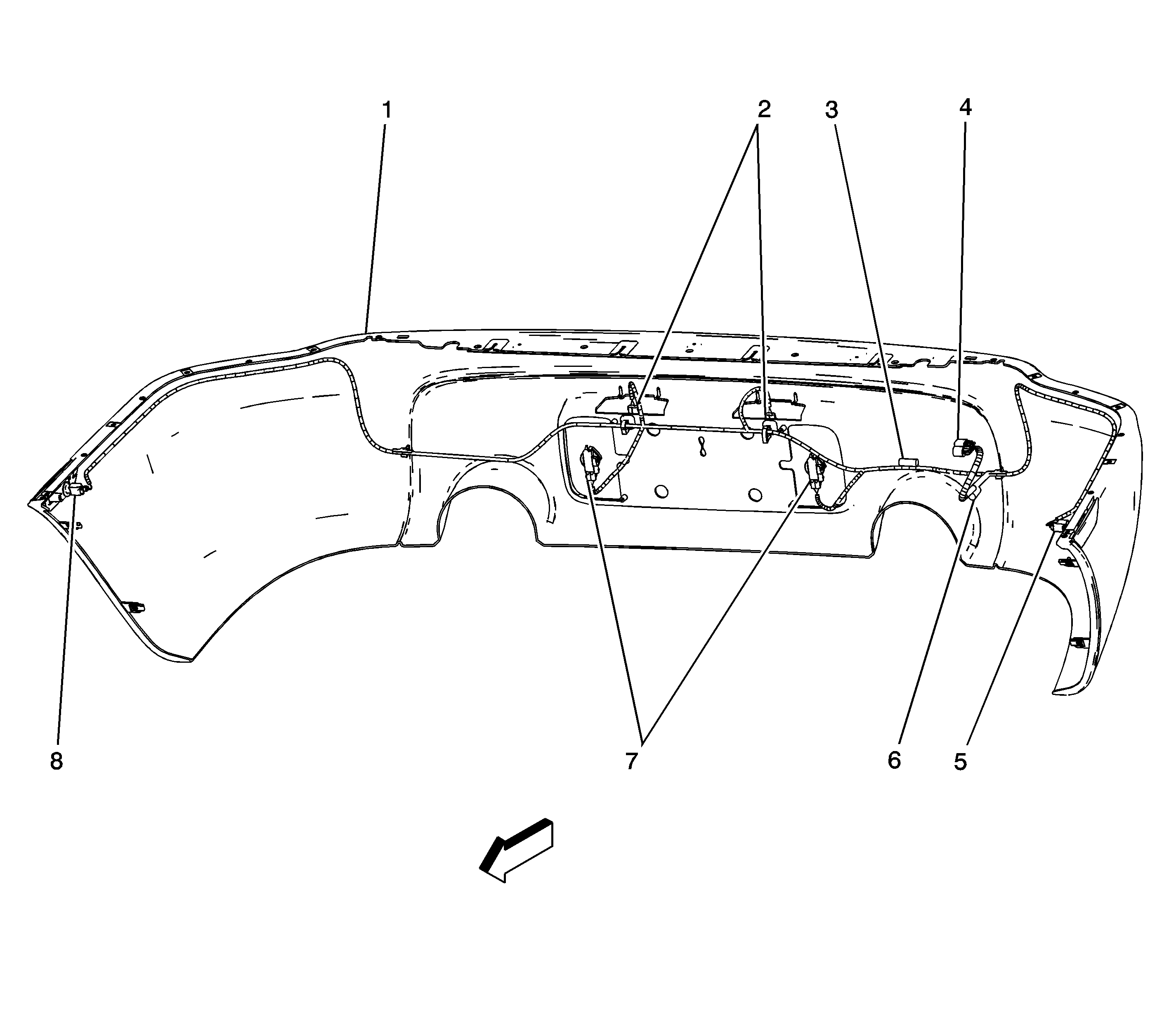

Rear Fascia Harness Routing


(1)	Rear Fascia
(2)	License Lamps
(3)	S405
(4)	C401
(5)	Marker Lamp - LR
(6)	S404
(7)	Backup Lamps
(8)	Marker Lamp - RR

Figure 11:

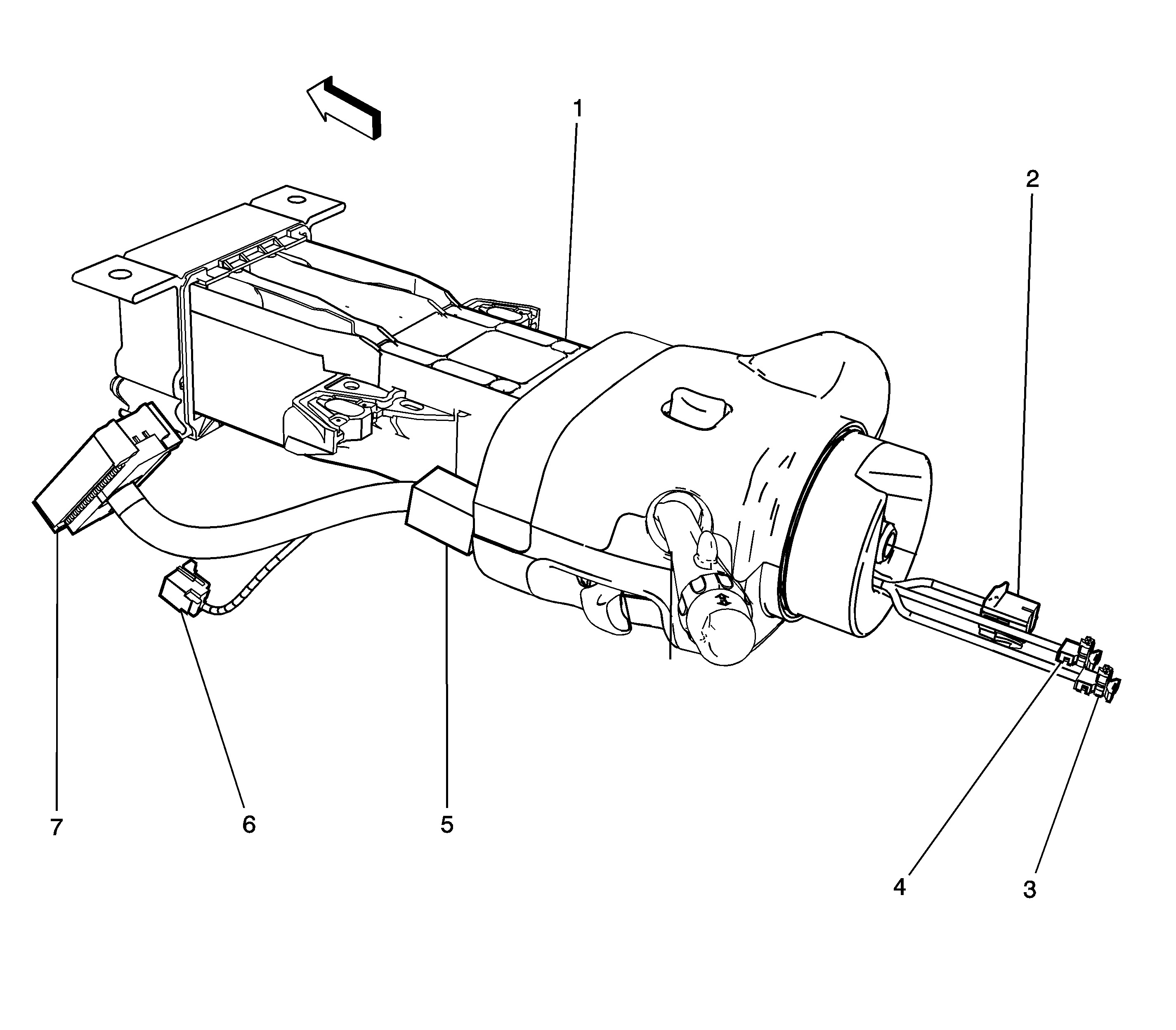

Steering Column


(1)	Steering Column
(2)	C277
(3)	Inflatable Restraint Steering Wheel Module C2
(4)	Inflatable Restraint Steering Wheel Module C1
(5)	Steering Column Fuse Holder
(6)	C275
(7)	C201

Figure 12:

I/P Harness Routing View - 1 of 3


(1)	C105
(2)	C100
(3)	C103
(4)	Fuse Block - Underhood C2
(5)	Electronic Frontal Sensor (EFS) - Left
(6)	Electronic Frontal Sensor (EFS) - Right
(7)	Windshield Wiper Motor
(8)	G103
(9)	Fuse Block - Underhood C5, C6

Figure 13:

I/P Harness Routing View 2 of 3


(1)	S205
(2)	S206
(3)	Instrument Panel Cluster Connector
(4)	Mode Actuator Connector
(5)	Noise Compensation Microphone Connector
(6)	Ambient Light Sensor Connector
(7)	Radio Connector C1
(8)	Air Temperature Actuator
(9)	HVAC Connector Module Connector C1,C2
(10)	Evaporator Temperature Sensor Connector
(11)	Inflatable Restraint I/P Module Connector
(12)	S209
(13)	Blower Motor Connector
(14)	Recirculation Actuator Connector
(15)	Inflatable Restriaint I/P Module Disable Switch Connector
(16)	I/P Compartment Lamp Connector
(17)	Blower Motor Resistor Connector
(18)	Rear Compartment Lid Release Switch - Interior Connector
(19)	Auxiliary Power Outlet Front #2 Connector
(20)	C205
(21)	S208
(22)	S207
(23)	Auxiliary Power Outlet Front #1 Connector
(24)	Splice Pack SP200, G200
(25)	Turn Signal/Hazard Flasher Module Connector
(26)	Stop Lamp Switch Connector
(27)	Data Link Connector (DLC)
(28)	Inflatable Restraint Steering Wheel Coil Connector
(29)	Splice Pack SP201
(30)	Headlamp Switch Connector
(31)	C201
(32)	Accelerator Pedal Position (APP) Sensor Connector

Figure 14:

I/P Harness Routing View 3 of 3


(1)	Center Console Switch Assembly Connector
(2)	Automatic Transmission Shift Lock Actuator Connector (M32)
(3)	Auxiliary Gage Connector (ERG/ERH)
(4)	Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
(5)	Park Brake Switch Connector
(6)	Fuse Block - Rear C4 Connector
(7)	C202
(8)	S300
(9)	Remote Control Door Lock Receiver (RCDLR) Connector
(10)	Body Control Module (BCM) C1, C2, C3, C4, C5 Connectors
(11)	C200
(12)	C204
(13)	Fuse Block - Rear C1 Connector
(14)	S318
(15)	S319
(16)	C300
(17)	Inflatable Restraint Side Impact Module - Left Connector
(18)	Seat Belt Pretensioner - Left Connector
(19)	G300
(20)	S202
(21)	S200 (M32)
(22)	S203
(23)	C501
(24)	C500
(25)	I/P Harness

Figure 15:

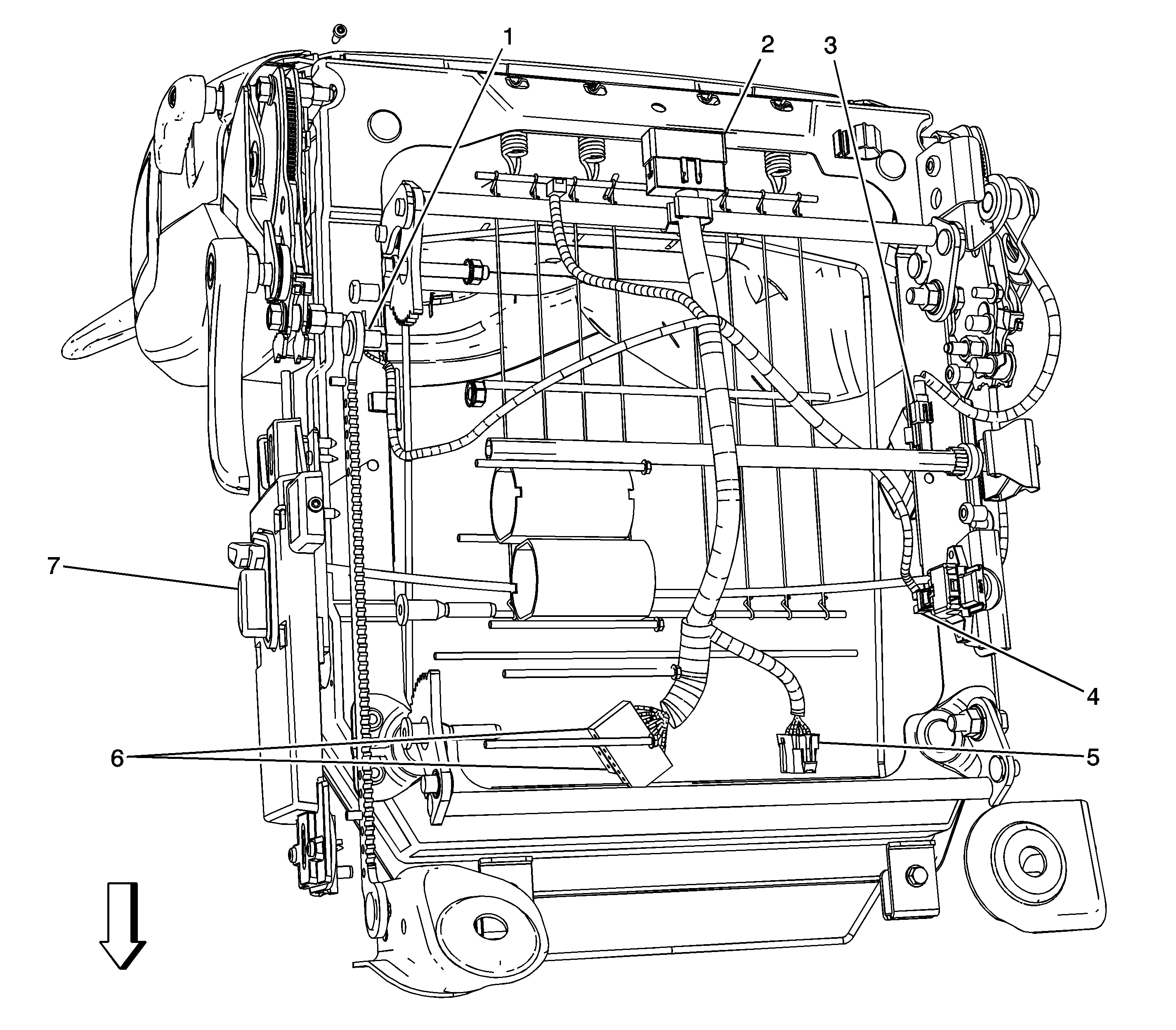

Driver Seat Base Level Harness Routing


(1)	C313
(2)	C300
(3)	Seat Belt Switch - Driver Connector
(4)	Seat Position Switch - Left Connector
(5)	Seat Motors Assembly - Driver Connector
(6)	Seat Adjuster Switch - Driver Connector C1,C2
(7)	Seat Adjuster Switch - Driver

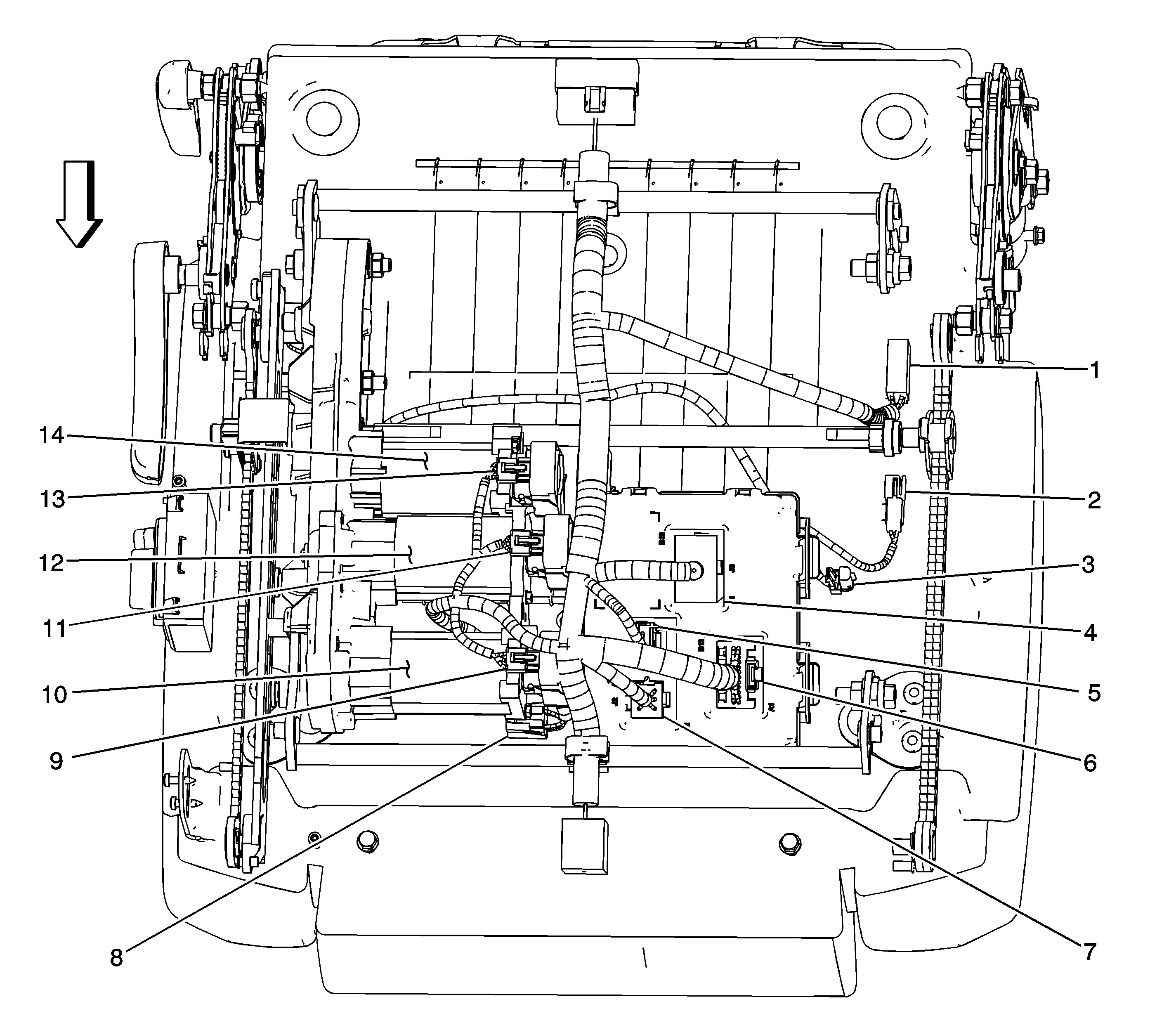

Figure 16:

Driver Seat UP Level Harness Routing 1 of 2


(1)	Heated Seat Element - Driver Connector
(2)	Seat Belt Switch - Driver Connector
(3)	Seat Position Switch - Left Connector
(4)	Memory Seat Module - Driver C3
(5)	Memory Seat Module - Driver C1
(6)	Memory Seat Module - Driver C2
(7)	Memory Seat Module - Driver C4
(8)	Seat Motors Assembly - Driver Connector
(9)	Position Sensor - Front
(10)	Seat Front Vertical Motor - Driver
(11)	Position Sensor - Rear
(12)	Seat Rear Vertical Motor - Driver
(13)	Seat Horizontal Motor - Driver
(14)	Position Sensor - Horizontal

Figure 17:

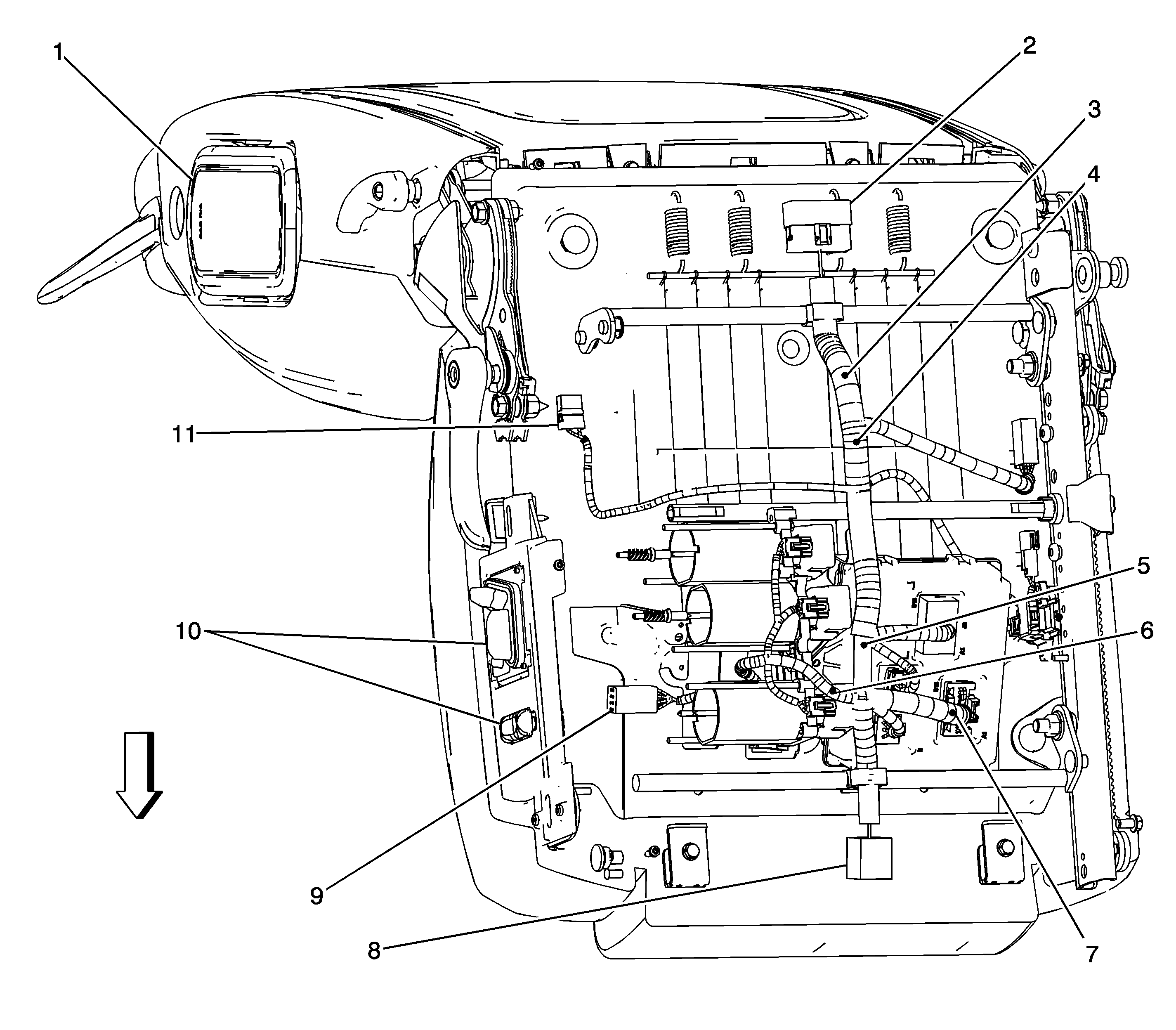

Driver Seat UP Level Harness Routing 2 of 2


(1)	Inflatable Restraint Side Impact Module - Left
(2)	C300
(3)	S325
(4)	S324
(5)	S315
(6)	S313
(7)	S314
(8)	Seat Adjuster Switch - Driver Connector C1
(9)	Seat Adjuster Switch - Driver Connector C2
(10)	Seat Adjuster Switch - Driver
(11)	C313

Figure 18:

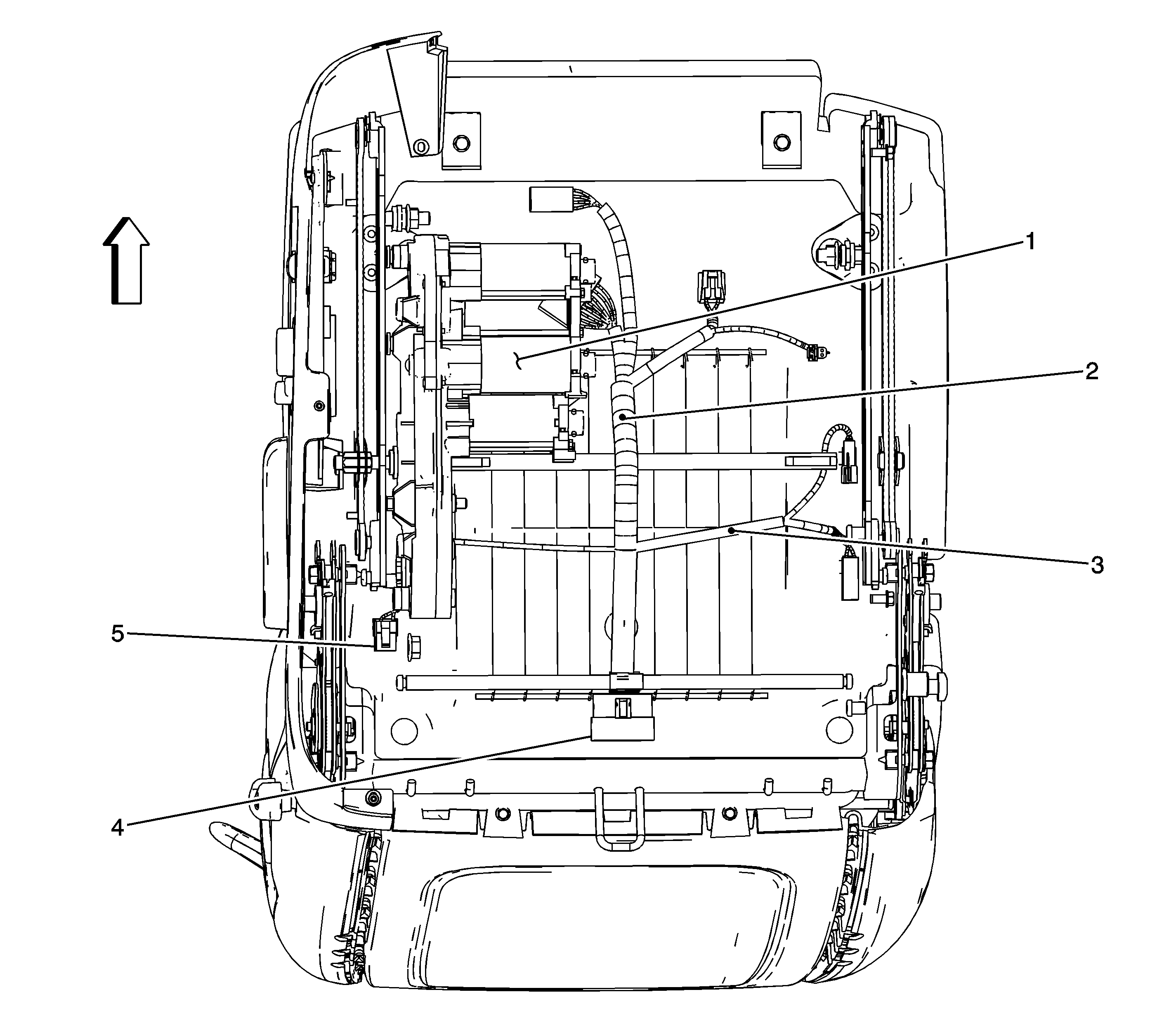

Passenger Seat Harness Routing 1 of 2


(1)	Seat Horizontal Motor - Passenger
(2)	S308
(3)	S309
(4)	C306
(5)	C314

Figure 19:

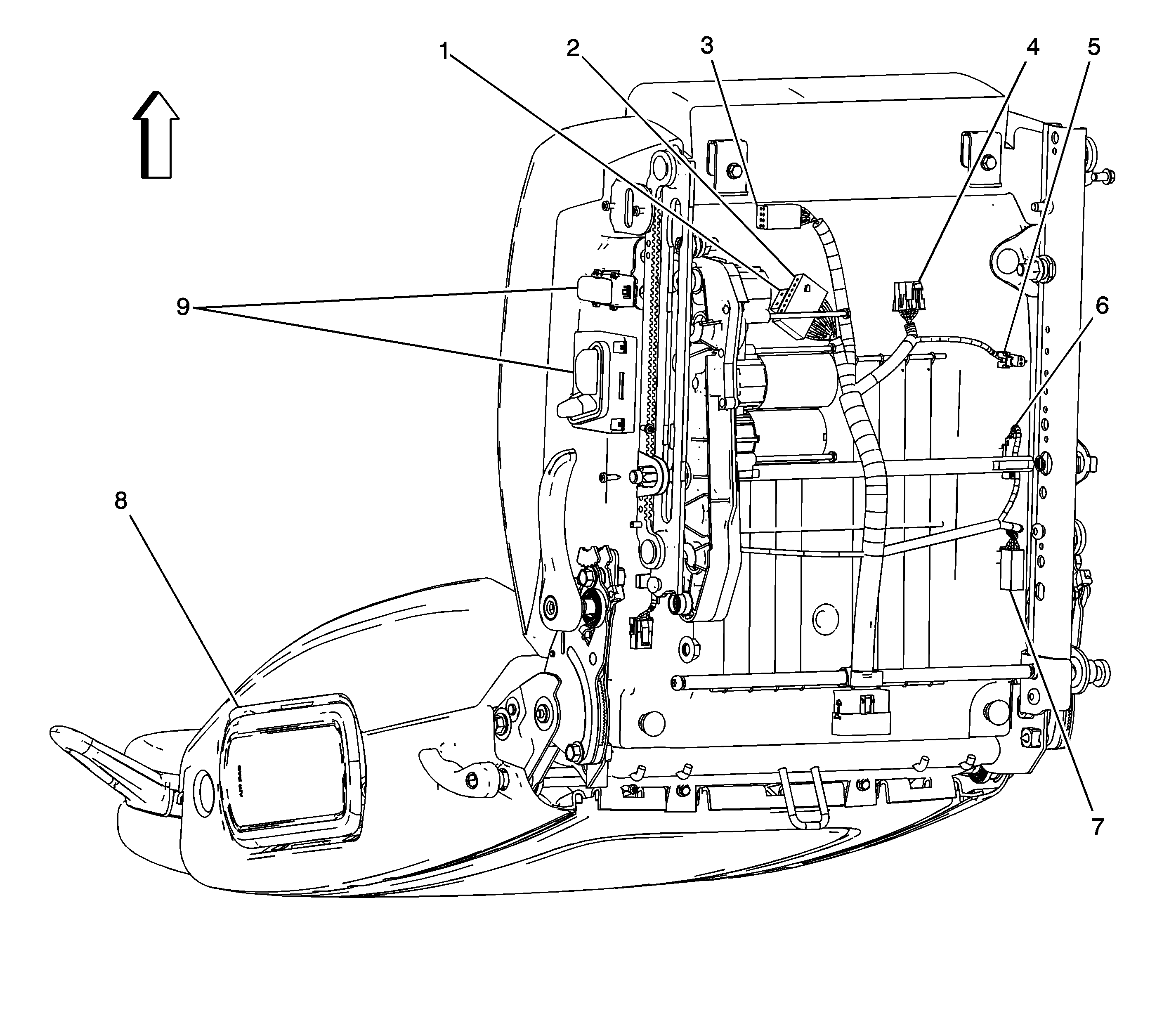

Passenger Seat Harness Routing 2 of 2


(1)	Seat Adjuster Switch - Passenger Connector C2
(2)	Seat Adjuster Switch - Passenger Connector C1
(3)	Heated Seat Switch - Passenger Connector
(4)	Seat Motors Assembly - Passenger Connector
(5)	Seat Position Switch - Right
(6)	Seat Belt Switch - Passenger Connector
(7)	Heated Seat Element - Passenger Connector
(8)	Inflatable Restraint Side Impact Module - Right
(9)	Seat Adjuster Switch - Passenger
