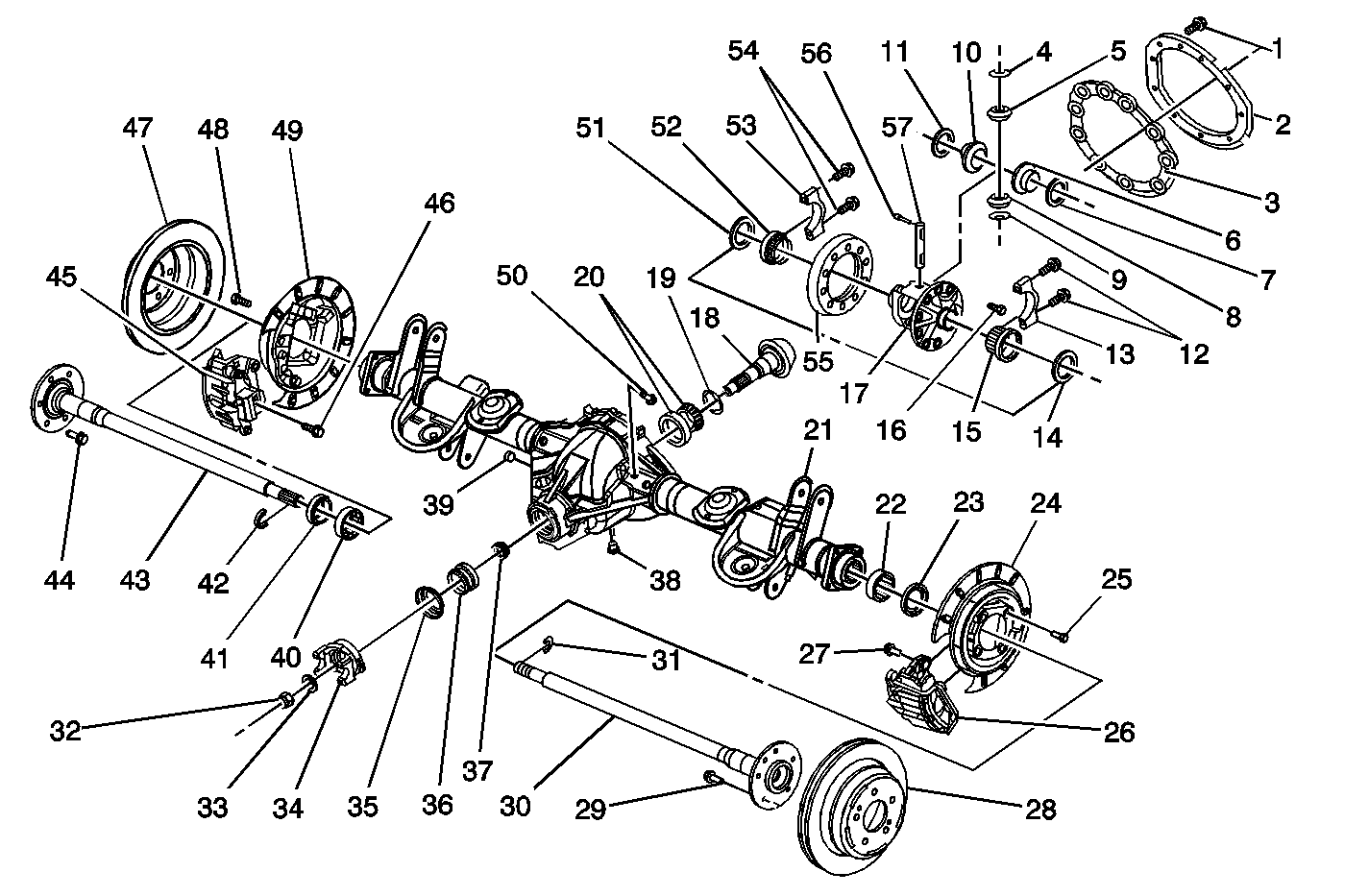

| (1) | Bolt |
| (2) | Rear Axle
Housing Cover |
| (3) | Rear Axle
Housing Cover Gasket |
| (4) | Thrust Washer |
| (5) | Differential
Pinion Gear |
| (6) | Differential
Side Gear |
| (7) | Thrust Washer |
| (8) | Differential
Pinion Gear |
| (9) | Thrust Washer |
| (10) | Differential
Side Gear |
| (11) | Thrust Washer |
| (12) | Bearing
Cap Bolts |
| (13) | Bearing
Cap |
| (14) | Differential
Bearing Shim |
| (15) | Differential
Bearing and Cup |
| (16) | Differential
Ring Gear Bolt |
| (17) | Differential
Case |
| (18) | Pinion Gear
Shaft |
| (19) | Pinion Gear
Bearing Shim |
| (20) | Inner Pinion
Bearing and Cup |
| (21) | Rear Axle
Housing |
| (22) | Wheel Bearing |
| (23) | Rear Axle
Shaft Seal |
| (24) | Brake Backing
Plate |
| (25) | Brake Backing
Plate Bolt |
| (26) | Brake Caliper |
| (27) | Brake Caliper
Bolt |
| (28) | Brake
Rotor |
| (29) | Wheel Stud |
| (30) | Rear Axle
Shaft |
| (31) | Rear Axle
Shaft Lock |
| (32) | Pinion Yoke
Nut |
| (33) | Pinion Yoke
Washer |
| (34) | Pinion Yoke |
| (35) | Pinion Gear
Seal |
| (36) | Outer Pinion
Bearing and Cup |
| (37) | Pinion Gear
Bearing Spacer |
| (38) | Rear Axle
Housing Drain Plug |
| (39) | Rear Axle
Housing Fill Plug |
| (40) | Wheel Bearing |
| (41) | Rear Axle
Shaft Seal |
| (42) | Rear Axle
Shaft Lock |
| (43) | Rear Axle
Shaft |
| (44) | Wheel Stud |
| (45) | Brake Caliper |
| (46) | Brake Caliper
Bolt |
| (47) | Brake Rotor |
| (48) | Brake Backing
Plate Bolt |
| (49) | Brake Backing
Plate |
| (50) | Rear Axle
Vent Hose Connector |
| (51) | Differential
Bearing Shim |
| (52) | Differential
Bearing and Cup |
| (53) | Bearing Cap |
| (54) | Bearing Cap
Bolts |
| (55) | Differential
Ring Gear |
| (56) | Differential
Pinion Gear Shaft Bolt |
| (57) | Differential
Pinion Gear Shaft |
