Removal Procedure

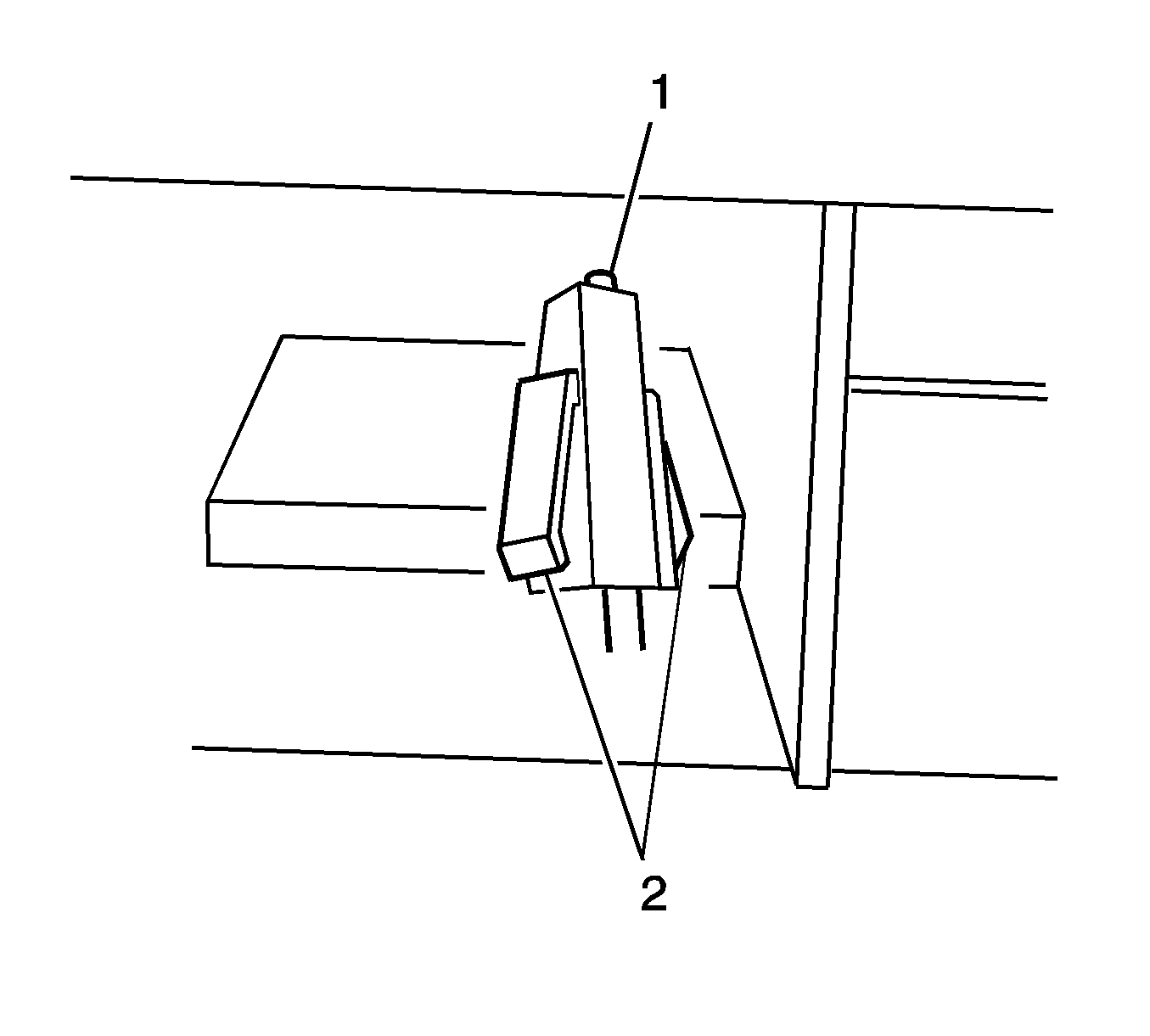

    Object Number: 1361423 Size: SH
  1. Open the instrument panel (I/P) compartment door.
  2. Compress the tabs (2) on the switch in order in release it from the I/P.
  3. Remove the bulb (1).
  4. Disconnect the electrical connector.

Installation Procedure

    Object Number: 1361423 Size: SH
  1. Install the bulb (1).
  2. Connect the electrical connector.
  3. Slide the tabs (2) on the switch into the mounting hole in the I/P in order to secure the switch in to place.
