Removal Procedure

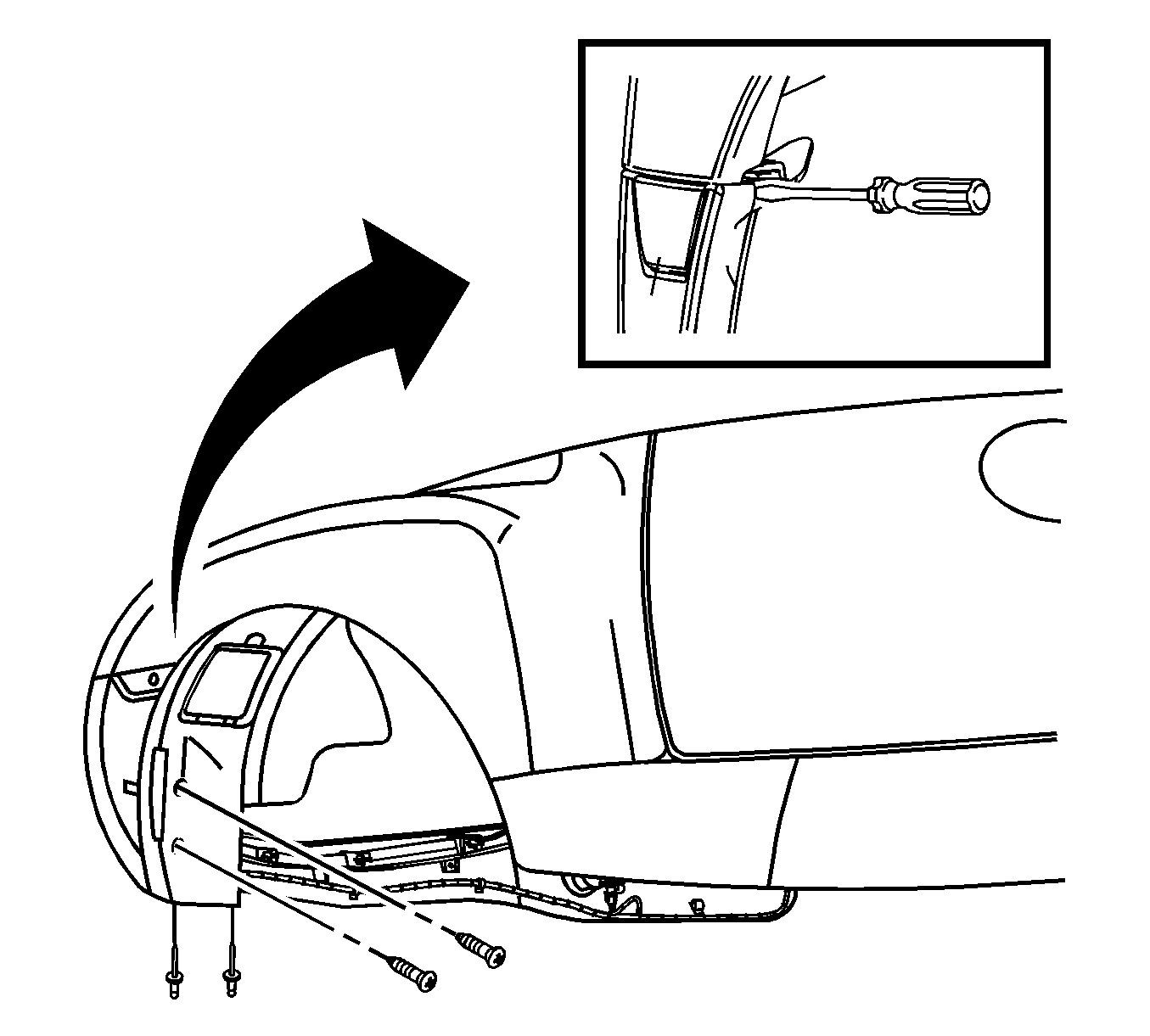

    Object Number: 1250649 Size: SH
  1. Turn the wheels to gain access to the wheelhouse liner.
  2. Remove the 2 lower push pins.
  3. Remove the 2 screws.
  4. Use a flat-bladed tool to release the wheelhouse liner.

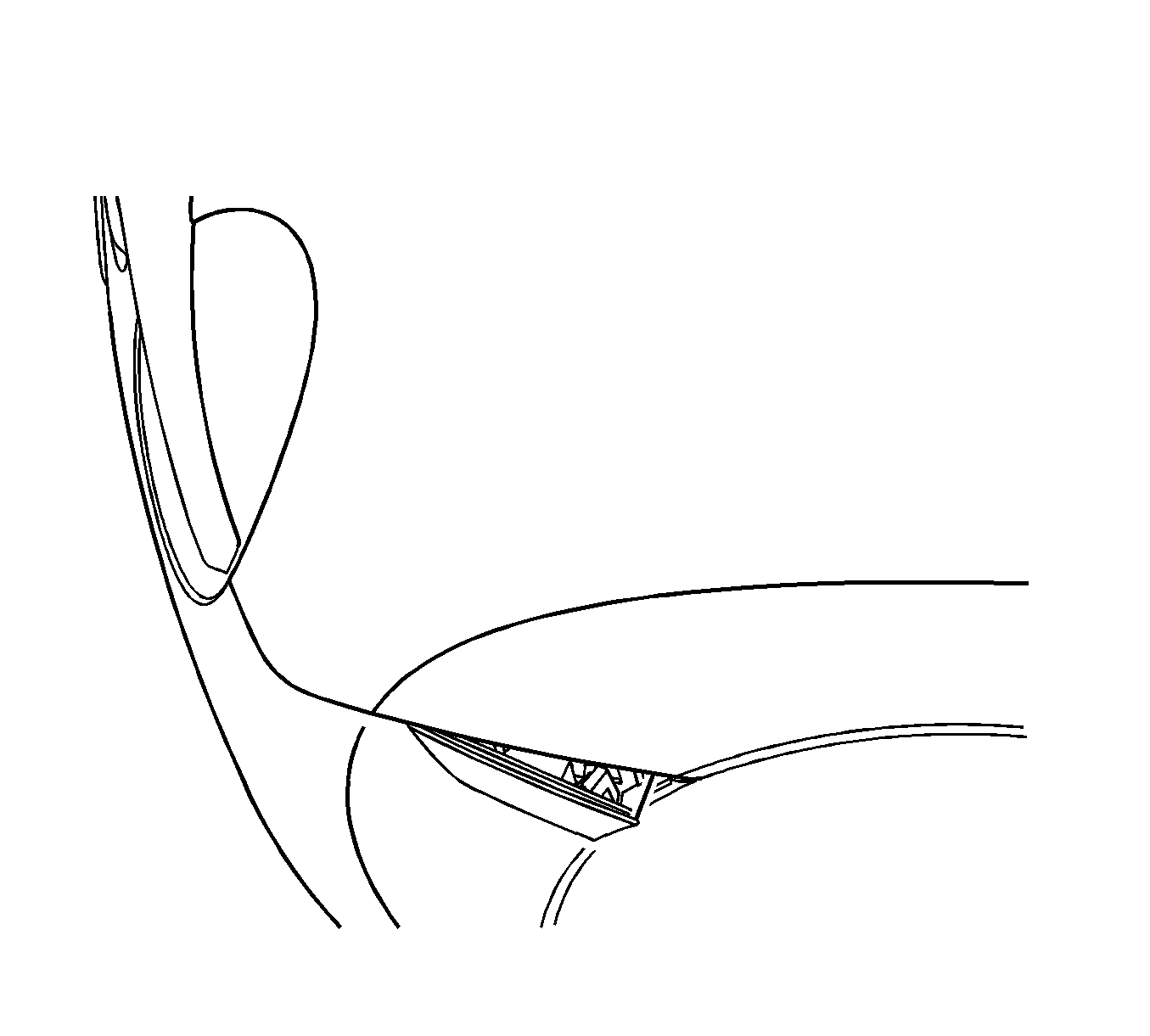

    5. Object Number: 1250651 Size: SH
  5. Remove the sidemarker lamp from the fascia.
  6. Remove the sidemarker lamp socket from the sidemarker lamp.
  7. Remove the lamp from the vehicle.

Installation Procedure

    Object Number: 1250651 Size: SH
  1. Install the socket to the sidemarker lamp assembly.
  2. Position the sidemarker lamp to the fascia.
  3. Push the sidemarker into the fascia to fully seat the retainer.

    4. Object Number: 1250649 Size: SH
  4. Reinstall the wheelhouse liner.
  5. Install the 2 screws.
  6. Install the push pins.
  7. Return the wheels to straight ahead.
