Makes 🢒 Chevrolet 🢒 2005 🢒 SSR 🢒 Body 🢒 Lighting Systems 🢒 Stop Lamp Switch Replacement

Removal Procedure

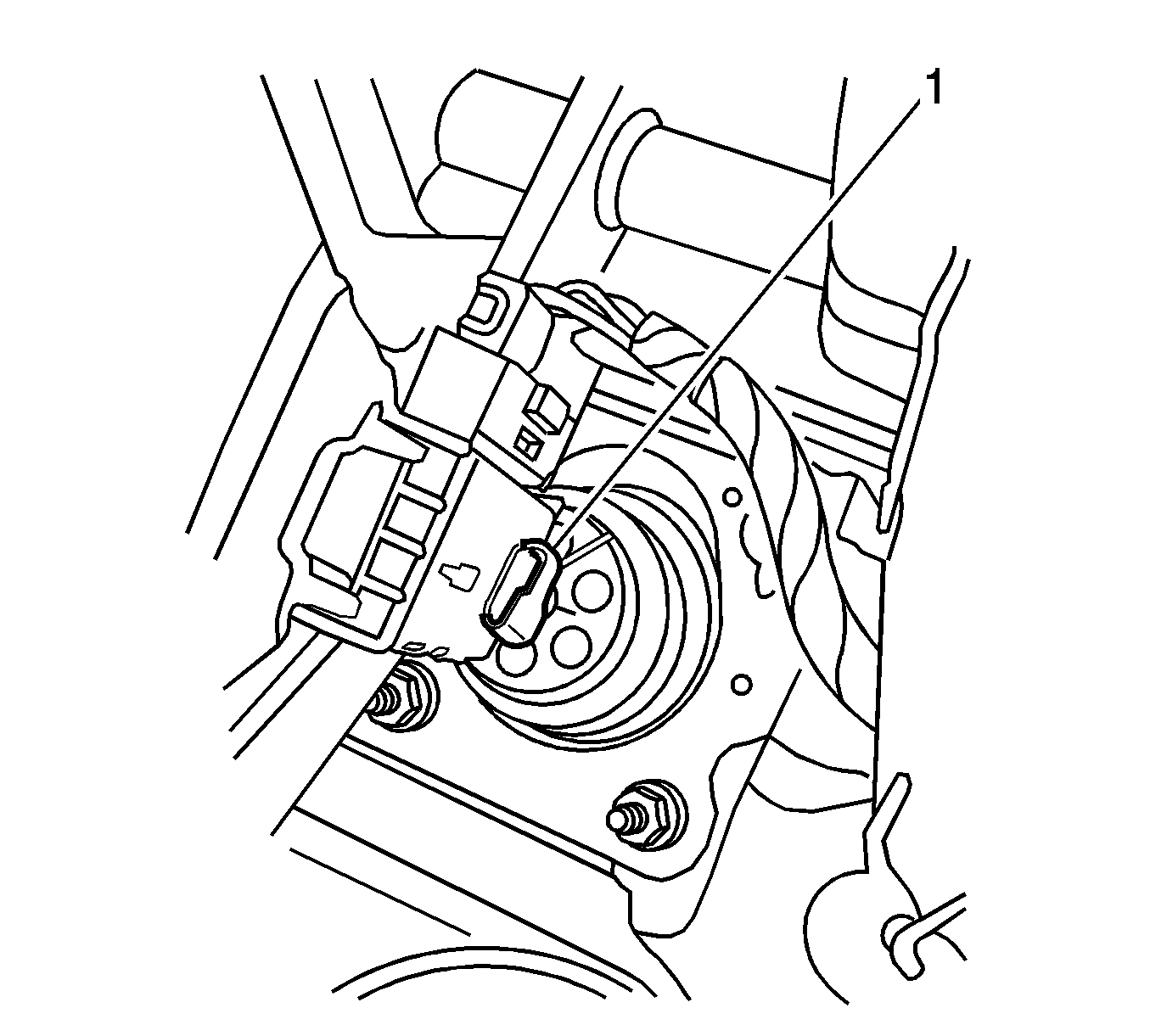

    Object Number: 1335248 Size: SH
  1. Remove the retaining clip from the brake pedal pin (1).
  2. Remove the brake switch from the brake pedal pin.
  3. Disconnect the electrical connector from the brake switch.
  4. Remove the brake switch from the vehicle.

Installation Procedure

    Object Number: 1335248 Size: SH
  1. Locate the brake switch to the vehicle.
  2. Connect the electrical connector to the brake switch.
  3. Install the brake switch to the brake pedal pin.
  4. Install the retaining clip to the brake pedal pin (1).
