Heated/Cooled Seat Schematics. Chevrolet Silverado

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2009 🢒 Silverado - 4WD 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Heated/Cooled Seat Schematics

Figure 1:	Heated Seat - Driver (AN3 without KB6)
Figure 2:	Heated Seat - Passenger (AN3 without KB6)

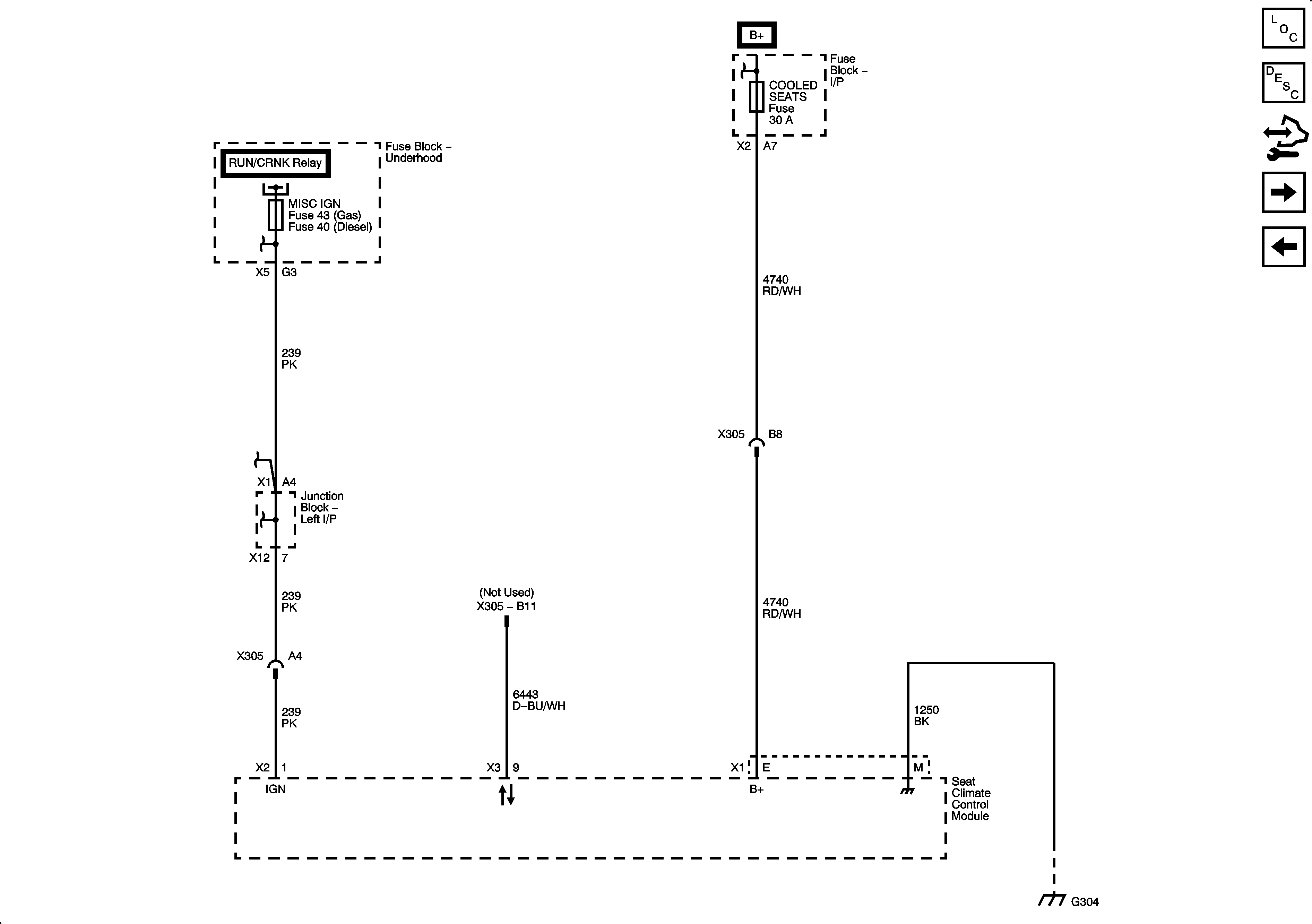

Figure 3:	Heated/Cooled Seat Module Power and Ground (KB6)

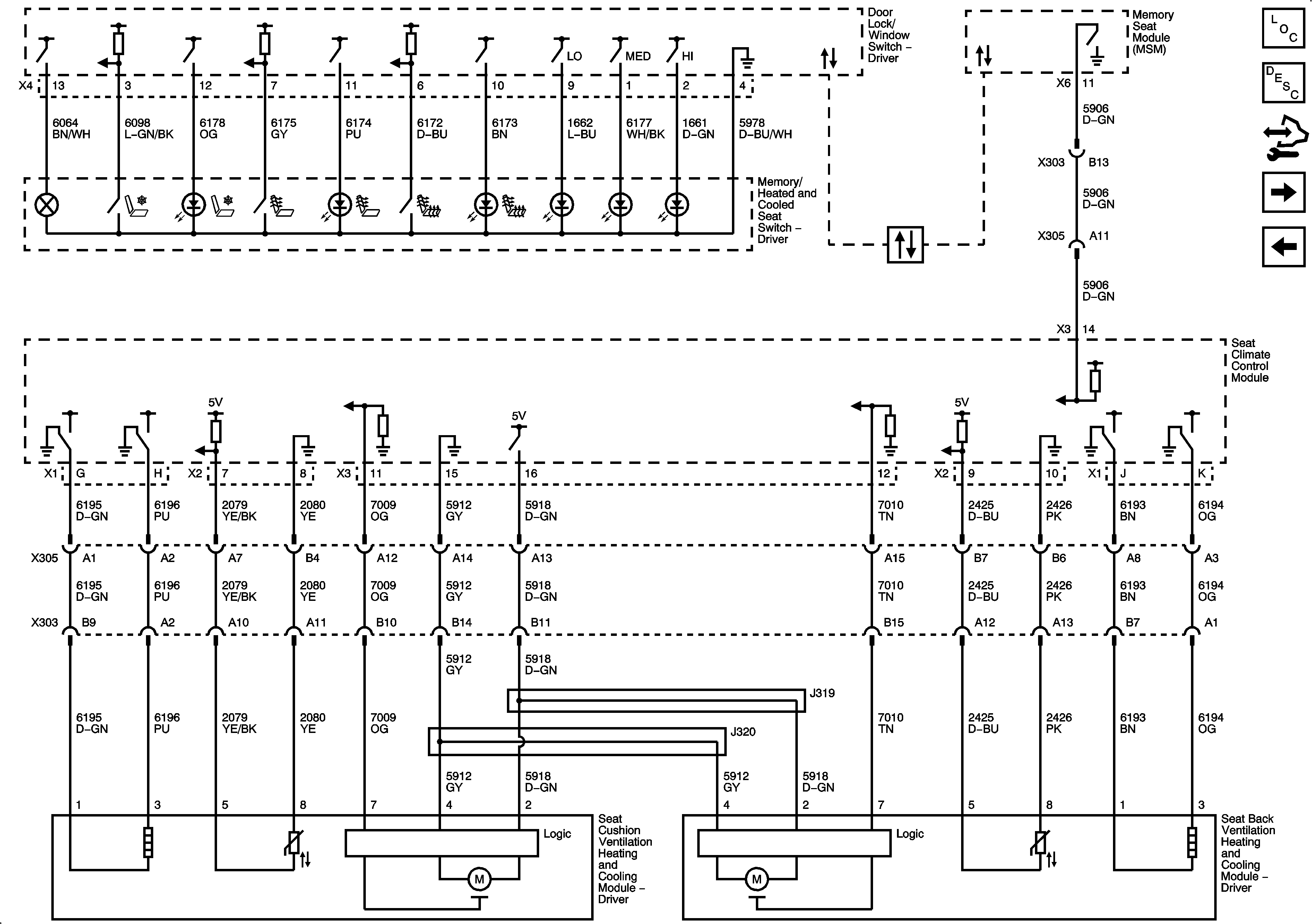

Figure 4:	Heated/Cooled Seat - Driver (KB6)
Figure 5:	Heated/Cooled Seat - Passenger - (KB6)
