Endgate Handle Replacement. Chevrolet Silverado

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2009 🢒 Silverado - 4WD 🢒 Body Systems 🢒 Vehicle Access 🢒 Endgate Handle Replacement

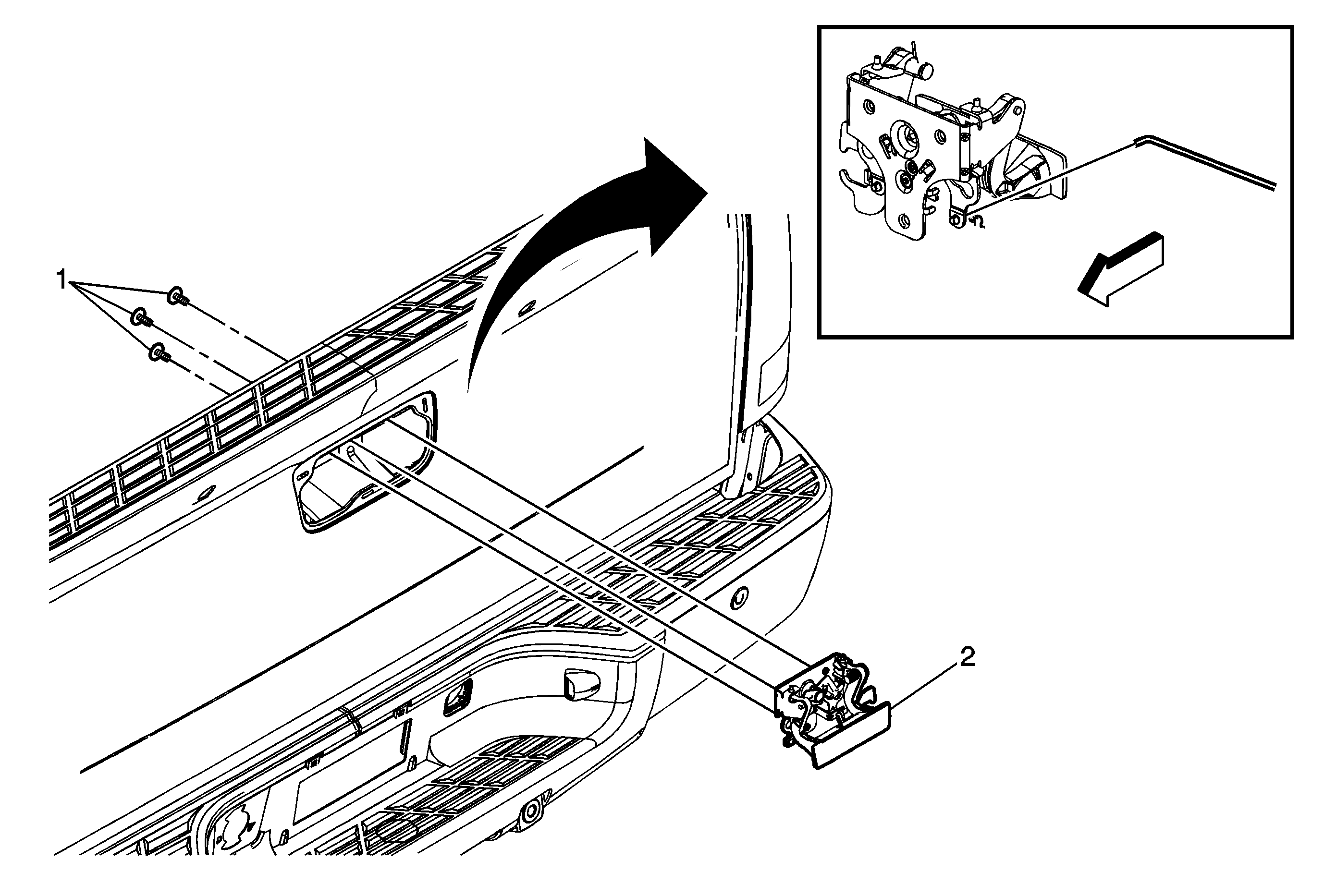

Callout	Component Name
Preliminary Procedure Remove the pickup box endgate latch handle bezel. Refer to Pickup Box Endgate Latch Handle Bezel Replacement.
1	Pickup Box Endgate Latch Handle Bolt (Qty: 3) Caution: Refer to Fastener Caution in the Preface section. Tighten 25 N·m (18 lb ft)
2	Pickup Box Endgate Latch Handle Tip Release all of the rods before removing.

Callout

Component Name

Remove the pickup box endgate latch handle bezel. Refer to Pickup Box Endgate Latch Handle Bezel Replacement.

Pickup Box Endgate Latch Handle Bolt (Qty: 3)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
25 N·m (18 lb ft)

Pickup Box Endgate Latch Handle

Tip
Release all of the rods before removing.
