Instrument Cluster Schematics. Chevrolet Spark 2005

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2005 🢒 Spark 🢒 Body 🢒 Instrument Panel, Gages, and Console 🢒 Instrument Cluster Schematics

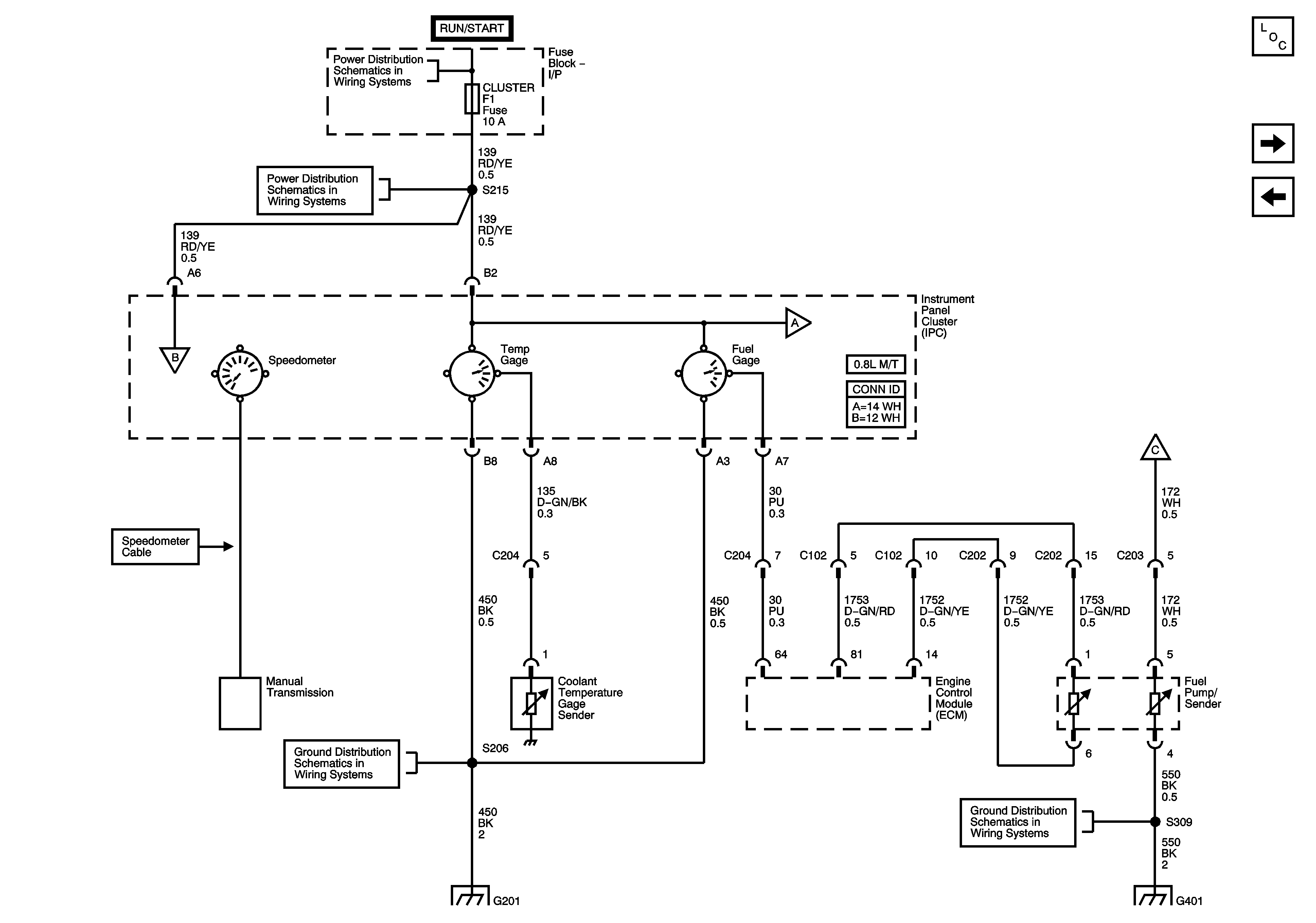

Figure 1:	Instrument Cluster Gages (0.8L Fenix - M/T) Master Electrical Component List Instrument Cluster Gages (0.8L Sirius-D3) Underhood Fuse Block - Battery Feeds Instrument Panel Fuse Block - ECM and TCM Fuses, Underhood Fuse Block - AUDIO, CIGAR LIGHTER, CLUSTER, AIRBAG, POWER WINDOW and TURN SIGNAL Fuses Instrument Cluster Gages (0.8L Sirius-D3) Instrument Cluster Gages (0.8L Sirius-D3) Instrument Cluster Gages (0.8L Sirius-D3) Vehicle Speed Sensor (VSS) (Sirus-D3) G201 (0.8L) (Contd)

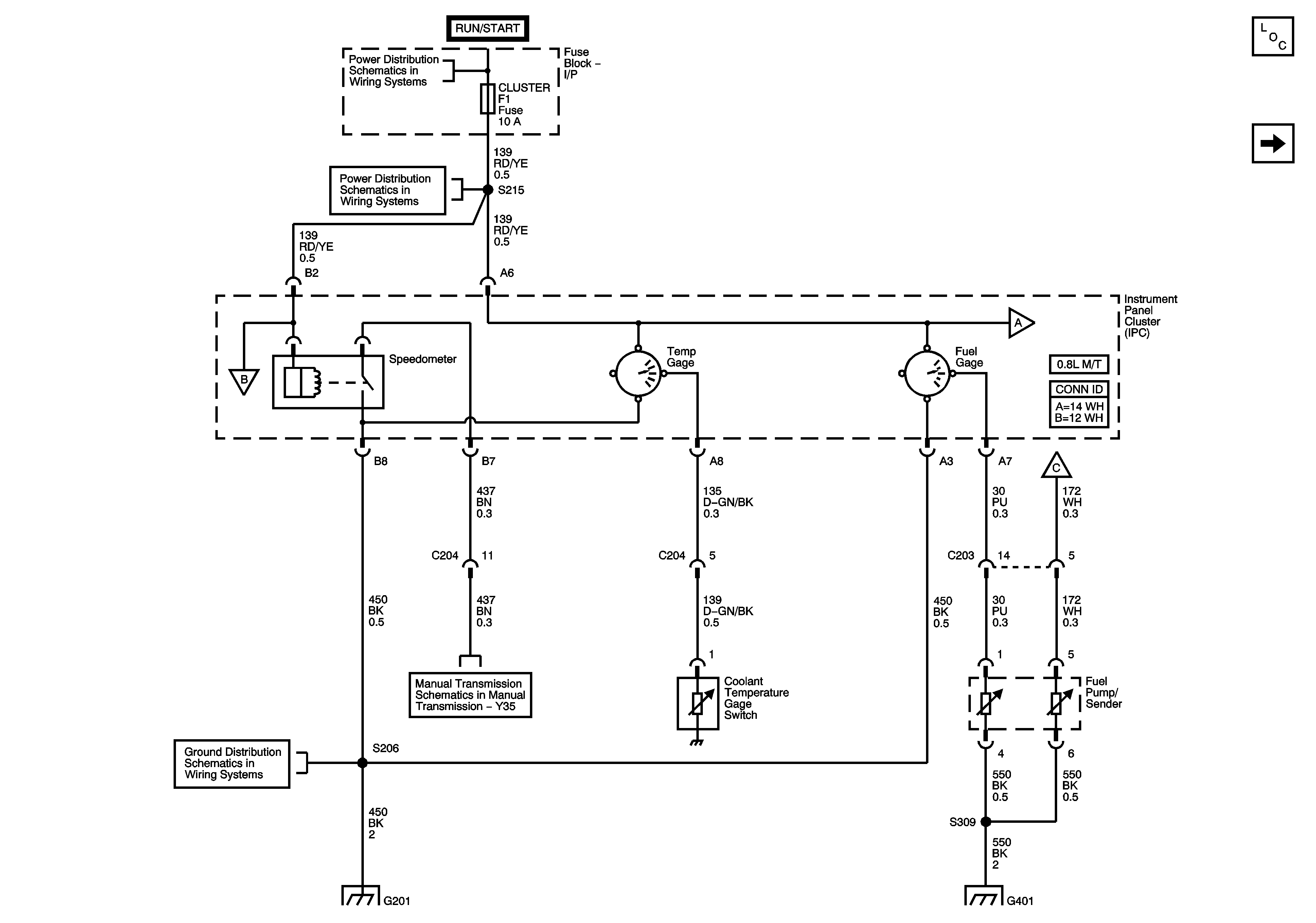

Figure 2:	Instrument Cluster Gages (0.8L Sirius-D3) Master Electrical Component List Instrument Cluster Gages (0.8L A/T or 1.0L) Instrument Cluster Gages (0.8L Fenix - M/T) Underhood Fuse Block - Battery Feeds Instrument Panel Fuse Block - ECM and TCM Fuses, Underhood Fuse Block - AUDIO, CIGAR LIGHTER, CLUSTER, AIRBAG, POWER WINDOW and TURN SIGNAL Fuses Instrument Cluster Gages (0.8L A/T or 1.0L) Instrument Cluster Gages (0.8L A/T or 1.0L) G201 (0.8L) (Contd) G401, G402, G403, and G404 Instrument Cluster Gages (0.8L A/T or 1.0L)

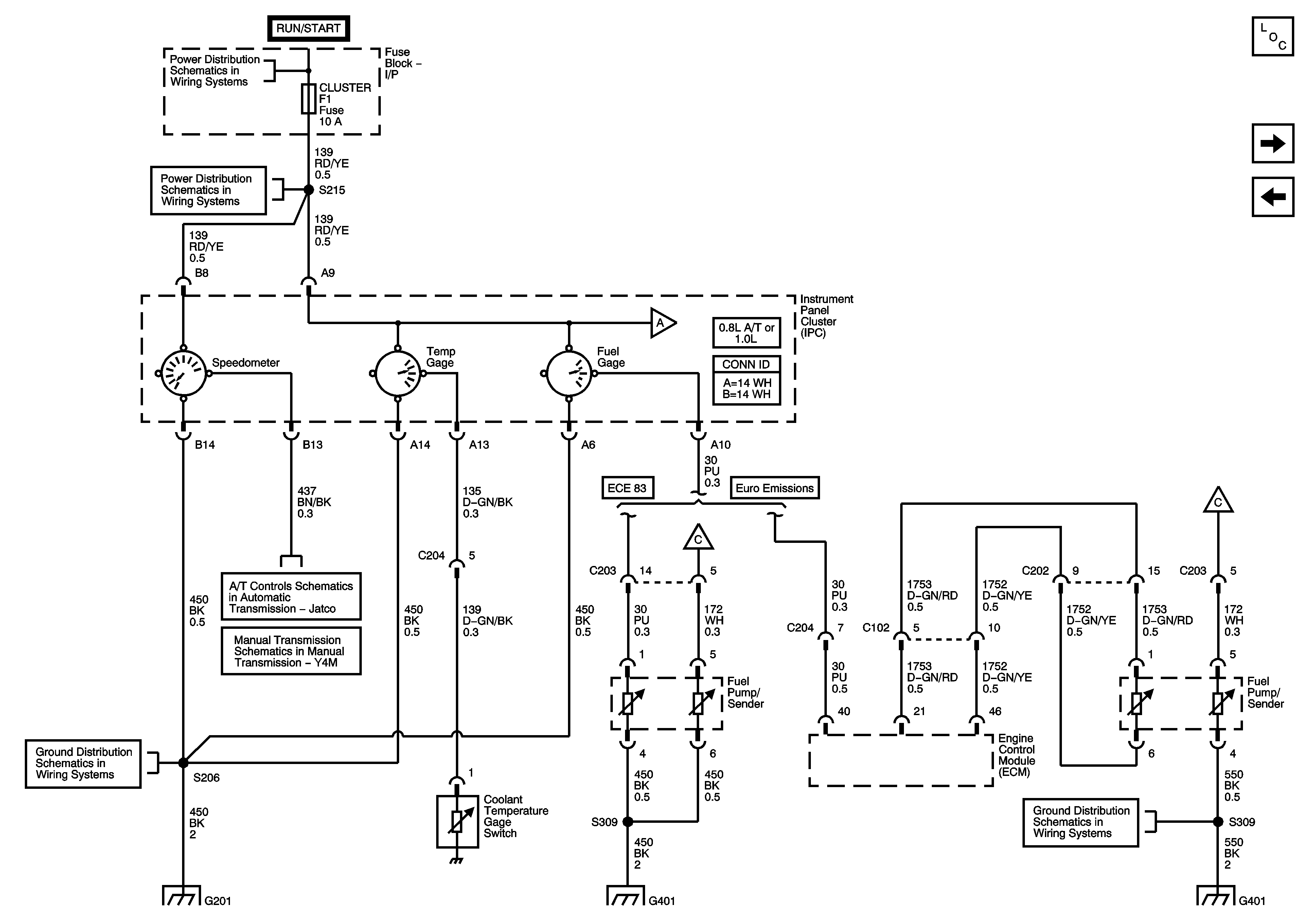

Figure 3:	Instrument Cluster Gages (0.8L A/T or 1.0L) Master Electrical Component List Warning Lamps Instrument Cluster Gages (0.8L Sirius-D3) Underhood Fuse Block - Battery Feeds Instrument Panel Fuse Block - ECM and TCM Fuses, Underhood Fuse Block - AUDIO, CIGAR LIGHTER, CLUSTER, AIRBAG, POWER WINDOW and TURN SIGNAL Fuses Warning Lamps Warning Lamps Warning Lamps Vehicle Speed Sensor (VSS) Vehicle Speed Sensor (VSS) G201 (0.8L) G401, G402, G403, and G404

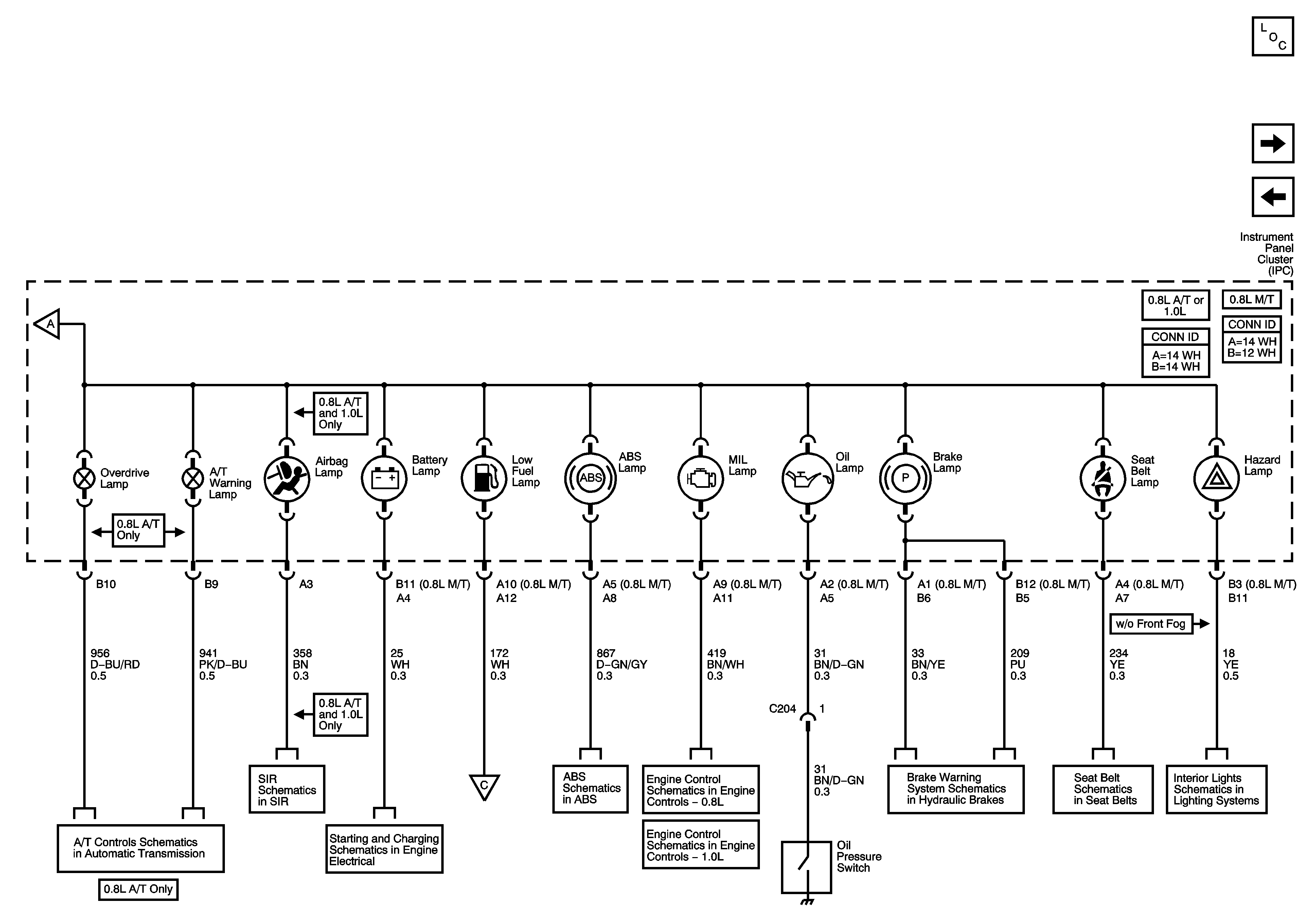

Figure 4:	Warning Lamps Master Electrical Component List Indicator Lamps Instrument Cluster Gages (0.8L A/T or 1.0L) Instrument Cluster Gages (0.8L A/T or 1.0L) Vehicle Speed Sensor (VSS) Power. Grounds, Data Link Connector (DLC), SIR Modules, Sensing and Diagnostic Module (SDM) Starting System Instrument Cluster Gages (0.8L A/T or 1.0L) Module Power, Ground and Malfunction Indicator Lamp (MIL) Controlled/Monitored Subsystem References Module Power, Ground, Serial Data and Malfunction Indicator Lamp (MIL) Park Brake, Brake Fluid Level Switch, ABS Indicator Lamps Power, Grounds and Warning Lamps Courtesy Lamps

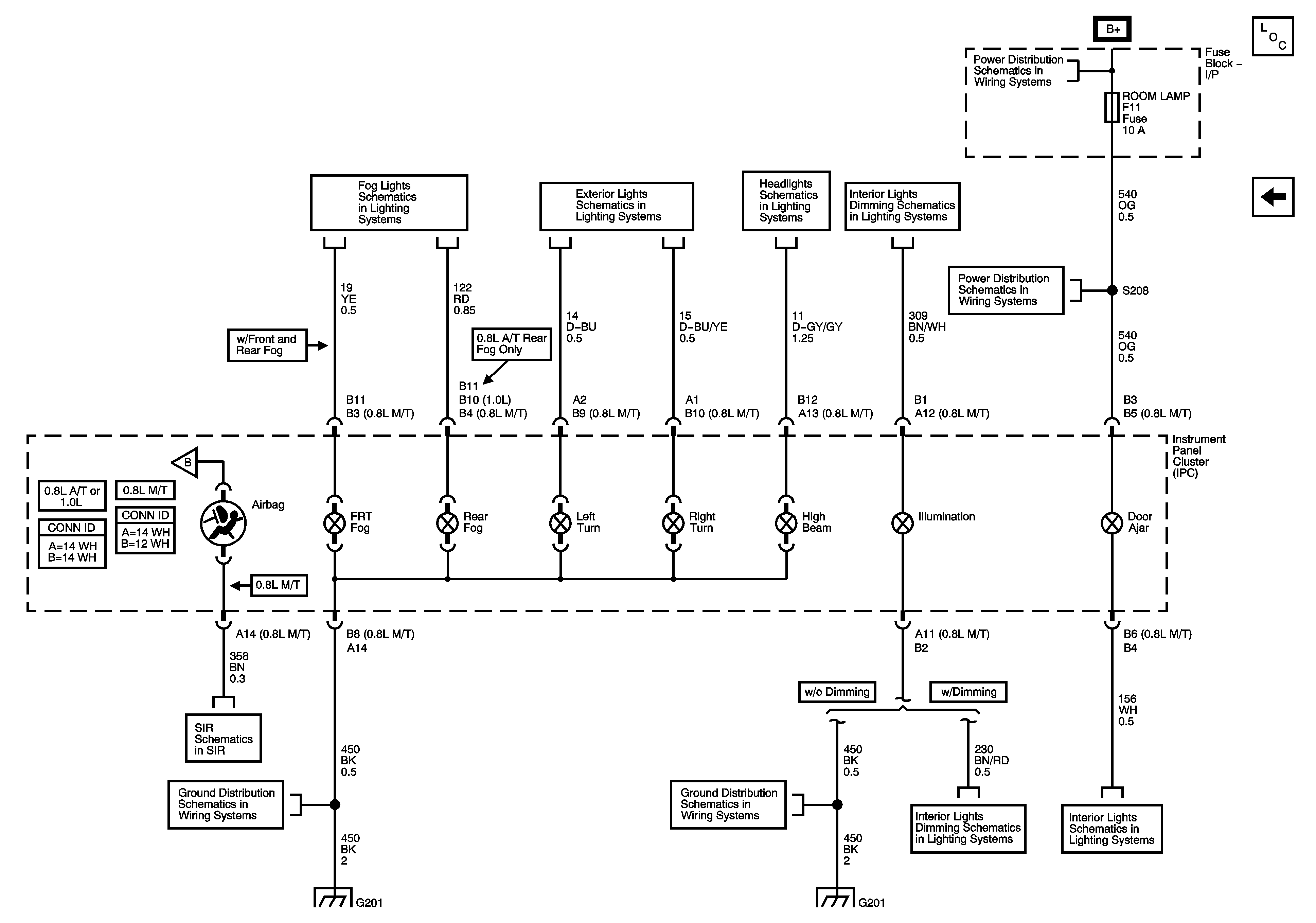

Figure 5:	Indicator Lamps Master Electrical Component List Underhood Fuse Block - Battery Feeds Underhood Fuse Block (1.0L) - HEADLAMPS, LH LO BEAM, RH LO BEAM, LH HI BEAM, and RH HI BEAM Fuses Underhood Fuse Block (0.8L) - ECM and FUEL PUMP Fuses RH TAIL LAMP, LH TAIL LAMP Fuses (Continued) Underhood Fuse Block (0.8L) - ECM and FUEL PUMP Fuses Instrument Panel Fuse Block - ECM and TCM Fuses, Underhood Fuse Block - AUDIO, CIGAR LIGHTER, CLUSTER, AIRBAG, POWER WINDOW and TURN SIGNAL Fuses RH TAIL LAMP, LH TAIL LAMP Fuses (Continued) Underhood Fuse Block (0.8L) - ECM and FUEL PUMP Fuses RH TAIL LAMP, LH TAIL LAMP Fuses (Continued) G201 (0.8L) G201 (0.8L) Courtesy Lamps
