Makes 🢒 Chevrolet 🢒 2006 🢒 Spark 🢒 Body 🢒 Wipers/Washer Systems 🢒 Windshield Washer Solvent Container Replacement

Removal Procedure

    Caution: Refer to Battery Disconnect Caution in the Preface section.


    Object Number: 1618268 Size: SH
  1. Disconnect the negative battery cable.
  2. Remove the washer reservoir inlet bolt.
  3. Remove the washer reservoir inlet.

    4. Caution: Refer to Vehicle Lifting Caution in the Preface section.


    Object Number: 1547173 Size: SH
  4. Raise and suitable support the vehicle. Refer to Lifting and Jacking the Vehicle .
  5. Remove the front RH wheelhouse splash shield screws.
  6. Remove the front RH wheelhouse splash shield clips.
  7. Remove the front RH wheelhouse splash shield.

Installation Procedure

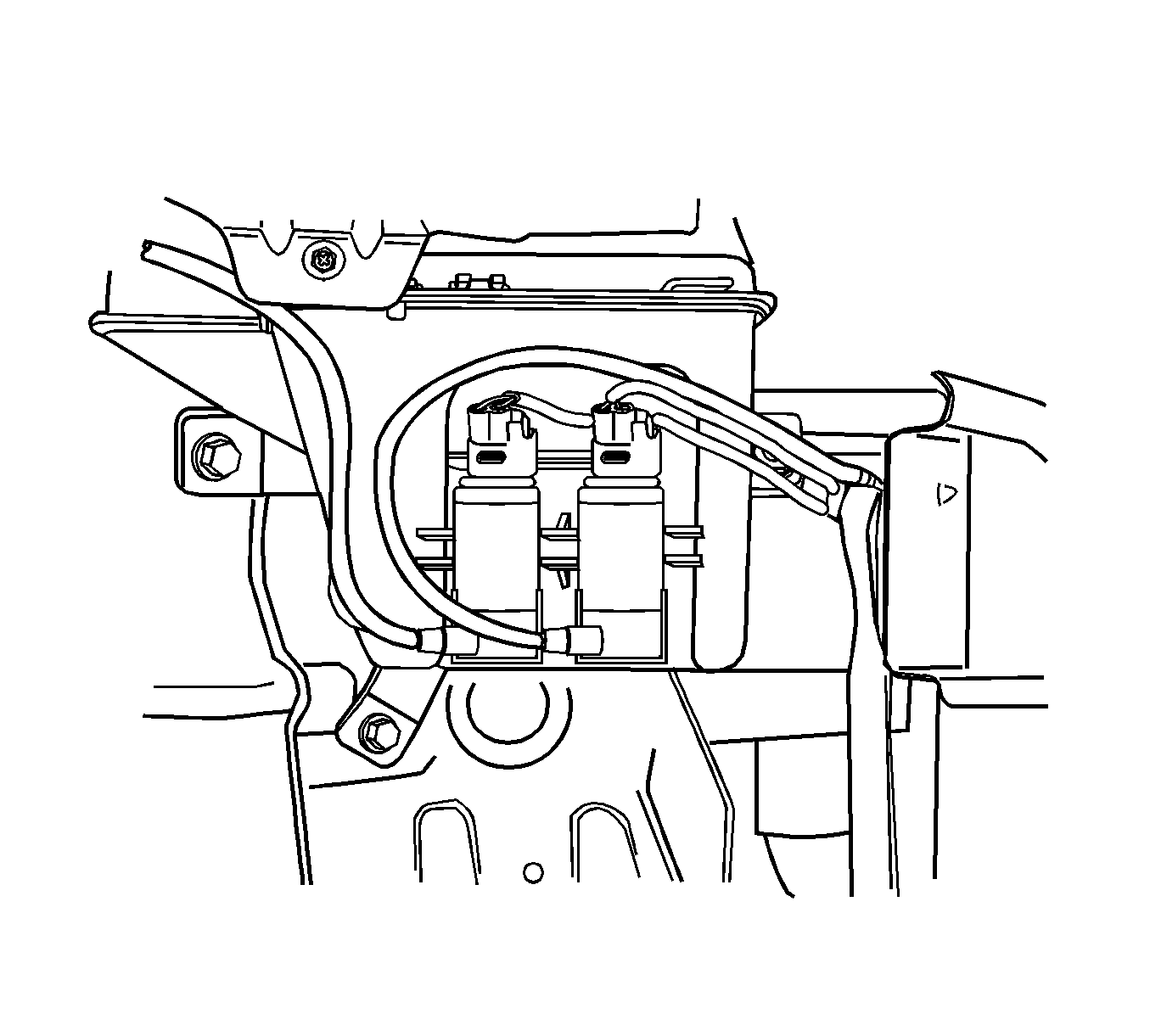

    Object Number: 1618278 Size: SH
  1. Install the washer reservoir assembly with the bolts.
  2. Connect the washer pump electrical connector.
  3. Connect the washer hose connector.
  4. Install the front RH wheelhouse splash shield with the screws and the clips.
  5. Lower the vehicle.
  6. Install the washer reservoir with the bolt.
  7. Connect the negative battery cable.
