Figure 1:

Engine Harness Grounds Utility
Object Number: 2077107 Size: LF
(1)G103 (Except HP2)
(2)G102
Figure 2:

Engine Harness Grounds Utility (HP2)
Object Number: 2077140 Size: LF
(1)G102
(2)G103

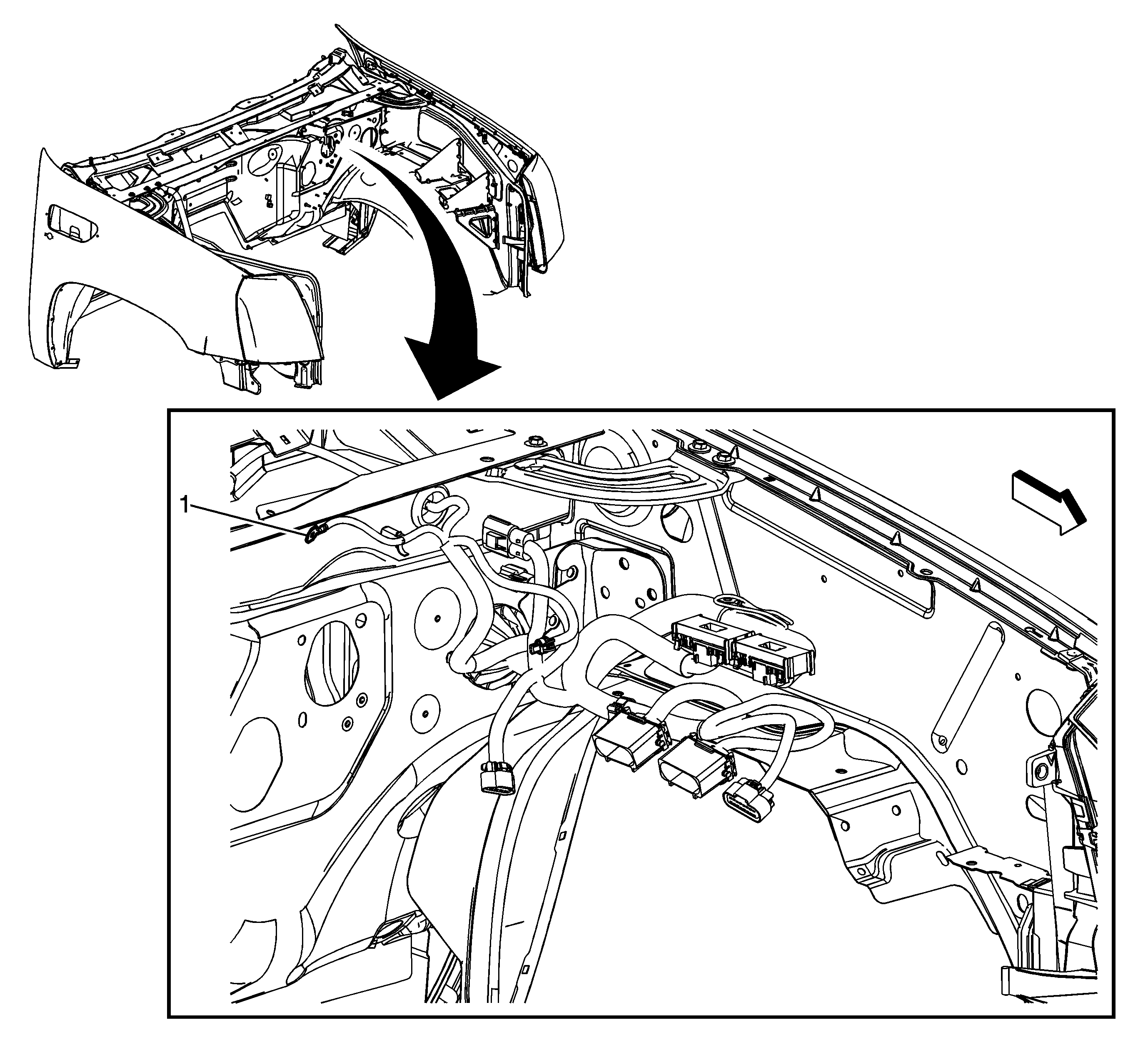

Figure 3:

Instrument Panel Harness Underhood Ground (X88/Z88/Z75)
Object Number: 2077146 Size: LF
(1)G110

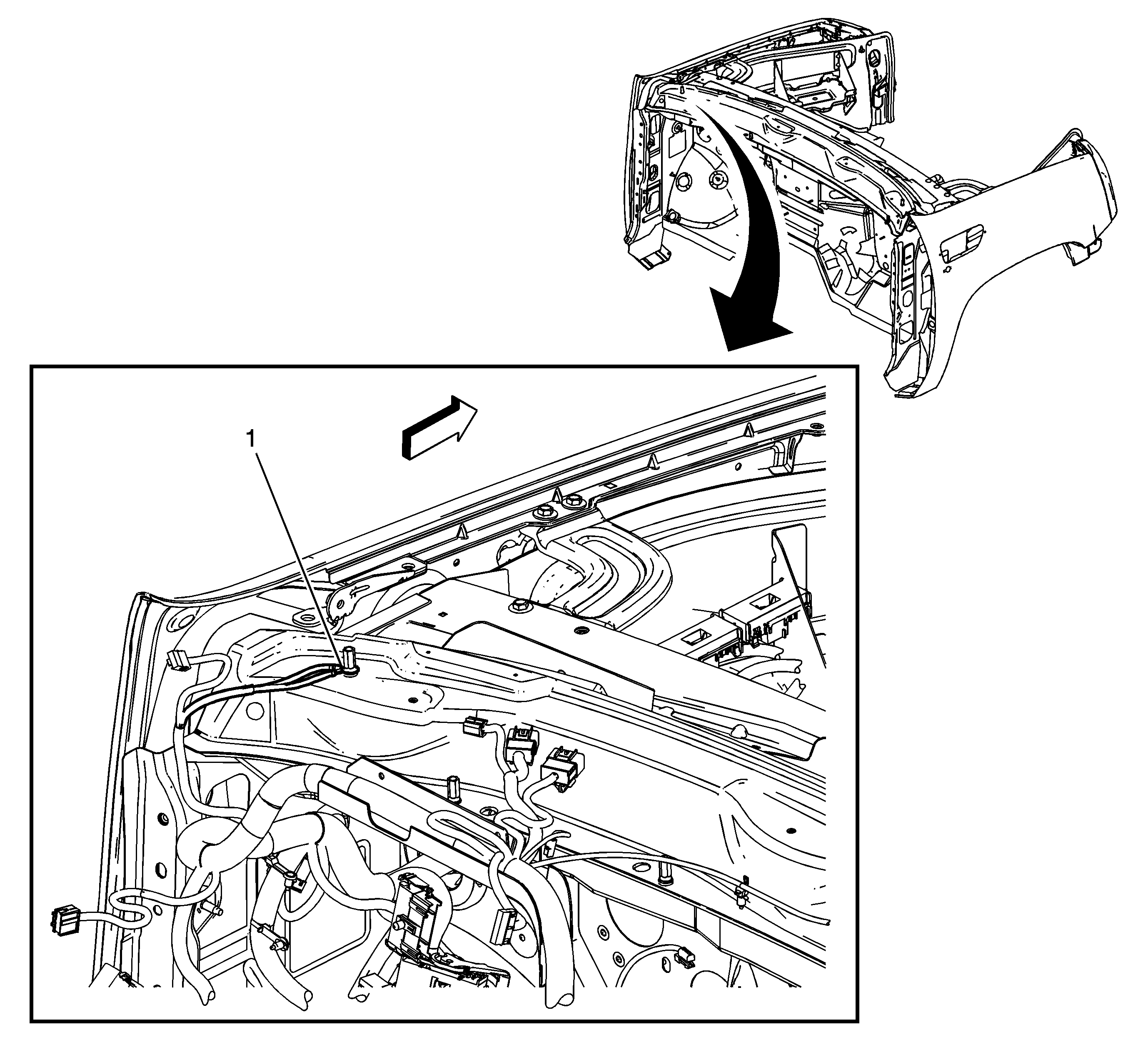

Figure 4:

Instrument Panel Harness Passenger Compartment (X88/Z88/Z75)(HP2)
Object Number: 2077152 Size: LF
(1)G201

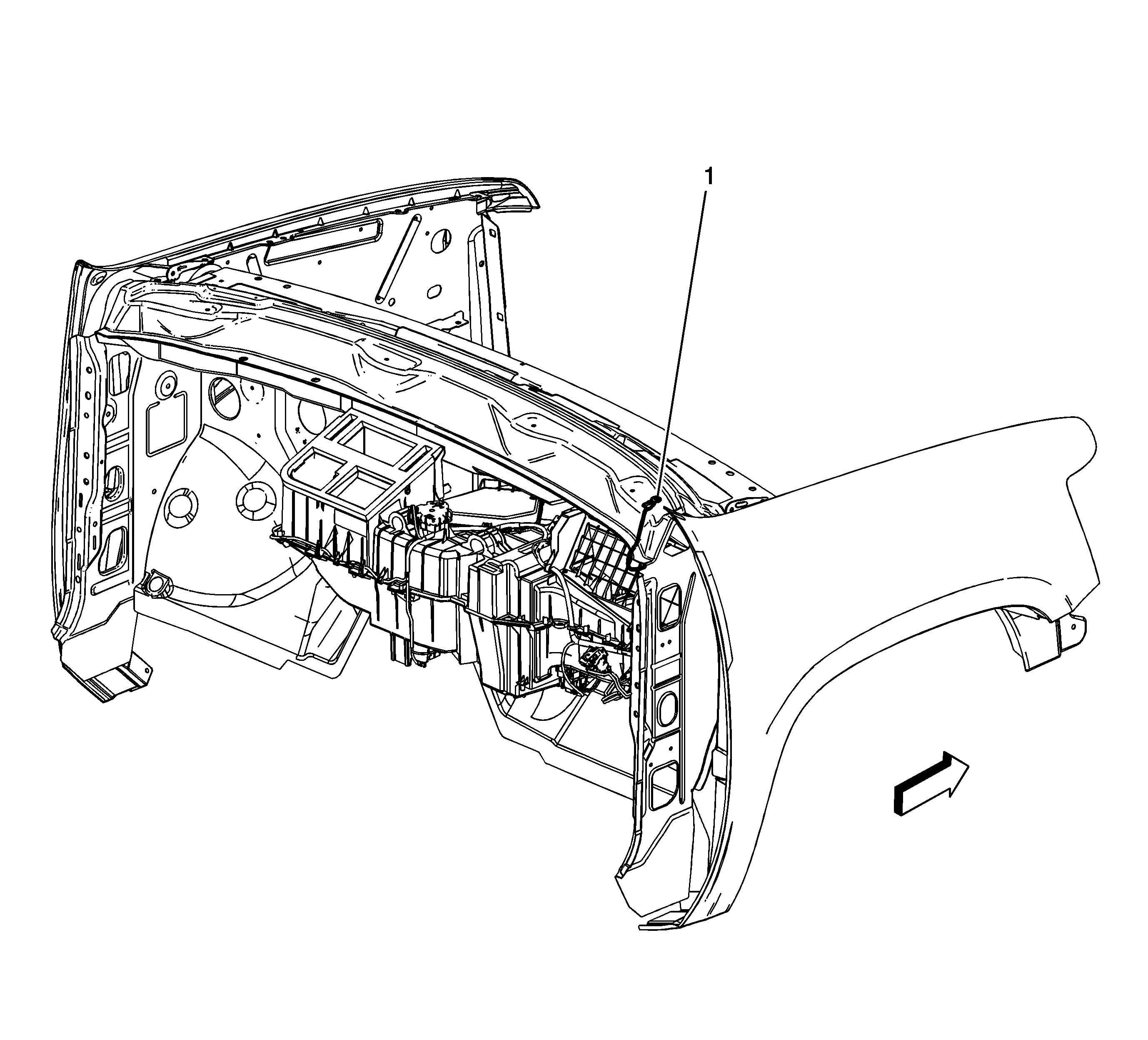

Figure 5:

HVAC Grounds
Object Number: 2077160 Size: LF
(1)G200

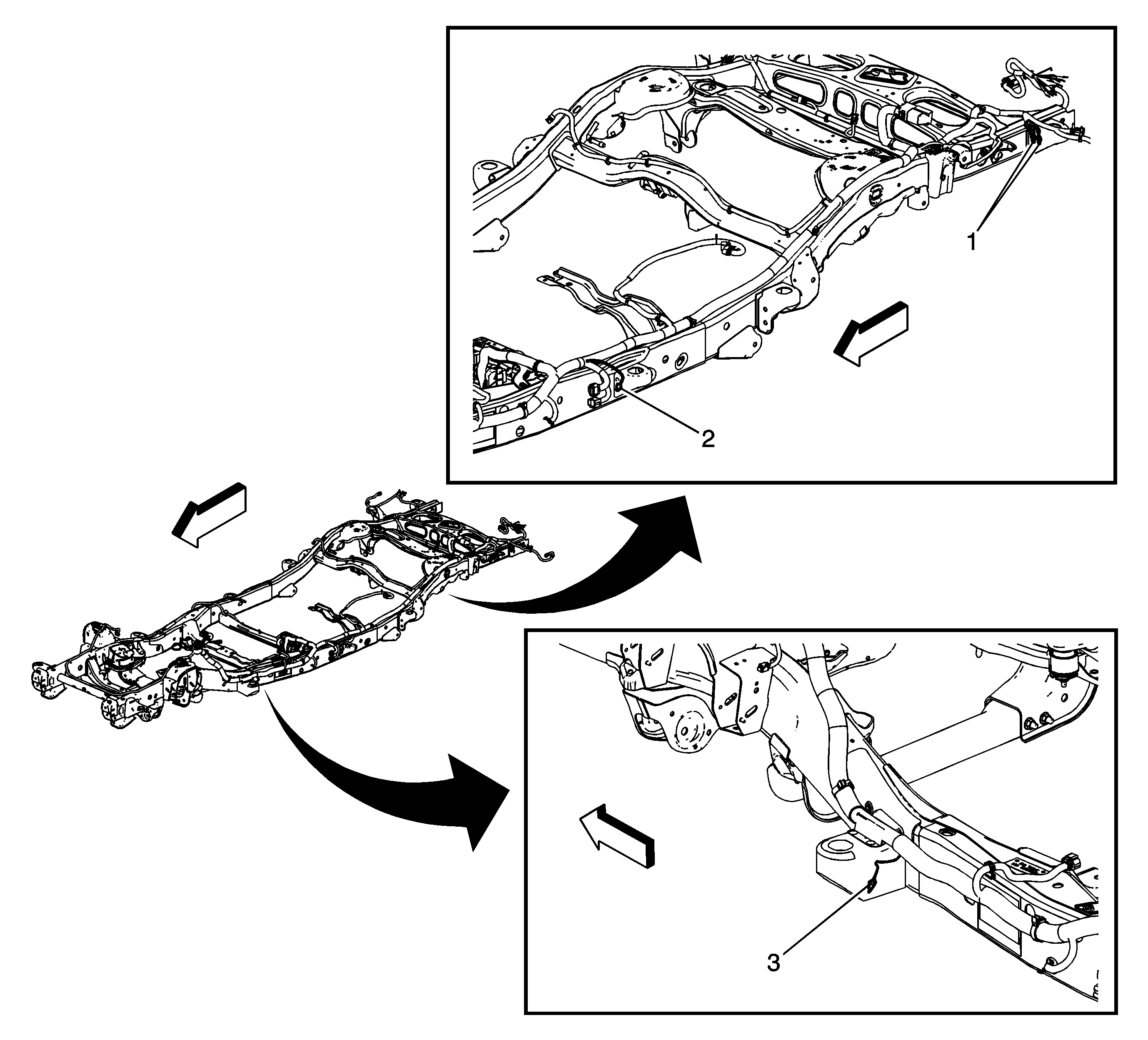

Figure 6:

Chassis Component Grounds (Utility)
Object Number: 2077168 Size: LF
(1)G400
(2)G305 (EXP or HP2)
(3)G300

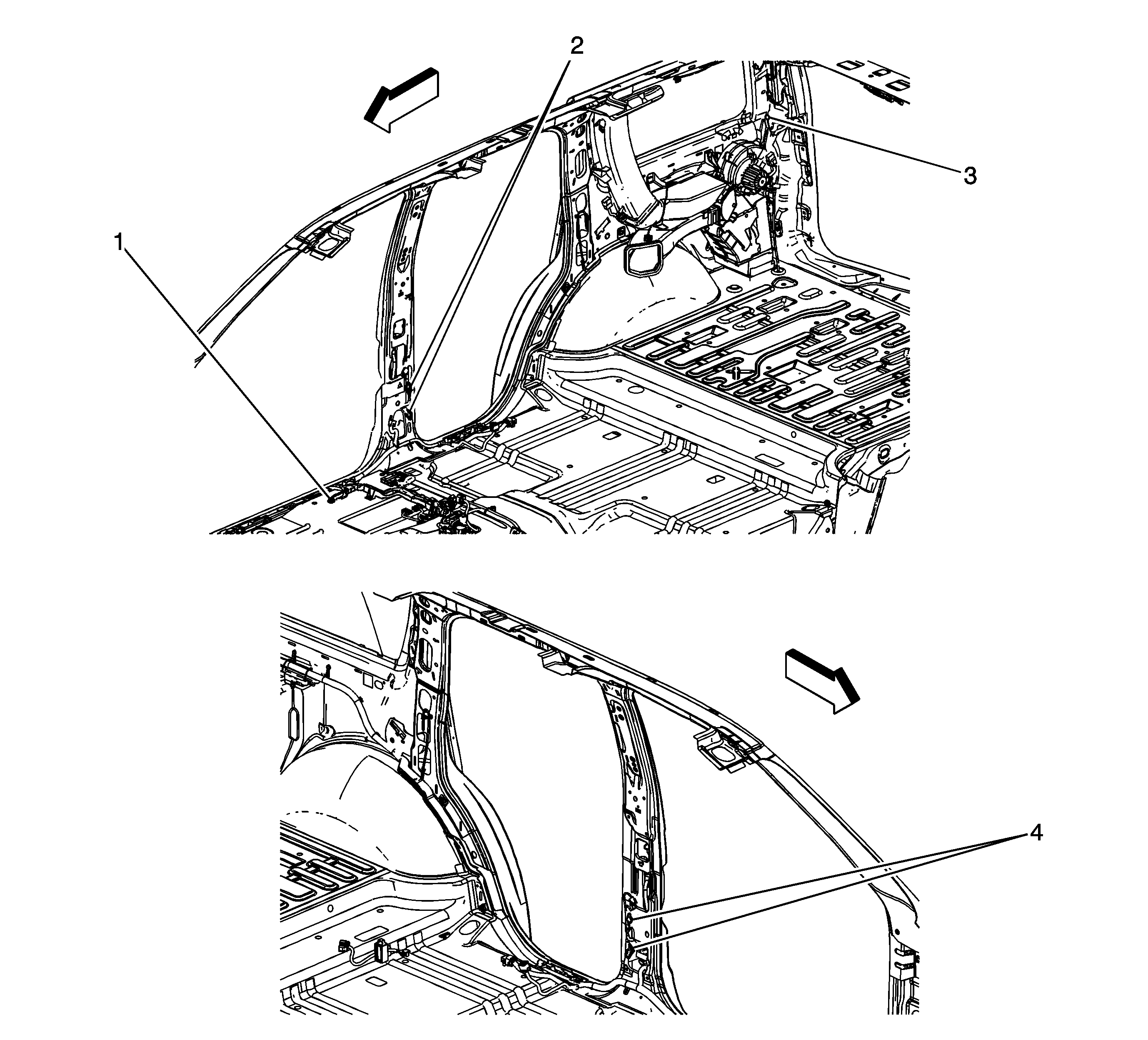

Figure 7:

Body Harness Ground Views (Utility)(E52)
Object Number: 2077171 Size: LF
(1)G302
(2)G304
(3)G402
(4)G303
Figure 8:

Body Harness Passenger Compartment (Without E52)
Object Number: 2077176 Size: LF
(1)G301
(2)G303
(3)G302
(4)G304

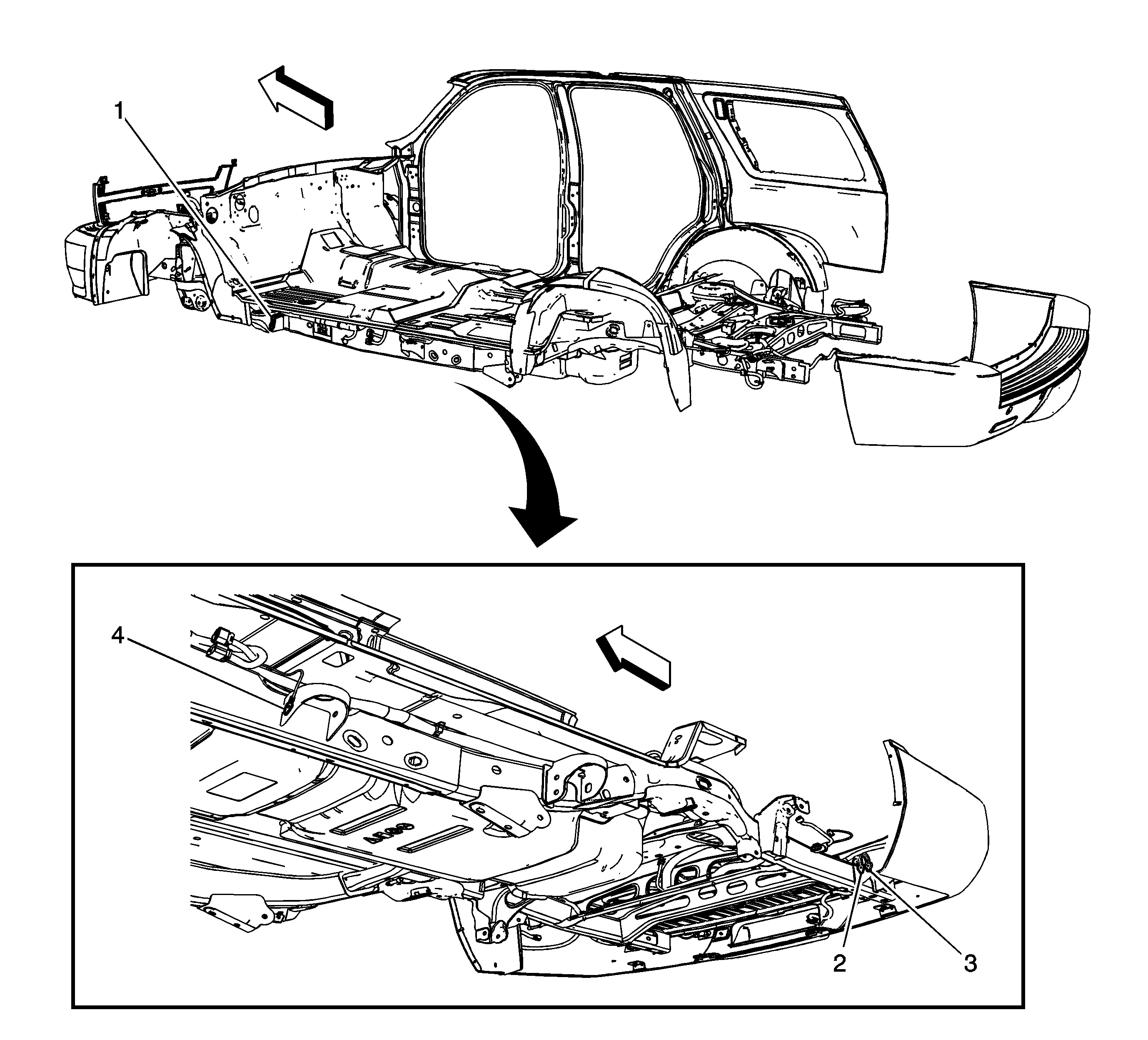

Figure 9:

Chassis (HP2)
Object Number: 2101647 Size: LF
(1)G300
(2)G400
(3)G401
(4)G305

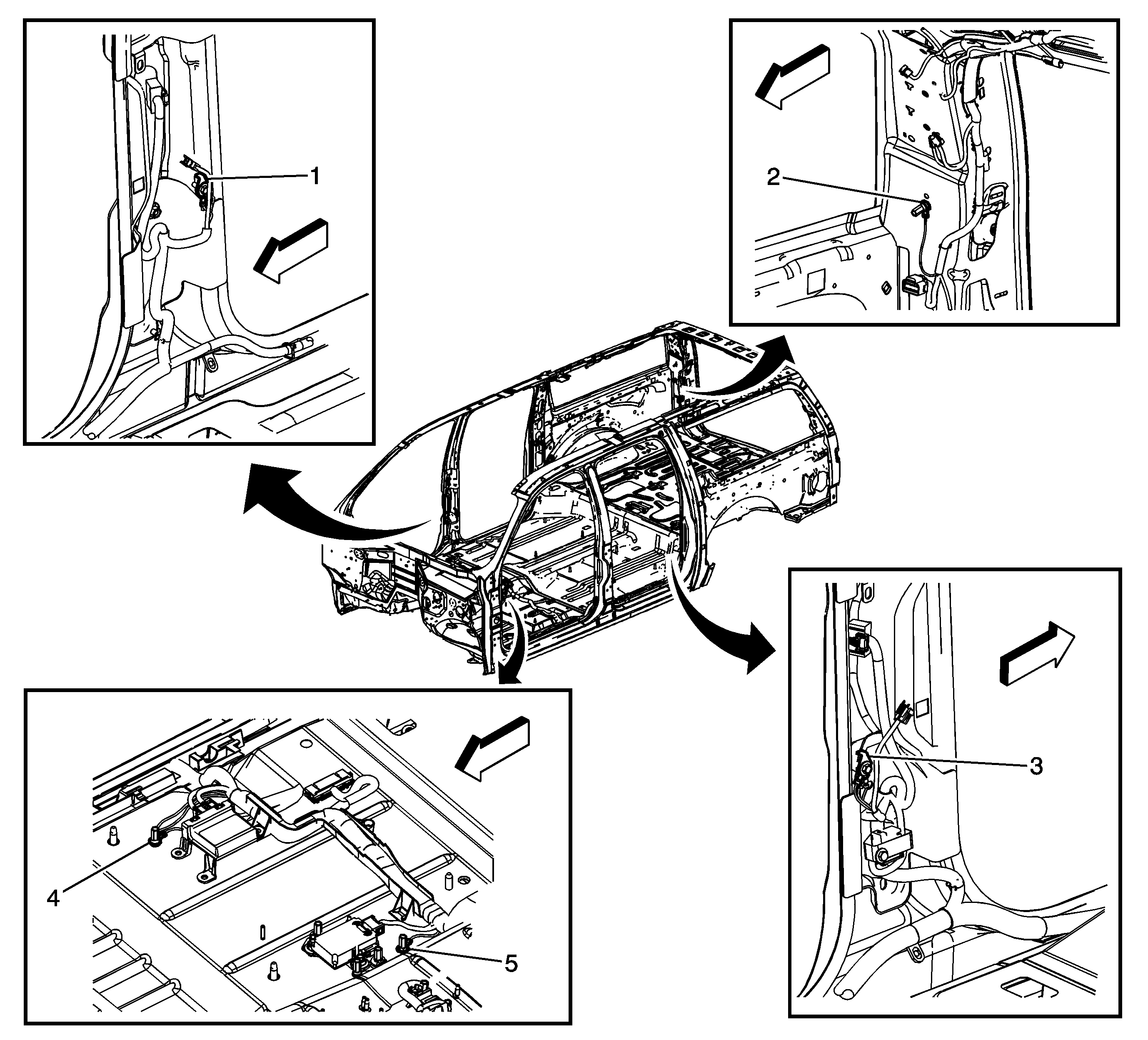

Figure 10:

Body Harness - Passenger Compartment (Long Wheel Base)
Object Number: 2098073 Size: LF
(1)G304
(2)G402
(3)G303
(4)G302
(5)G301
