Rear Side Door Trim Panel Insert Replacement Escalade

Removal Procedure

    Object Number: 1360278 Size: SH
  1. Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .

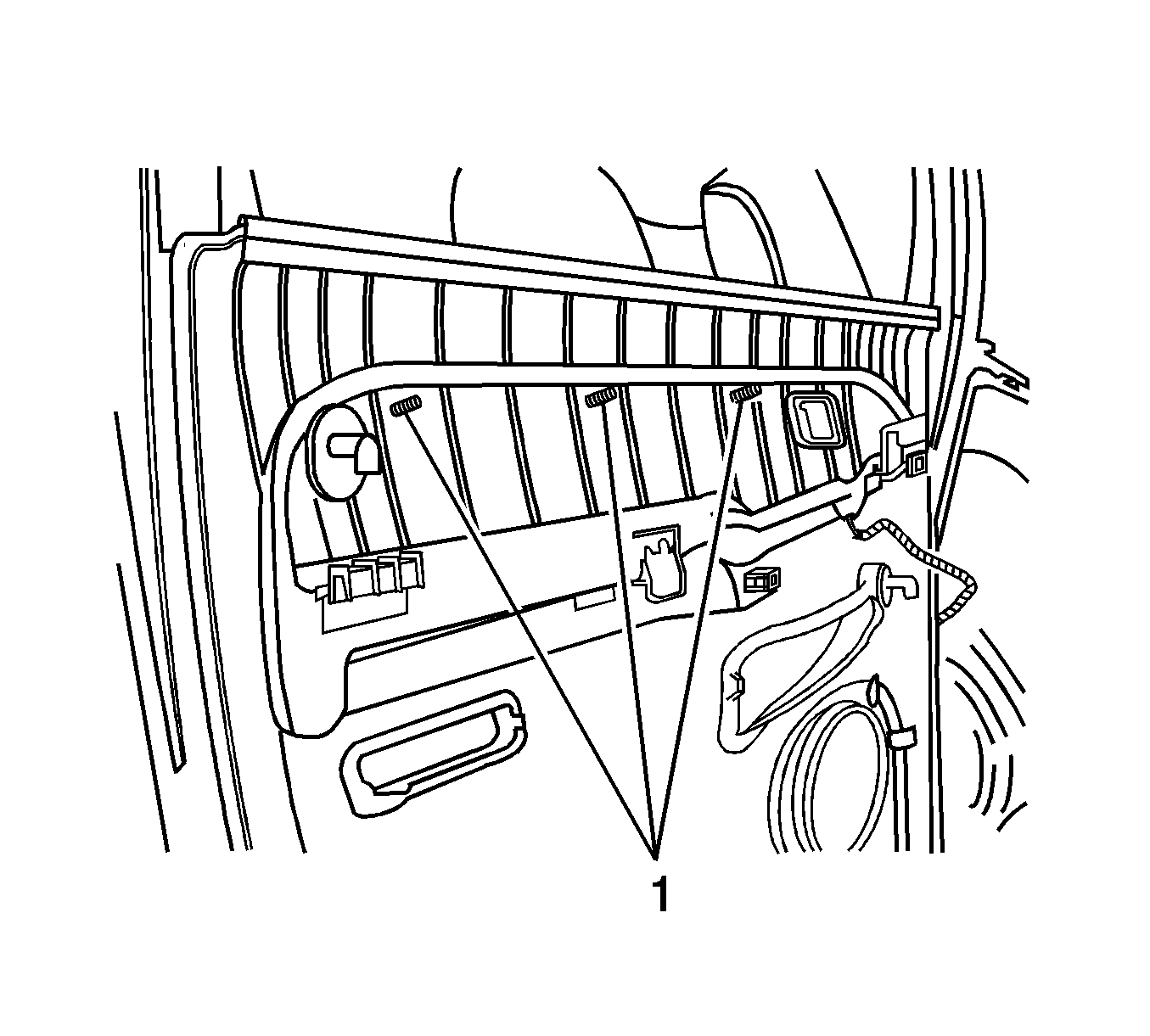

  2. Remove the door trim panel insert retaining nuts (1).
  3. Remove the door trim panel insert from the panel.

Installation Procedure

    Object Number: 1360278 Size: SH
  1. Position the door trim panel insert into the door trim panel.

    2. Notice: Refer to Fastener Notice in the Preface section.

  2. Install the door trim panel insert retaining nuts (1).

    3. Tighten
    Tighten the door trim panel insert retaining nuts (1) until fully driven, seated, but not stripped.

  3. Install the front door trim panel. Refer to Rear Side Door Trim Panel Replacement .
