Makes 🢒 Chevrolet 🢒 2003 🢒 Tracker - 2WD 🢒 Body and Accessories 🢒 Entertainment 🢒 Radio Replacement

Removal Procedure

    Object Number: 632027 Size: SH
  1. Remove the IP center trim plate. Refer to Instrument Panel Center Trim Panel Replacement in Instrument Panel, Gages and Console.
  2. Remove the 4 screws (1) which secure the radio to the instrument panel.

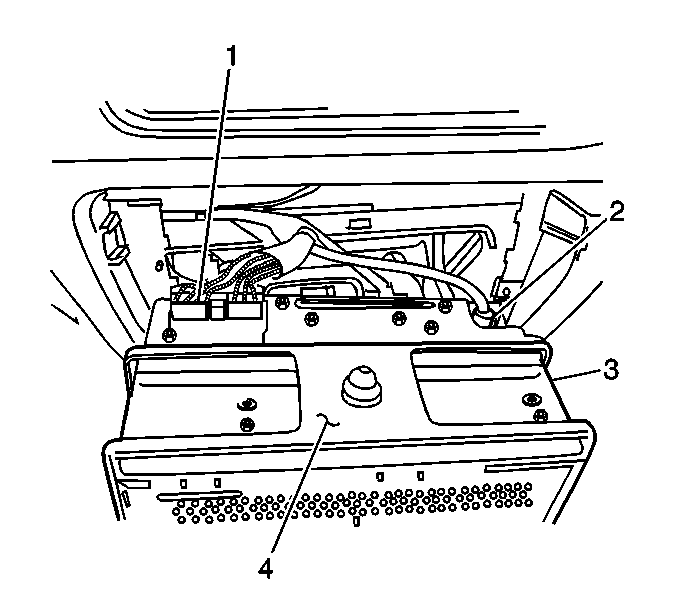

    3. Object Number: 477538 Size: SH
  3. Pull the radio (3) forward in order to gain the necessary clearance to disconnect the radio electrical connector (1) and antenna lead (2).
  4. Disconnect the electrical connector (1) and antenna lead (2) from the radio (3).
  5. Remove the radio (3) from the vehicle.
  6. Remove the 4 screws which secure the radio bracket (4) to the radio (3), if necessary.
  7. Remove the radio bracket (4) from the radio (3), if necessary.

Installation Procedure

    Object Number: 477538 Size: SH
  1. Install the radio bracket (4) to the radio (3), if removed. Secure the bracket with the 4 screws.
  2. Connect the antenna lead (2) and electrical connector (1) to the radio (3).

    3. Object Number: 632027 Size: SH
  3. Install the radio to the instrument panel. Secure the radio with the 4 screws (1).
  4. Install the IP center trim plate. Refer to Instrument Panel Center Trim Panel Replacement in Instrument Panel, Gages and Console.
