Makes 🢒 Chevrolet 🢒 2003 🢒 Tracker - 2WD 🢒 Body and Accessories 🢒 Instrument Panel, Gages, and Console 🢒 12-Volt Accessory Power Receptacle Replacement

Removal Procedure

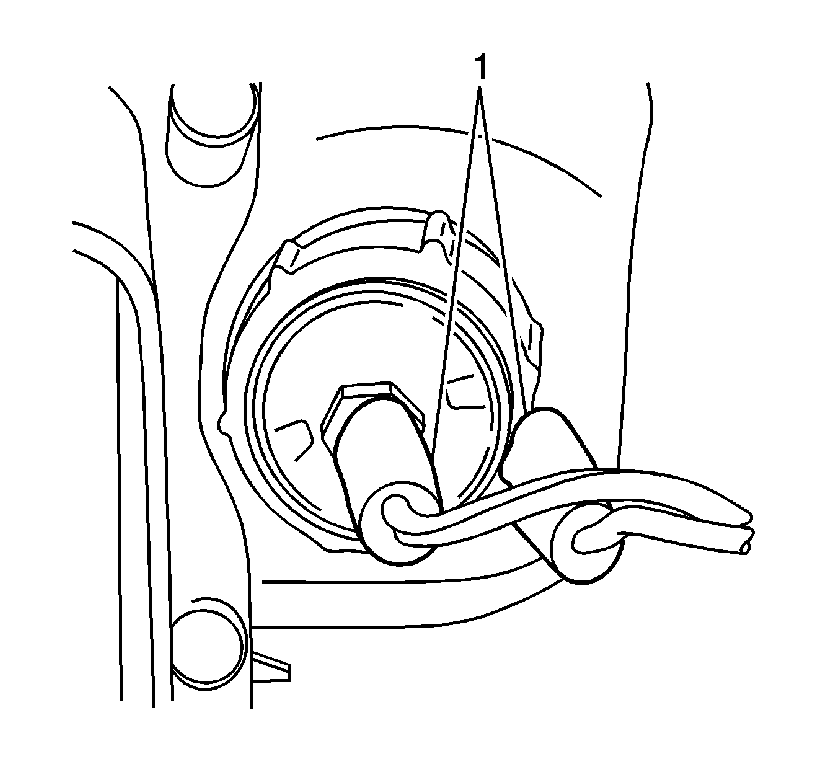

    Object Number: 927688 Size: SH
  1. Remove the rear floor console. Refer to Rear Floor Console Replacement .
  2. Disconnect the 12-volt power supply electrical connectors (1).

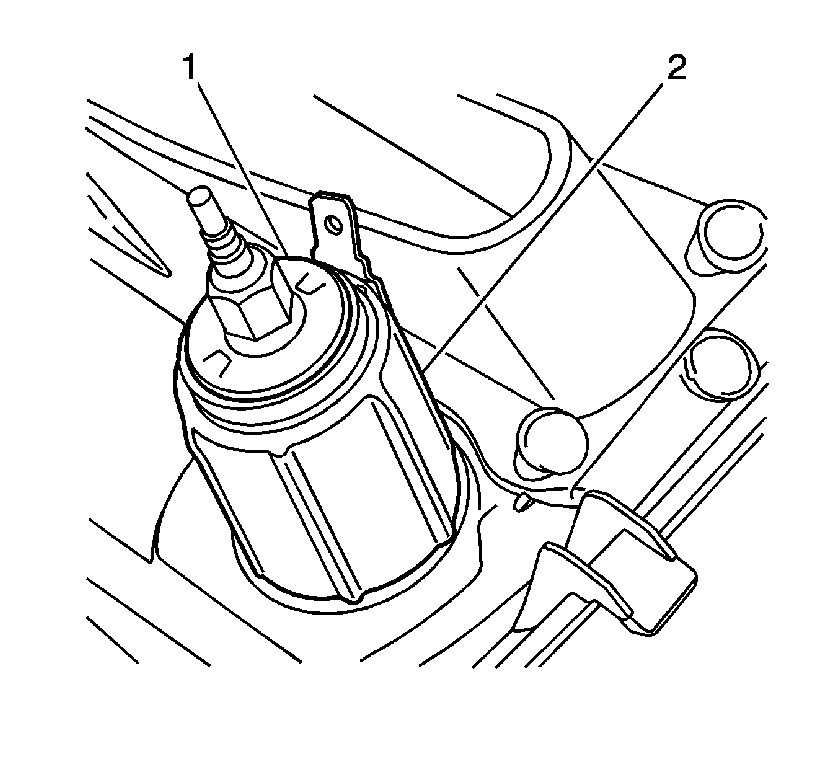

    3. Object Number: 927689 Size: SH
  3. Unscrew the retaining nut (2) from the 12-volt power supply (1).

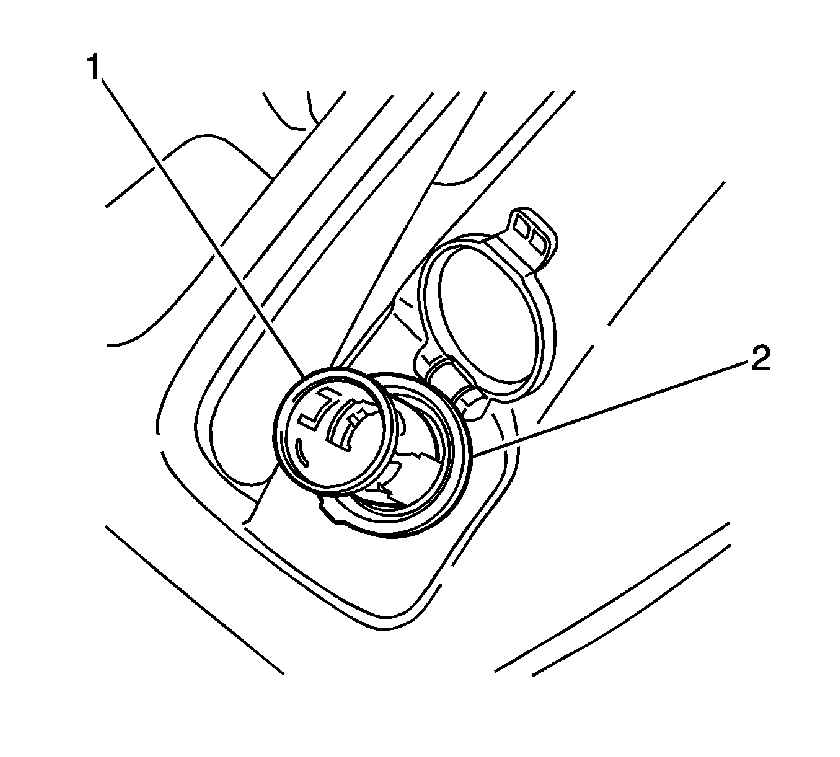

    4. Object Number: 927691 Size: SH
  4. Remove the 12-volt power supply (1) from the bezel (2).
  5. Remove the bezel (2) from the rear floor console, if necessary.

Installation Procedure

    Object Number: 927691 Size: SH
  1. Install the bezel (2) to the rear floor console, if removed.
  2. Install the 12-volt power supply (1) to the bezel (2).

    3. Object Number: 927689 Size: SH
  3. Install the retainer nut (2) to the 12-volt power supply (1).

    4. Object Number: 927688 Size: SH
  4. Connect the 12-volt power supply electrical connectors (1).
  5. Install the rear floor console. Refer to Rear Floor Console Replacement .
