For 1990-2009 cars only
Removal Procedure
- Place the remote control door lock receiver transmitter face down on a clean surface.

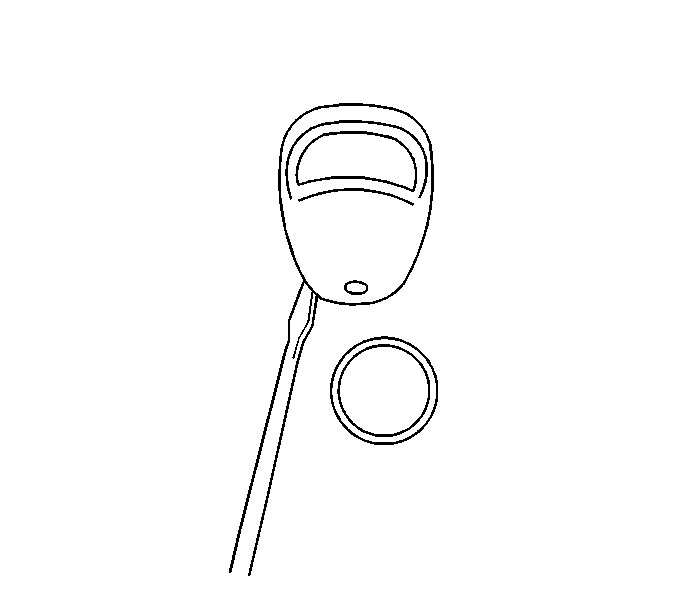

- Insert a small screwdriver into the slot on the bottom of the transmitter.
- Carefully turn the screwdriver in the slot until the rear cover releases.

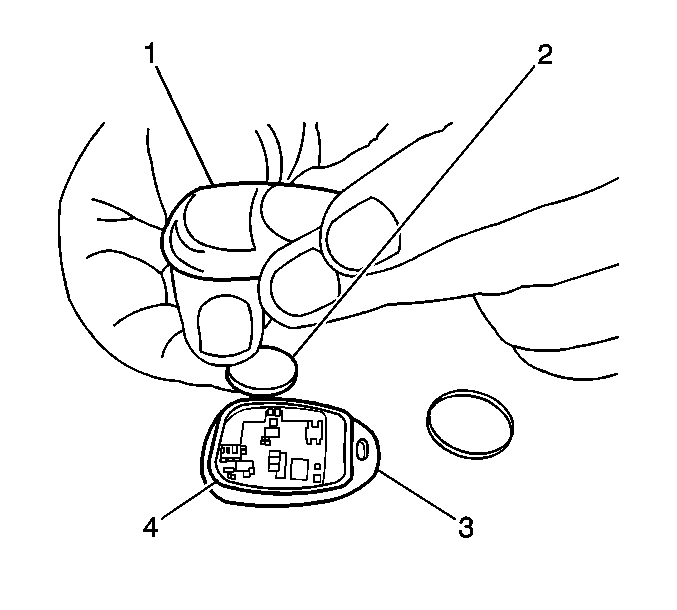

- Remove the rear cover (1) while being careful not to damage the seal (4).
- Remove the battery (2) from the transmitter (3).
Installation Procedure
- Install the new battery (2) with the positive (+) side facing up.
- Inspect that the seal (4) is properly positioned.
- Snap the two halves together.
- Verify that the remote control door lock receiver transmitter (3) is functioning correctly. If not, refer to Transmitter Programming .
