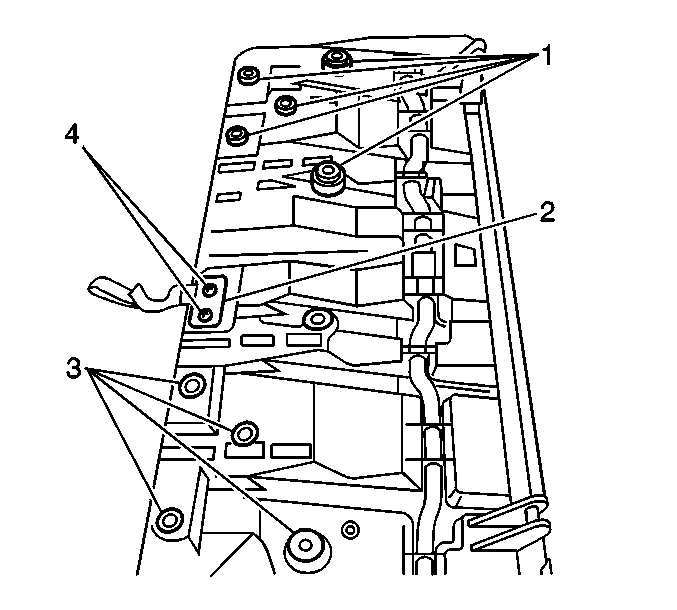

Rear Seat Cushion Frame Replacement 2 Door

1. Remove the rear seat cushion cover. Refer to Rear Seat Cushion Cover Replacement .
2. Remove the following components from the rear seat cushion frame:

2.1.	The 10 screws which secure the rear seat cushion bumpers (1, 3)

2.2.	The 10 bumpers (1, 3)

2.3.	The 2 screws (4)

2.4.	The rear seat pull strap (2)

1. Install the rear seat pull strap (2) to the rear seat cushion frame. Secure the strap with the 2 screws (4).
2. Install the 10 bumpers (1, 3) to the cushion frame. Secure each bumper with 1 screw.
3. Install the rear seat cushion cover. Refer to Rear Seat Cushion Cover Replacement .

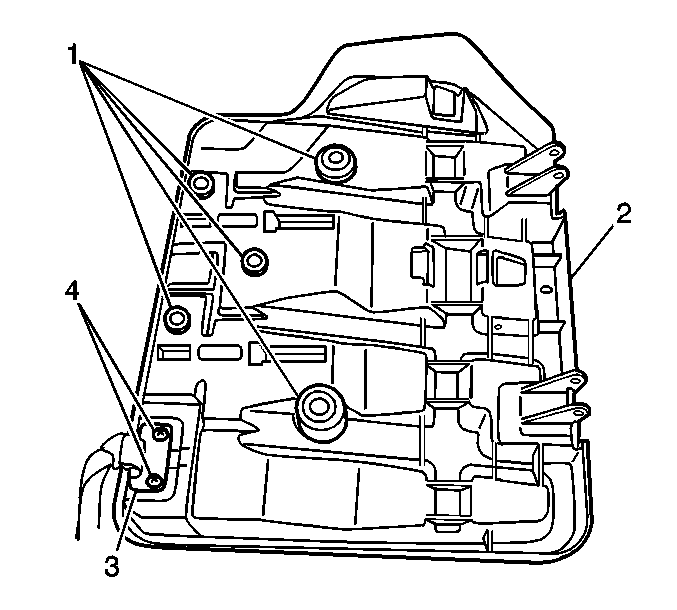

Rear Seat Cushion Frame Replacement 4 Door

1. Remove the rear seat cushion cover. Refer to Rear Seat Cushion Cover Replacement .
2. Remove the following components from the rear seat cushion frame (2):

2.1.	The 5 screws which secure the rear seat cushion bumpers (1)

2.2.	The 5 bumpers (1)

2.3.	The 2 screws (4)

2.4.	The rear seat pull strap (3)

1. Install the rear seat pull strap (3) to the rear seat cushion frame (2). Secure the strap with the 2 screws (4).
2. Install the 5 bumpers (1) to the cushion frame (2). Secure each bumper with 1 screw.
3. Install the rear seat cushion cover. Refer to Rear Seat Cushion Cover Replacement .
