Driver or Passenger Seat Back Cushion Cover Replacement Passenger Side

1. Remove the front seat head restraint. Refer to Front Seat Head Restraint Replacement .
2. Remove the armrest. Refer to Armrest Replacement .

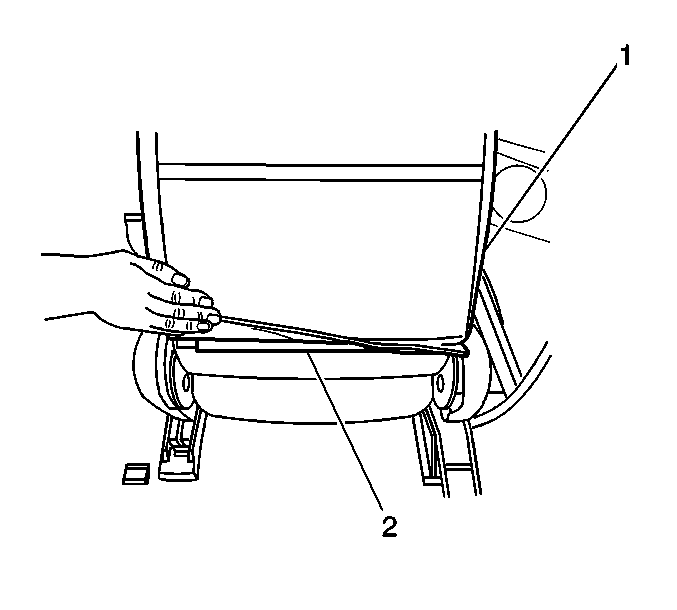

3. Release the J-retainer (2) on the bottom of the seat back cushion which secures the seat back cushion cover (1).

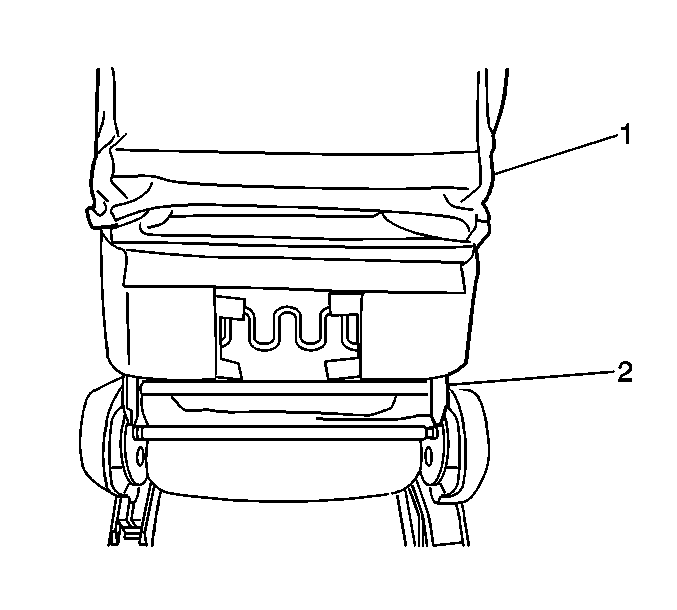

4. Roll up the seat back cushion cover (1).

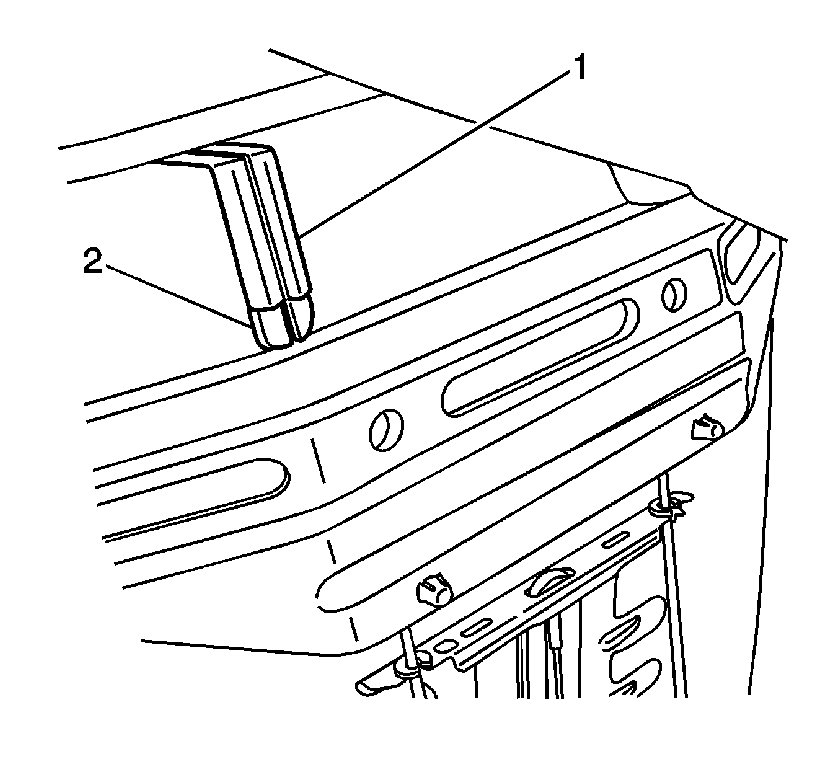

5. Squeeze the bottom of the head restraint guides (2) and remove from the seat back frame (1).
6. Remove the seat back cushion cover from the seat back cushion.

1. Roll the seat back cushion cover (1) onto the seat back cushion (2).



2. Install the head restraint guide (2) to the seat back frame (1) by pushing down until it clips in.



3. Secure the J-retainer (2) on the bottom of the seat back cushion which secures the seat back cushion cover (1).
4. Install the armrest. Refer to Armrest Replacement .
5. Install the front seat head restraint . Refer to Front Seat Head Restraint Replacement .

Driver or Passenger Seat Back Cushion Cover Replacement Driver Side

1. Remove the front seat head restraint. Refer to Front Seat Head Restraint Replacement .
2. Remove the armrest. Refer to Armrest Replacement .
3. Remove the lumbar support knob. Refer to Lumbar Support Knob Replacement .
4. Release the J-retainer (2) on the bottom of the seat back cushion which secures the seat back cushion cover (1).



5. Roll up the seat back cushion cover (1).



6. Squeeze the bottom of the head restraint guides (2) and pull up to remove from seat back frame (1).
7. Remove the seat back cushion cover from the seat back cushion.

1. Roll the seat back cushion cover (1) onto the seat back cushion (2).



2. Install the head restraint guides (2) to the seat back frame (1), by pushing down until it clips in.



3. Secure the J-retainer (2) on the bottom of the seat back cushion which secures the seat back cushion cover (1).
4. Install the armrest. Refer to Armrest Replacement .
5. Install the lumbar support knob. Refer to Lumbar Support Knob Replacement .
6. Install the front seat head restraint . Refer to Front Seat Head Restraint Replacement .
