Engine Controls Schematics. Chevrolet Tracker

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2002 🢒 Tracker - 4WD 🢒 Engine 🢒 Engine Controls - 2.0L 🢒 Engine Controls Schematics

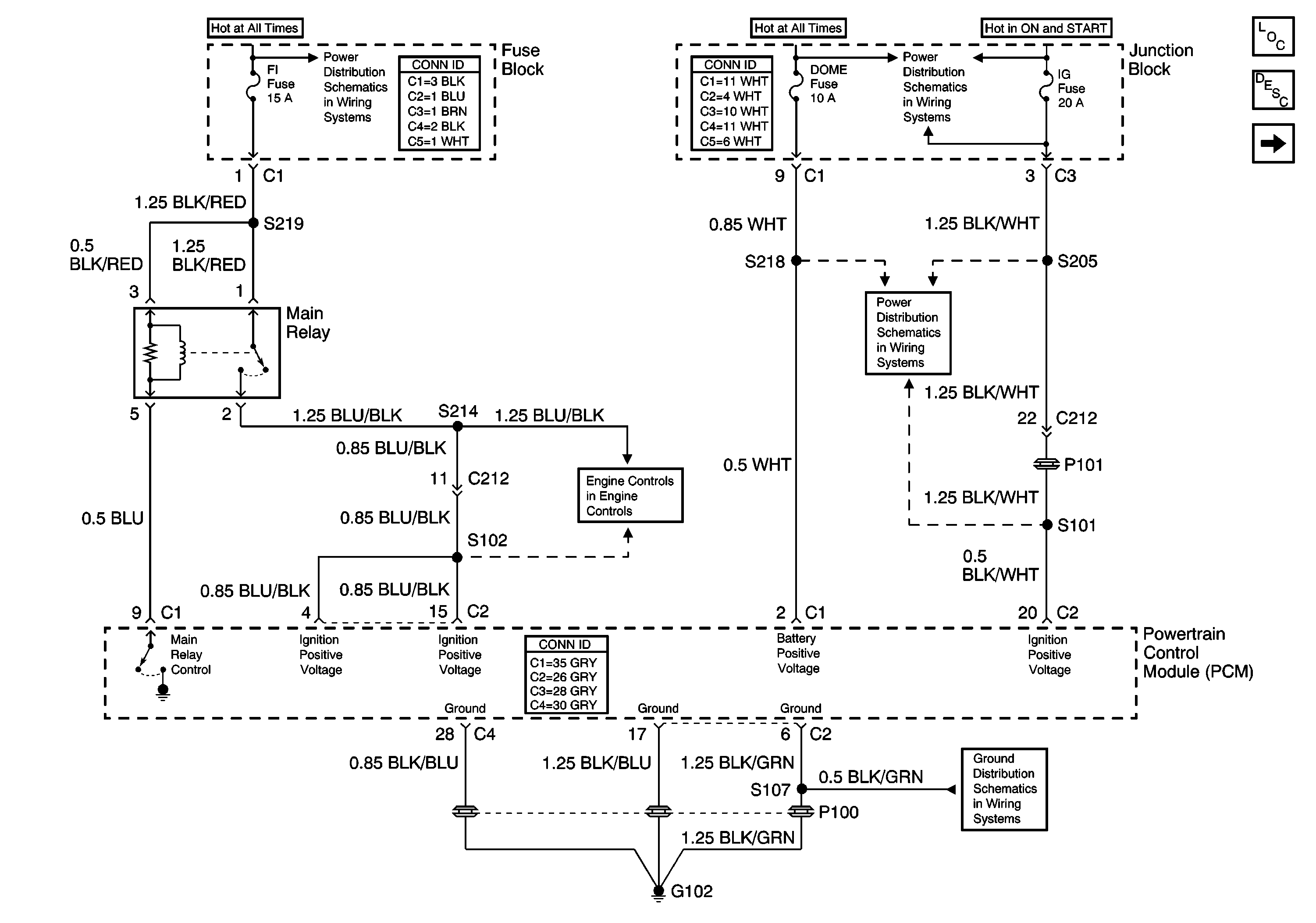

Figure 1:	Main Relay, Powertrain Control Module (PCM) Power and Ground Master Electrical Component List Data Link Connector (DLC) and Malfunction Indicator Lamp (MIL) G100, G101 and G102 CIG, DEF, P/W Fuses HAZ, D/L, TAIL, STOP, DOME Fuses Fuel Pump Relay, Fuel Sender Assembly BATT, ABS, F1, and ACC Fuses

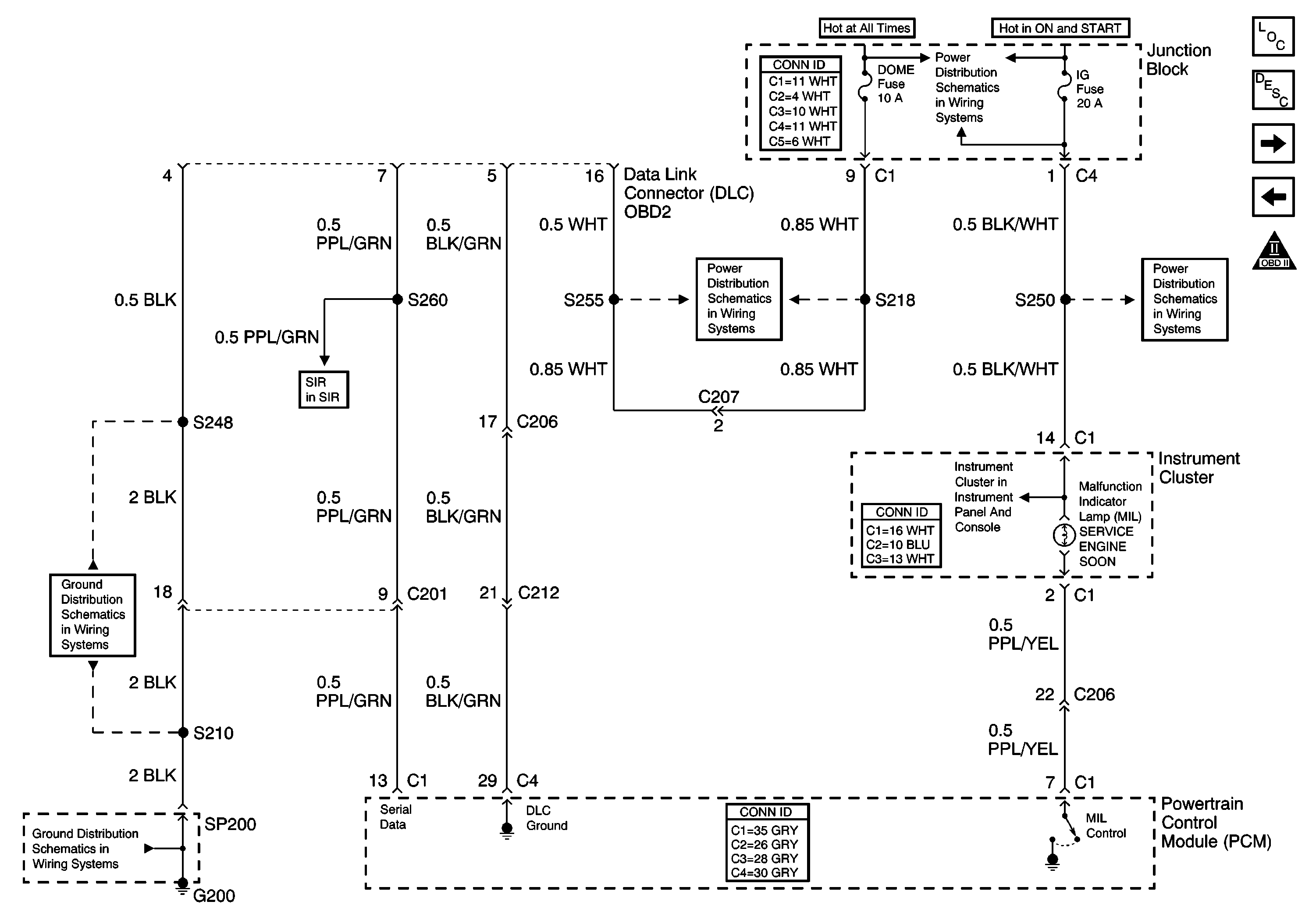

Figure 2:	Data Link Connector (DLC) and Malfunction Indicator Lamp (MIL) Master Electrical Component List Exhaust Gas Recirculation (EGR) Valve and EVAP Solenoids Main Relay, Powertrain Control (PCM) Power and Ground OBD II Symbol Description Notice TURN, WIP Fuses Power, O/D OFF, 4WD, MIL, CRUISE, Charge Indicators HAZ, D/L, TAIL, STOP, DOME Fuses HAZ, D/L, TAIL, STOP, DOME Fuses SIR Schematics G200 (1 of 2) G200 (2 of 2)

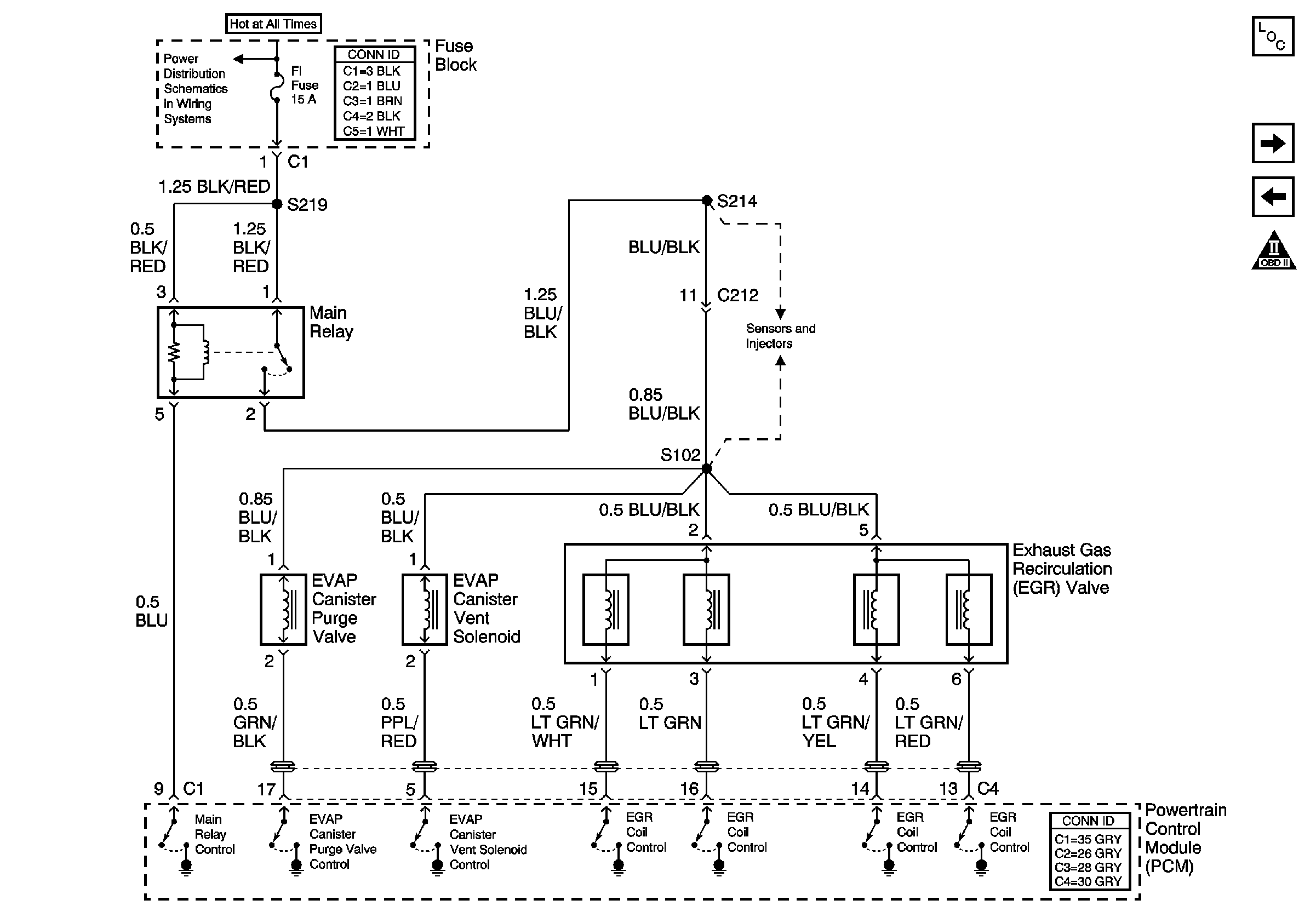

Figure 3:	Exhaust Gas Recirculation (EGR) Valve and EVAP Solenoids Master Electrical Component List Idle Air Control (IAC) Valve, Mass Air Flow (MAF) Sensor, Vehicle Speed Sensor (VSS) Data Link Connector (DLC) and Malfunction Indicator Lamp (MIL) OBD II Symbol Description Notice BATT, ABS, F1, and ACC Fuses

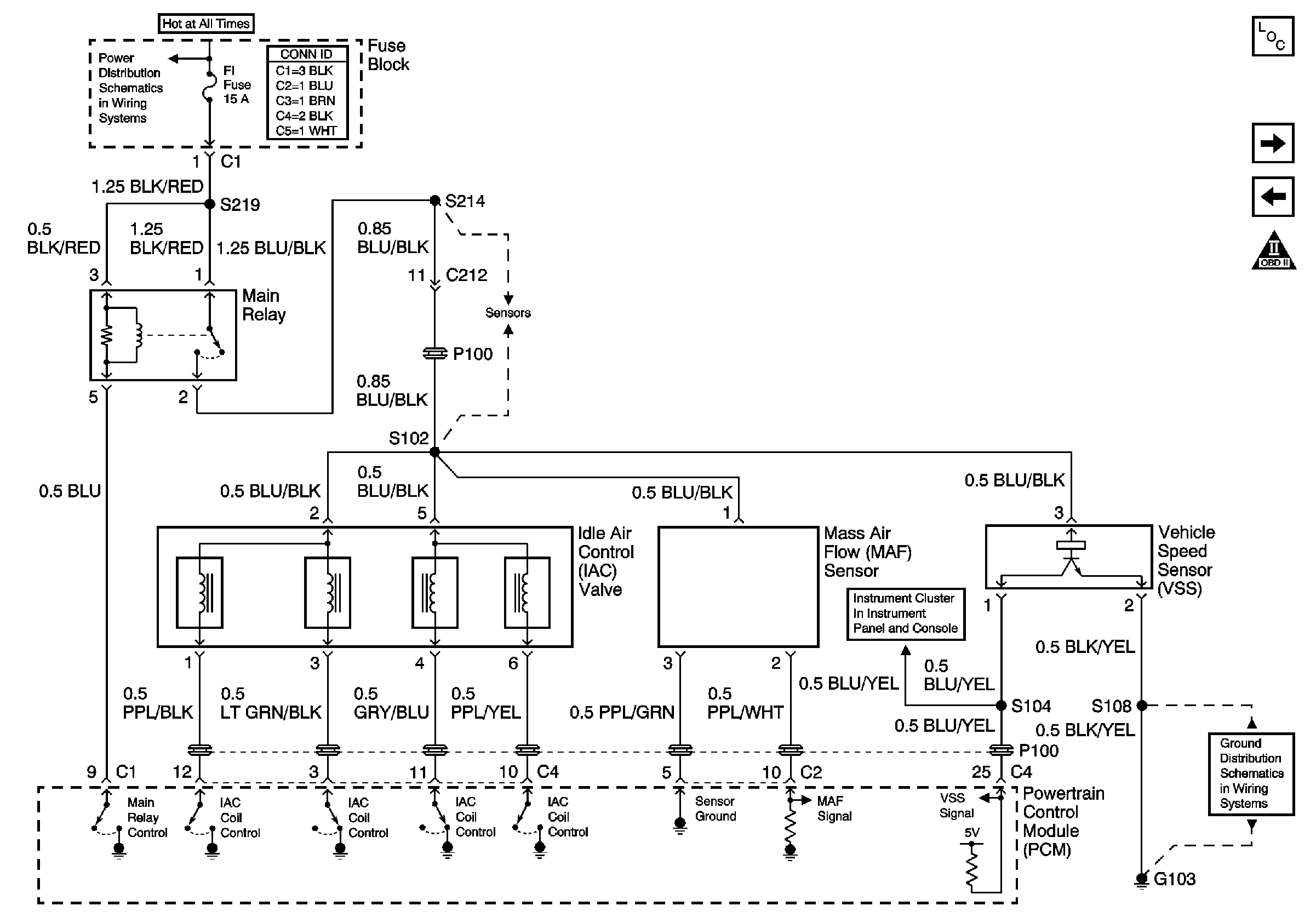

Figure 4:	Idle Air Control (IAC) Valve, Mass Air Flow (MAF) Sensor, Vehicle Speed Sensor (VSS) Master Electrical Component List Ignition Coils Exhaust Gas Recirculation (EGR) Valve and EVAP Solenoids OBD II Symbol Description Notice G103 Cruise Control Servo, Hehicle Speed Sensor BATT, ABS, F1, and ACC Fuses

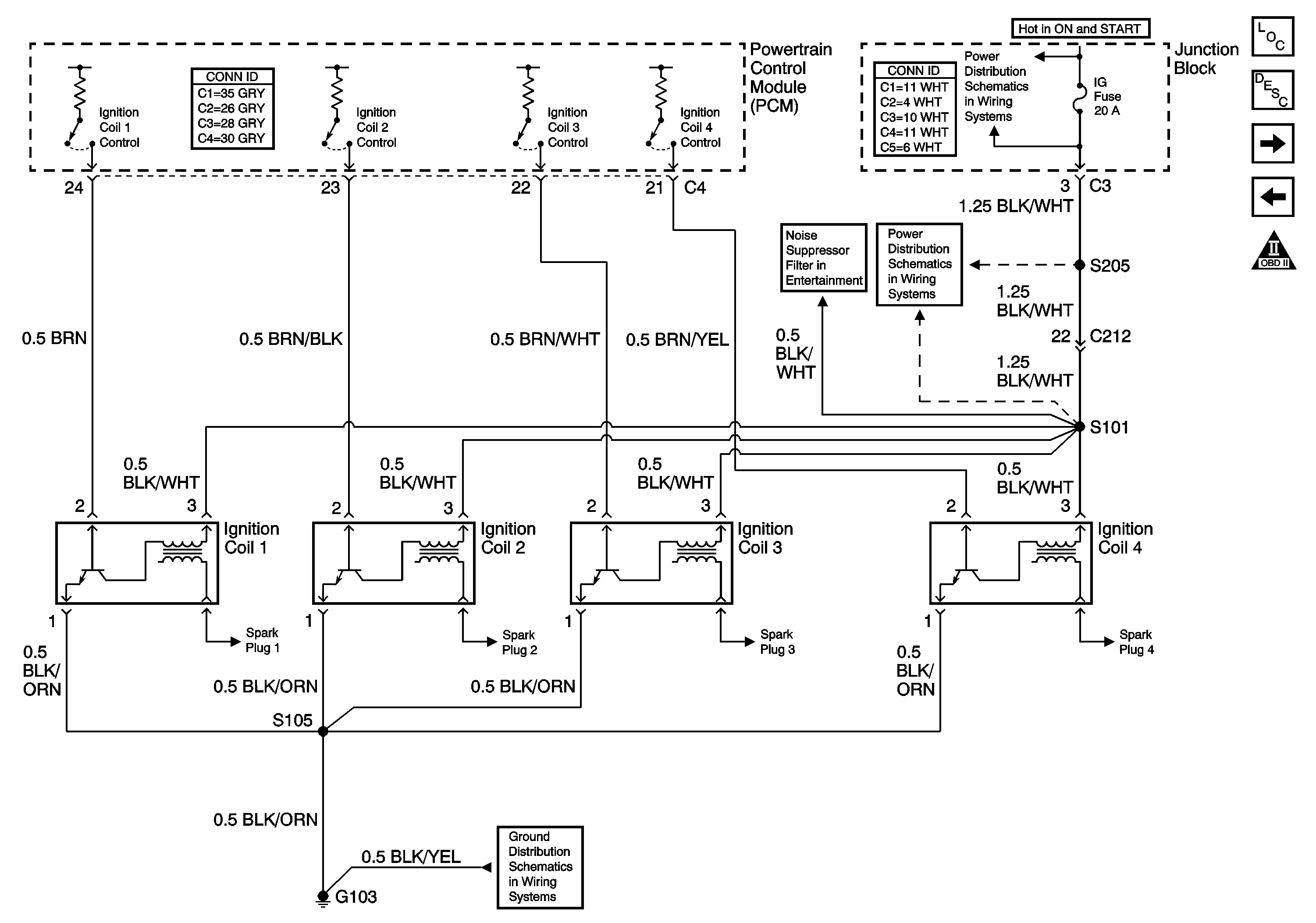

Figure 5:	Ignition Coils Master Electrical Component List Fuel Injectors Idle Air Control (IAC) Valve, Mass Air Flow (MAF) Sensor, Vehicle Speed Sensor (VSS) OBD II Symbol Description Notice H/L, L, H/L, R, HTR, IG, LAMP Fuses Entertainment Schematics CIG, DEF, P/W Fuses G103

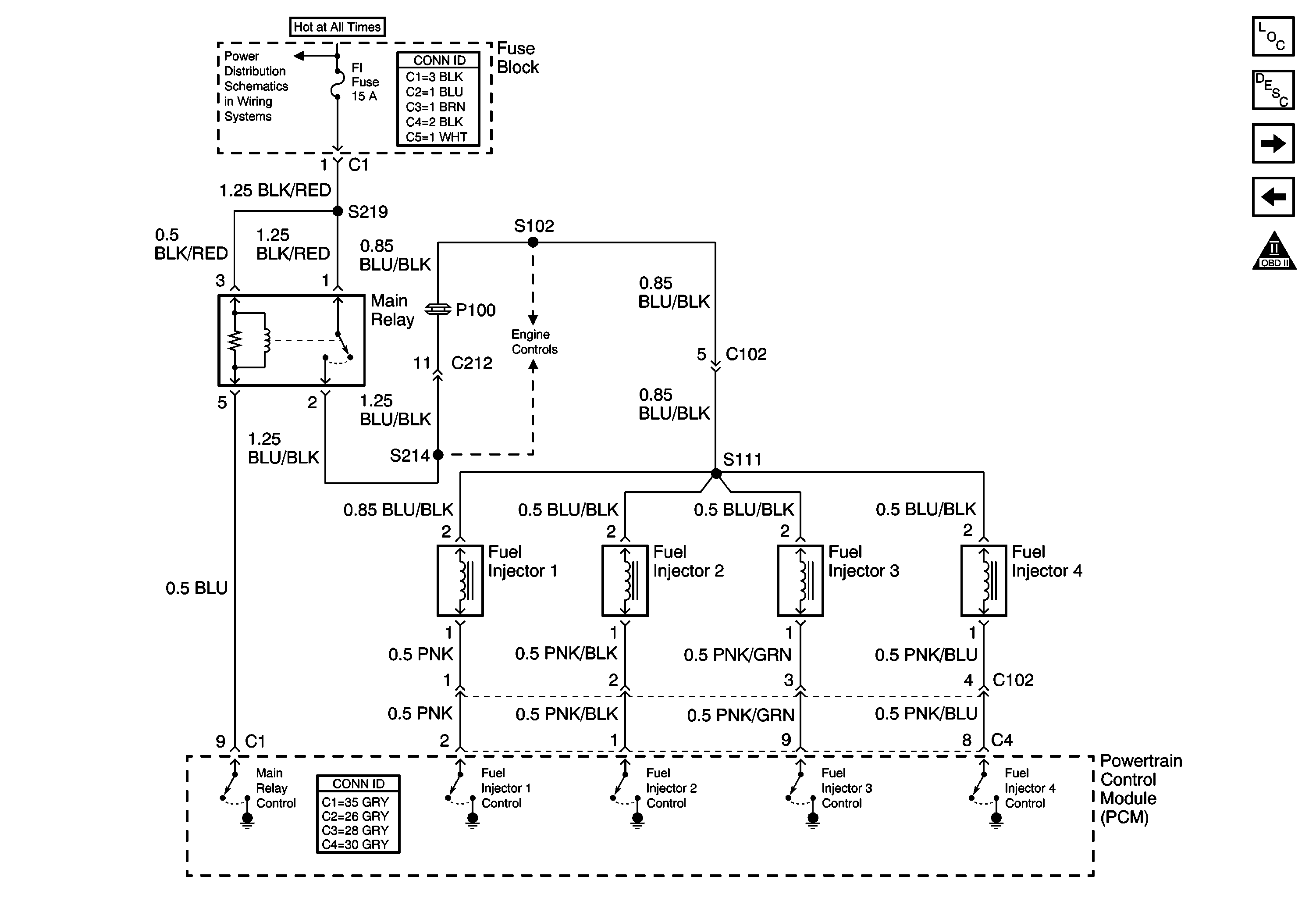

Figure 6:	Fuel Injectors Master Electrical Component List Engine Data Sensors Ignition Coils OBD II Symbol Description Notice BATT, ABS, F1, and ACC Fuses

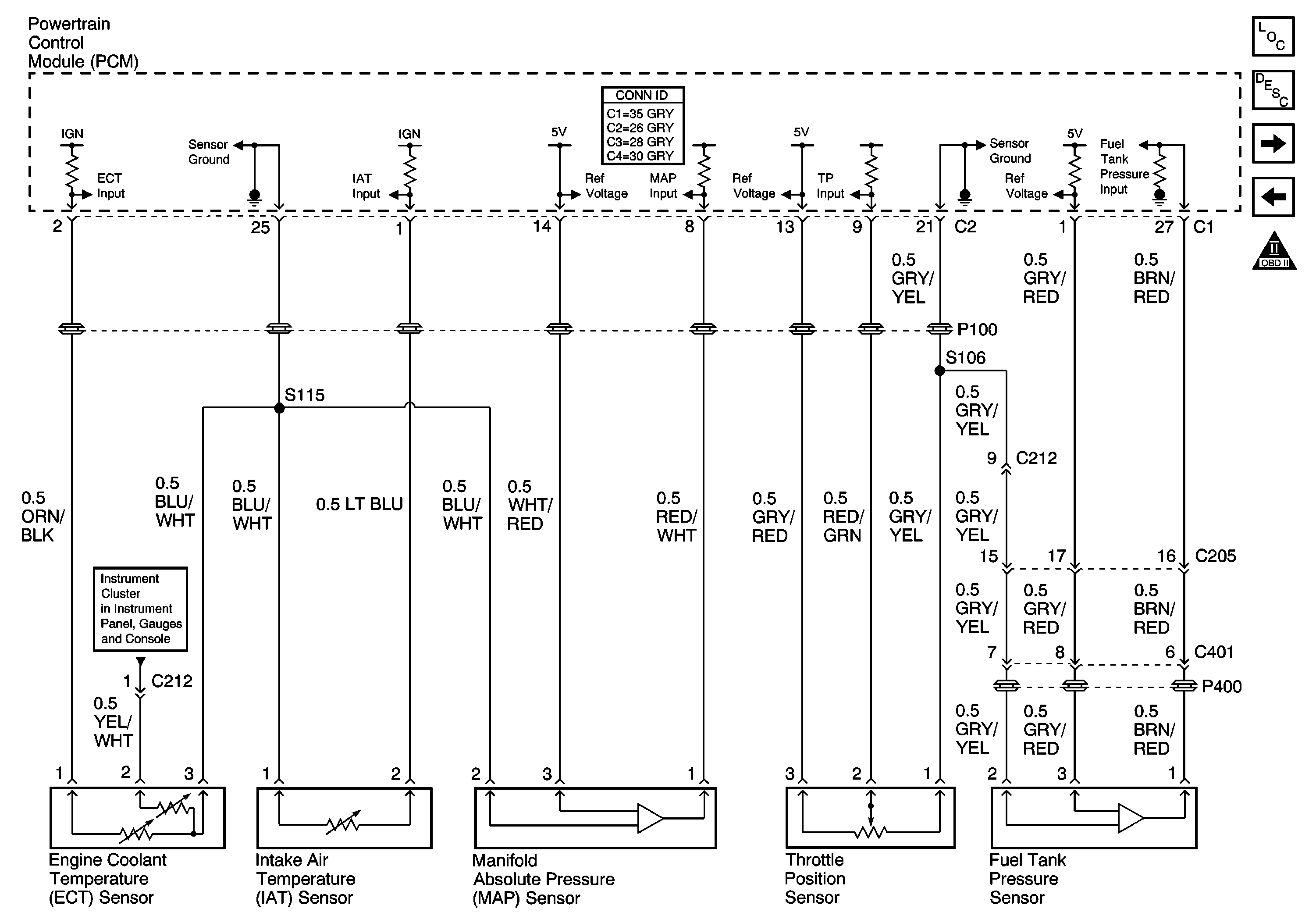

Figure 7:	Engine Data Sensors Master Electrical Component List Fuel Pump Relay, Fuel Sender Assembly Fuel Injectors OBD II Symbol Description Notice Oil Pressure Indicator, ECT Gauge, Fuel Gauges, Tachometer

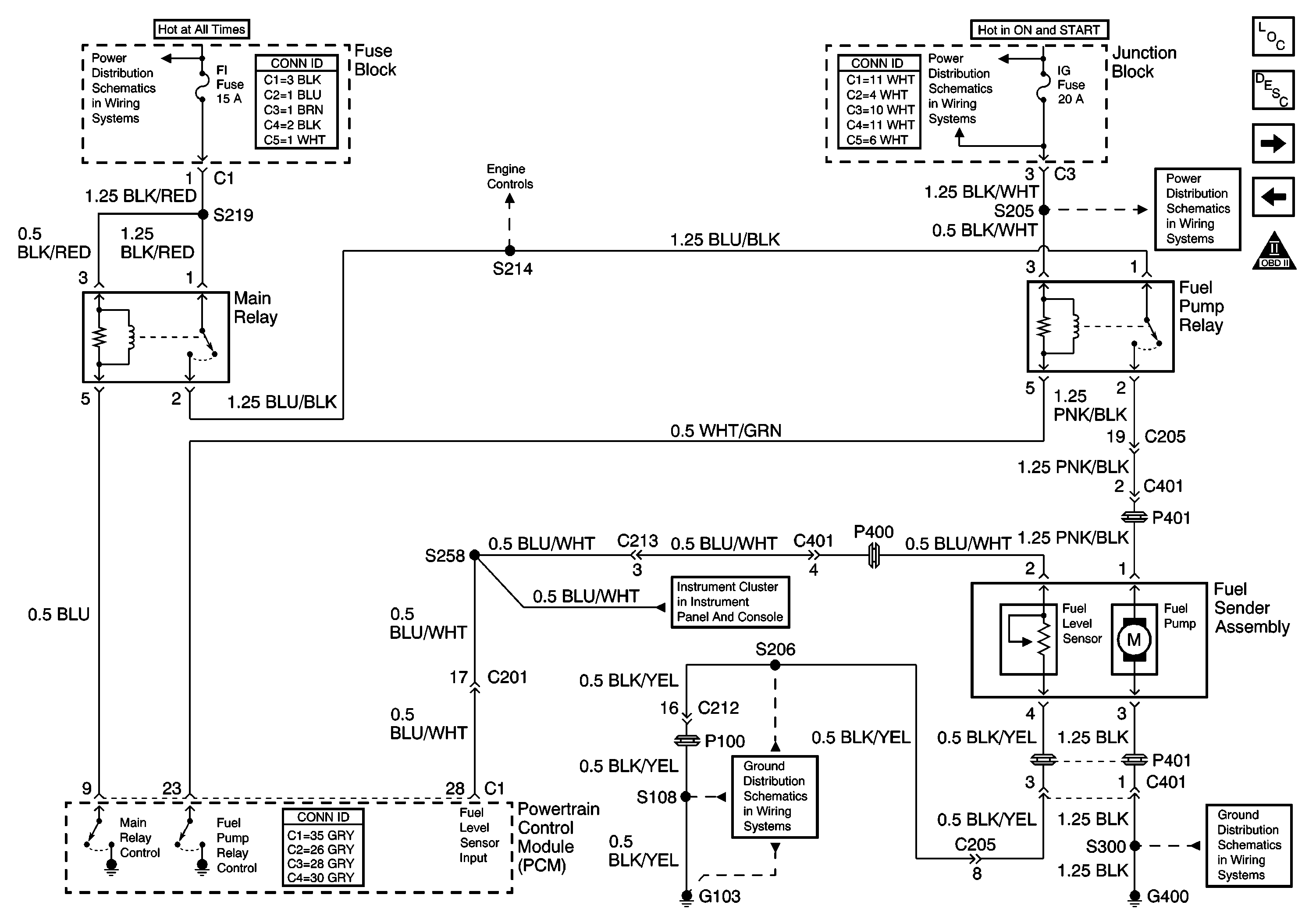

Figure 8:	Fuel Pump Relay, Fuel Sender Assembly Master Electrical Component List Crankshaft Position (CKP) Sensor, Camshaft Position (CMP) Sensor, Knock Sensor (KS) Engine Data Sensors OBD II Symbol Description Notice G400 and G401 CIG, DEF, P/W Fuses BATT, ABS, F1, and ACC Fuses Oil Pressure Indicator, ECT Gauge, Fuel Gauges, Tachometer G103 BATT, ABS, F1, and ACC Fuses

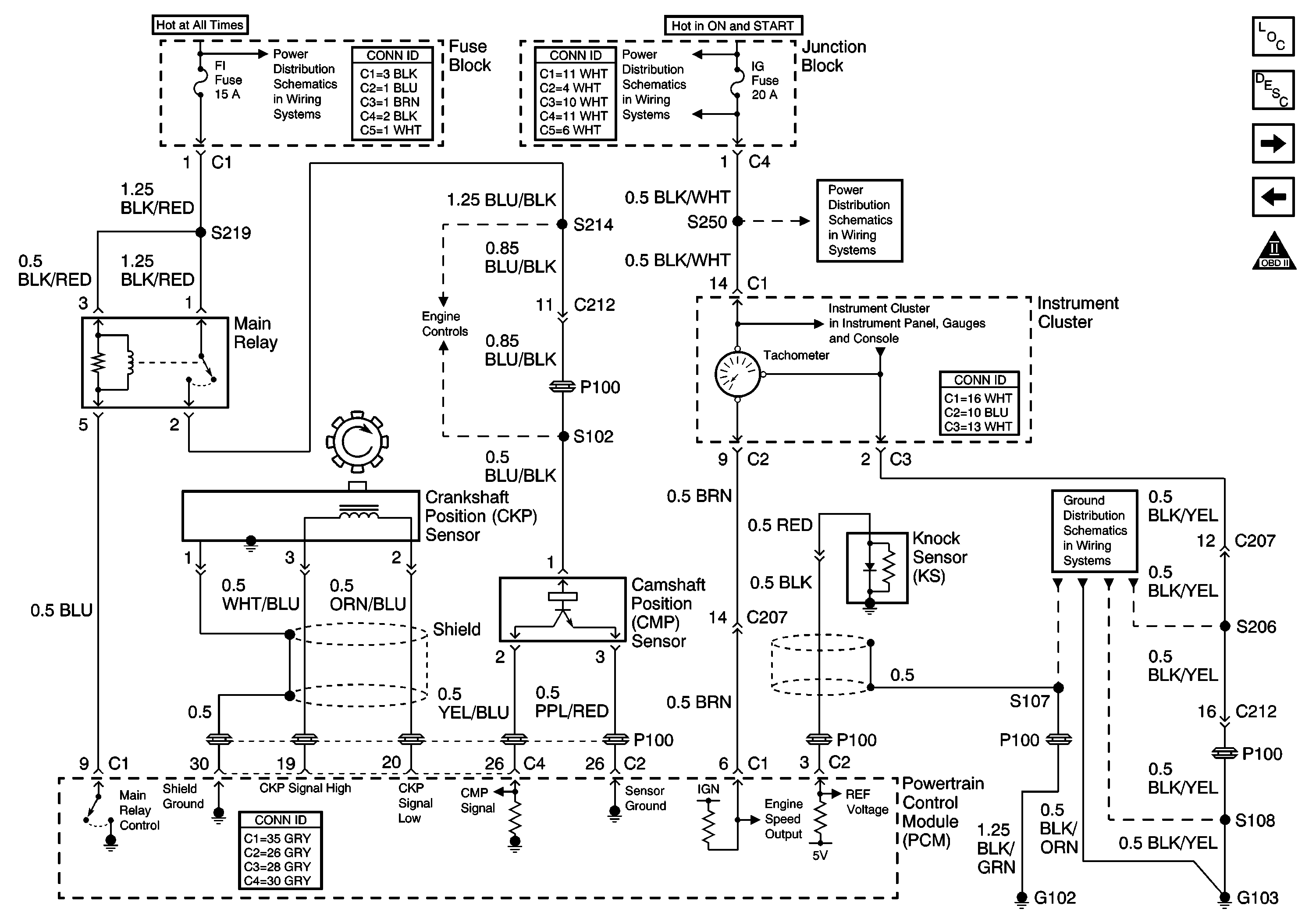

Figure 9:	Crankshaft Position (CKP) Sensor, Camshaft Position (CMP) Sensor, Knock Sensor (KS) Master Electrical Component List Heated Oxygen Sensors Fuel Pump Relay, Fuel Sender Assembly OBD II Symbol Description Notice G103 CIG, DEF, P/W Fuses Oil Pressure Indicator, ECT Gauge, Fuel Gauges, Tachometer H/L, L, H/L, R, HTR, IG, LAMP Fuses BATT, ABS, F1, and ACC Fuses

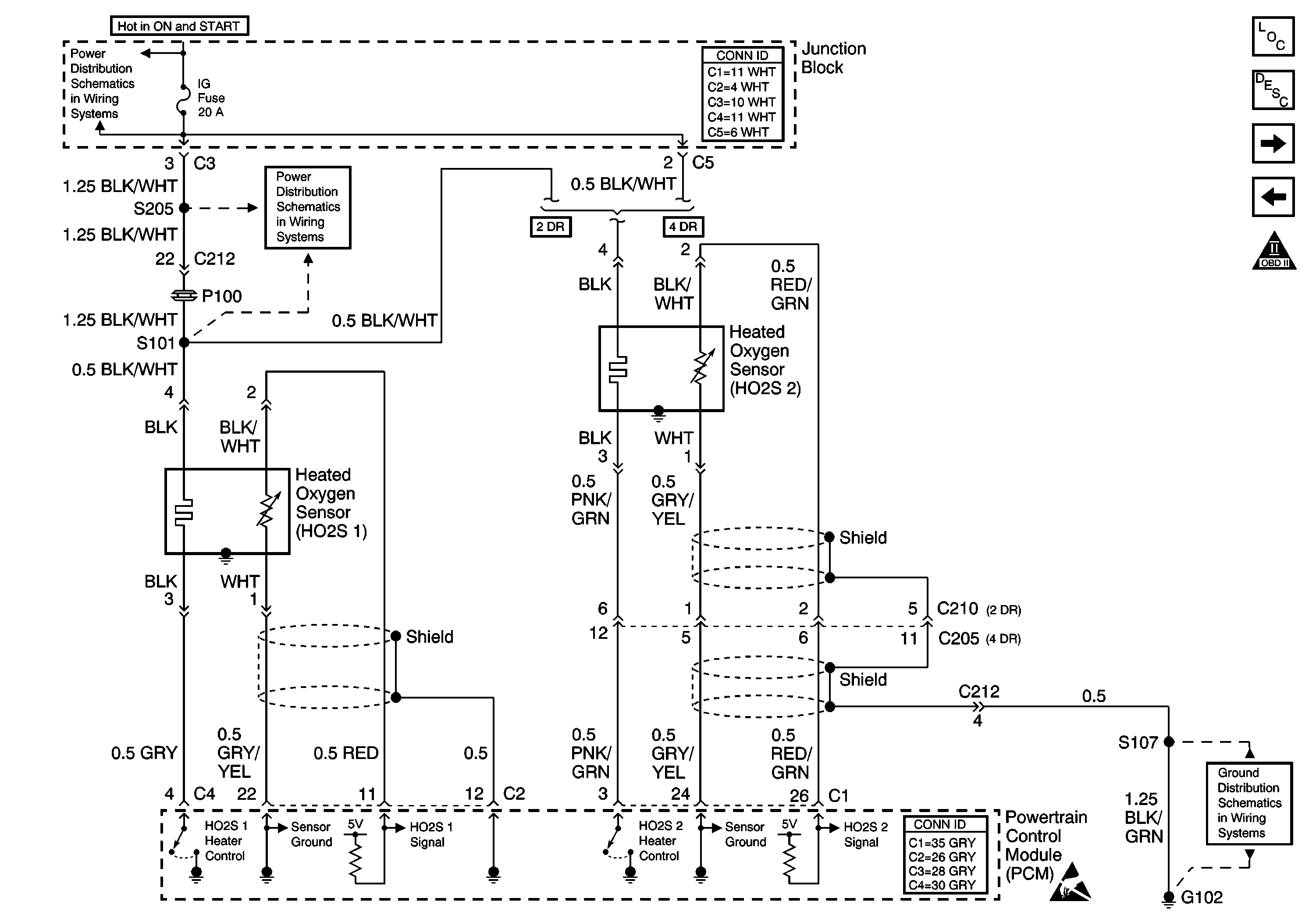

Figure 10:	Heated Oxygen Sensors Master Electrical Component List CPP Switch, (TR) Switch Fuel Pump Relay, Fuel Sender Assembly OBD II Symbol Description Notice G100, G101 and G102 CIG, DEF, P/W Fuses H/L, L, H/L, R, HTR, IG, LAMP Fuses

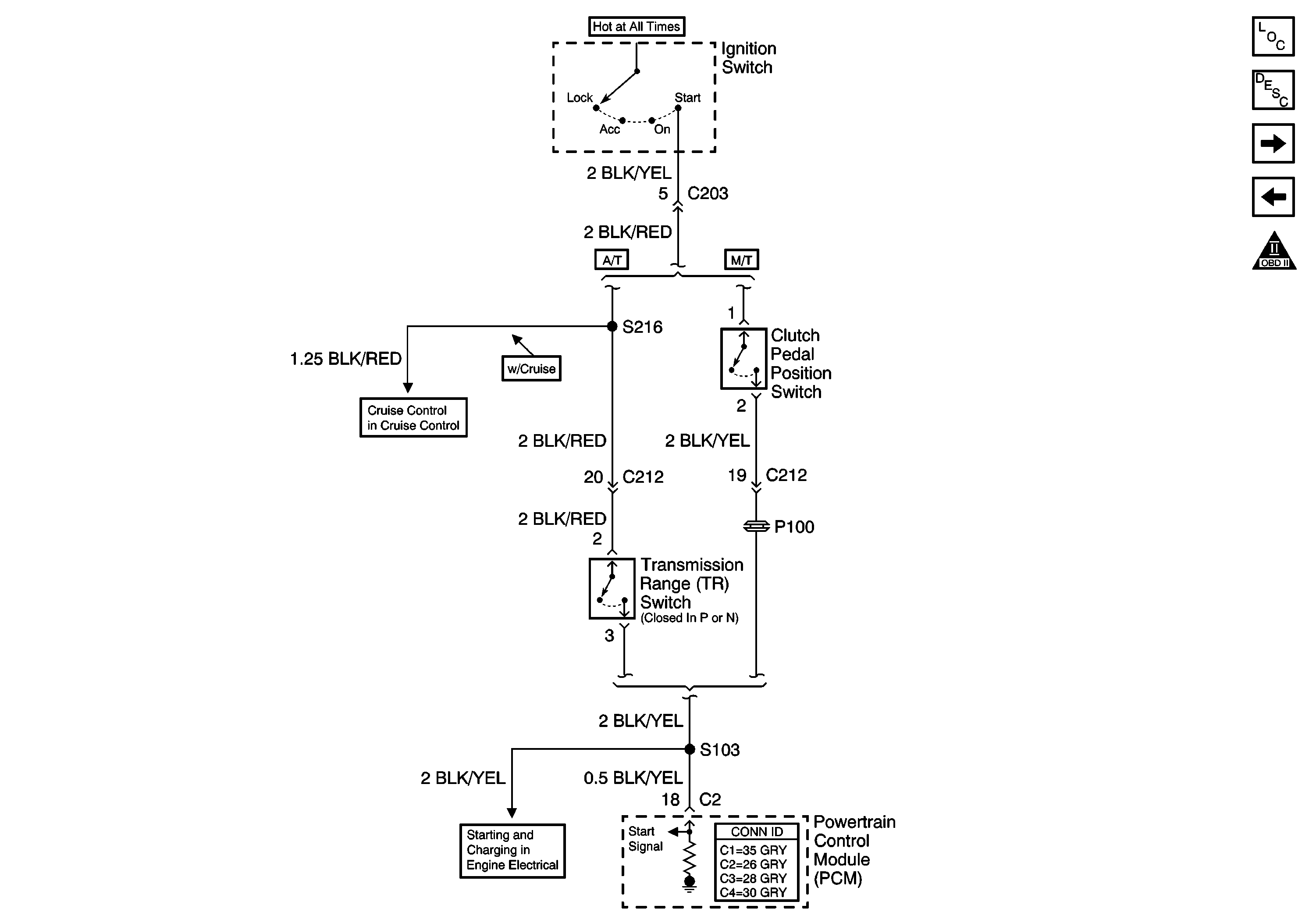

Figure 11:	CPP Switch, (TR) Switch Master Electrical Component List Four Wheel Drive Switches, Front Drive Axle Actuator Pump Heated Oxygen Sensors OBD II Symbol Description Notice Starting System Cruise Control Servo, Transmission Range Switch, Cruise Control Release Switch

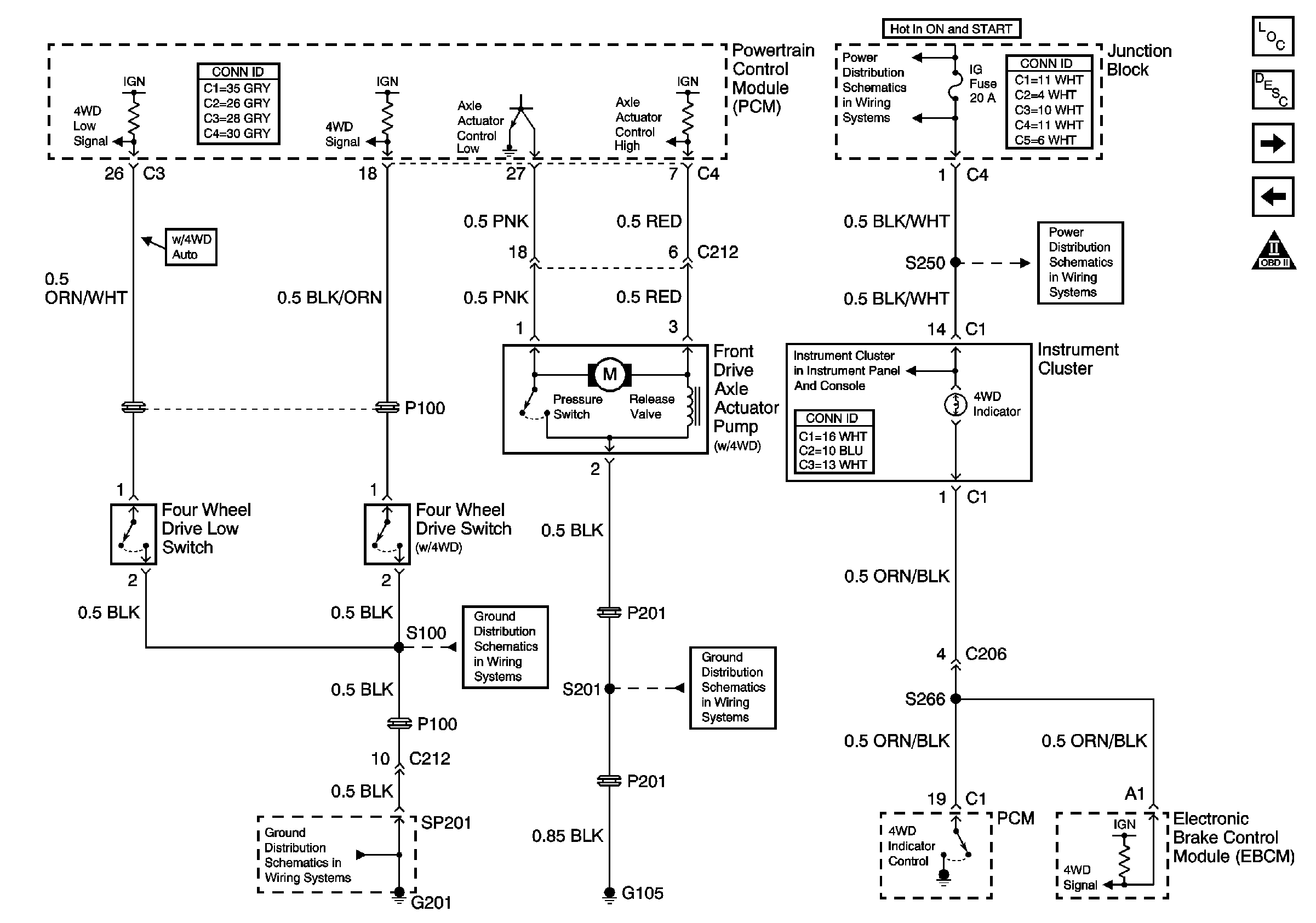

Figure 12:	Four Wheel Drive Switches, Front Drive Axle Actuator Pump Master Electrical Component List Stop Lamp Switch, Transmission Range Switch CPP Switch, (TR) Switch OBD II Symbol Description Notice CIG, DEF, P/W Fuses H/L, L, H/L, R, HTR, IG, LAMP Fuses Power, O/D OFF, 4WD, MIL, CRUISE, Charge Indicators G105 G201 G201

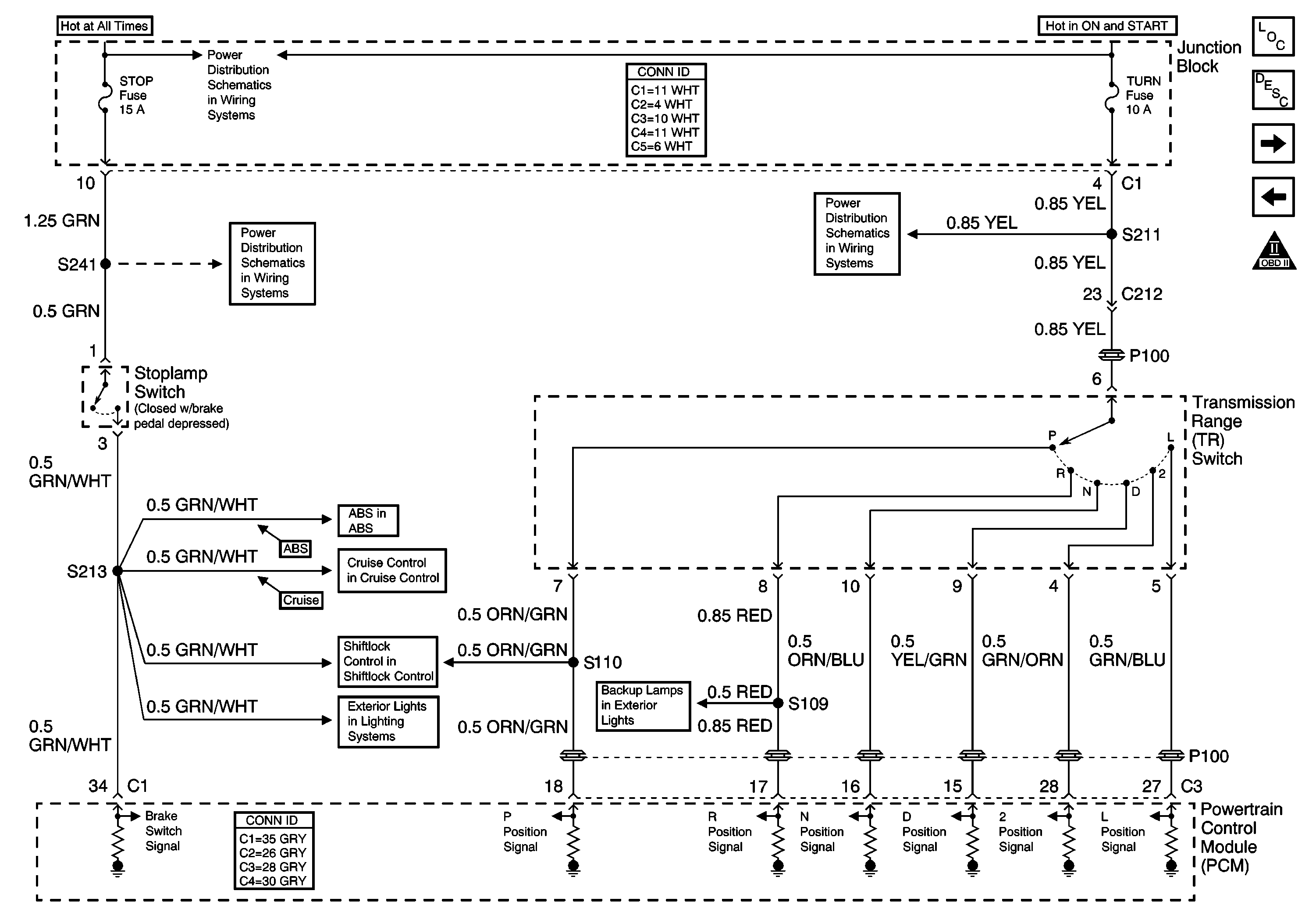

Figure 13:	Stop Lamp Switch, Transmission Range Switch Master Electrical Component List Output Shaft Speed Sensor, Input Shaft Speed Sensor Four Wheel Drive Switches, Front Drive Axle Actuator Pump OBD II Symbol Description Notice TURN, WIP Fuses Backup Lamps, Backup Lamp Switch, Transmission Range Switch Stop Lamp Switch, Stoplamps Shiftlock Control with Cruise Control Stop Lamp Switch, Cruise Control Servo Electronic Brake Control Module (EBCM) Power and Ground HAZ, D/L, TAIL, STOP, DOME Fuses HAZ, D/L, TAIL, STOP, DOME Fuses

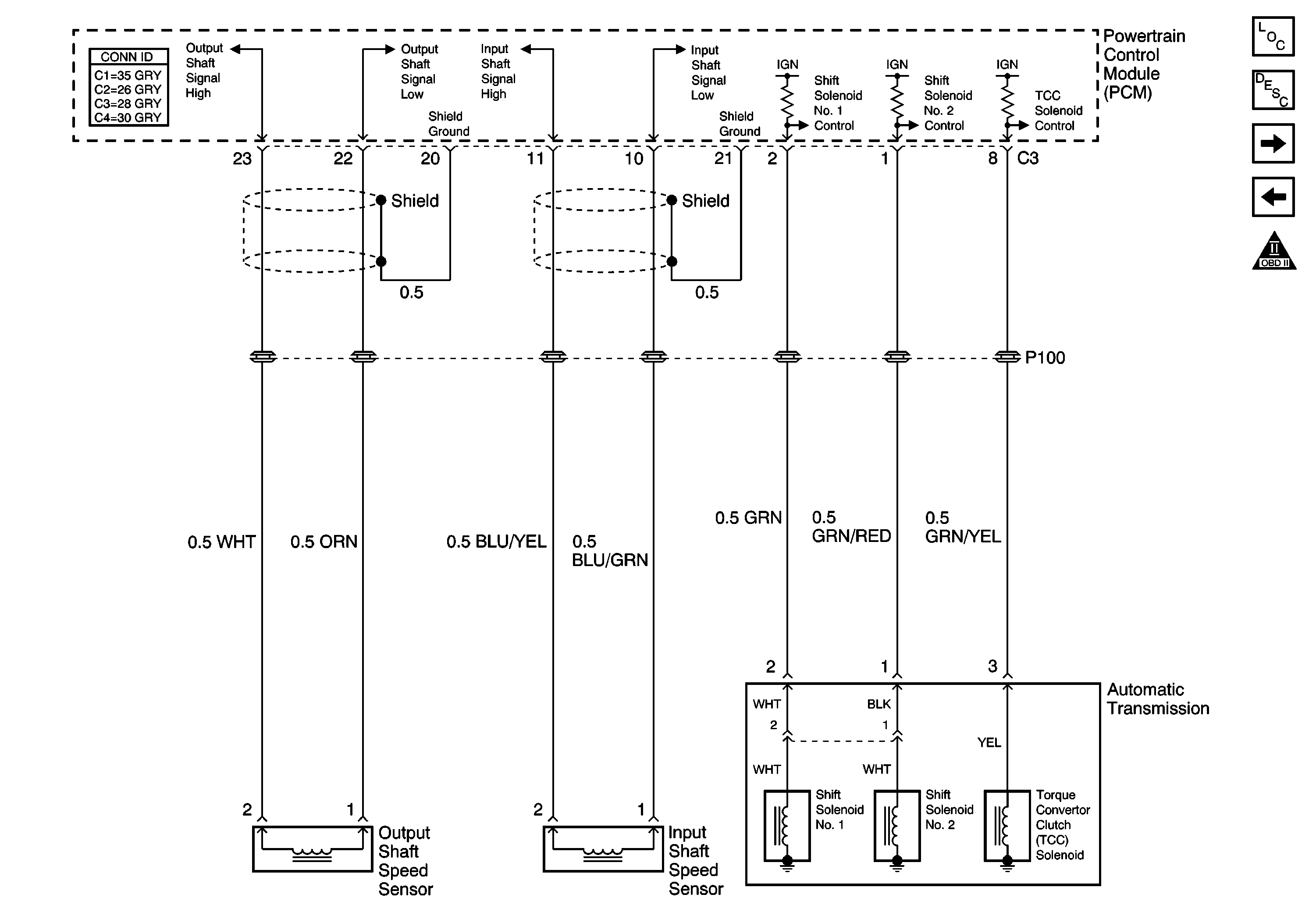

Figure 14:	Output Shaft Speed Sensor, Input Shaft Speed Sensor Master Electrical Component List Shift Program Switch, Overdrive Switch Stop Lamp Switch, Transmission Range Switch OBD II Symbol Description Notice

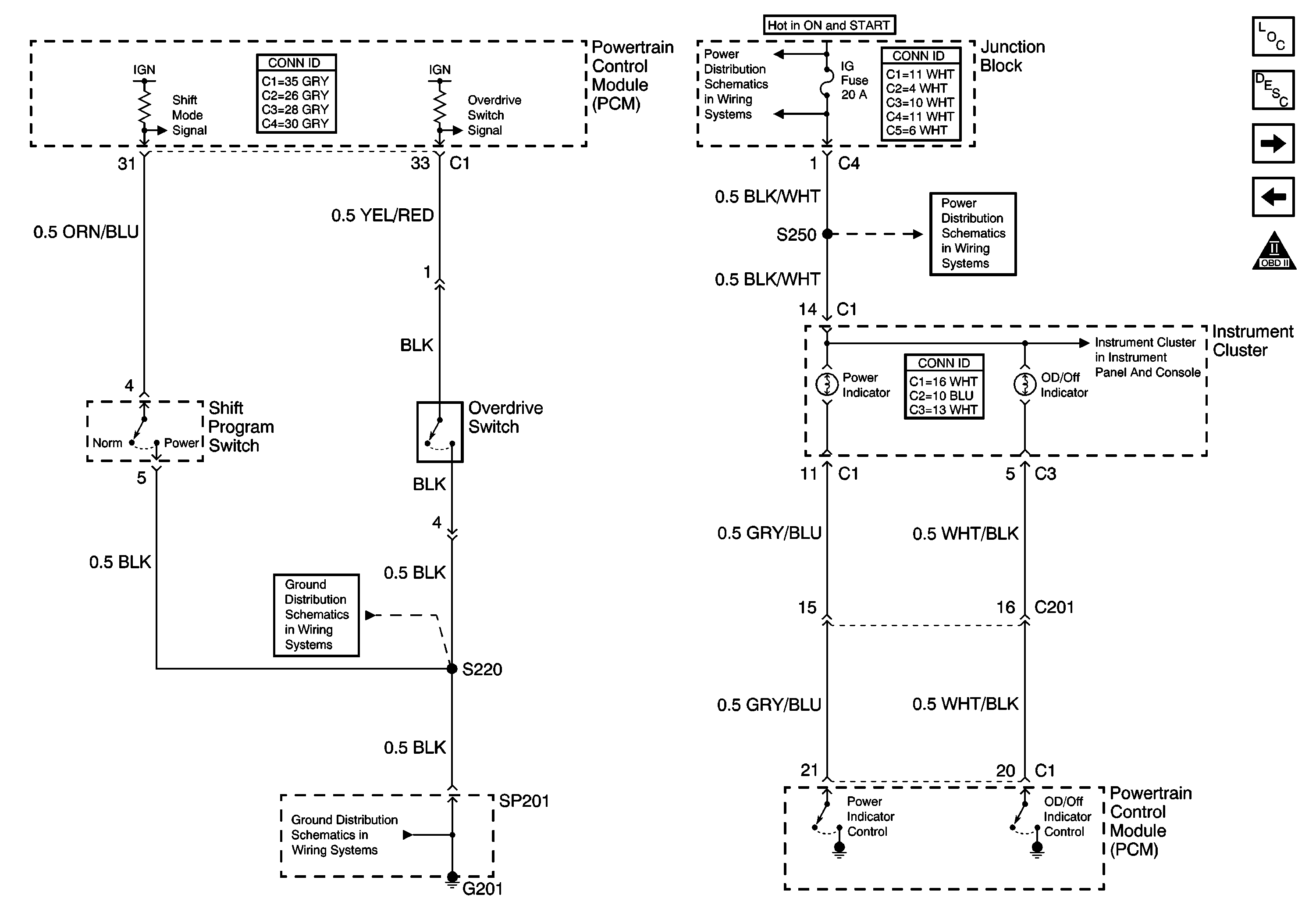

Figure 15:	Shift Program Switch, Overdrive Switch Master Electrical Component List Powertrain Control Module (PCM) Idle-Up Inputs Output Shaft Speed Sensor, Input Shaft Speed Sensor OBD II Symbol Description Notice Power, O/D OFF, 4WD, MIL, CRUISE, Charge Indicators CIG, DEF, P/W Fuses H/L, L, H/L, R, HTR, IG, LAMP Fuses G201 G201

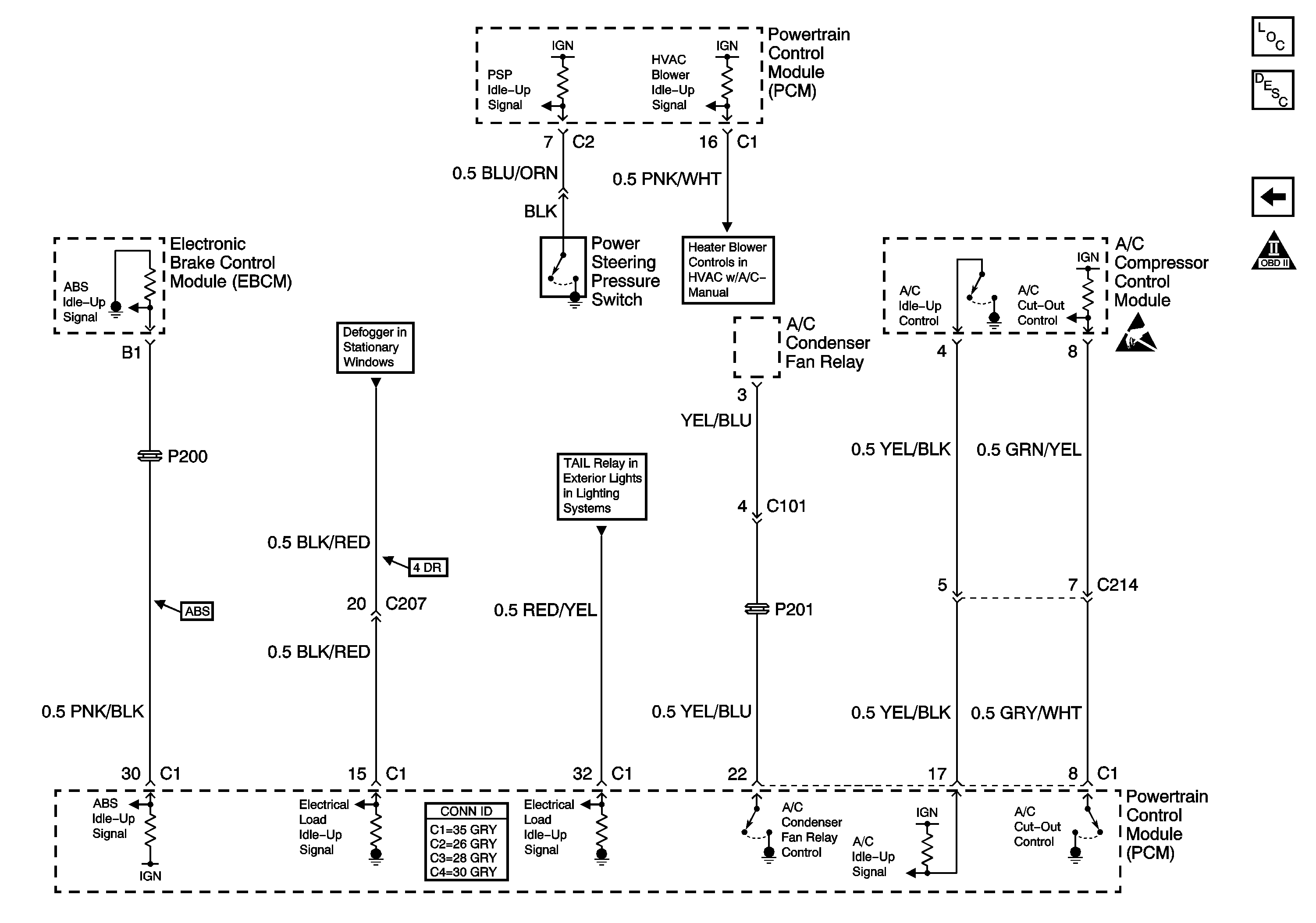

Figure 16:	Powertrain Control Module (PCM) Idle-Up Inputs Master Electrical Component List Shift Program Switch, Overdrive Switch OBD II Symbol Description Notice Blower Control with A/C Side Marker Lamps, Light Switch, Ambient Light Sensor Defogger Schematics
