| Figure 1: |
B+ Bus - Underhood Fuse Block
|
| Figure 2: |
B+ Bus - Rear Fuse Block
|
| Figure 3: |
ACCY/RUN/START, RUN, and START Bus Bars
|
| Figure 4: |
ACCY/RUN, and RUN/START Bus Bars
|
| Figure 5: |

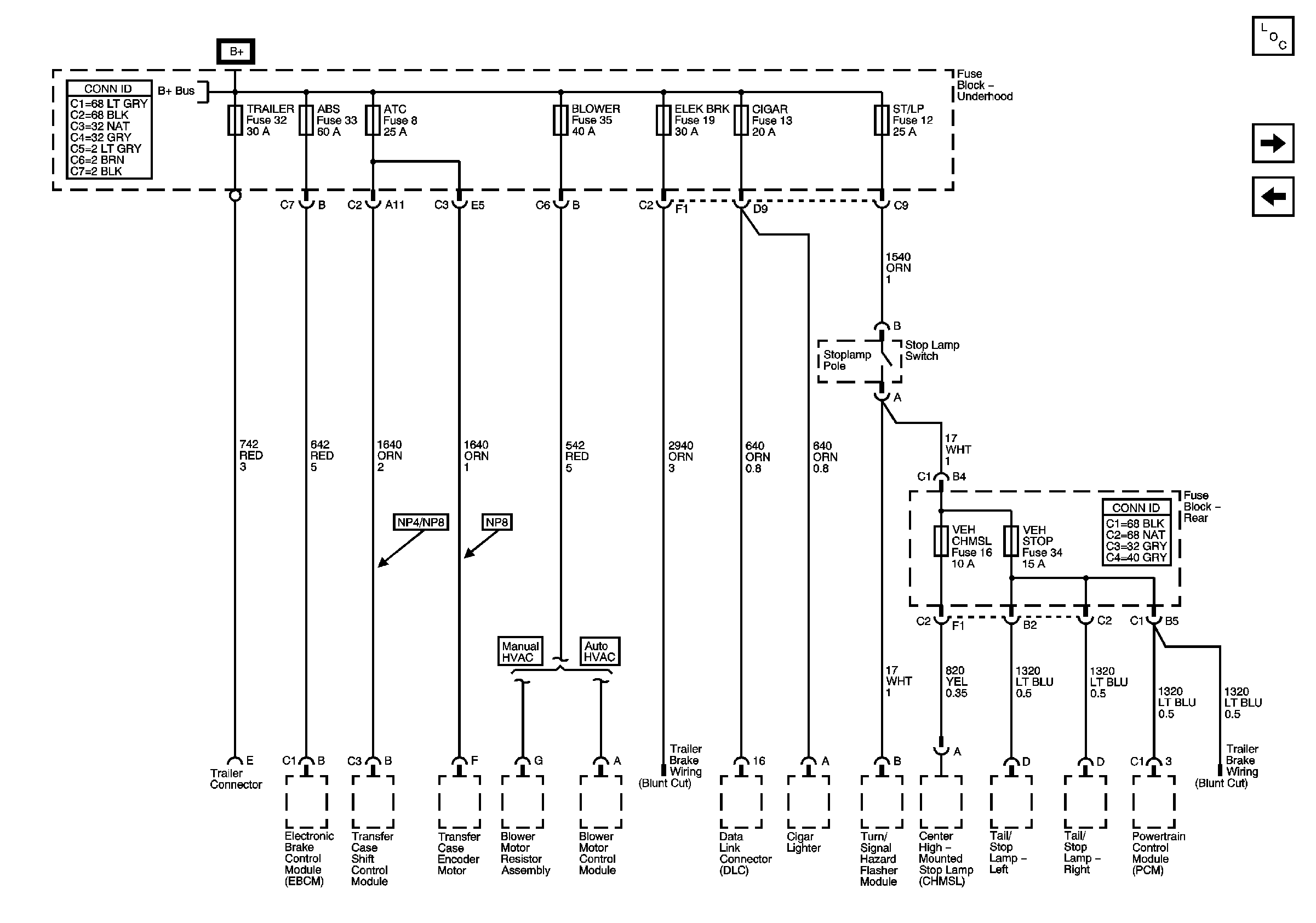

TRAILER, ABS, ATC, BLOWER, ELEK BRK, CIGAR, ST/LP,
VEH CHMSL, and VEH STOP Fuses
|

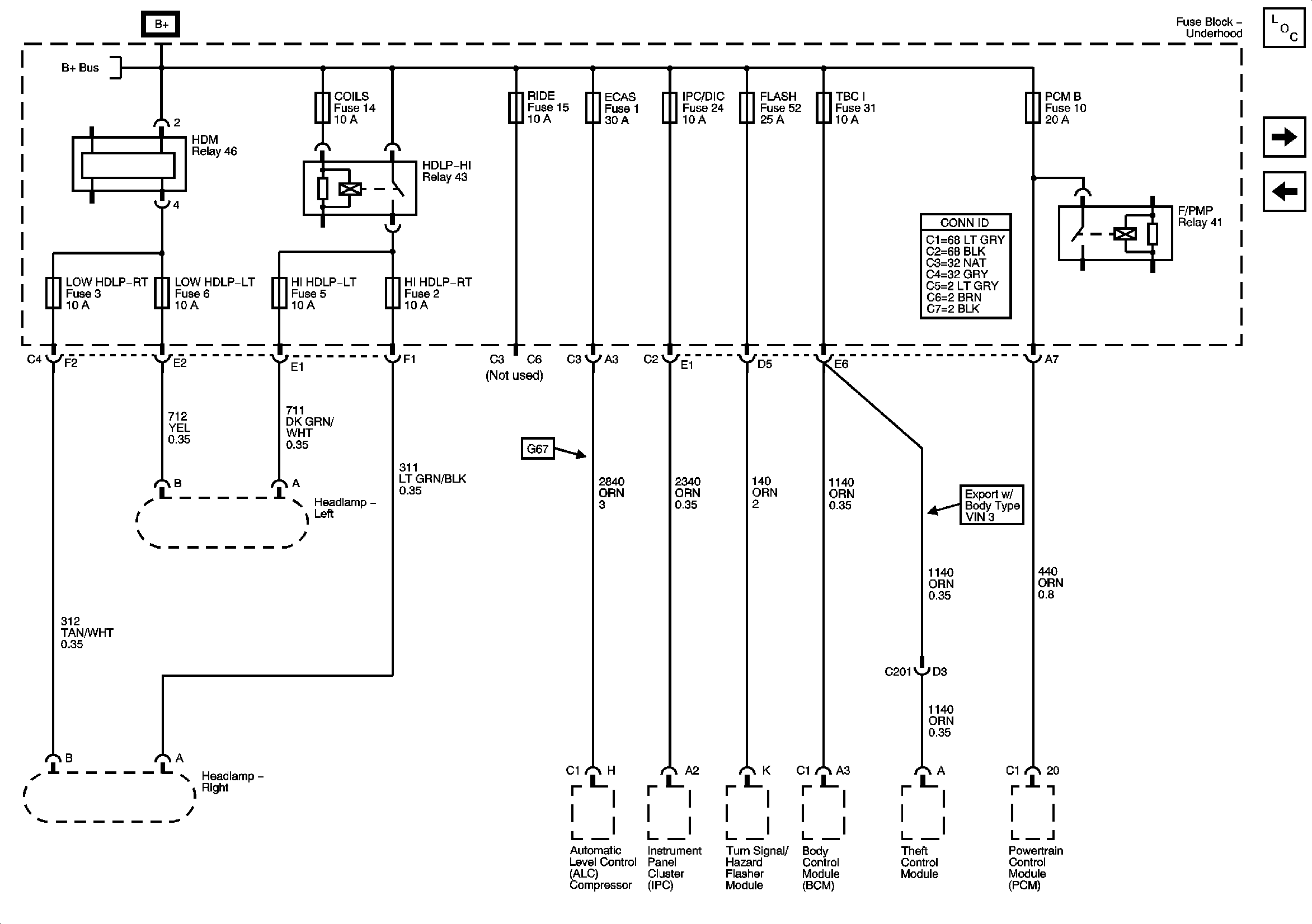

| Figure 6: |
COILS, RIDE, ECAS, IPC/DIC, FLASH, TBC 1, and
PCM B Fuses
|
| Figure 7: |
LGM/DSM, OH BATT/ONSTAR, RADIO, and HVAC B Fuses
|

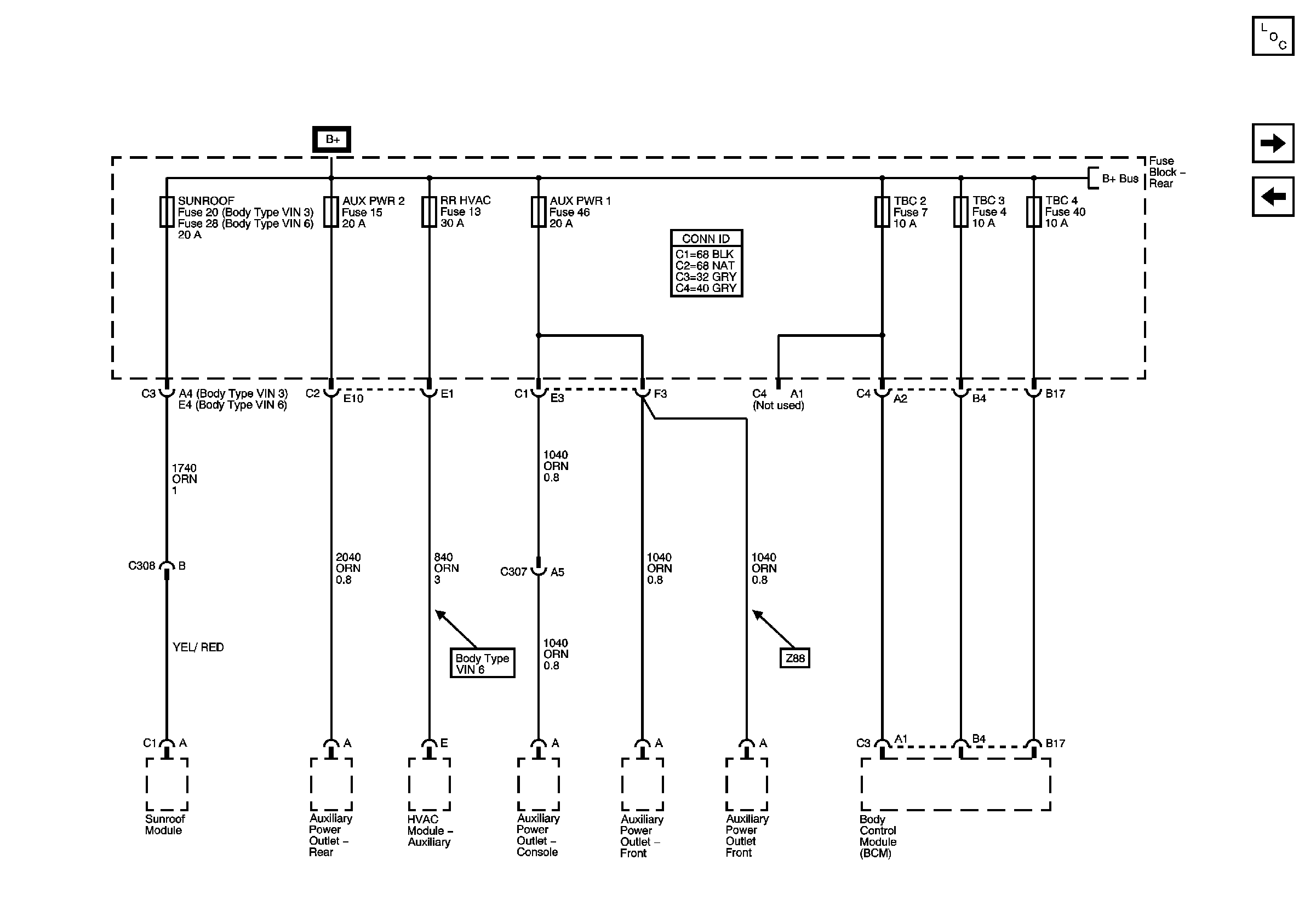

| Figure 8: |
SUNROOF, AUX PWR 2, RR HVAC, AUX PWR 1, TBC 2,
TBC 3, and TBC 4 Fuses
|

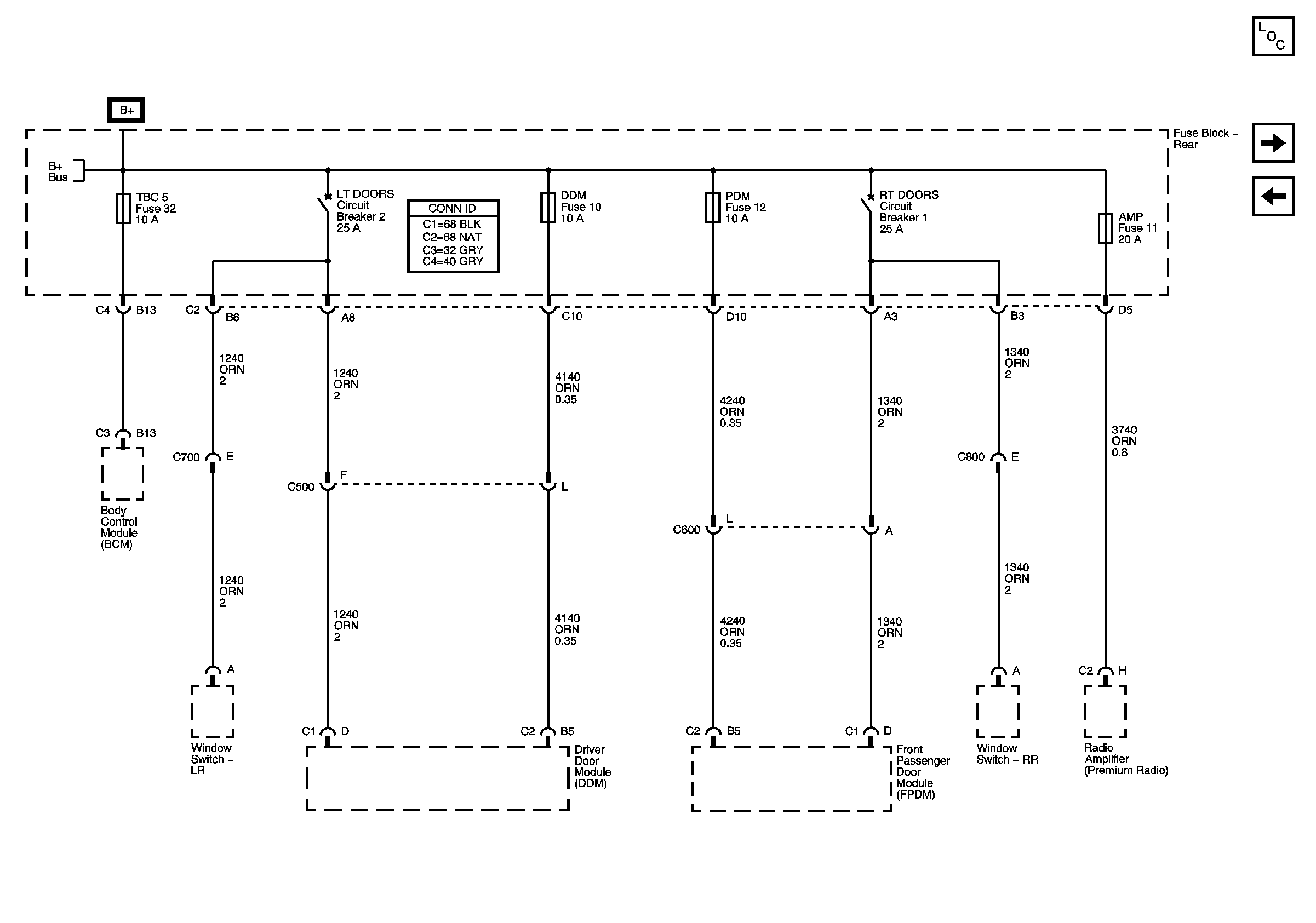

| Figure 9: |
TBC 5, DDM, PDM, AMP Fuses, LT DOORS and RT DOORS
Circuit Breakers
|

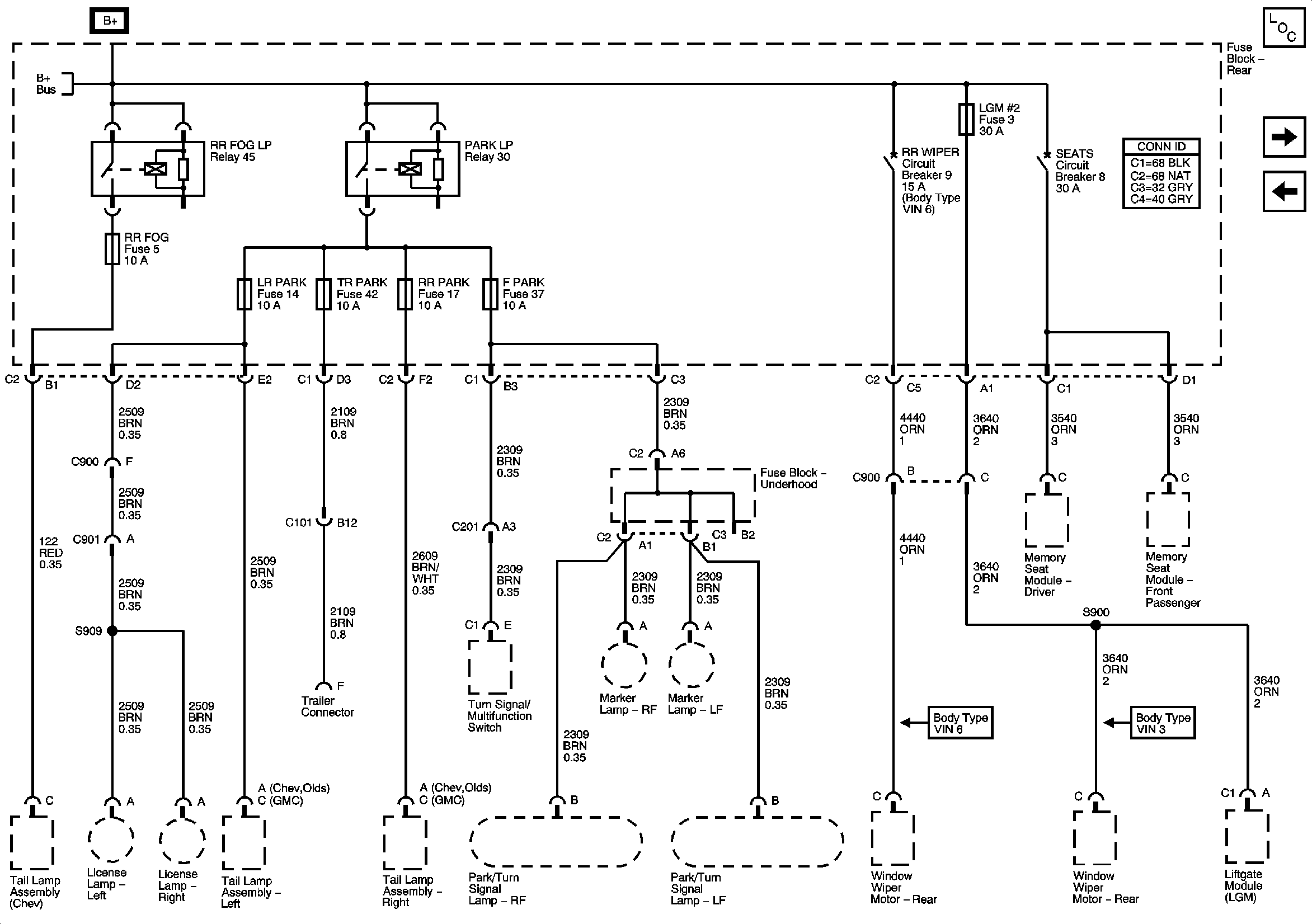

| Figure 10: |
RR FOG, LR PARK, TR PARK, RR PARK, F PARK, LGM
#2 Fuses, RR WIPER, and SEATS Circuit Breakers
|
| Figure 11: |
TRL L TRN, TRL R TRN, LT TURN, and RT TURN Fuses
|

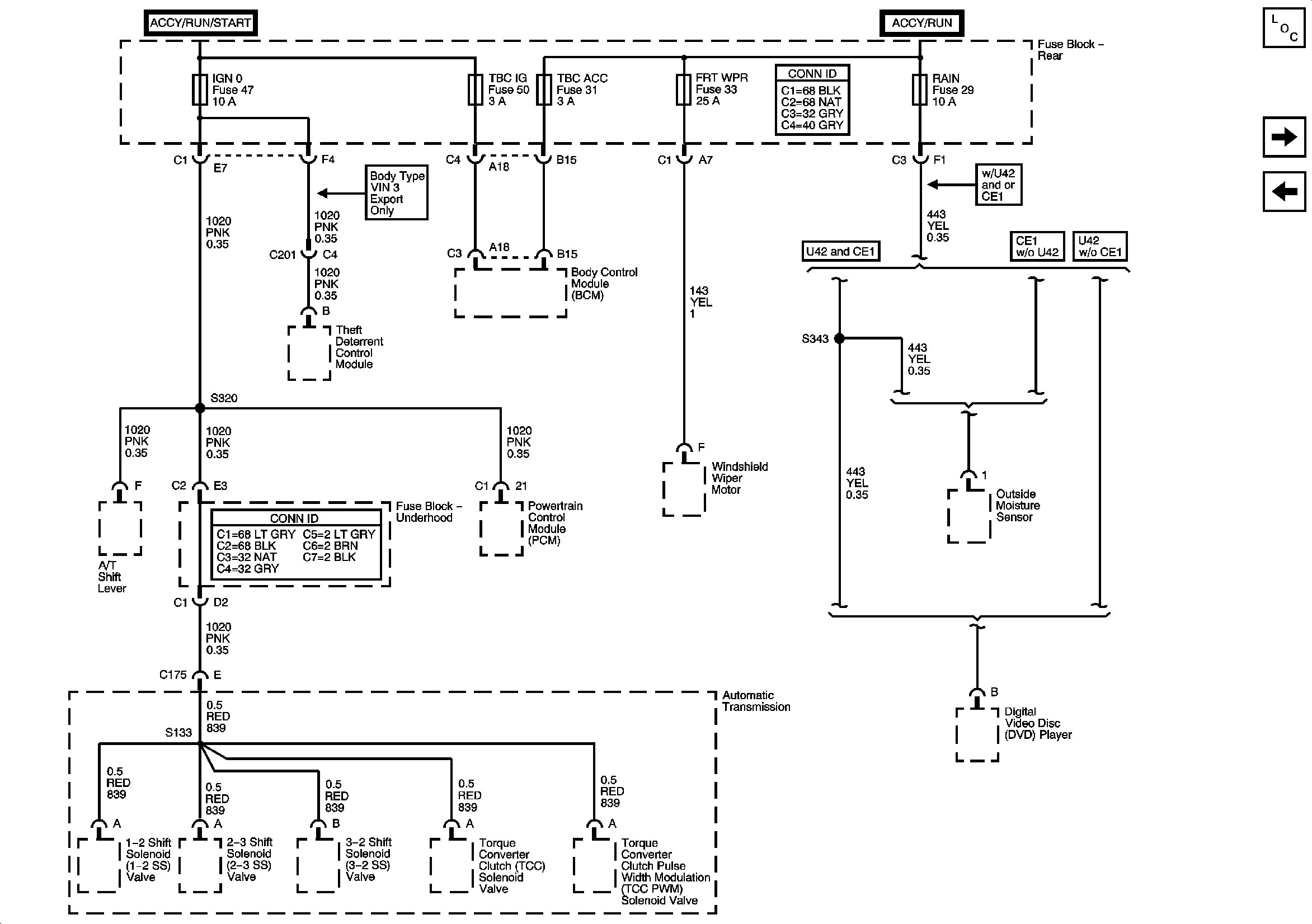

| Figure 12: |
IGN 0, TBC IG, TBC ACC, FRT WPR, and RAIN Fuses
|
| Figure 13: |
IGN E, TBC IGN 1, BACK UP, BTSI, and TRLR B/U
Fuses
|
| Figure 14: |
PCM I Fuse
|

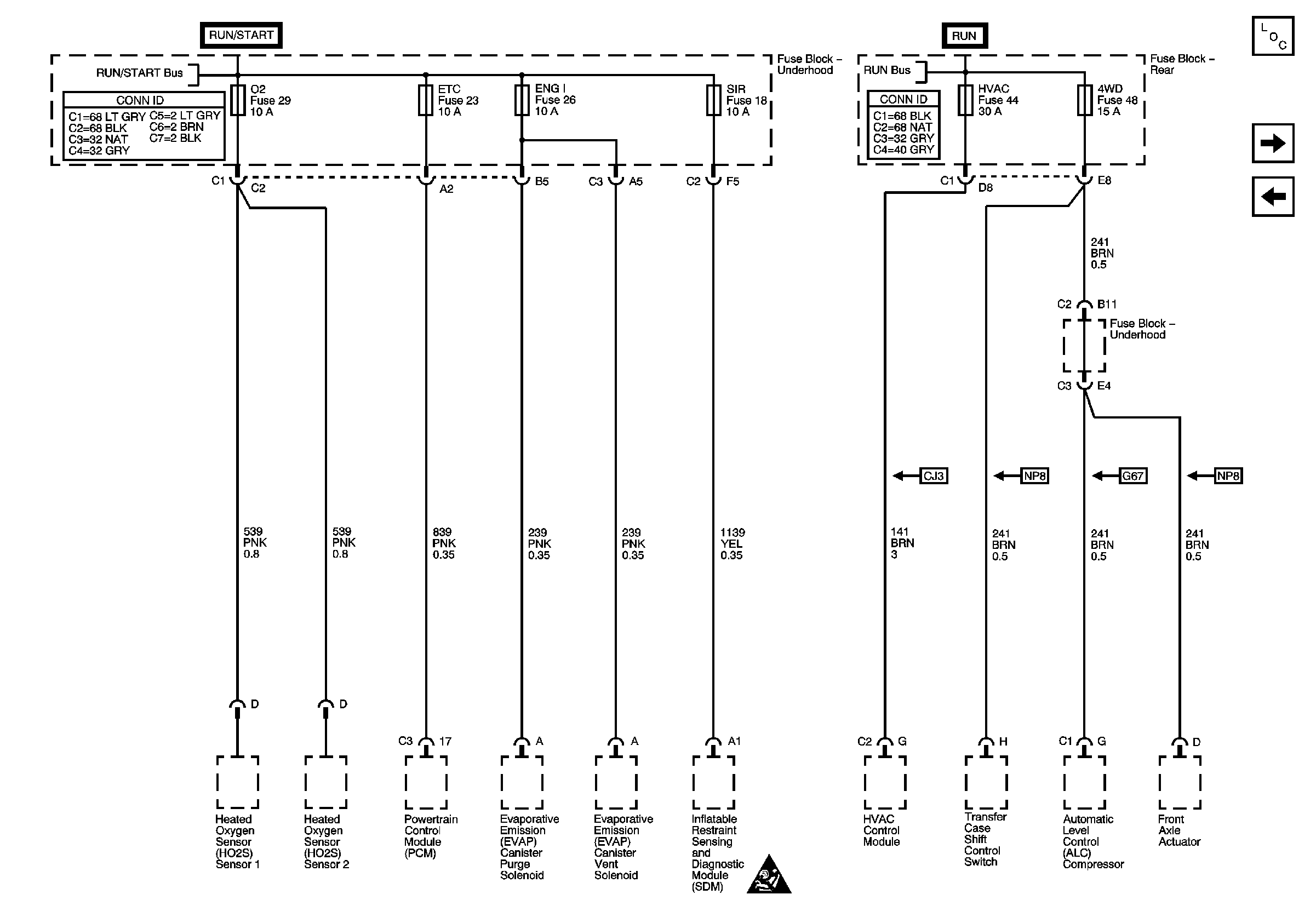

| Figure 15: |
O2, ETC, ENG I, SIR, HVAC, and 4WD Fuses
|
| Figure 16: |
HVAC I, BRAKE, and TBC RUN Fuses
|
