Makes 🢒 Chevrolet 🢒 2002 🢒 TrailBlazer - 2WD 🢒 HVAC 🢒 HVAC Systems - Automatic 🢒 Front Auxiliary Blower Motor Switch Replacement

Removal Procedure

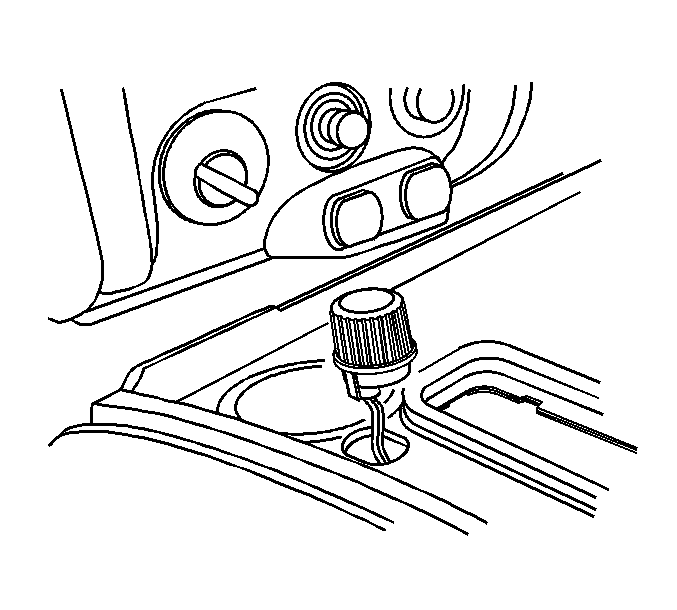

    Object Number: 805748 Size: SH
  1. With a flat-bladed tool, pry upward on the right side of the front auxiliary blower motor switch.
  2. Remove the front auxiliary blower motor switch from the console.
  3. Disconnect the electrical connector from the front auxiliary blower motor switch.

Installation Procedure

    Object Number: 805748 Size: SH
  1. Connect the electrical connector to the front auxiliary blower motor switch.
  2. Install the front auxiliary blower motor switch to console.
  3. Press the front auxiliary blower motor switch into the console.
