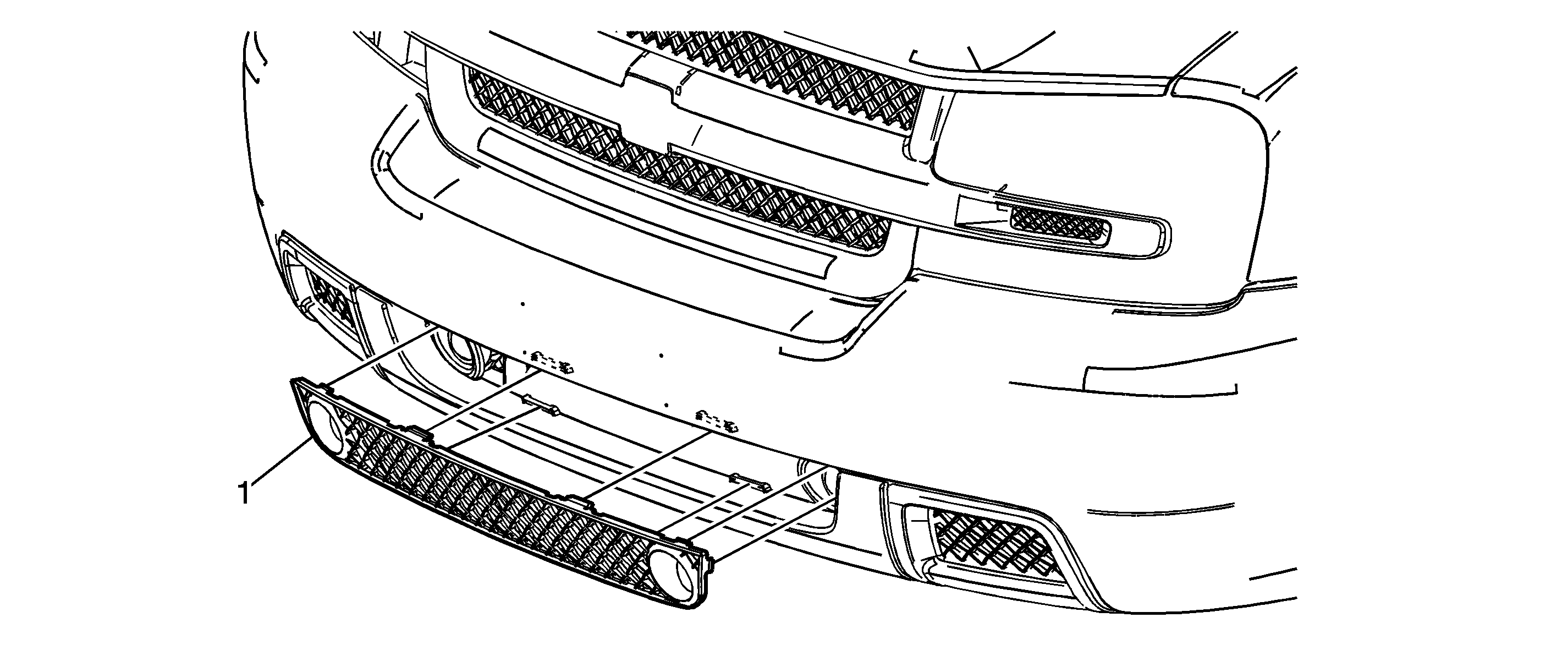

Lower Grille Replacement SS Center Lower Grille

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications.
1	Center Lower Grille Assembly Tip From the exterior, using a flat-bladed tool, release the inner clips securing the center lower grille to the front bumper fascia. Pull the grille outward in order to release from the bumper fascia.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications.

Center Lower Grille Assembly

Tip
From the exterior, using a flat-bladed tool, release the inner clips securing the center lower grille to the front bumper fascia. Pull the grille outward in order to release from the bumper fascia.

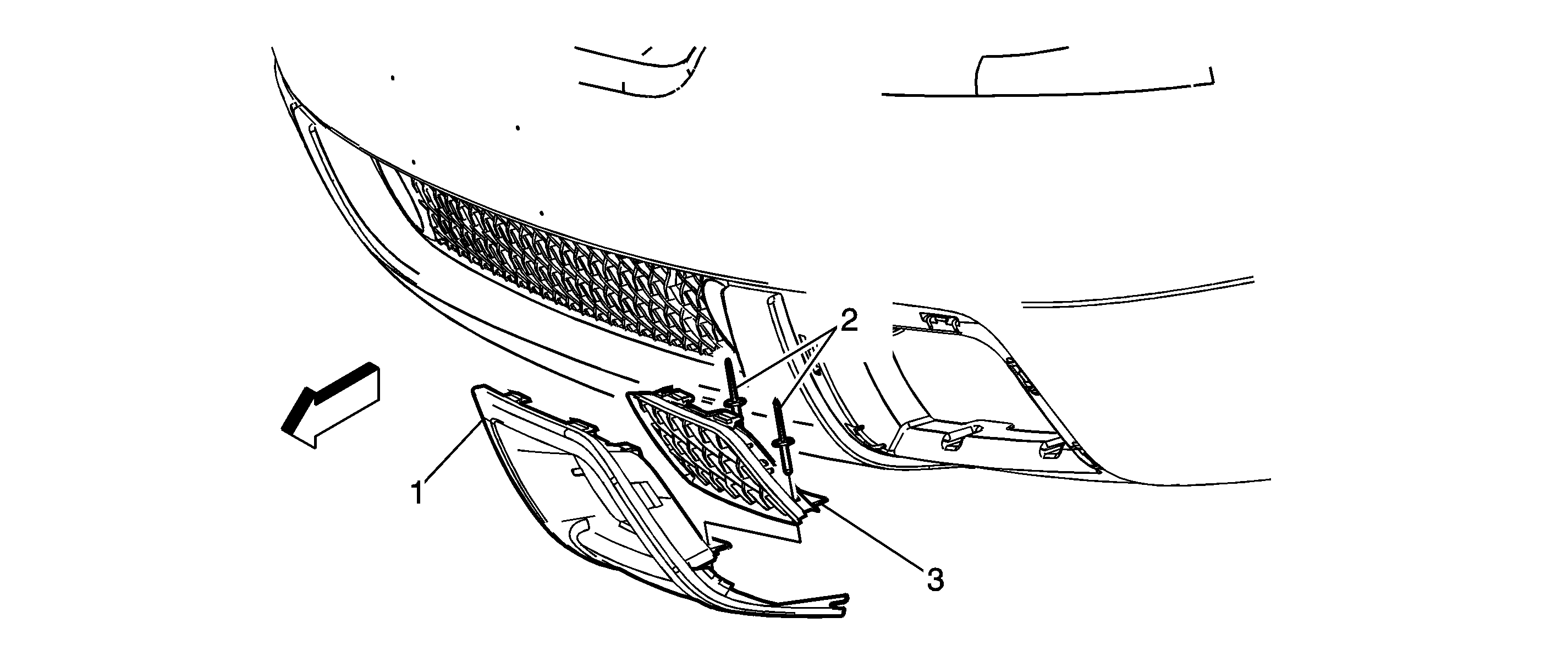

Lower Grille Replacement SS Outer Lower Grille

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications.
1	Center Lower Outer Grille Bezel Assembly Tip From the exterior, using a flat-bladed tool, release the inner clips securing the center lower grille to the front bumper fascia. Pull the grille outward in order to release from the bumper fascia.
2	Center Lower Outer Grille Rivets Tip Drill the rivets securing the grille to the outer grille bezel.
3	Center Lower Outer Grille
