Figure 1:

Antenna Components


(1)	Cellular, Navigational, and Digital Radio Antenna (UE1/U2K)
(2)	Digital Radio Receiver (U2K)
(3)	Vehicle Communications Interface Module (VCIM) (UE1)
(4)	X300 (U2K)
(5)	Radio
(6)	X298
(7)	Radio Antenna

Figure 2:

Left Kick Panel


(1)	Driver Door
(2)	X304 (UE1)
(3)	Cellular, Navigational, and Digital Radio Antenna (UE1/U2K)

Figure 3:

Front Headliner Components


(1)	Overhead Console Courtesy/Reading Lamps
(2)	Multifunction Switch - Overhead Console
(3)	Overhead Console Courtesy/Reading Lamps
(4)	OnStar Button Assembly (UE1)
(5)	Garage Door Opener (UG1)
(6)	Garage Door Opener Buttons (UG1)
(7)	Vanity Mirror Lamp - Right (DH6)
(8)	Multifunction Switch - Overhead Console (A20)
(9)	Vanity Mirror Lamp - Left (DH6)
(10)	Cellular Telephone Microphone (UE1)

Figure 4:

Rear Headliner Components


(1)	Roof Rail Reading Lamp - Left
(2)	Cargo Lamp
(3)	Rear Parking Assist (RPA) Display (UD7)
(4)	Roof Rail Reading Lamp - Right

Figure 5:

Headliner Components


(1)	Right B-Pillar
(2)	Sliding Door Open/Close Switch - Right (E58) Connector
(3)	X308
(4)	G302
(5)	Courtesy/Reading Lamp - 2nd Row
(6)	Cargo Lamp

Figure 6:

Overhead Console Components


(1)	Digital Video Disc (DVD) Player (U42)
(2)	Overhead Console

Figure 7:

Left B Pillar Area Components


(1)	G301
(2)	Sliding Door Open/Close Switch - Left (E59) Connector
(3)	Inflatable Restraint Side Impact Module - Left (AJ7/AW9)
(4)	Inflatable Restraint Side Impact Sensor (SIS) - Left (AJ7/AW9)
(5)	Body Harness
(6)	X315 (AJ7/AW9)
(7)	X305
(8)	Seatbelt Pretensioner - Driver
(9)	Sliding Door Jamb Contact Plate - Left X1

Figure 8:

Right B Pillar Area Components


(1)	Inflatable Restraint Side Impact Sensor (SIS) - Right (AJ7/AW9)
(2)	G302
(3)	Sliding Door Jamb Contact Plate - Right X1
(4)	Seatbelt Pretensioner - Passenger
(5)	Inflatable Restraint Sensing and Diagnostic Module (SDM)
(6)	Body Harness
(7)	X316 (AJ7/AW9)
(8)	Inflatable Restraint Seat Belt Tension Retractor Sensor - Passenger
(9)	Inflatable Restraint Side Impact Module - Right (AJ7/AW9)

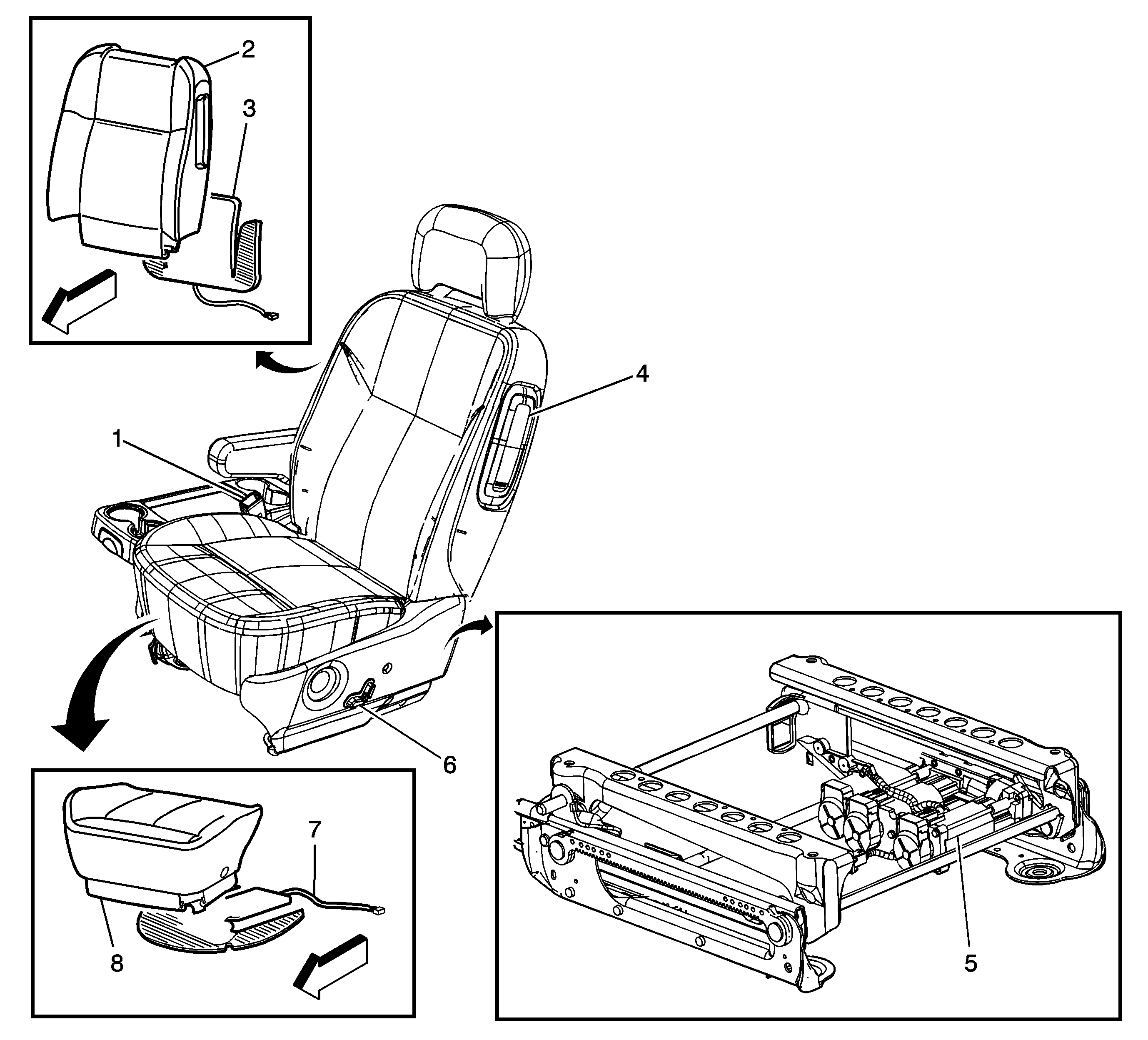

Figure 9:

Driver Seat Components


(1)	Seat Belt Switch - Driver
(2)	Seat Back Cover
(3)	Heated Seat Element - Driver Back (KA1)
(4)	Inflatable Restraint Side Impact Module - Left (AJ7/AW9), Inflatable Restraint Side Impact Module - Left Rear (AW9) Similar
(5)	Seat Adjuster Motor Assembly - Driver (AG1)
(6)	Seat Adjuster Switch - Driver (AG1)
(7)	Heated Seat Element - Driver Cushion (KA1)
(8)	Seat Cushion Cover

Figure 10:

Front Passenger Seat Components 1 of 2


(1)	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
(2)	Inflatable Restraint Front Passenger Presence System (PPS) Module

Figure 11:

Front Passenger Seat Components 2 of 2


(1)	Inflatable Restraint Side Impact Module - Right (AJ7/AW9), Inflatable Restraint Side Impact Module - Right Rear (AW9) Similar
(2)	Seat Back Cover
(3)	Heated Seat Element - Passenger Back (KA1)
(4)	Seat Belt Switch - Passenger
(5)	Seat Cushion Cover
(6)	Heated Seat Element - Passenger Cushion (KA1)
(7)	Seat Adjuster Switch - Passenger (AG2)
(8)	Seat Adjuster Motor Assembly - Passenger (AG2)

Figure 12:

Left Rear Quater Panel Components


(1)	Automatic Level Control (ALC) Solenoid Valve (G67 without Z10)
(2)	Inflator Air Switch (G67 without Z10)
(3)	X405 (G67)
(4)	J431 (G67)
(5)	J433 (G67)
(6)	Automatic Level Control (ALC) Compressor Connector (G67)
(7)	Automatic Level Control (ALC) Compressor (G67)
(8)	Automatic Level Control (ALC) Sensor (G67)
(9)	X409 (G67)
(10)	Left Rear Cargo Trim Panel

Figure 13:

Rear Passenger Compartment Components


(1)	X479
(2)	G401
(3)	X405 (G67)
(4)	Auxiliary HVAC Connectors
(5)	Door Jamb Switch - Right Rear
(6)	Rear Object Sensor Control Module (UD7)
(7)	Rear Parking Assist (RPA) Diagnostic Connector (UD7)
(8)	Sliding Door Actuator Control Module - Right (E58)
(9)	X440 (UD7)
(10)	X426 KC7)
(11)	X480
(12)	G400
(13)	X420 (UD7)
(14)	X400
(15)	X402
