Makes 🢒 Chevrolet 🢒 2005 🢒 Uplander - 4WD 🢒 Body 🢒 Roof 🢒 Luggage Carrier Cross Rail Replacement

Removal Procedure
  1. Remove the luggage carrier. Refer to Luggage Carrier Replacement .
  2. Turn the luggage carrier upside down and place on a clean flat surface.

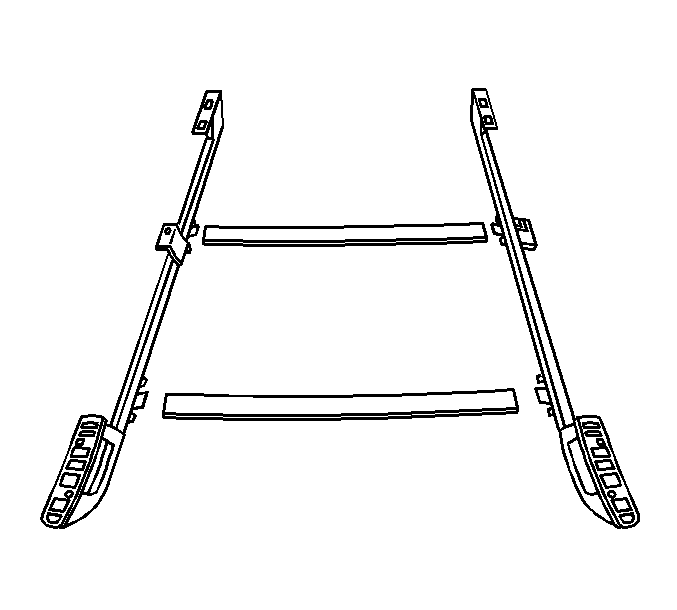

    3. Object Number: 812254 Size: SH
  3. Remove the luggage carrier cross rail screws from the luggage carrier side rails.
  4. Remove the luggage carrier cross rail from the luggage carrier side rails.

Installation Procedure

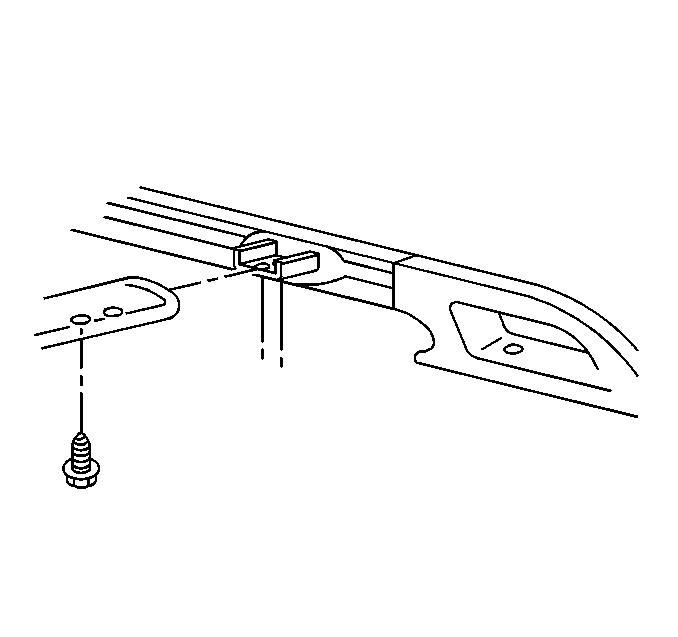

    Object Number: 343996 Size: SH
  1. Install the luggage carrier cross rail to the luggage carrier side rail.

    2. Notice: Refer to Fastener Notice in the Preface section.

  2. Install the luggage carrier cross rail screws to the luggage carrier.

    3. Tighten
    Tighten the screws to 2 N·m (18 lb in).

  3. Install the luggage carrier. Refer to Luggage Carrier Replacement .
