SMU - New Cupholder Replacement Procedure

Subject:New Cupholder Replacement Procedure

Models:2005 Buick Terraza
2005 Chevrolet Uplander
2005 Pontiac Montana SV6
2005 Saturn Relay


This bulletin is being issued to add the Cupholder Replacement procedure in the Instrument Panel, Gauges and Console sub-section of the Service Manual.

The following information has been updated within SI. If you are using a paper version of this Service Manual, please make a reference to this bulletin on the affected page.

Cupholder Replacement

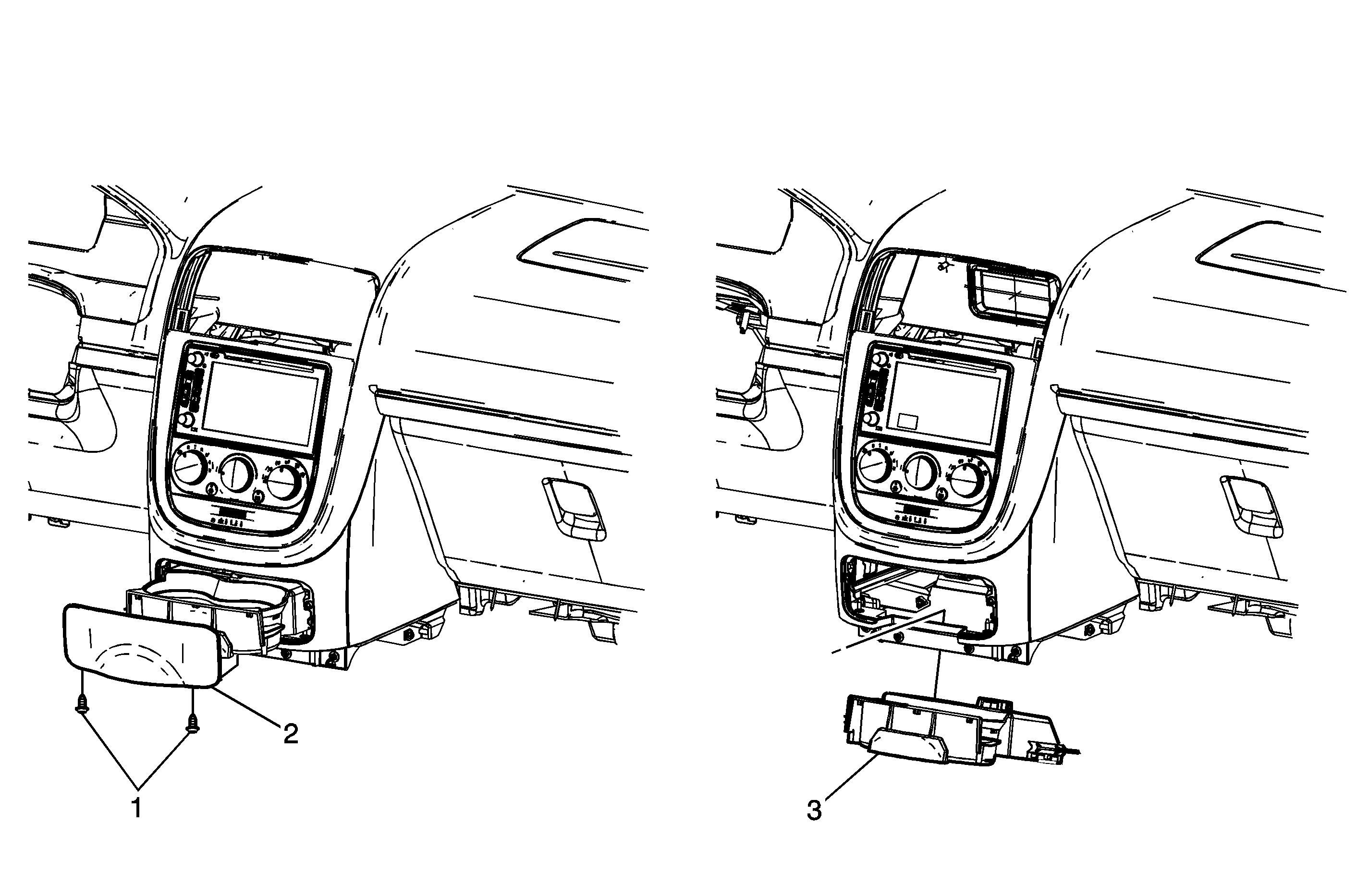

Object Number: 1722038 Size: MF

Callout

Component Name

Notice: Refer to Fastener Notice in Cautions and Notices.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications.

Preliminary Procedure

Remove the Front Floor Console Reinforcement. Refer to Bracket, Reinforcement, Side Trim Panel Replacement - Front Floor Console.

1

Front Floor Console Cupholder Door Screws (Qty 2)

Tighten
2 N·m (18 lb in)

2

Front floor console cupholder door

3

Cupholder Assembly

Tip

  1. Push forward on the cupholder, pushing it completely out of the track assembly, allowing the cupholder to fall out the bottom of the track.
  2. When installing cupholder align the tabs of the cupholder to the track assembly.
  3. Ensure proper operation of the cupholder prior to reinstalling remaining components.

Warranty Information

For vehicles repaired under warranty, use:

Labor Operation

Description

Labor Time

C2085

Cupholder, Instrument Panel - R&R or Replace

0.4 hr
