Exterior Lights Schematics. Chevrolet Venture Ext. 2000

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Venture Ext. 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Exterior Lights Schematics

Exterior Lights Schematics Domestic

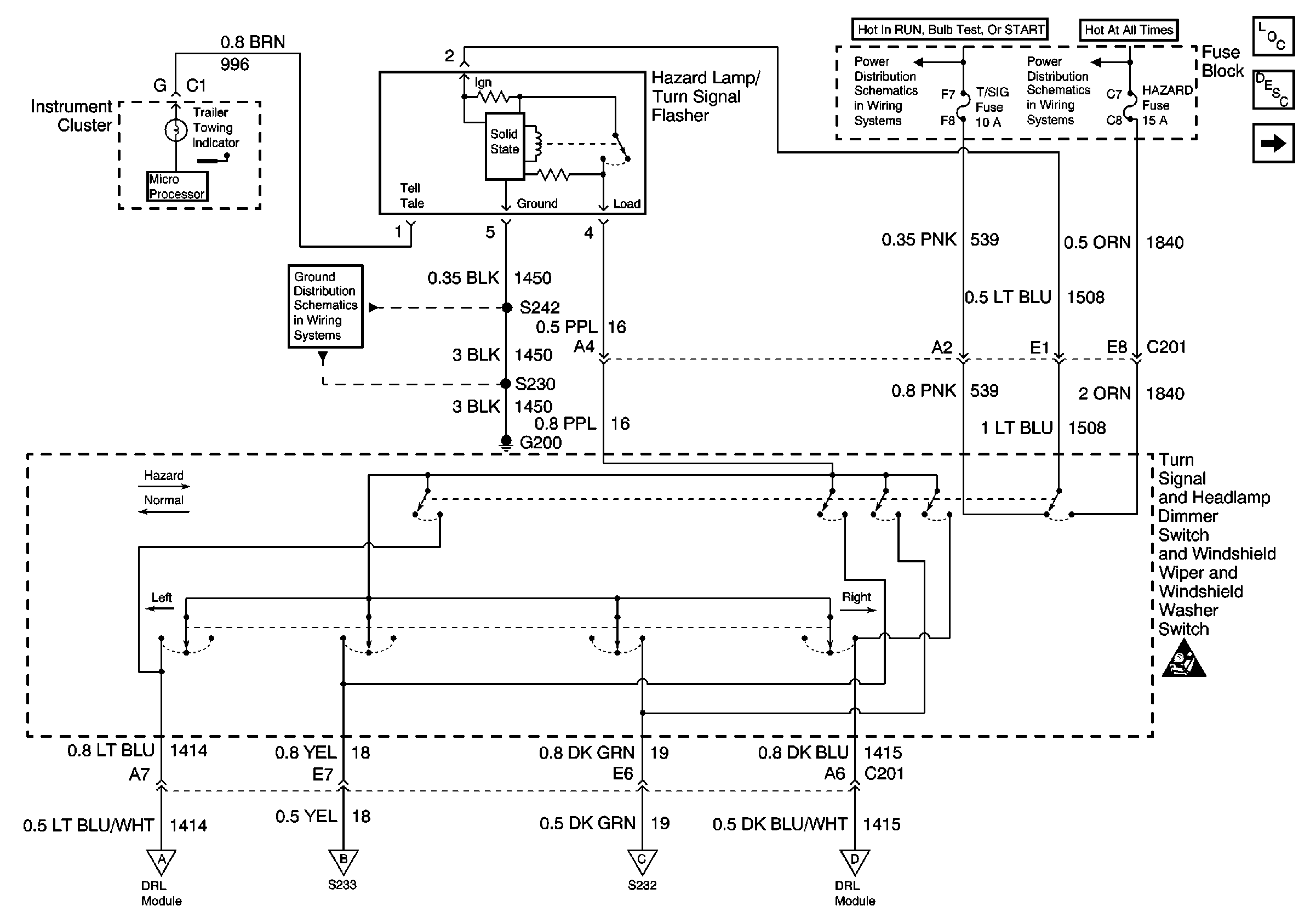

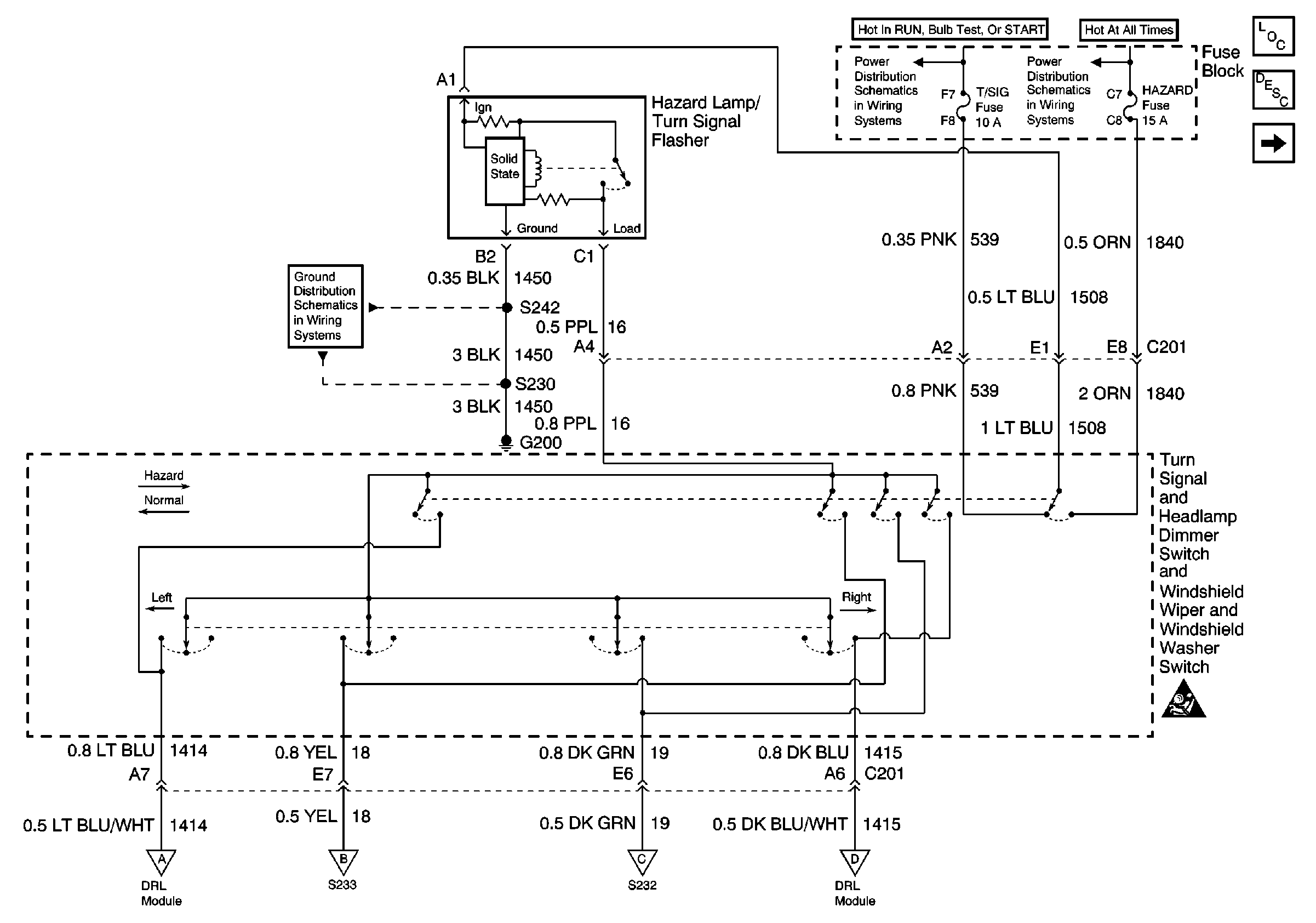

Figure 1:	Hazard Lamp/Turn Signal Flasher, Turn Signal Switch Cell 14: G200 Cell 110: DRL Ambient Light Sensor, DRL Control Module Cell 110: Taillamps, Side Markers, Park/Turn Lamps Cell 110: Taillamps, Side Markers, Park/Turn Lamps Cell 110: DRL Ambient Light Sensor, DRL Control Module IGN, SIR, T/S/G, Cruise, and PCM/Pass Key 1 Cluster Fuses Stop Lamp, Hazard, and Pass Key Fuses, FRT HVAC MI BLWR and Headlamp Circuit Breakers SIR Handling Caution Cell 14: G401 Lighting Systems Components Exterior Lights Circuit Description Cell 110: Stoplamp Switch, Center High Mounted Stop Lamp

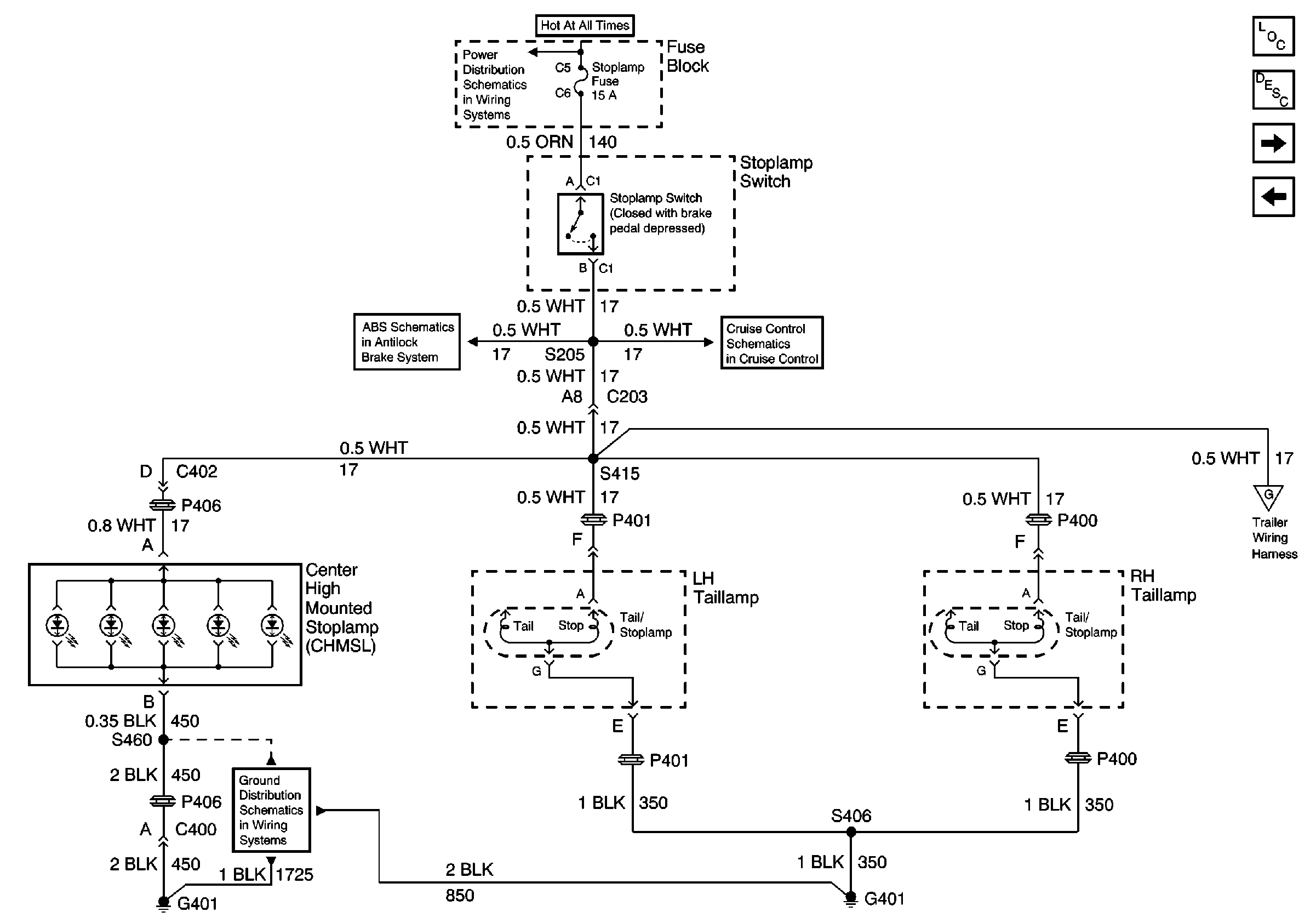

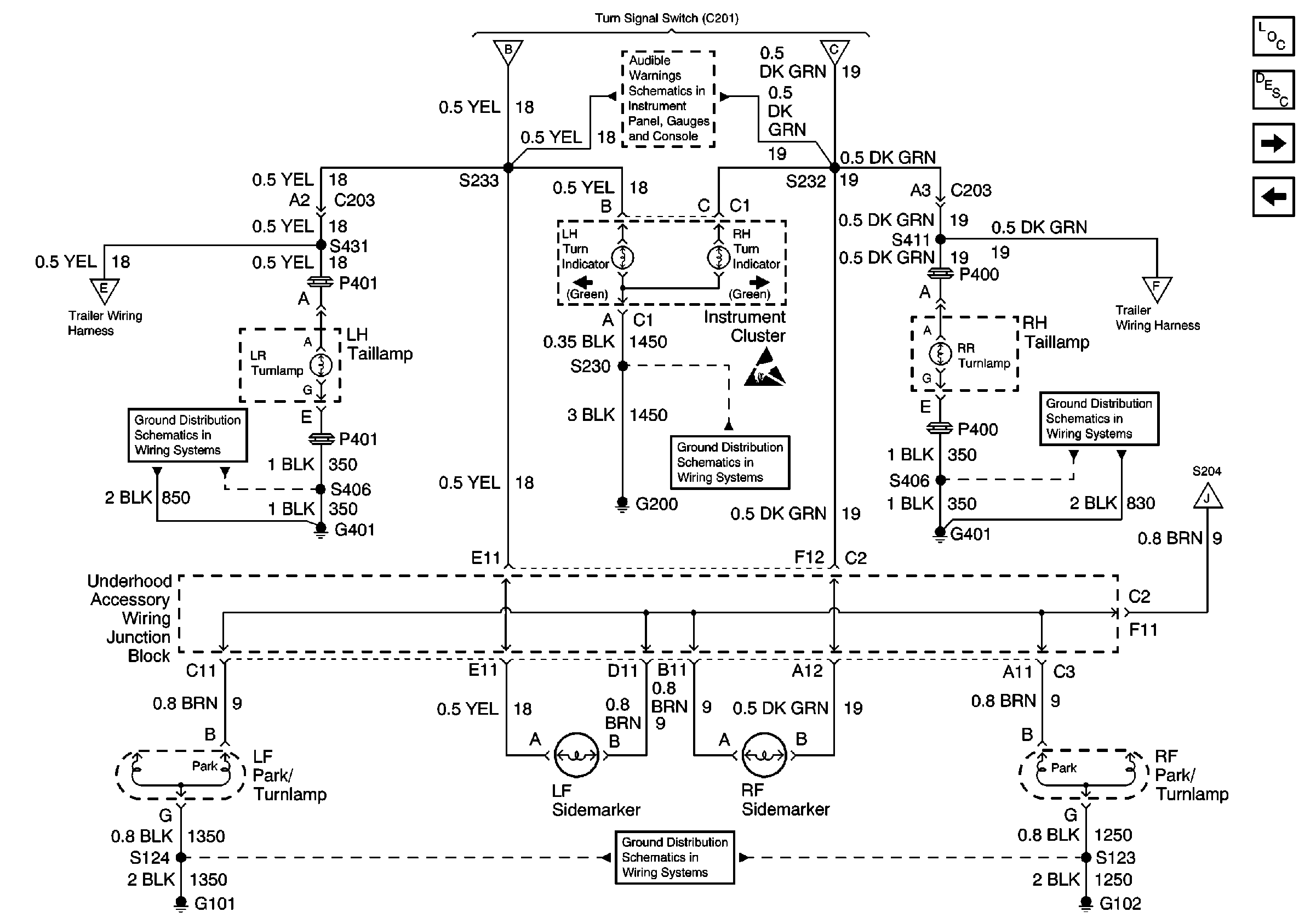

Figure 2:	Cell 110: Stoplamp Switch, Center High Mounted Stop Lamp Stop Lamp, Hazard, and Pass Key Fuses, FRT HVAC MI BLWR and Headlamp Circuit Breakers ABS/TCS Schematics ( ABS MoDULE, DLC, Ground, Instrument Cluster, PCM, Power, Stop Lamp Switch) Cell 14: G401 Cell 34 Cell 110: Fuse Block and G401 Lighting Systems Components Exterior Lights Circuit Description Cell 110: Taillamps, Side Markers, Park/Turn Lamps Hazard Lamp/Turn Signal Flasher, Turn Signal Switch

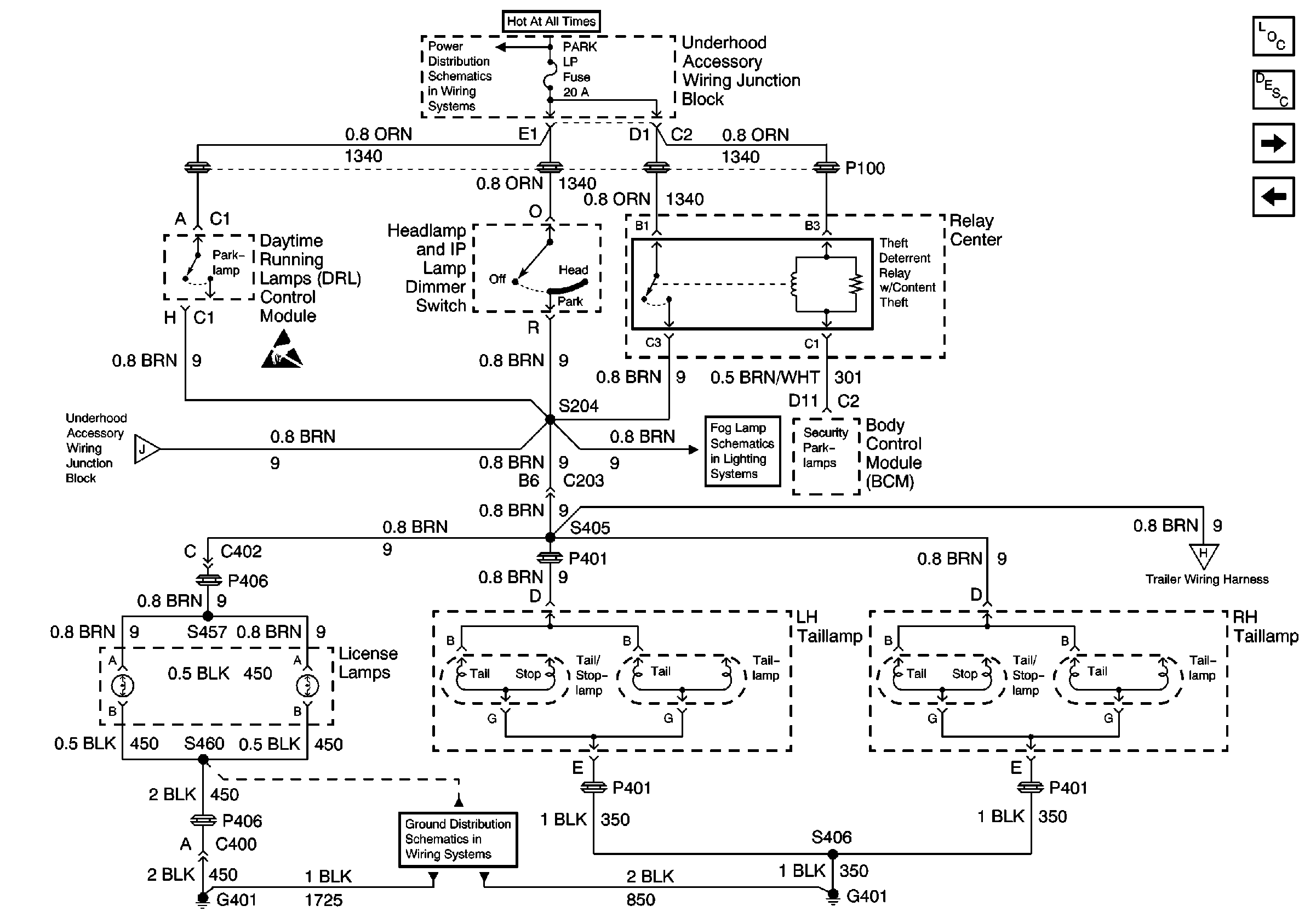

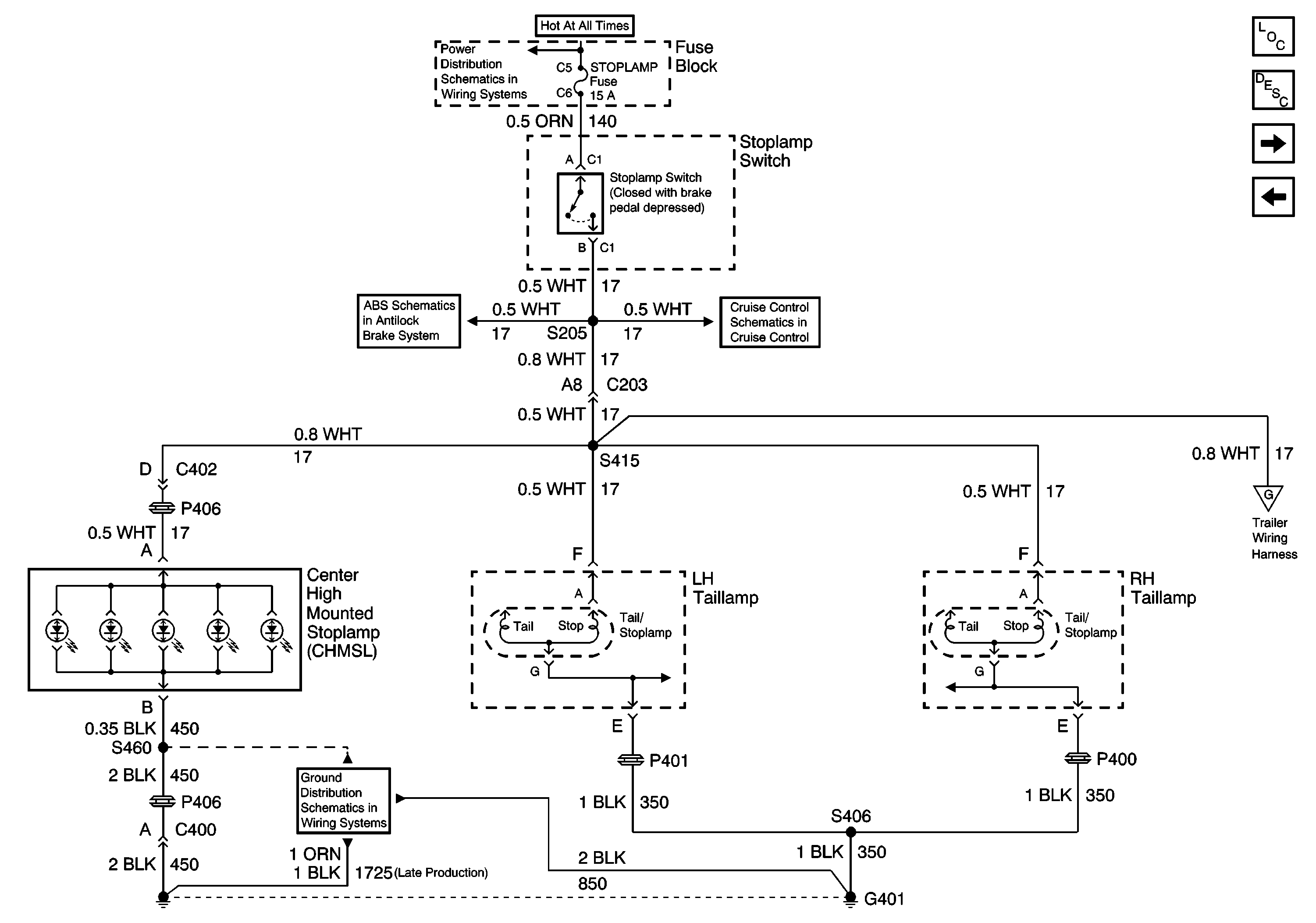

Figure 3:	Cell 110: Taillamps, Side Markers, Park/Turn Lamps Cell 110: Fuse Block and G401 Cell 14: G401 and G402 Hazard Lamp/Turn Signal Flasher, Turn Signal Switch Hardwire Indicators Hazard Lamp/Turn Signal Flasher, Turn Signal Switch Handling ESD Sensitive Parts Notice Cell 14: G200 Cell 14: G101 and G102 Backup Lights Schematics (Cell 112) Cell 14: G401 and G402 Cell 110: License Lamps, Relay Center Lighting Systems Components Exterior Lights Circuit Description Cell 110: License Lamps, Relay Center Cell 110: Stoplamp Switch, Center High Mounted Stop Lamp

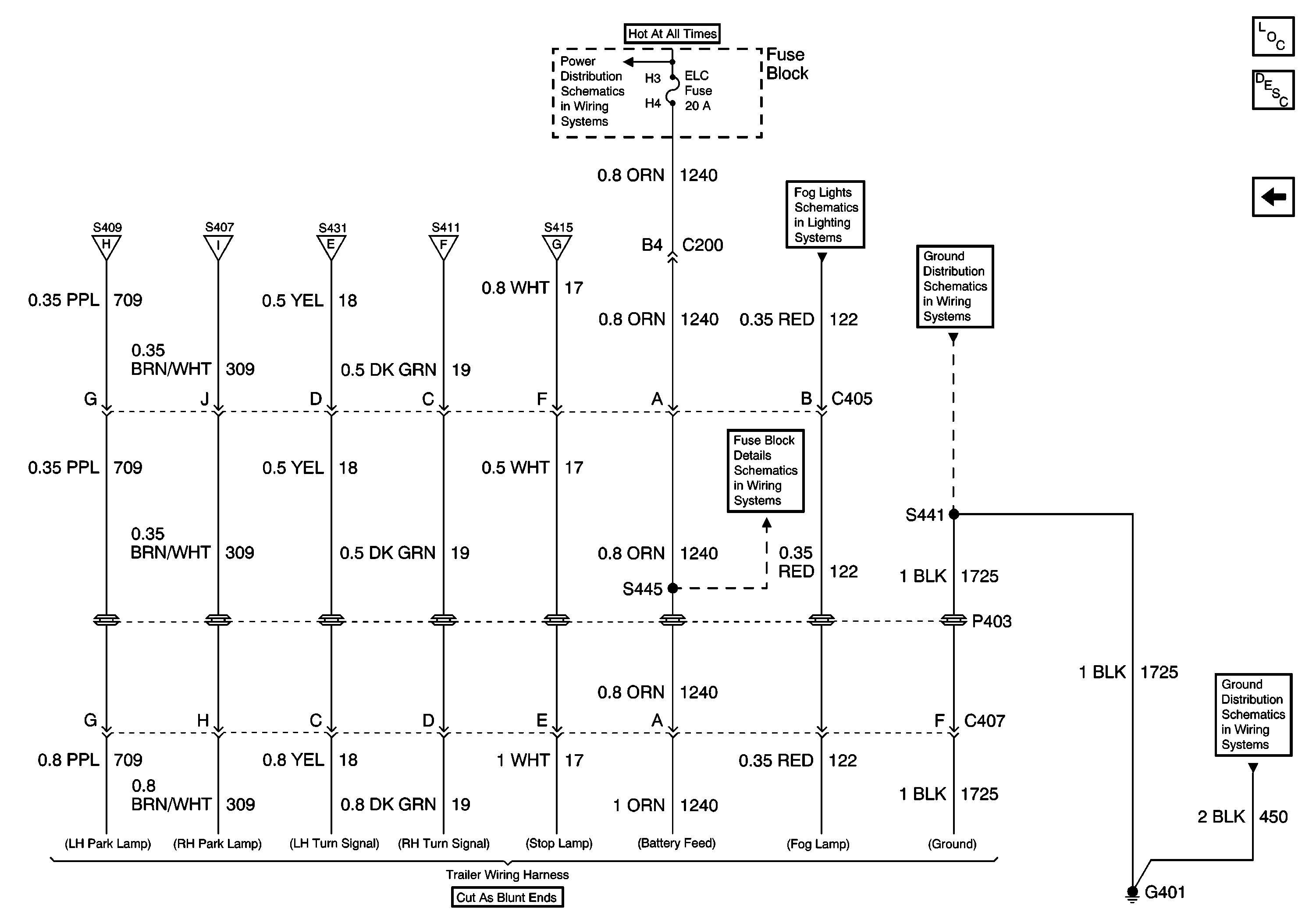

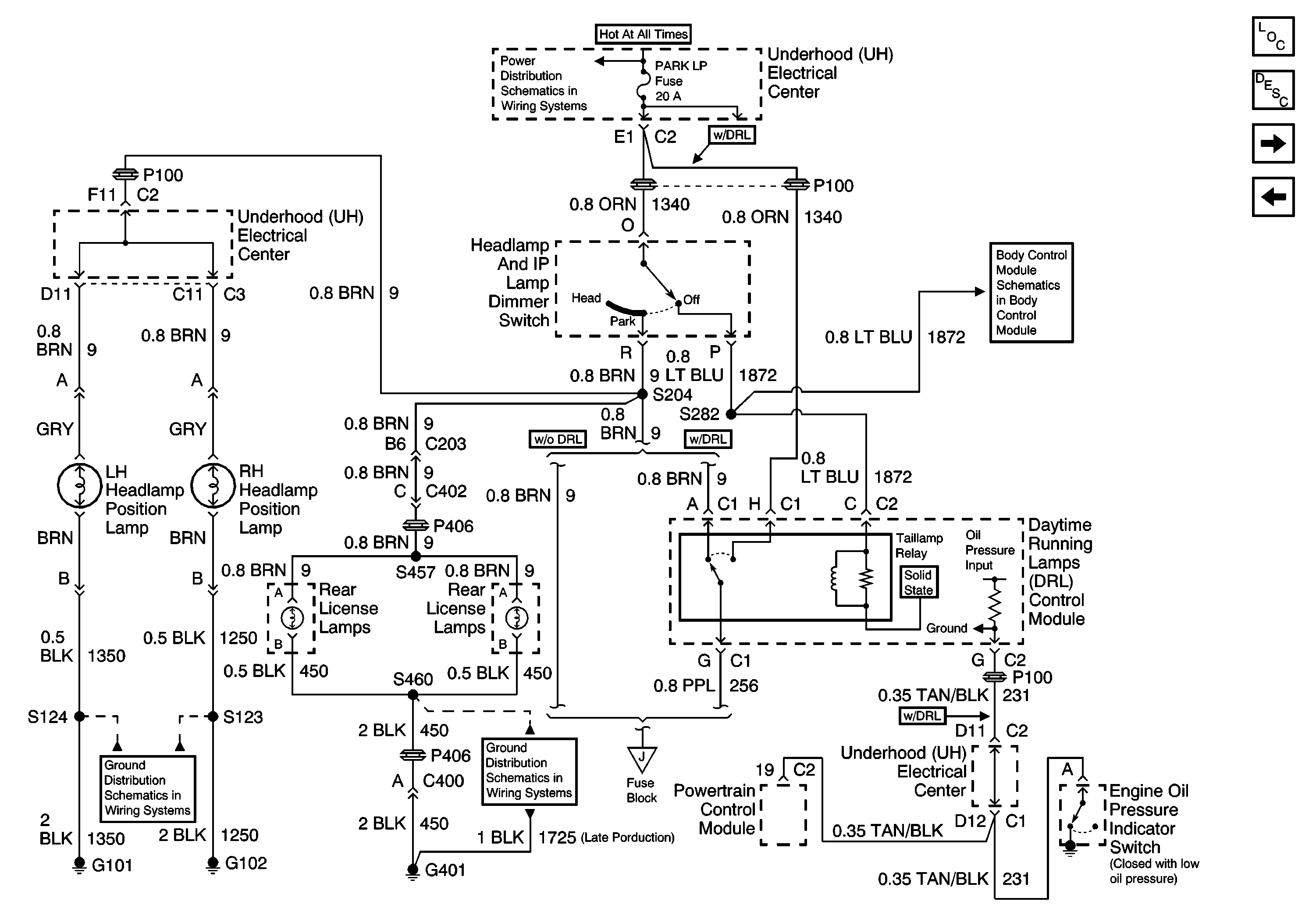

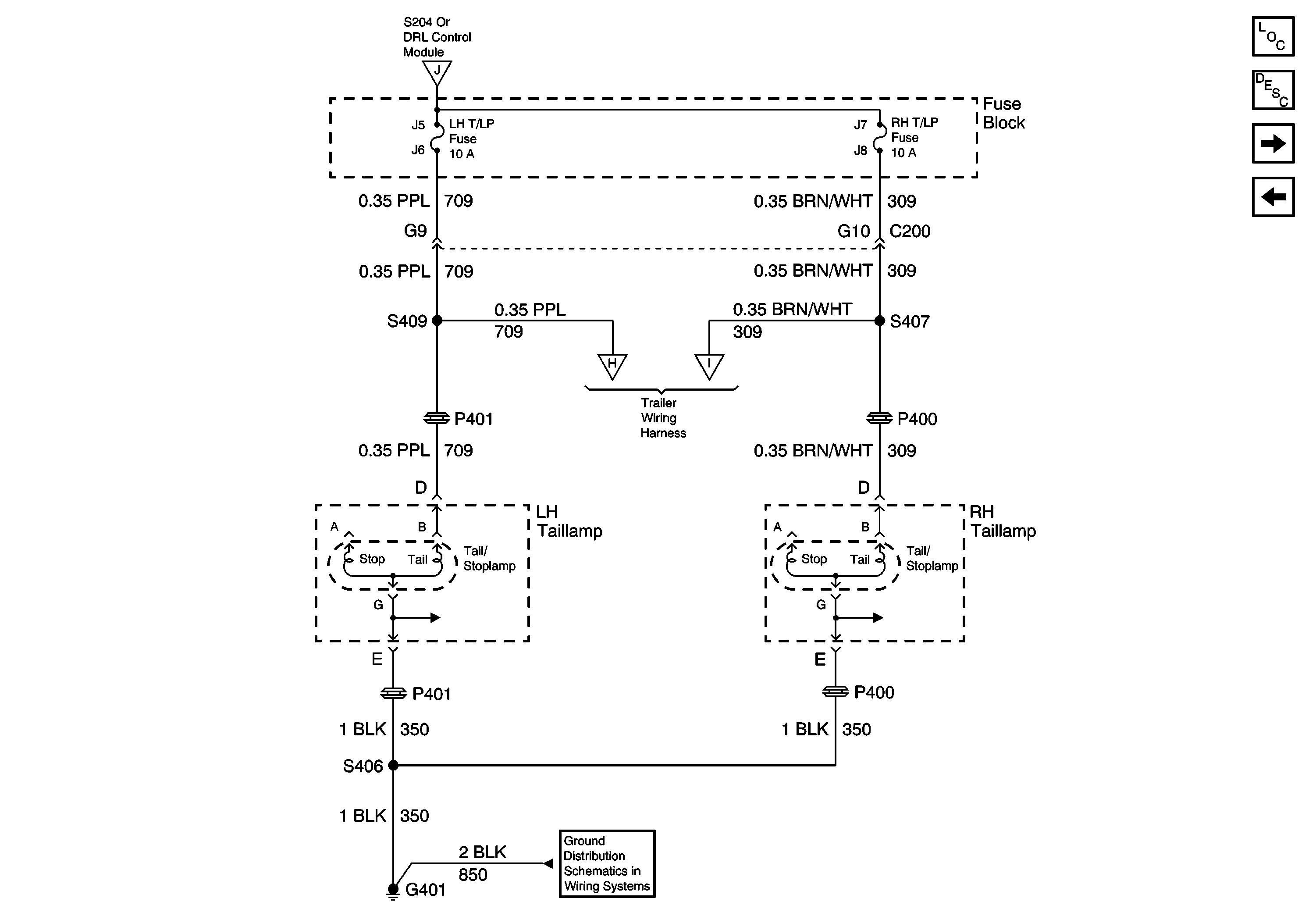

Figure 4:	Cell 110: License Lamps, Relay Center EBCM, BATT Main 1 and Radio Fuses Handling ESD Sensitive Parts Notice Cell 110: Taillamps, Side Markers, Park/Turn Lamps Cell 14: G401 and G402 Fog Lights Schematics (Foglights) Cell 103) Cell 110: Fuse Block and G401 Lighting Systems Components Exterior Lights Circuit Description Cell 110: DRL Ambient Light Sensor, DRL Control Module Cell 110: Taillamps, Side Markers, Park/Turn Lamps

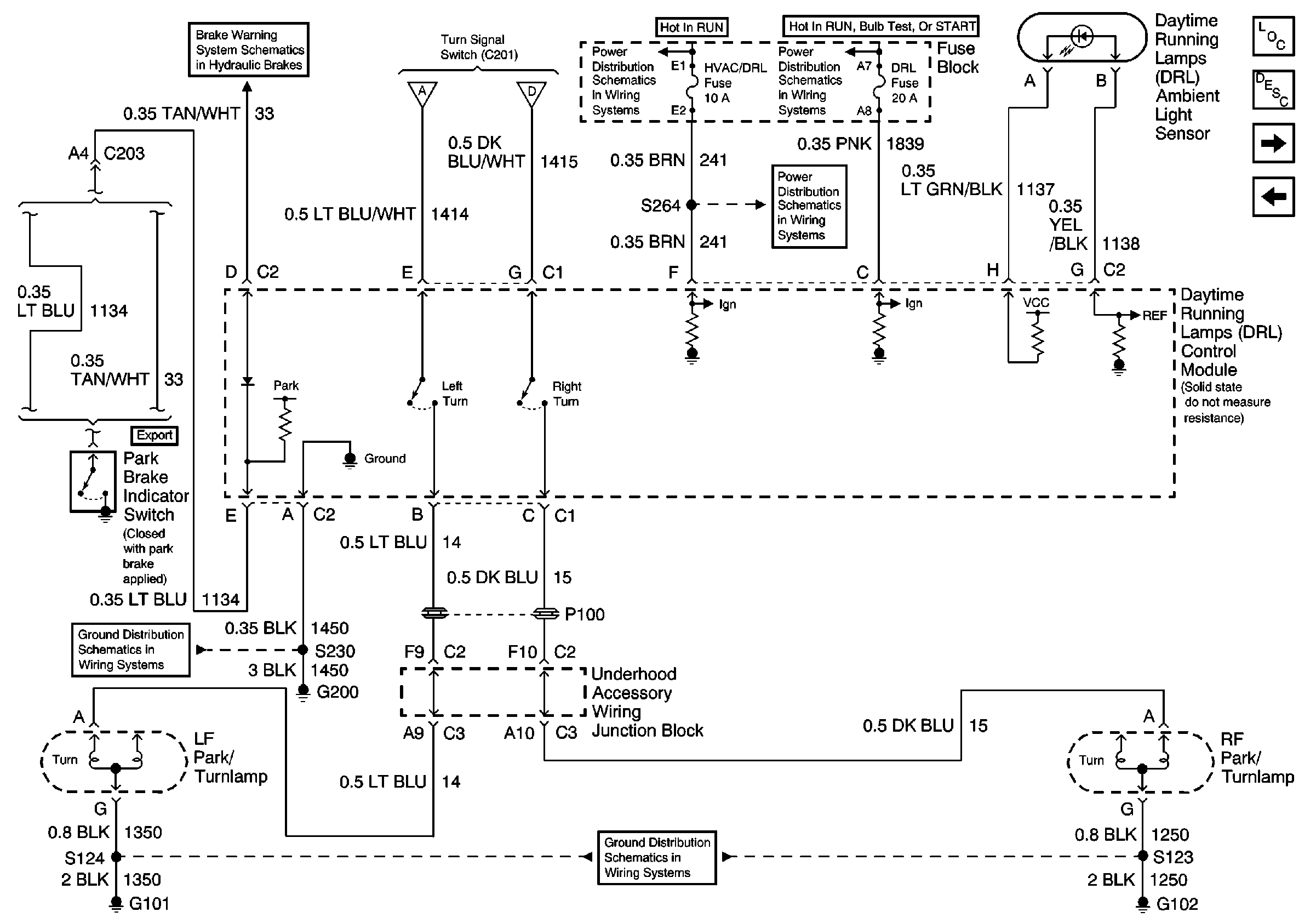

Figure 5:	Cell 110: DRL Ambient Light Sensor, DRL Control Module Cell 14: G200 00 U-Van Hydraulic Brakes Schematic, Brake Warning Syste Hazard Lamp/Turn Signal Flasher, Turn Signal Switch Hazard Lamp/Turn Signal Flasher, Turn Signal Switch HVAC/DIC/DRL/Heated Seat, HVAC Blower and RR HVAC/TEMP CONT Fuses Ignition Switch IGN Main Relay, IGN Main 1, PCM/ABS, CONVENT SOL, DRL, and PCM/Crank Fuses HVAC/DIC/DRL/Heated Seat, HVAC Blower and RR HVAC/TEMP CONT Fuses Cell 14: G101 and G102 Lighting Systems Components Exterior Lights Circuit Description Cell 110: Fuse Block and G401 Cell 110: License Lamps, Relay Center

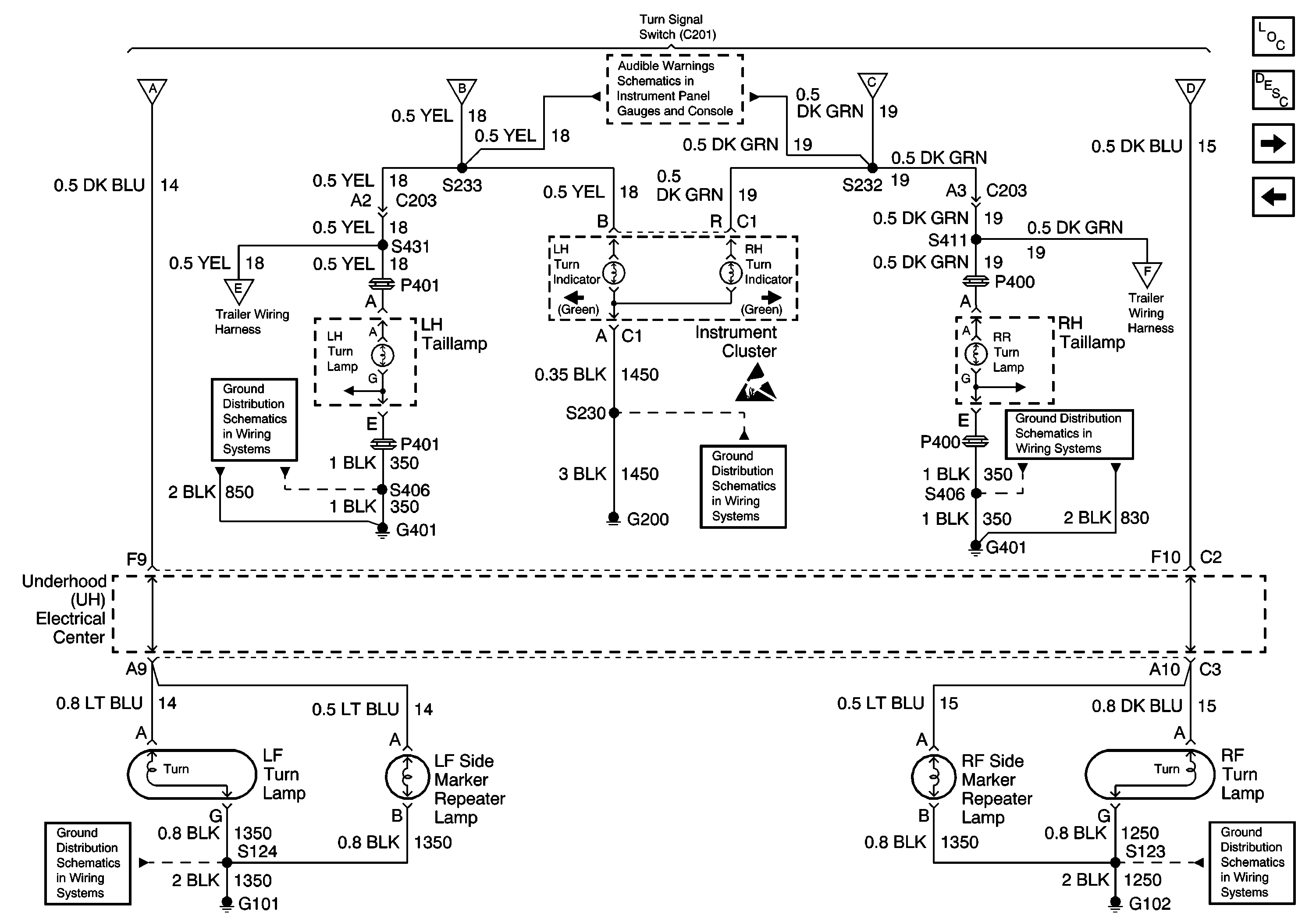

Figure 6:	Cell 110: Fuse Block and G401 Cell 110: License Lamps, Relay Center Cell 110: Taillamps, Side Markers, Park/Turn Lamps Cell 110: Taillamps, Side Markers, Park/Turn Lamps Cell 110: Stoplamp Switch, Center High Mounted Stop Lamp BATT Main 2, Headlamps, ELC/Trailer, RR Defog/HTP Mirrors and RR Fog LP Fuses and PWR/ Heated Seat PSD Circuit Breaker Cell 14: G401 BATT Main 2, Headlamps, ELC/Trailer, RR Defog/HTP Mirrors and RR Fog LP Fuses and PWR/ Heated Seat PSD Circuit Breaker Cell 14: G401 Lighting Systems Components Exterior Lights Circuit Description Cell 110: DRL Ambient Light Sensor, DRL Control Module

Exterior Lights Schematics Export

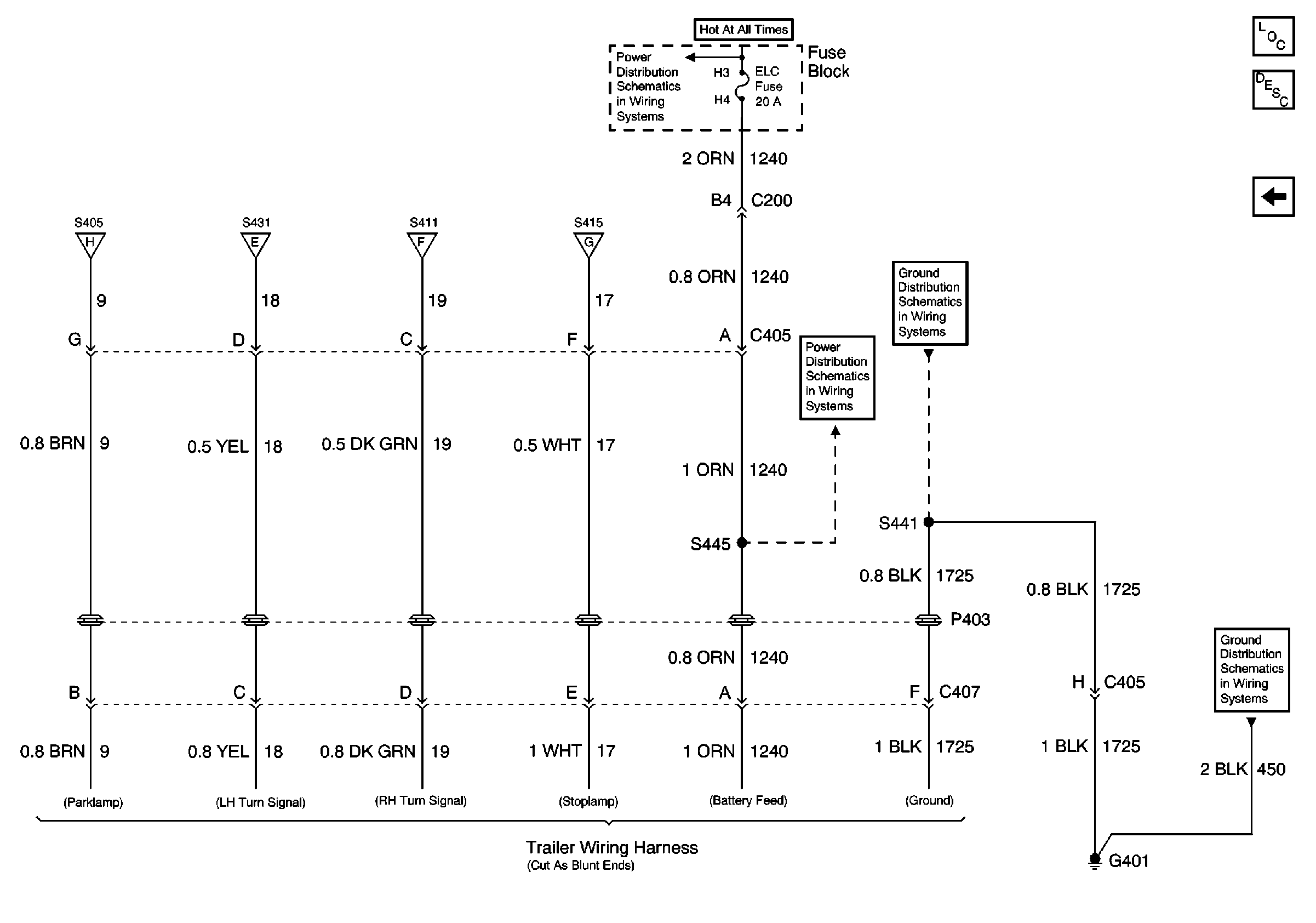

Figure 1:	Cell 110: Hazard Lamp/Turn Signal Flasher, Turn Signal Switch-Export Cell 14: G200 Export Turn and Side Marker Lamps Export Turn and Side Marker Lamps Export Turn and Side Marker Lamps Export Turn and Side Marker Lamps IGN, SIR, T/S/G, Cruise, and PCM/Pass Key 1 Cluster Fuses Stop Lamp, Hazard, and Pass Key Fuses, FRT HVAC MI BLWR and Headlamp Circuit Breakers SIR Handling Caution Lighting Systems Components Exterior Lights Circuit Description Export Turn and Side Marker Lamps
Figure 2:	Export Turn and Side Marker Lamps Cell 110: Hazard Lamp/Turn Signal Flasher, Turn Signal Switch-Export Export Trailer Wiring Harness Cell 14: G401 and G402 Cell 14: G101 and G102 Cell 110: Hazard Lamp/Turn Signal Flasher, Turn Signal Switch-Export Hardwire Indicators Cell 110: Hazard Lamp/Turn Signal Flasher, Turn Signal Switch-Export Handling ESD Sensitive Parts Notice Cell 14: G200 Cell 110: Hazard Lamp/Turn Signal Flasher, Turn Signal Switch-Export Export Trailer Wiring Harness Cell 14: G401 and G402 Cell 14: G101 and G102 Lighting Systems Components Exterior Lights Circuit Description Export Headlamp Position Lamps/License Lamps Cell 110: Hazard Lamp/Turn Signal Flasher, Turn Signal Switch-Export
Figure 3:	Export Headlamp Position Lamps/License Lamps EBCM, BATT Main 1 and Radio Fuses Cell 14: G101 and G102 Cell 14: G401 and G402 Export Taillamps Cell 51: BCM: Interior Lights On Request, Horn Control Lighting Systems Components Exterior Lights Circuit Description Export Taillamps Export Turn and Side Marker Lamps
Figure 4:	Export Taillamps Export Headlamp Position Lamps/License Lamps Export Trailer Wiring Harness Cell 14: G401 and G402 Lighting Systems Components Exterior Lights Circuit Description Export Stoplamps and CHMSL Export Headlamp Position Lamps/License Lamps
Figure 5:	Export Stoplamps and CHMSL Stop Lamp, Hazard, and Pass Key Fuses, FRT HVAC MI BLWR and Headlamp Circuit Breakers ABS/TCS Schematics ( ABS MoDULE, DLC, Ground, Instrument Cluster, PCM, Power, Stop Lamp Switch) Cell 14: G401 Cell 34 Export Trailer Wiring Harness Lighting Systems Components Exterior Lights Circuit Description Export Trailer Wiring Harness Export Taillamps
Figure 6:	Export Trailer Wiring Harness BATT Main 2, Headlamps, ELC/Trailer, RR Defog/HTP Mirrors and RR Fog LP Fuses and PWR/ Heated Seat PSD Circuit Breaker Export Taillamps Export Taillamps Export Turn and Side Marker Lamps Export Turn and Side Marker Lamps Export Stoplamps and CHMSL BATT Main 2, Headlamps, ELC/Trailer, RR Defog/HTP Mirrors and RR Fog LP Fuses and PWR/ Heated Seat PSD Circuit Breaker Fog Lights Schematics (Rear Fog Lights-Export 2 of 2) Cell 14: G401 Cell 14: G401 Lighting Systems Components Exterior Lights Circuit Description Export Stoplamps and CHMSL
