HVAC Schematics. Chevrolet Venture Ext. 2003

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2003 🢒 Venture Ext. 🢒 Body and Accessories 🢒 Wiring Systems 🢒 HVAC Schematics

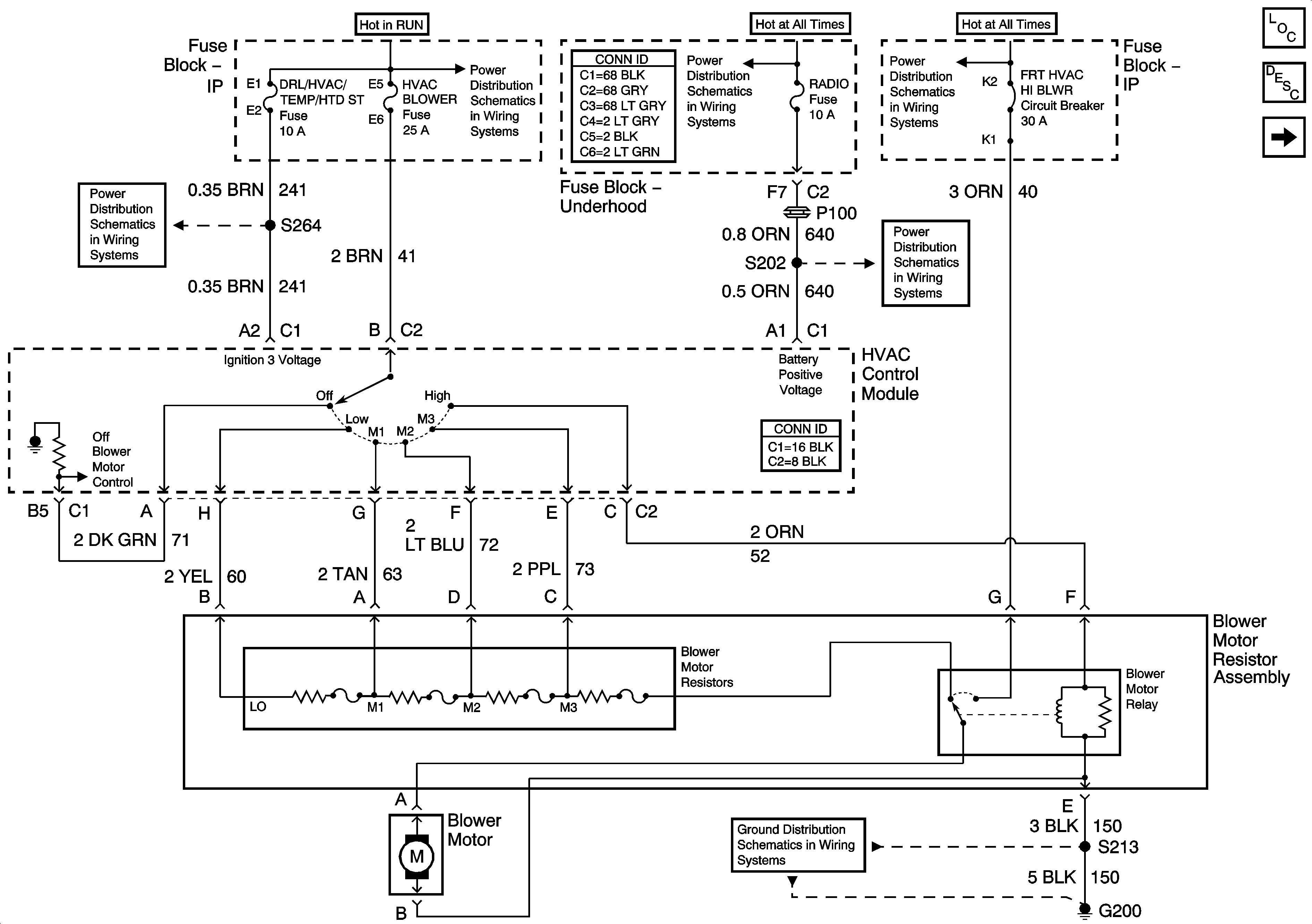

Figure 1:	Front Blower Controls Master Electrical Component List Air Delivery Description and Operation HVAC Compressor Control DRL/HVAC/TEMP/HTD ST, HVAC BLOWER and RR HVAC/TEMP CONT Fuses DRL/HVAC/TEMP/HTD ST, HVAC BLOWER and RR HVAC/TEMP CONT Fuses EBCM, BATT Main 1, RADIO and PARK LP Fuses Headlamps and Fuse Block - I/P Fuses EBCM, BATT Main 1, RADIO and PARK LP Fuses G200, Page 1 of 3

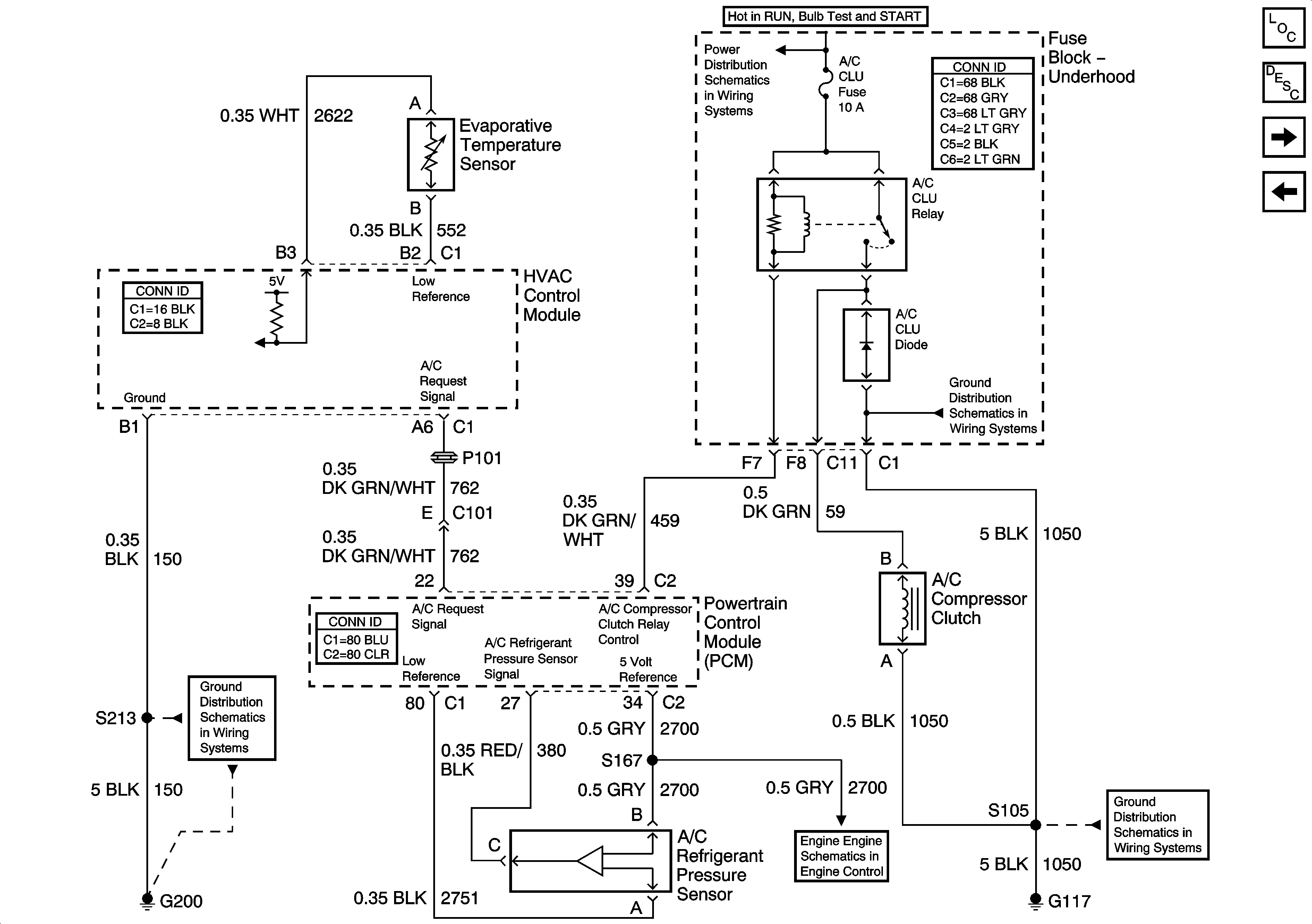

Figure 2:	HVAC Compressor Control Master Electrical Component List Air Delivery Description and Operation Front Air Delivery Front Blower Controls G200, Page 1 of 3 Fuse Block - Underhood and Fusable Links G114 and G117 Engine Data Sensors - 5 Volt and Low Reference G114 and G117

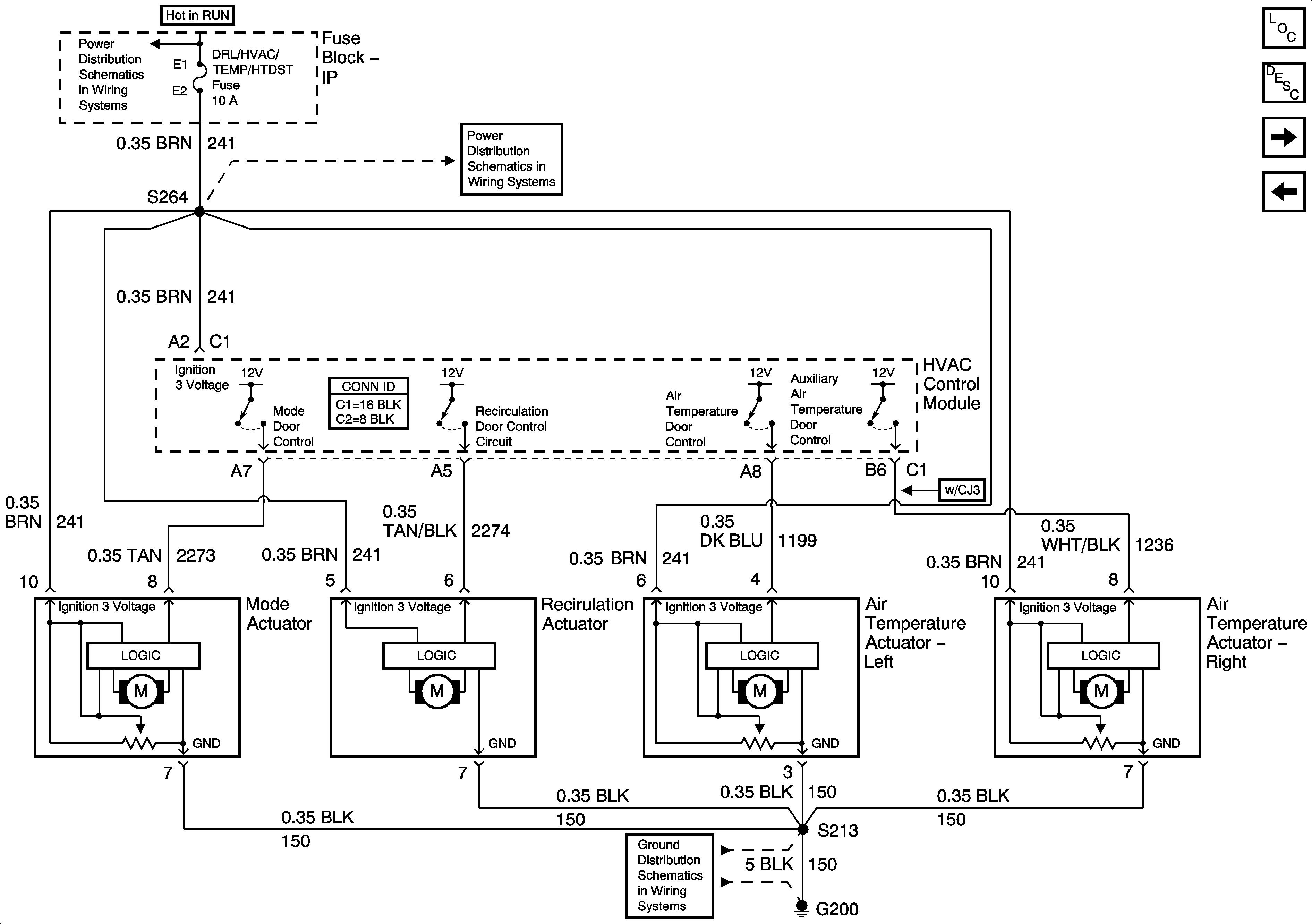

Figure 3:	Front Air Delivery Master Electrical Component List Air Delivery Description and Operation Rear Blower Controls HVAC Compressor Control DRL/HVAC/TEMP/HTD ST, HVAC BLOWER and RR HVAC/TEMP CONT Fuses DRL/HVAC/TEMP/HTD ST, HVAC BLOWER and RR HVAC/TEMP CONT Fuses G200, Page 1 of 3

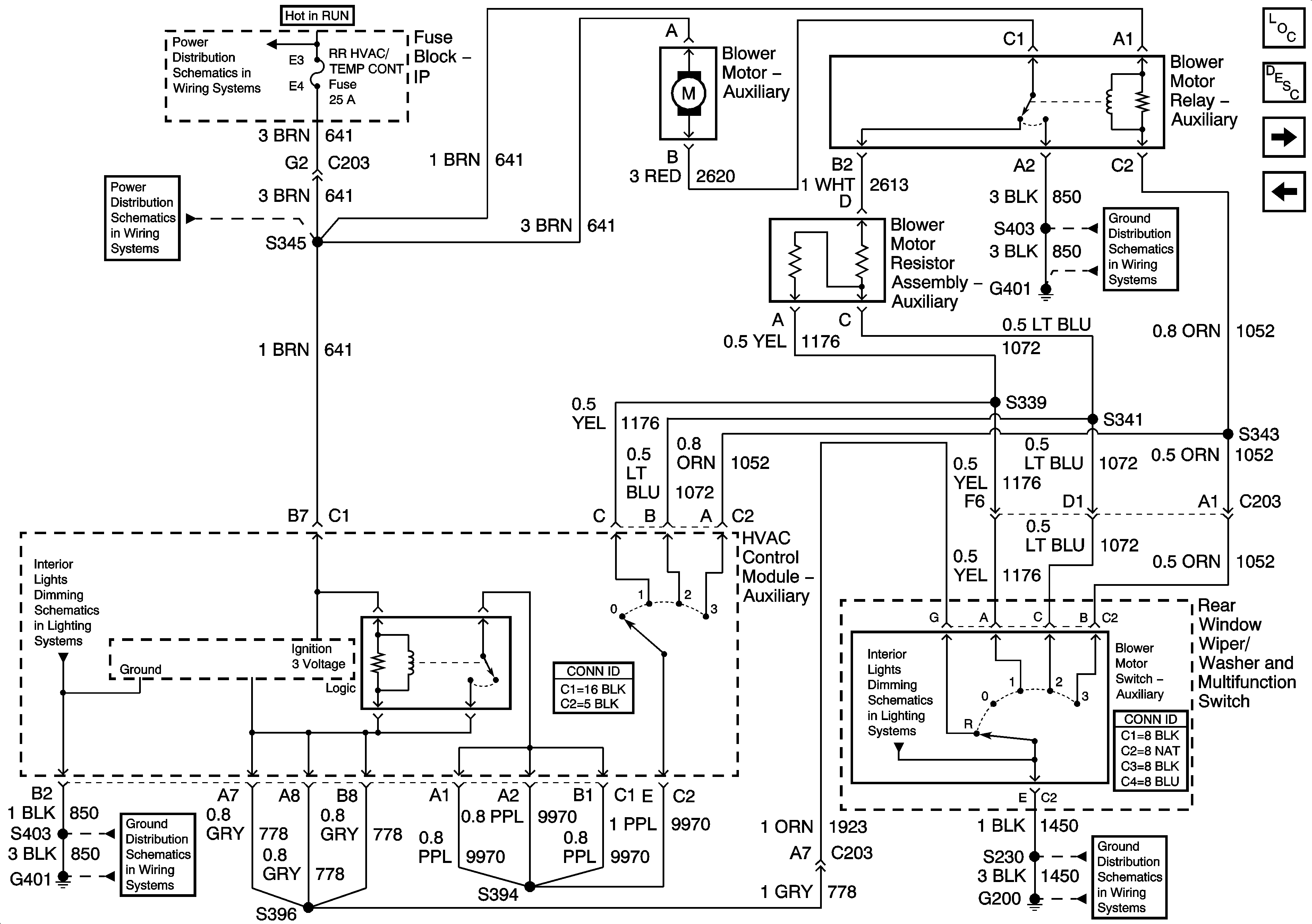

Figure 4:	Rear Blower Controls Master Electrical Component List Air Delivery Description and Operation Rear Blower Controls with Video Entertainment (U32) Front Air Delivery DRL/HVAC/TEMP/HTD ST, HVAC BLOWER and RR HVAC/TEMP CONT Fuses DRL/HVAC/TEMP/HTD ST, HVAC BLOWER and RR HVAC/TEMP CONT Fuses G401 Rear Window Wiper/Washer and Multifunction Switch, Window and Door Lock Switches G401 Rear Window Wiper/Washer and Multifunction Switch, Window and Door Lock Switches G200, Page 1 of 3

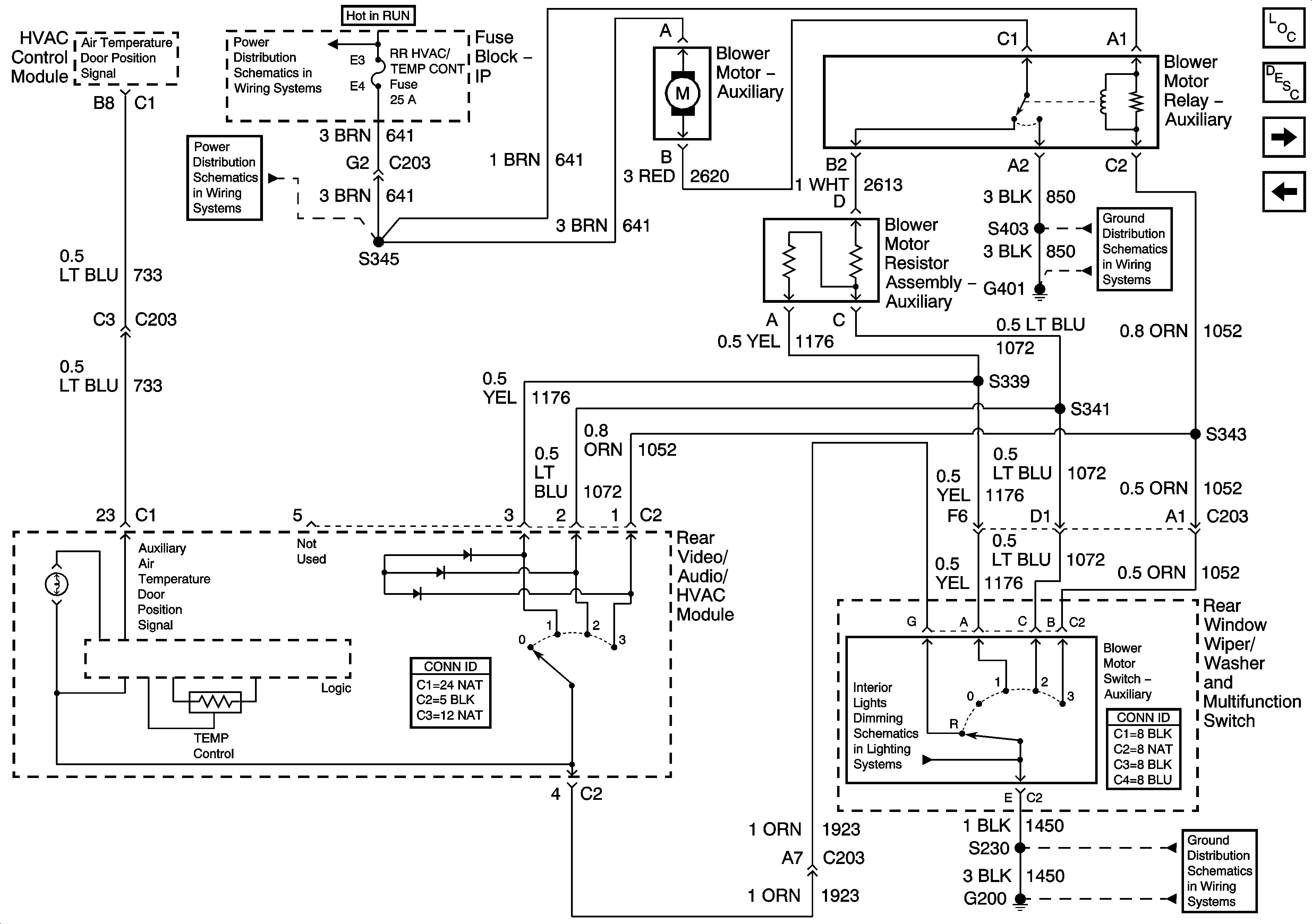

Figure 5:	Rear Blower Controls with Video Entertainment (U32) Master Electrical Component List Air Delivery Description and Operation Rear Air Delivery Rear Blower Controls DRL/HVAC/TEMP/HTD ST, HVAC BLOWER and RR HVAC/TEMP CONT Fuses DRL/HVAC/TEMP/HTD ST, HVAC BLOWER and RR HVAC/TEMP CONT Fuses G401 Rear Window Wiper/Washer and Multifunction Switch, Window and Door Lock Switches G200, Page 1 of 3

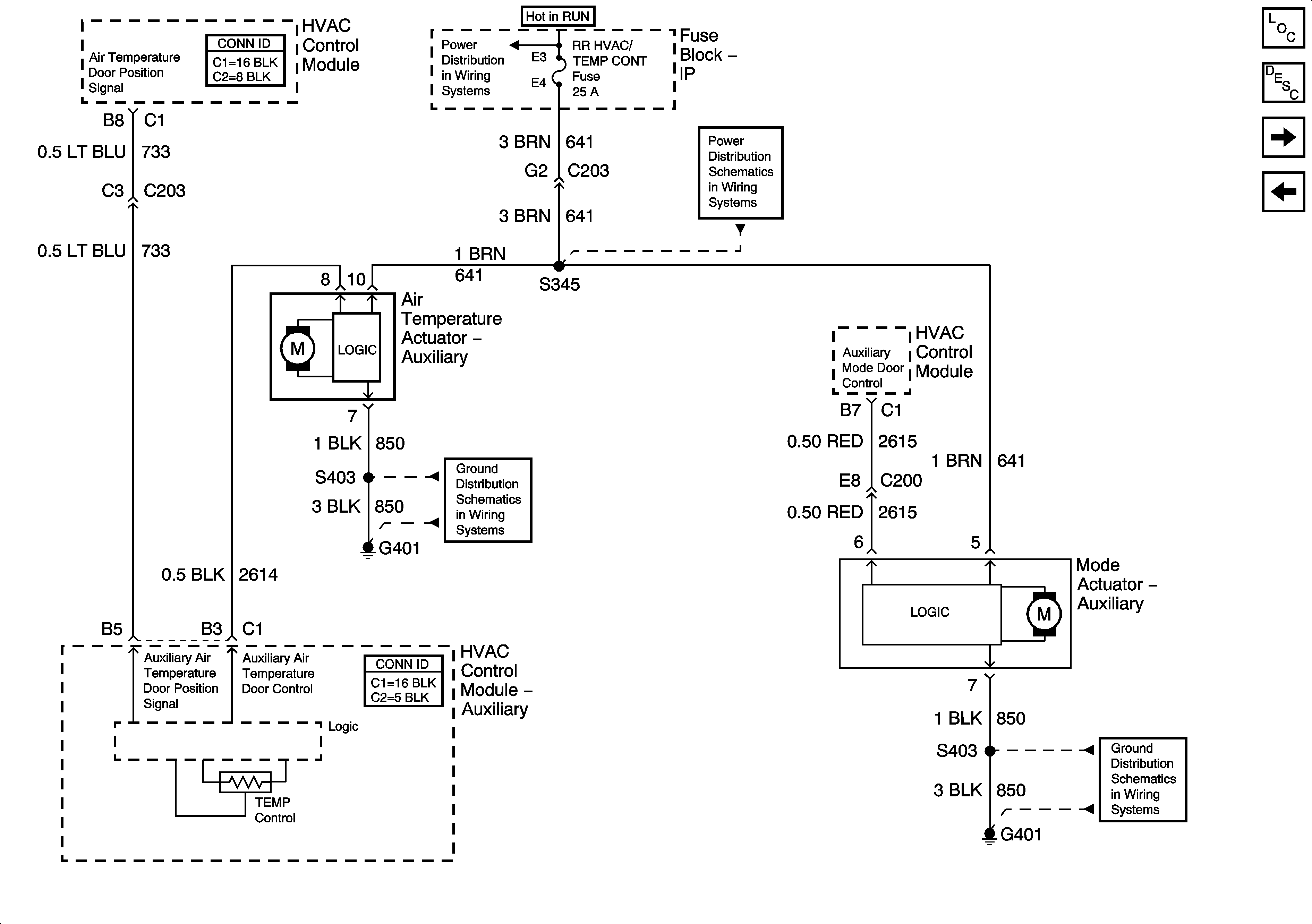

Figure 6:	Rear Air Delivery Master Electrical Component List Air Delivery Description and Operation Rear Air Delivery Controls with Video Entertainment (U32) Rear Blower Controls with Video Entertainment (U32) DRL/HVAC/TEMP/HTD ST, HVAC BLOWER and RR HVAC/TEMP CONT Fuses DRL/HVAC/TEMP/HTD ST, HVAC BLOWER and RR HVAC/TEMP CONT Fuses G401 G401

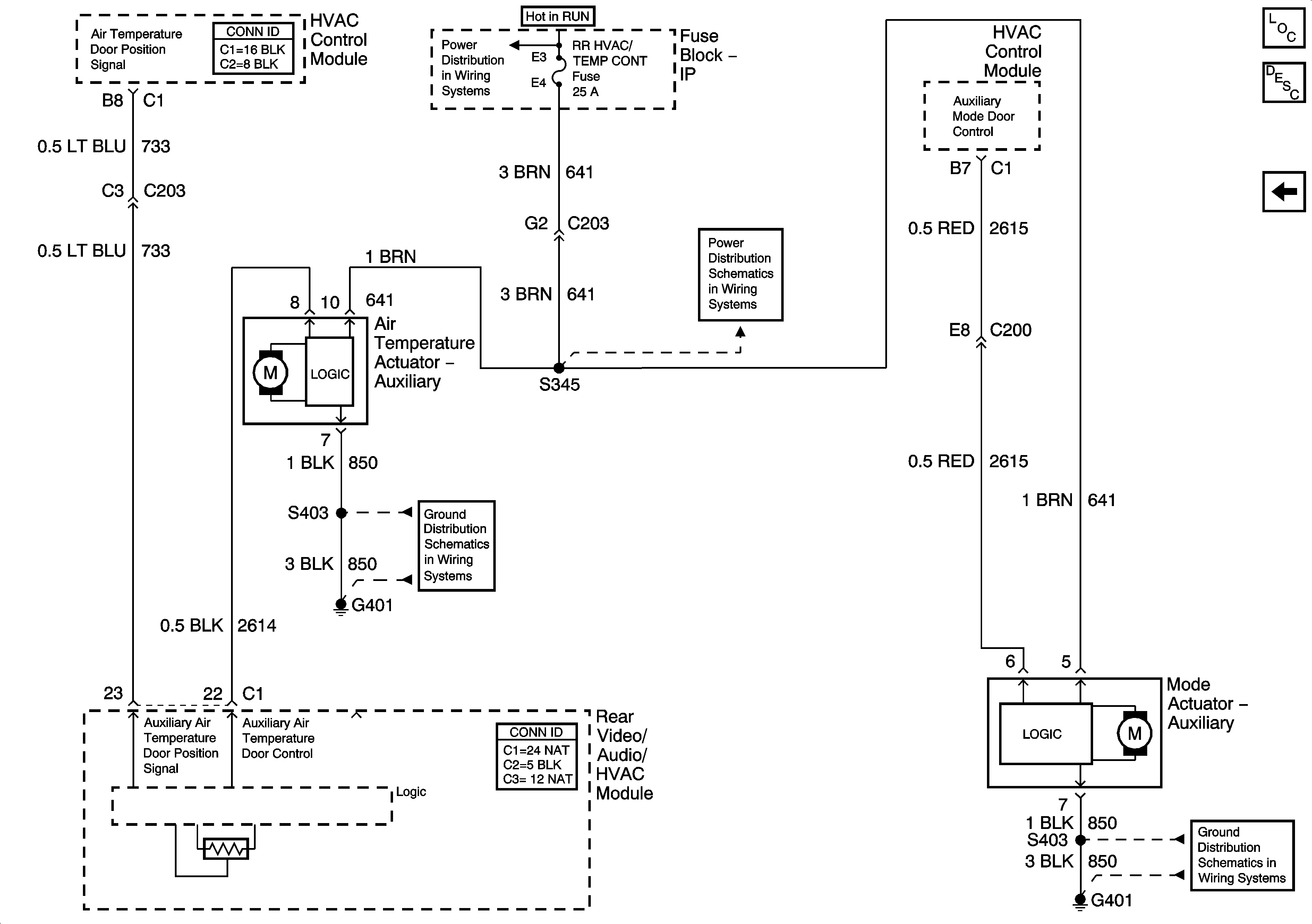

Figure 7:	Rear Air Delivery Controls with Video Entertainment (U32) Master Electrical Component List Air Delivery Description and Operation Rear Air Delivery DRL/HVAC/TEMP/HTD ST, HVAC BLOWER and RR HVAC/TEMP CONT Fuses DRL/HVAC/TEMP/HTD ST, HVAC BLOWER and RR HVAC/TEMP CONT Fuses G401 G401
