For 1990-2009 cars only
| Figure 1: |
Ground, Power, MIL, Serial Data
|
| Figure 2: |

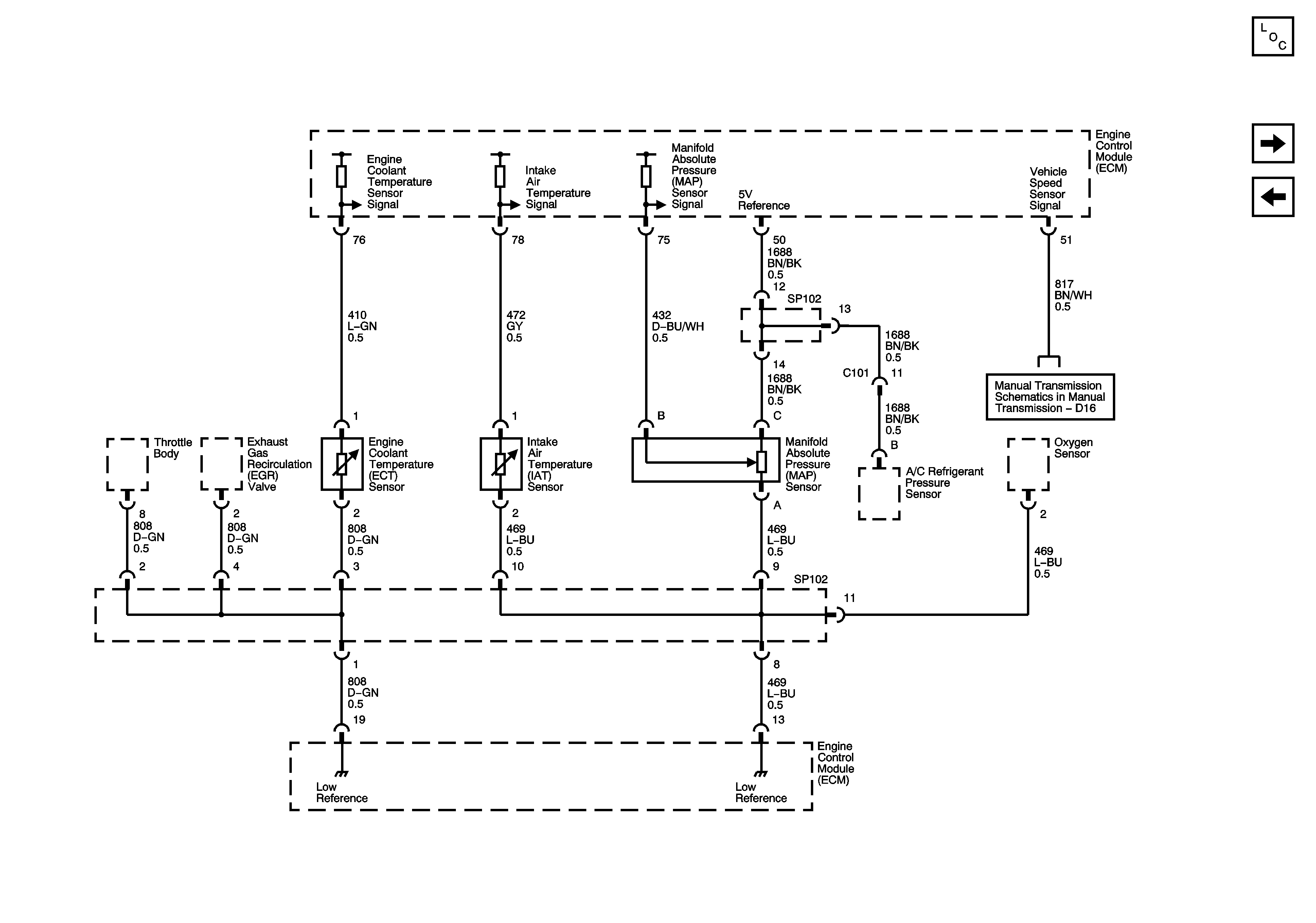

Engine Data Sensors - Pressure and Temperature
|
| Figure 3: |

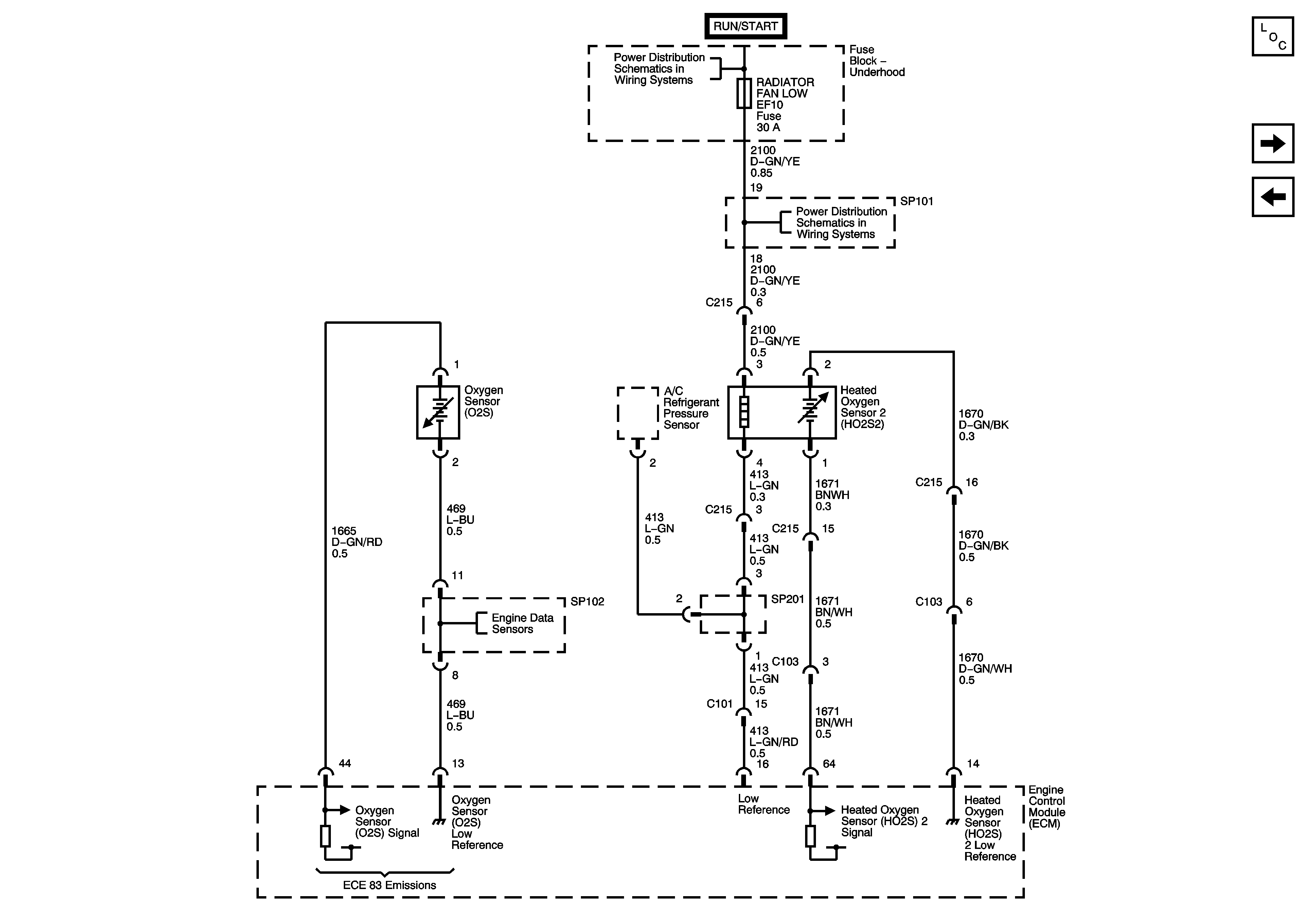

Engine Data Sensors - Oxygen Sensors
|
| Figure 4: |
Ignition Controls - Ignition System
|
| Figure 5: |

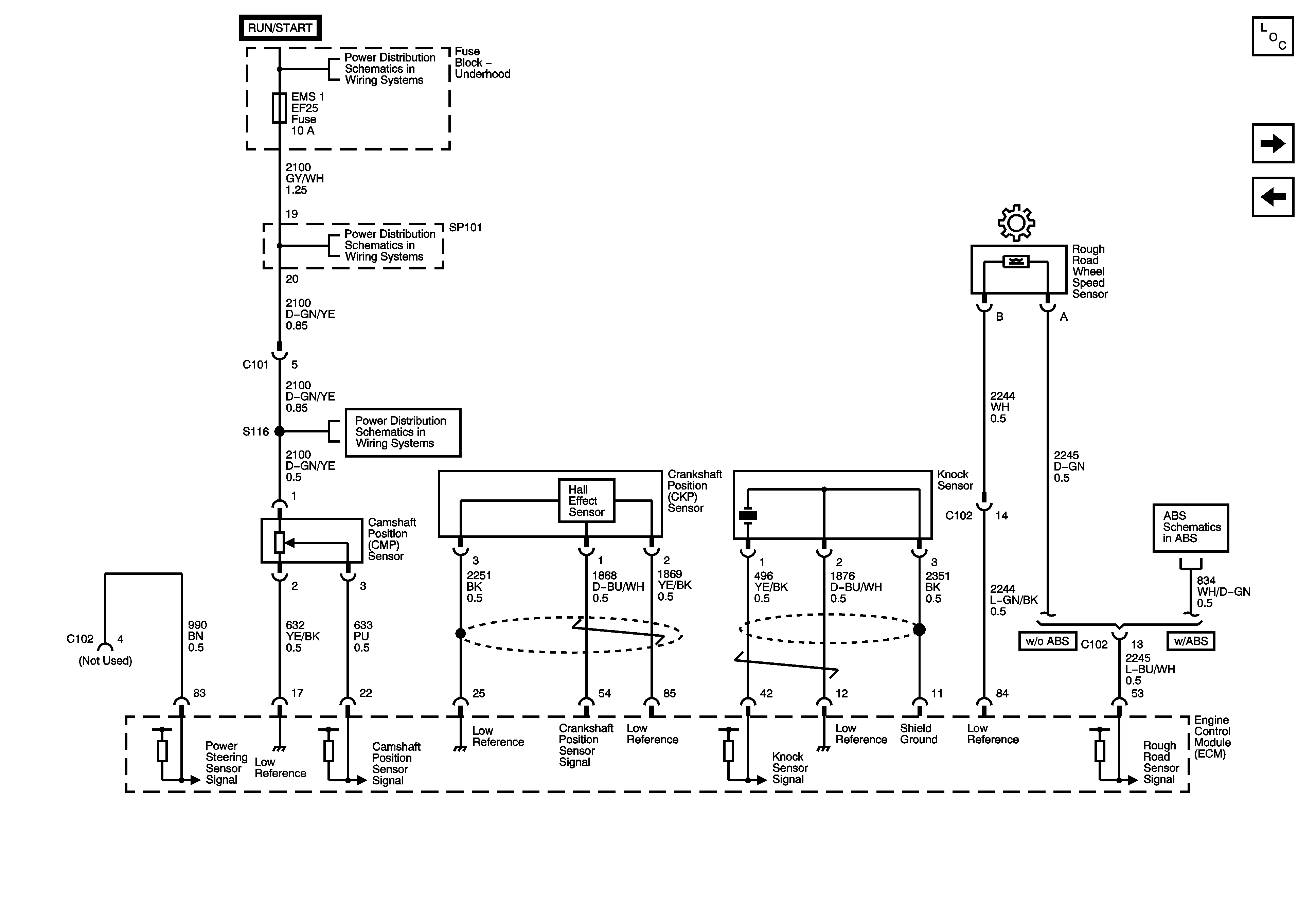

Ignition Controls - Sensors and Rough Road Wheel Speed Sensor
|
| Figure 6: |

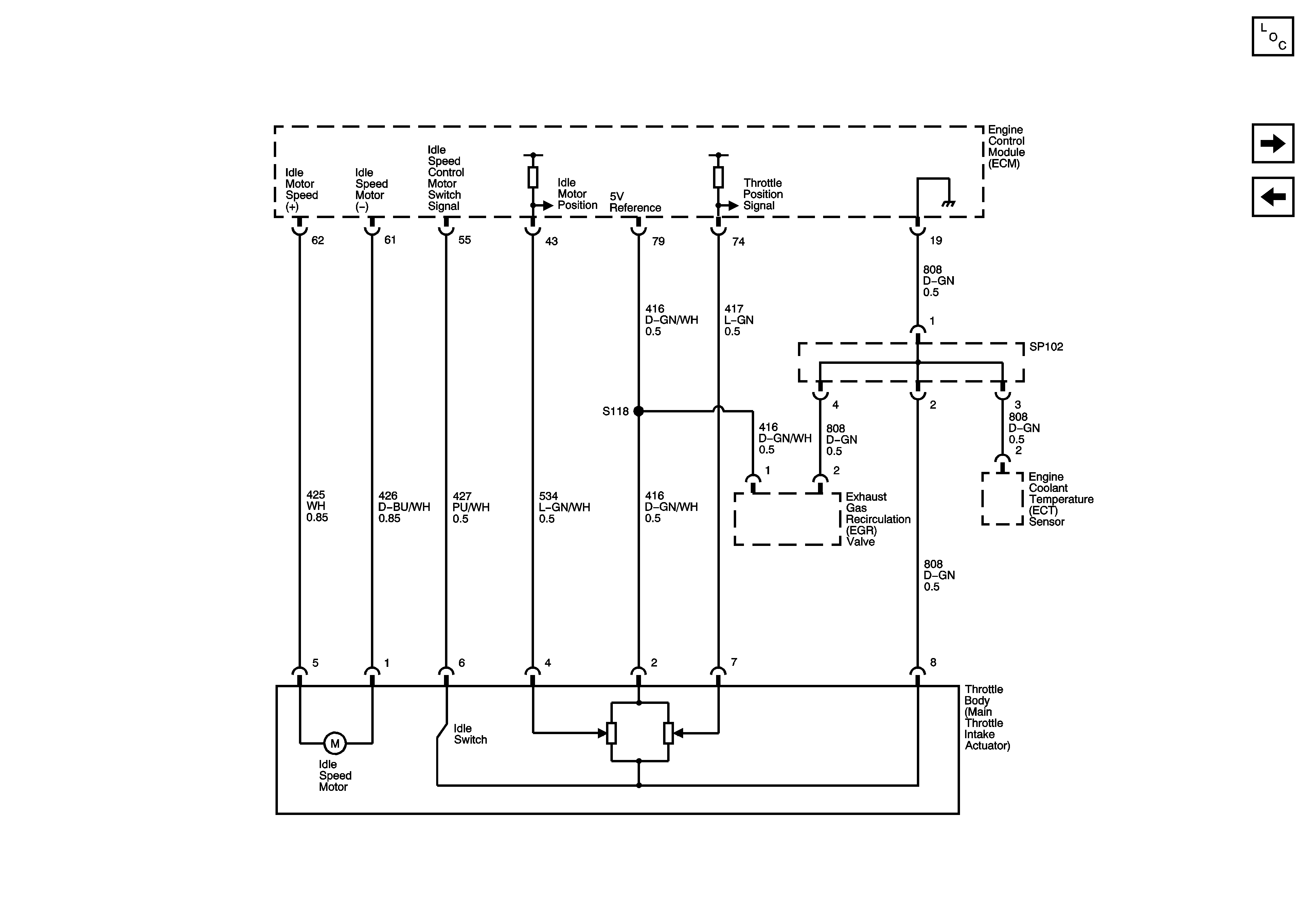

Electronic Throttle Controls
|
| Figure 7: |

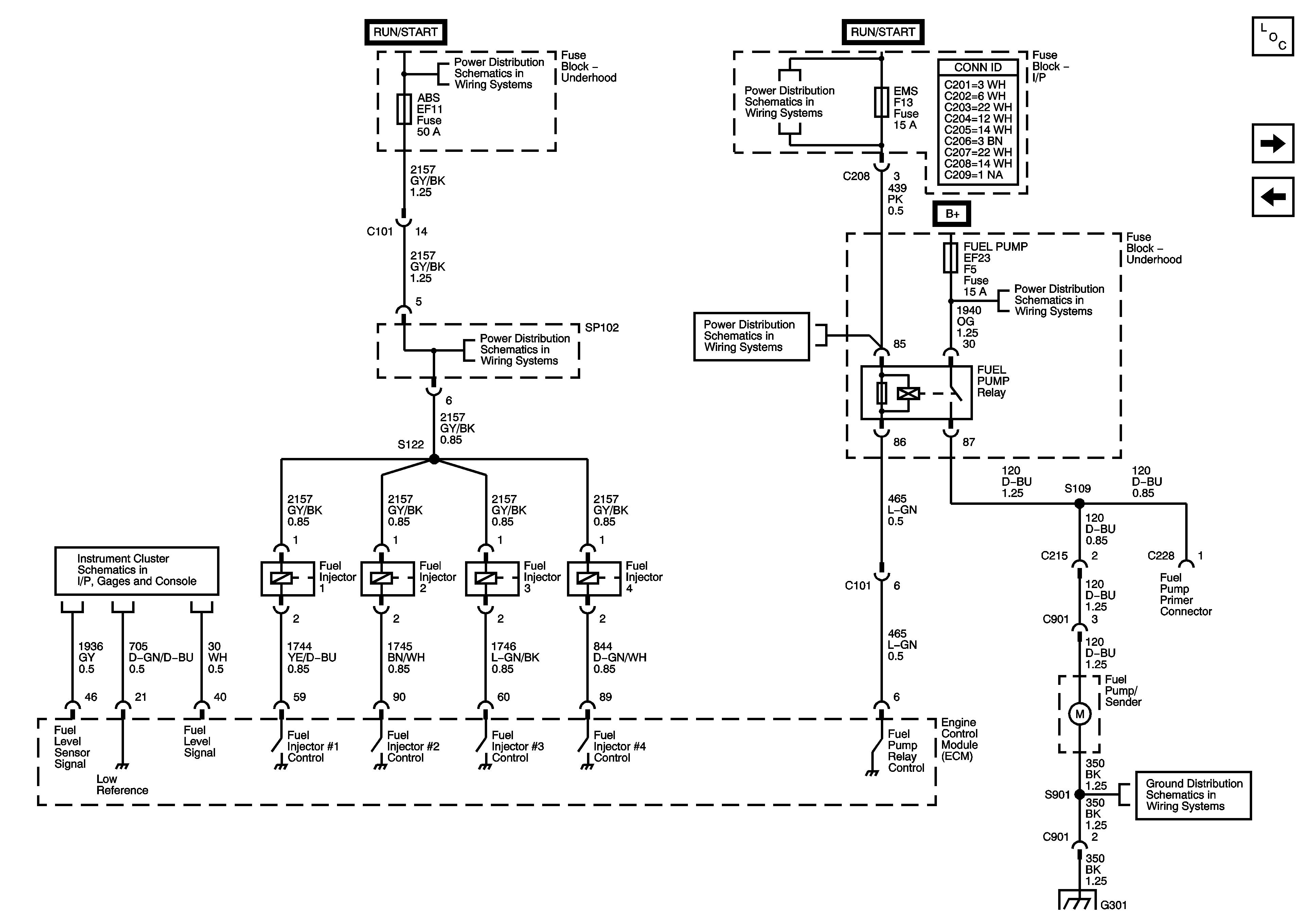

Fuel Controls - Fuel Pump Controls and Fuel Injectors
|
| Figure 8: |

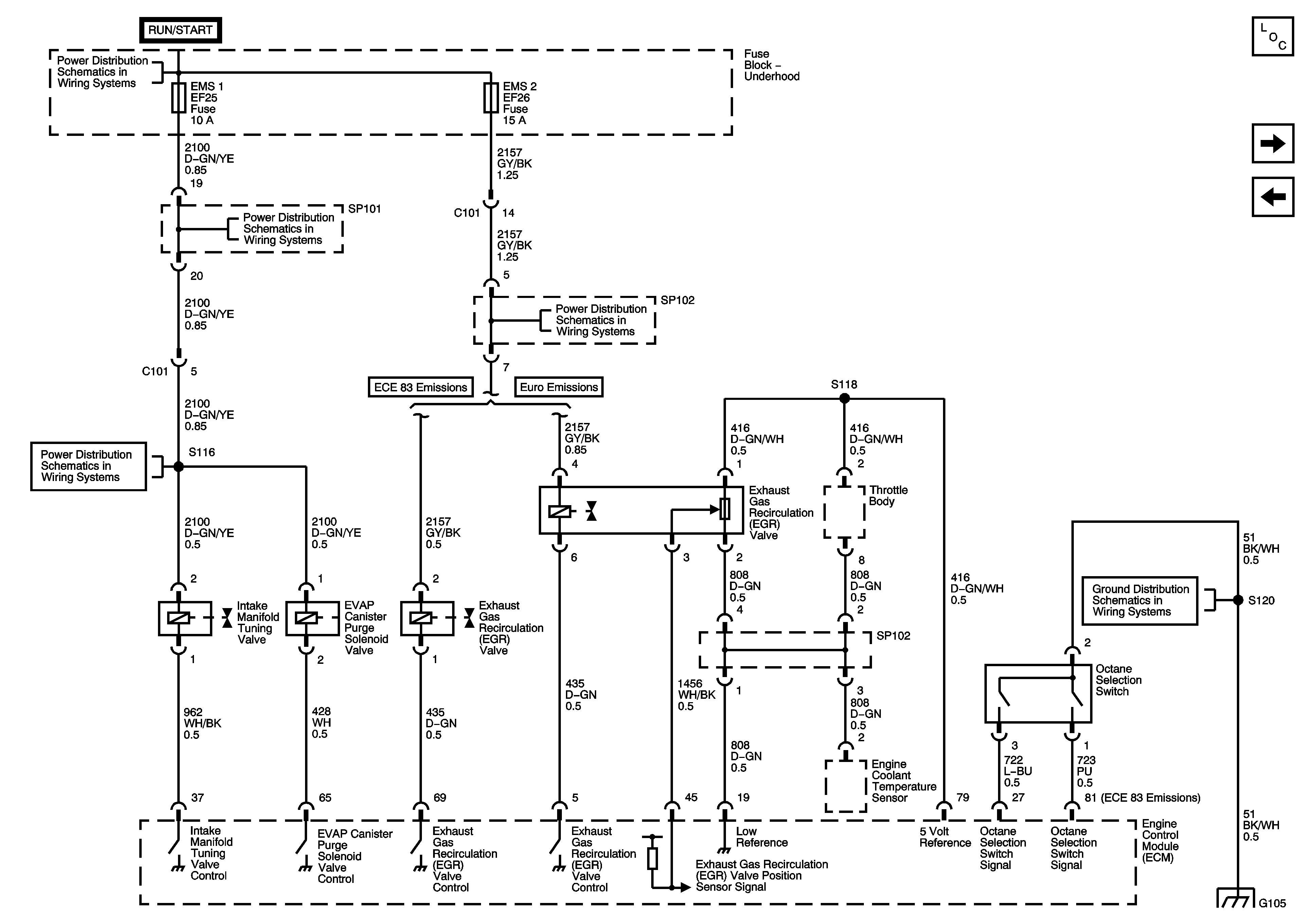

Device Controls
|
| Figure 9: |

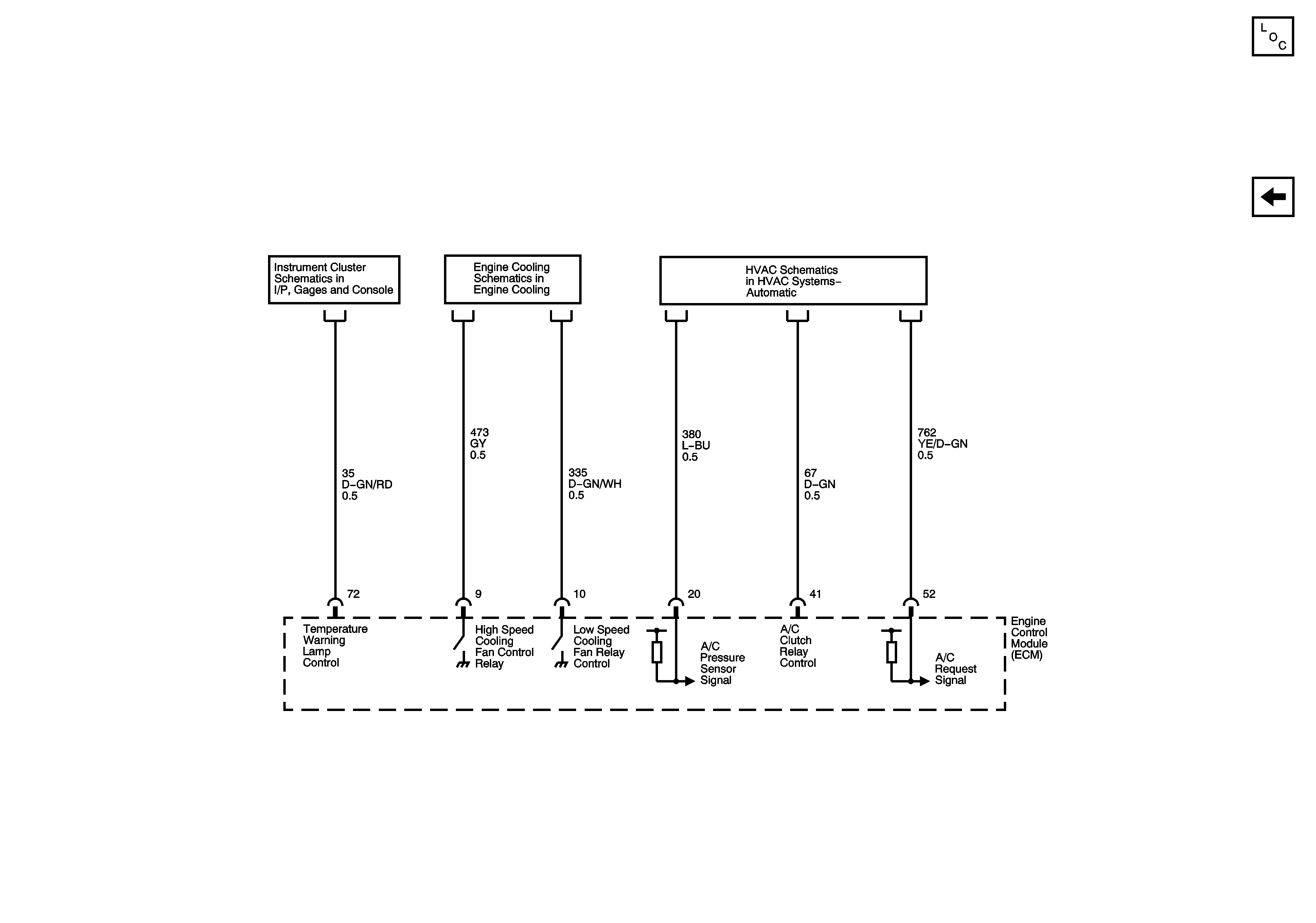

Controlled/Monitored Subsystem References
|
