Makes 🢒 Chevrolet 🢒 2008 🢒 Vivant 🢒 Driver Information and Entertainment 🢒 Displays and Gages 🢒 Instrument Cluster Schematics

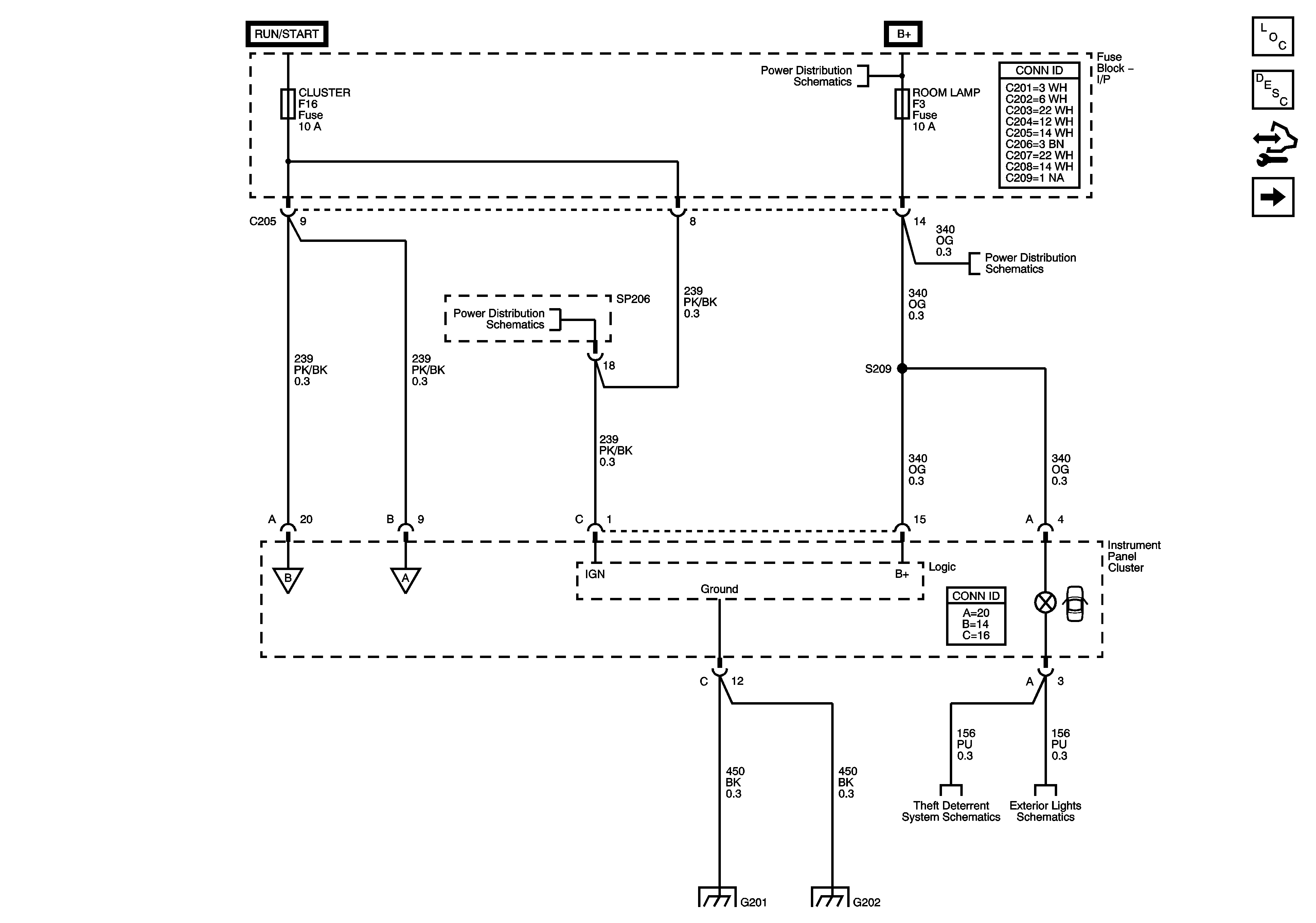

Figure 1:

Power and Ground (LHD)
Object Number: 1998190 Size: FS

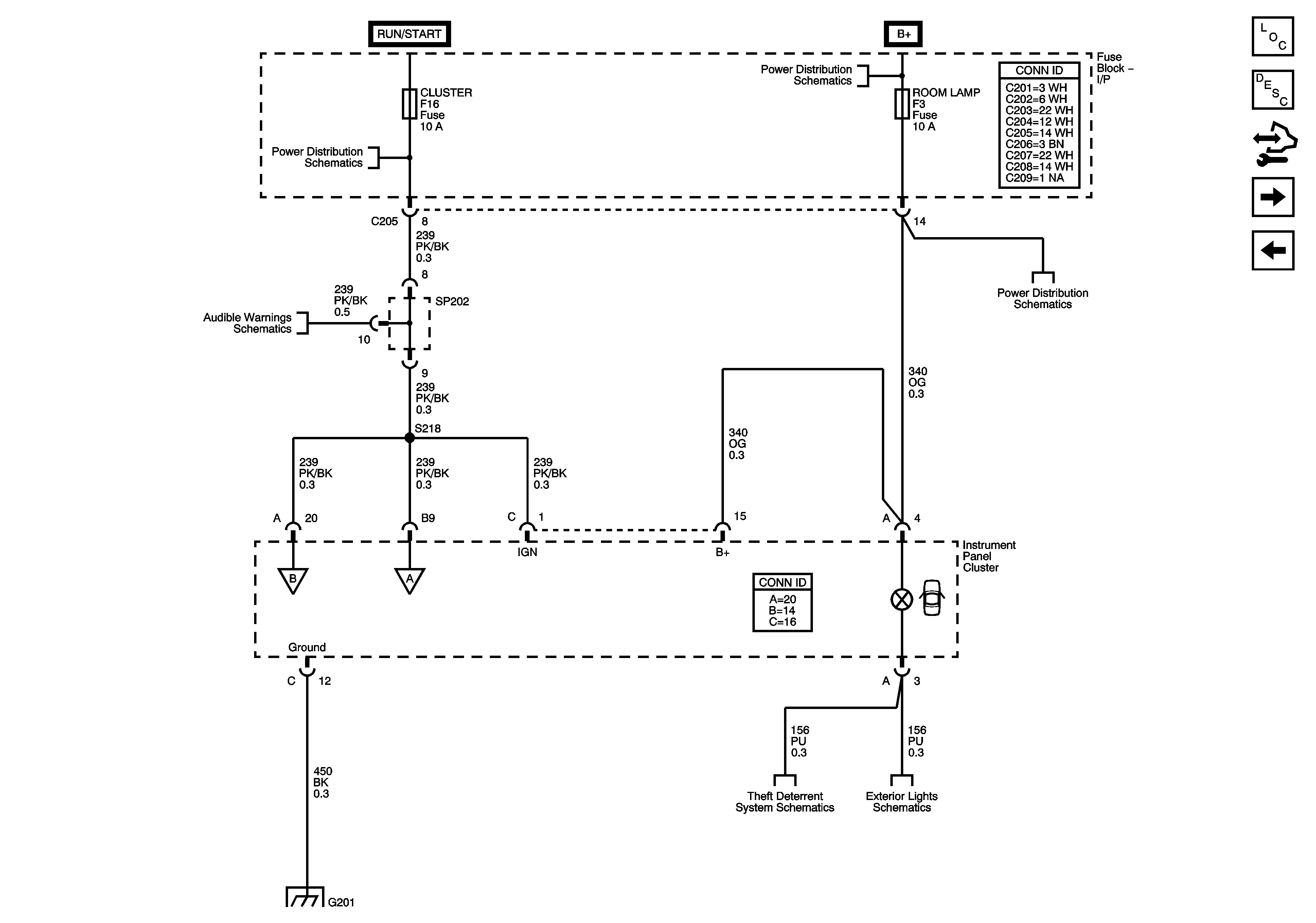

Figure 2:

Power and Ground (RHD)
Object Number: 1998183 Size: FS

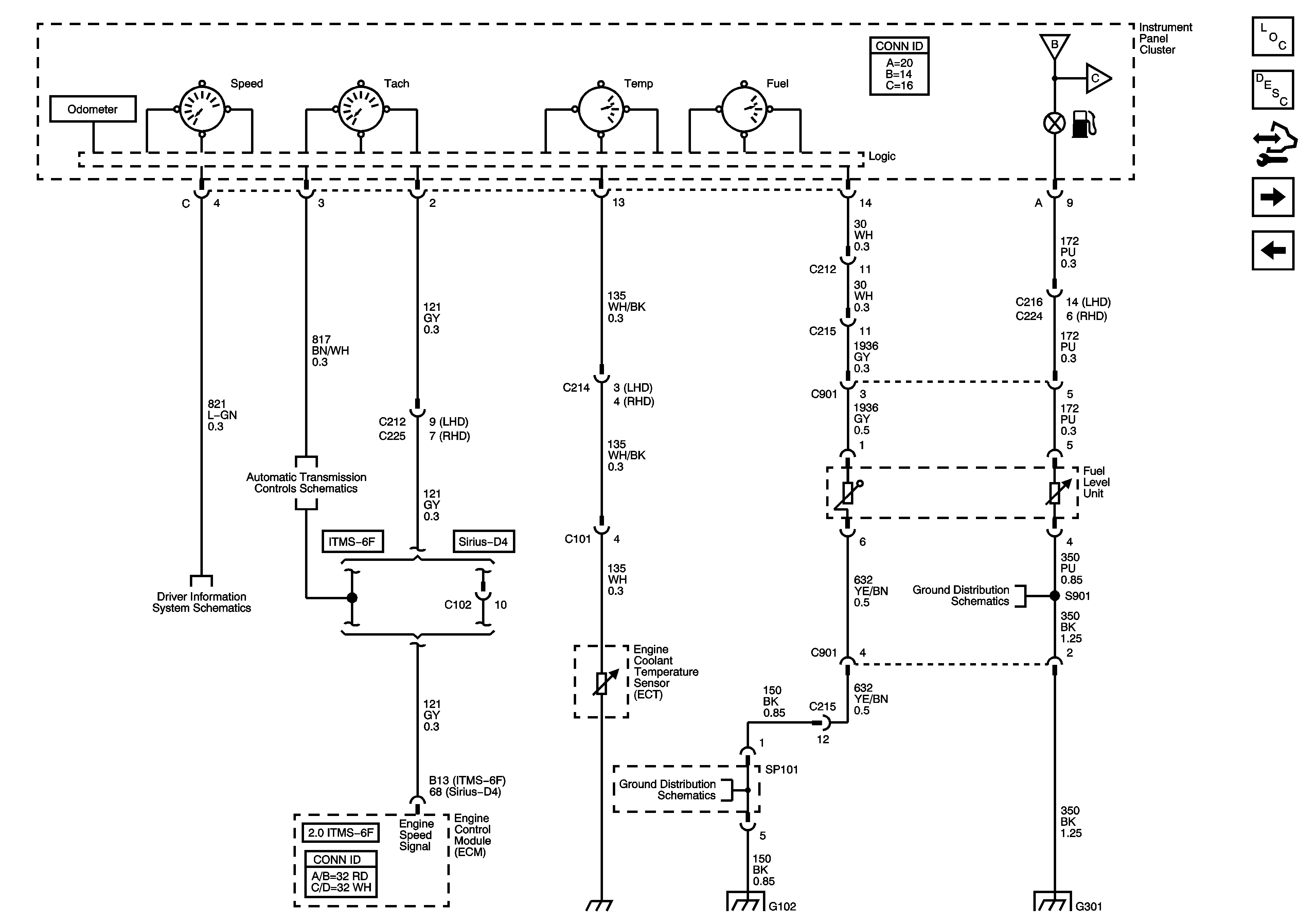

Figure 3:

Gages (ITMS-6F, Sirius D4 w/o EOBD)
Object Number: 1998261 Size: FS

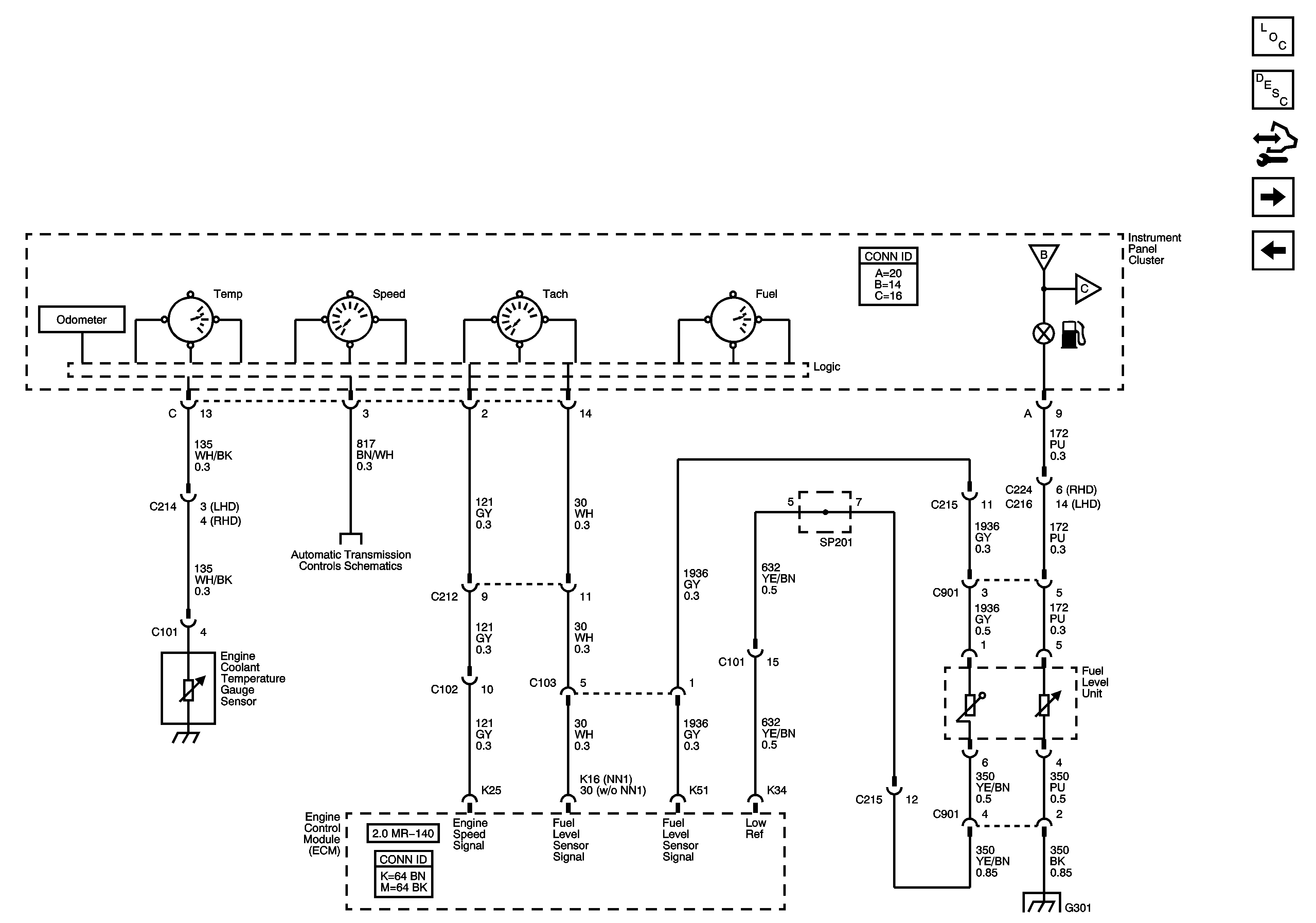

Figure 4:

Gages (MR-140)
Object Number: 1998262 Size: FS

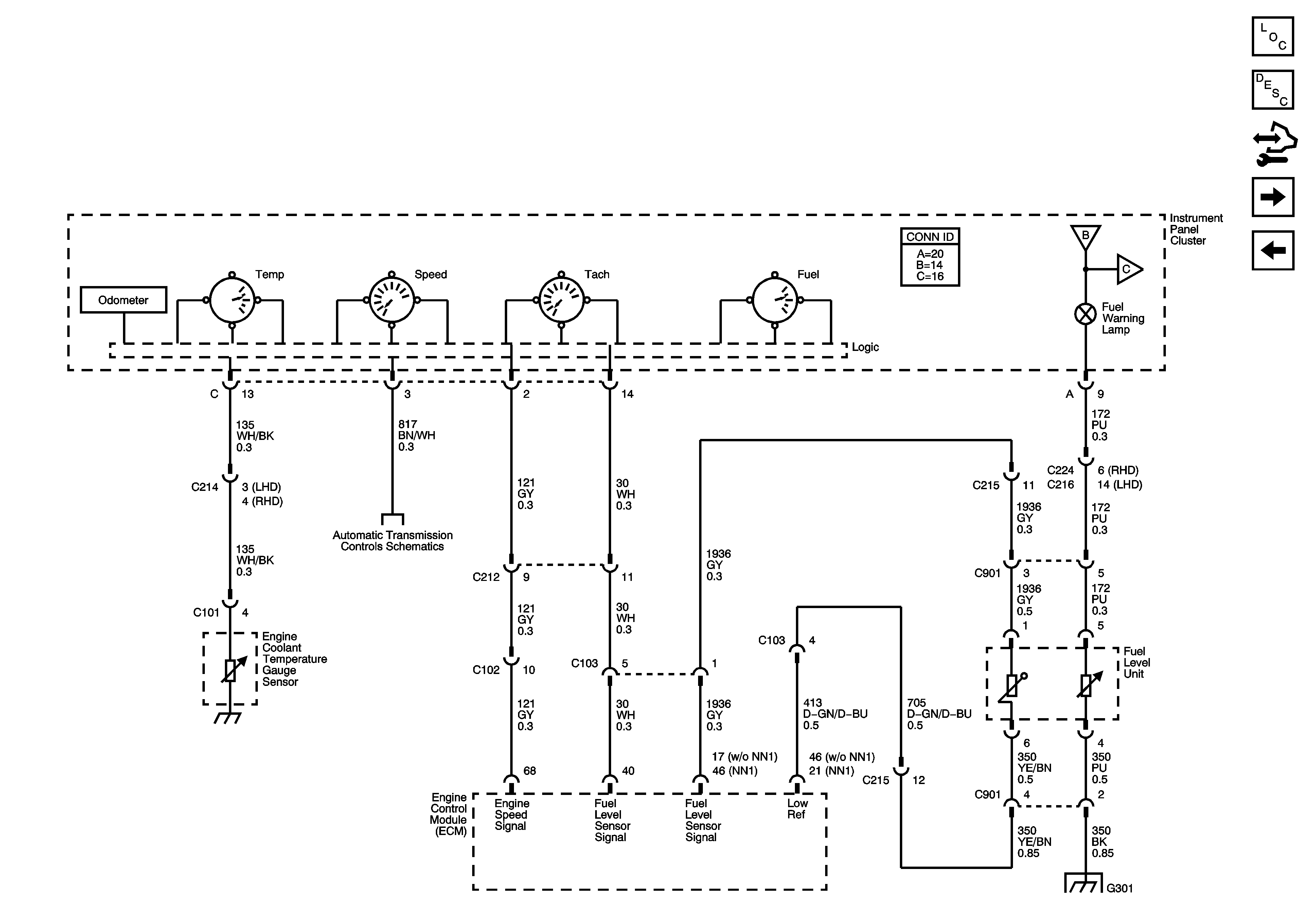

Figure 5:

Gages (Sirius D4 w/EOBD)
Object Number: 1998263 Size: FS

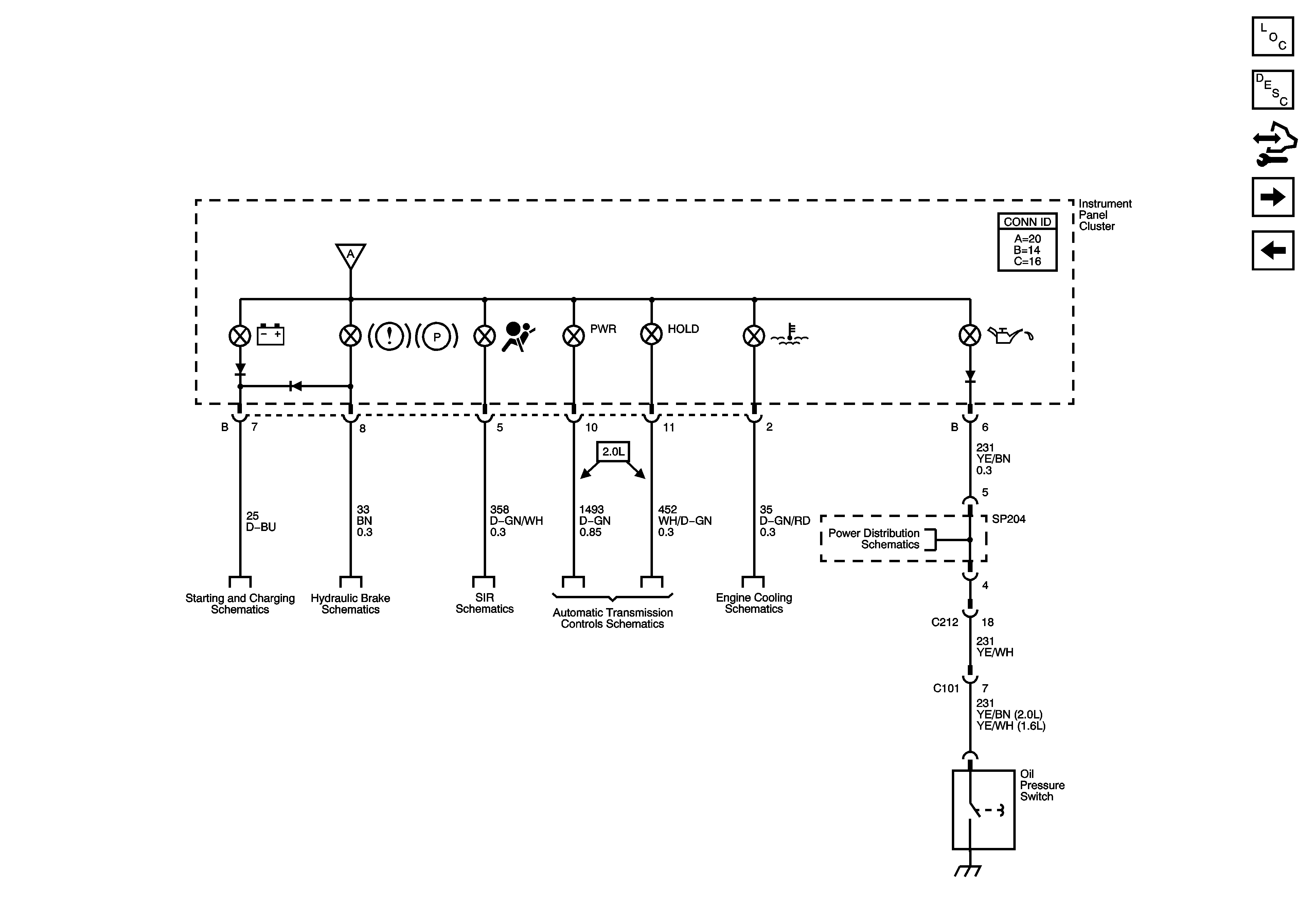

Figure 6:

Indicators, 1 of 2
Object Number: 1998264 Size: FS

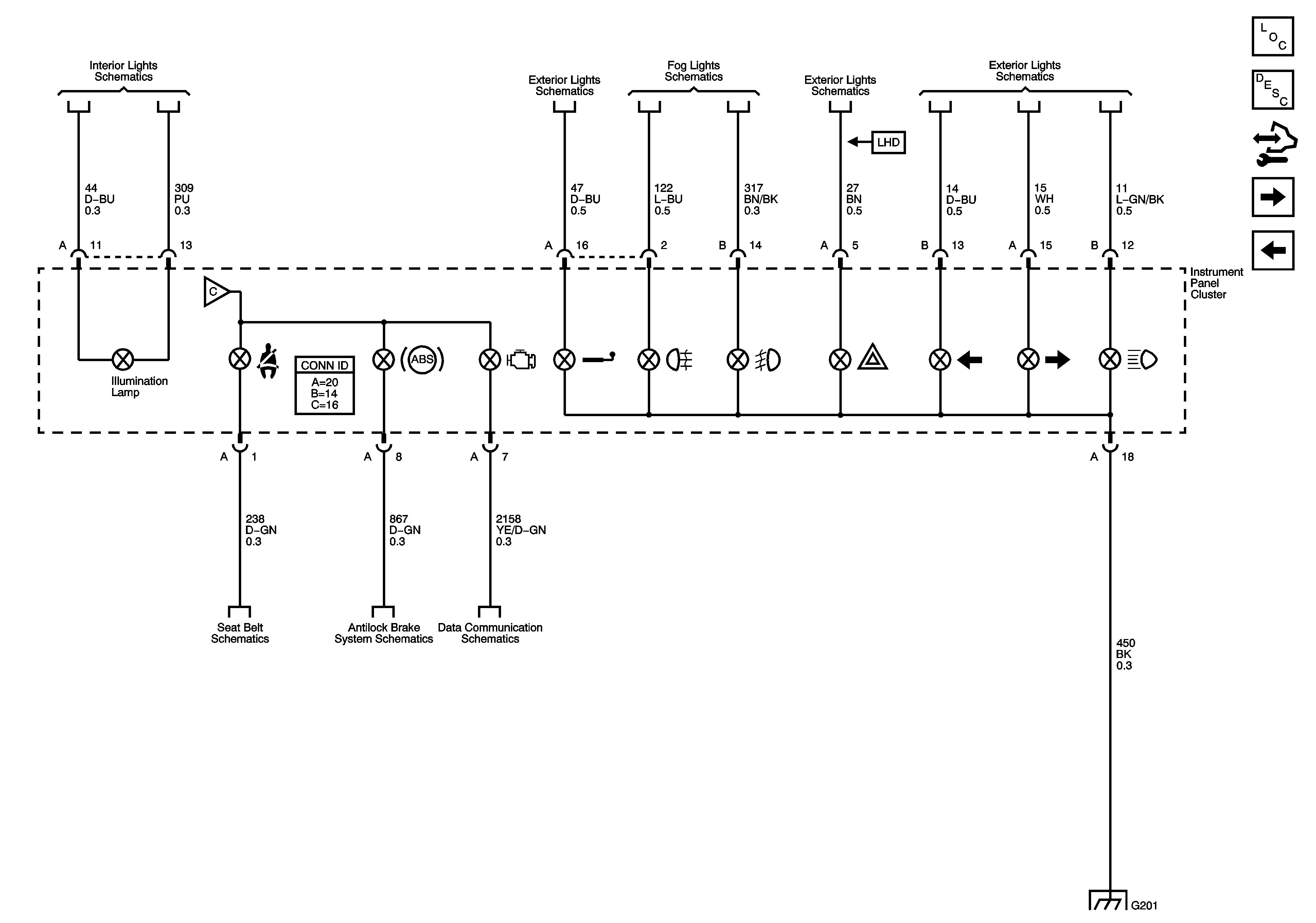

Figure 7:

Indicators, 2 of 2
Object Number: 1998265 Size: FS

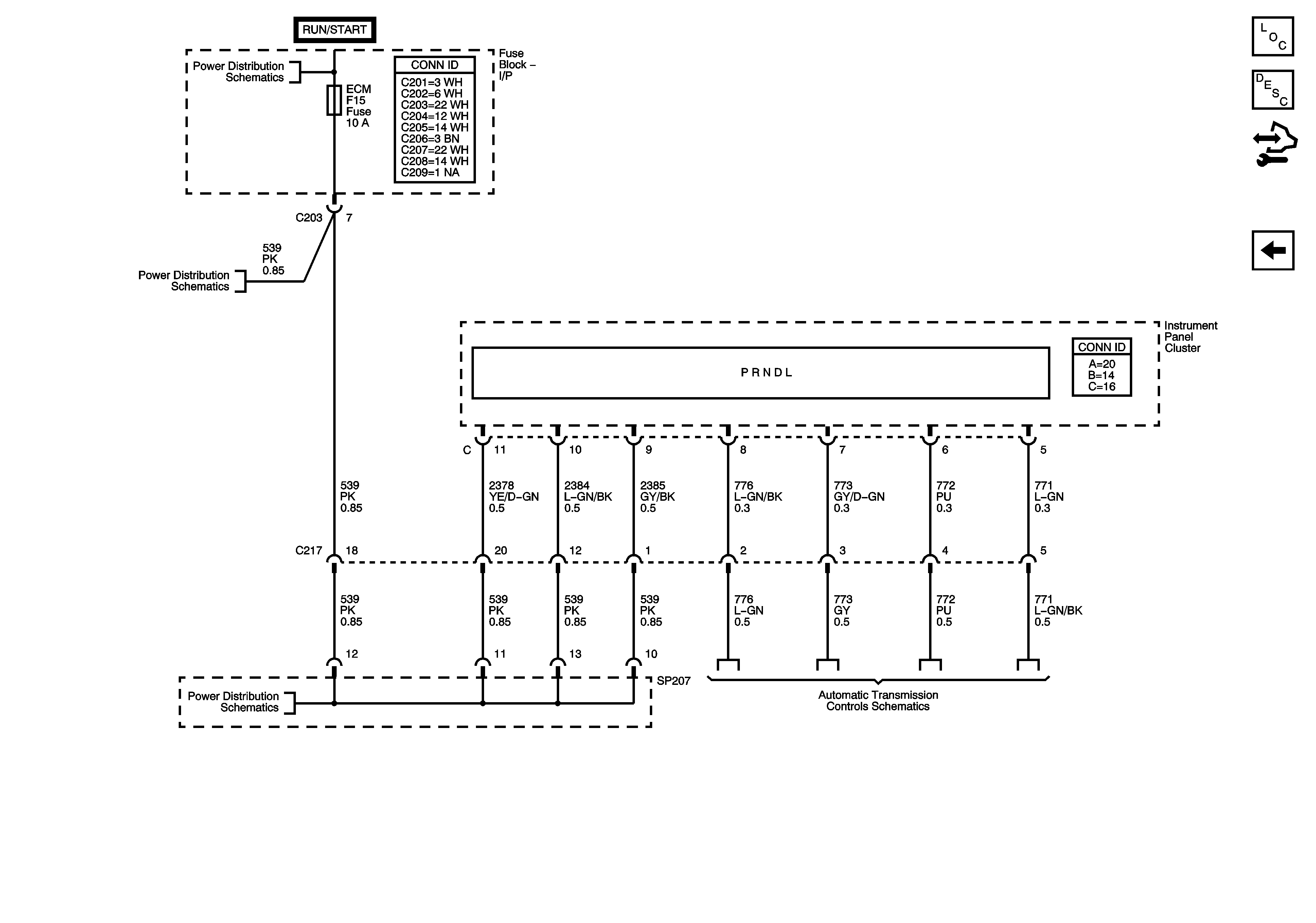

Figure 8:

PRNDL
Object Number: 1998266 Size: FS
