Exterior Lights Schematics. GMC Truck Acadia

For 1990-2009 cars only

Makes 🢒 GMC_Truck 🢒 2008 🢒 Acadia - 2WD 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Exterior Lights Schematics

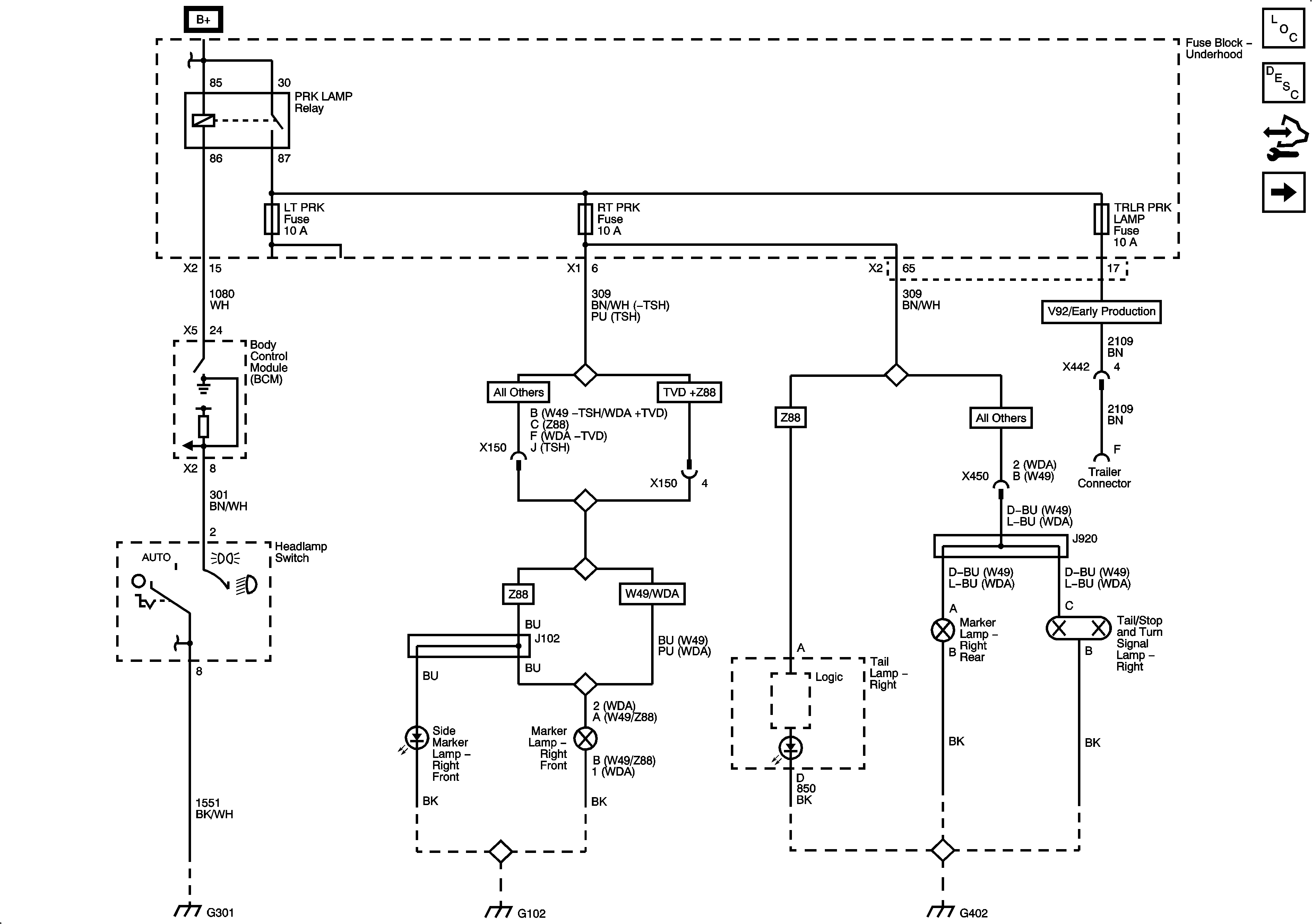

Figure 1:	Park Lamp Control and Right Park Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Left Park Lamps

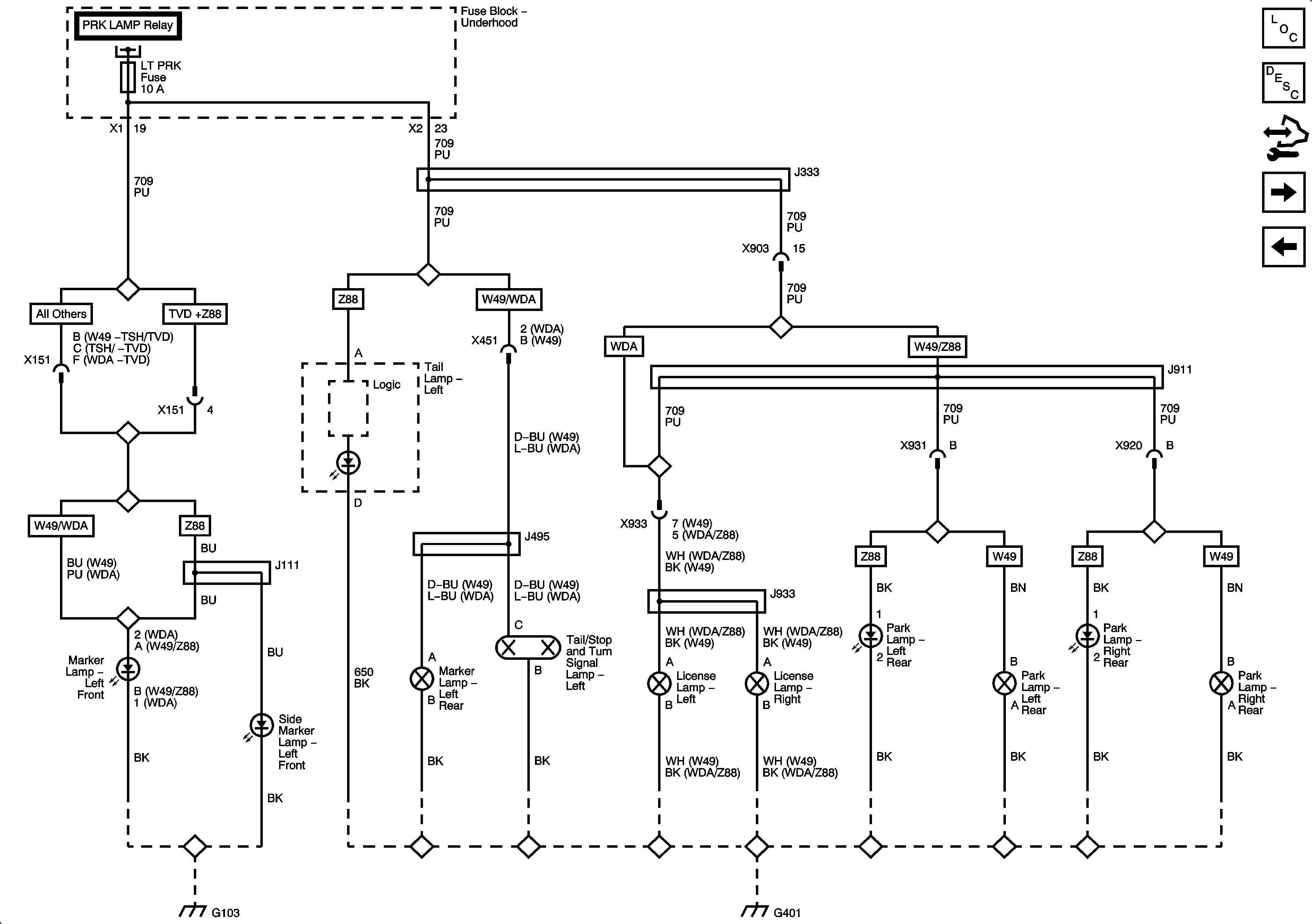

Figure 2:	Left Park Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Stop/Turn Signal Lamps Controls and Indicators Park Lamp Control and Right Park Lamps
Figure 3:	Stop/Turn Signal Lamps Controls and Indicators Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Front Turn Lamps and Outside Mirrors Left Park Lamps

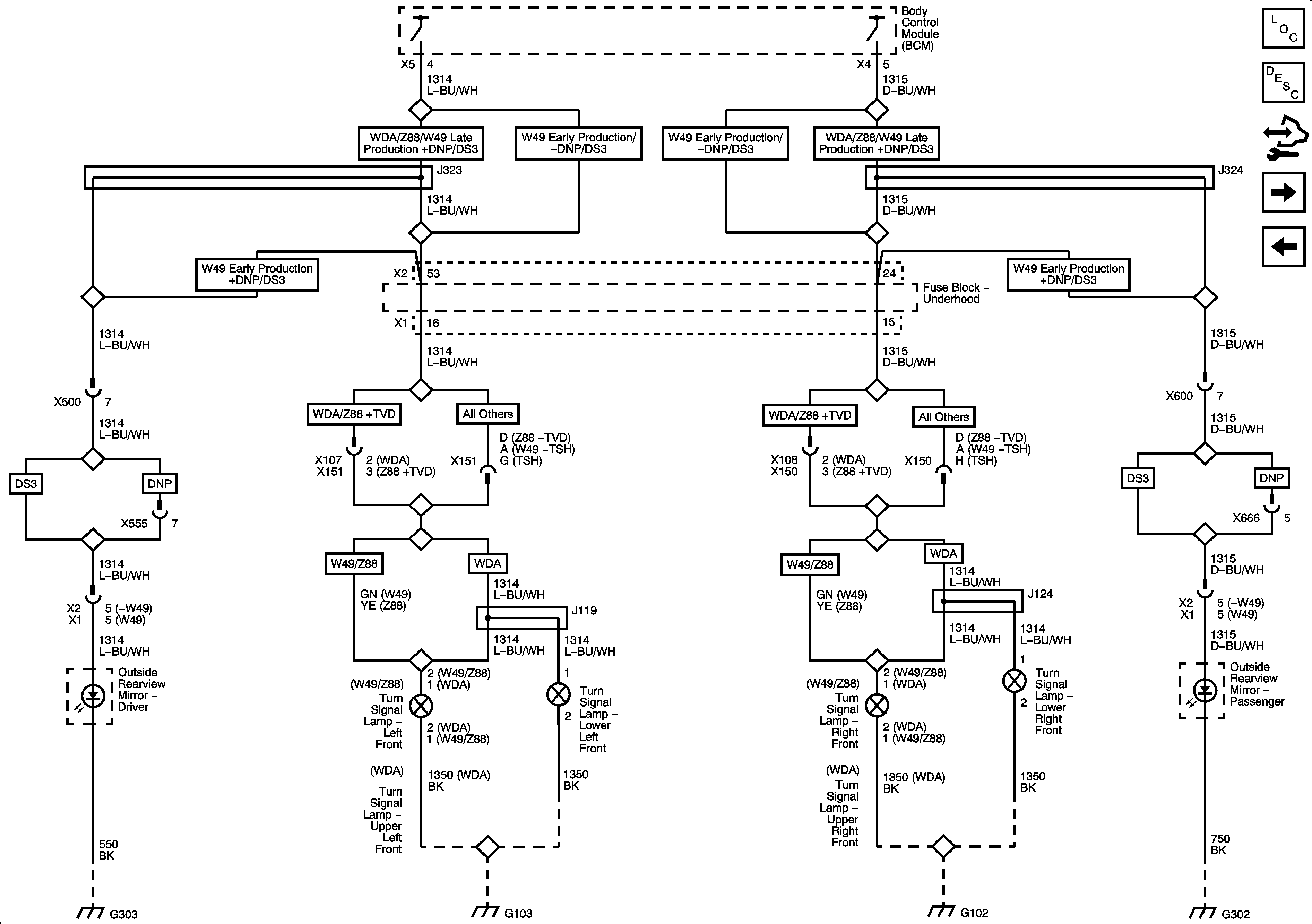

Figure 4:	Front Turn Lamps and Outside Mirrors Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Rear Turn/Stop Lamps and CHMSL Stop/Turn Signal Lamps Controls and Indicators

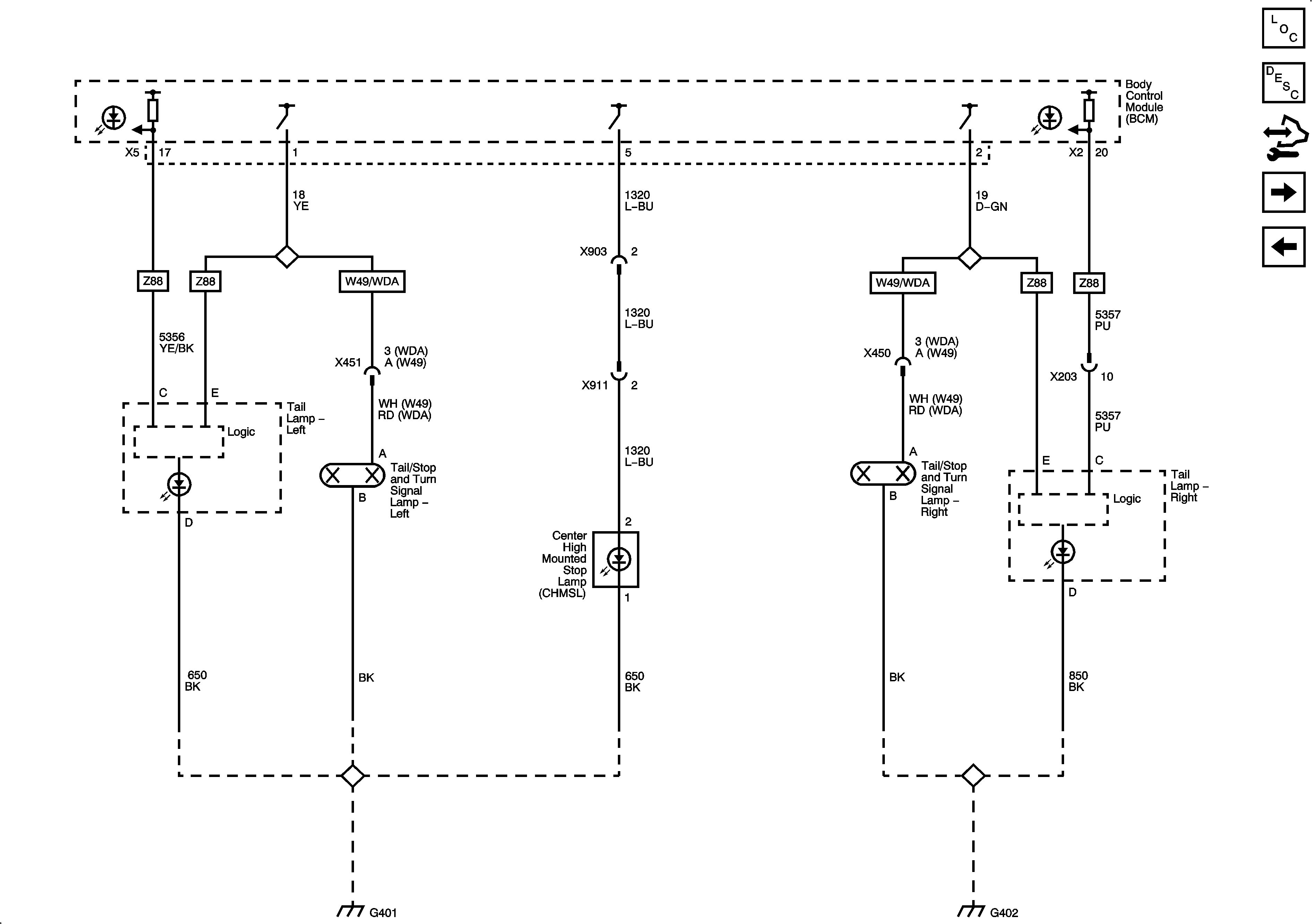

Figure 5:	Rear Turn/Stop Lamps and CHMSL Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Back Up Lamps Front Turn Lamps and Outside Mirrors

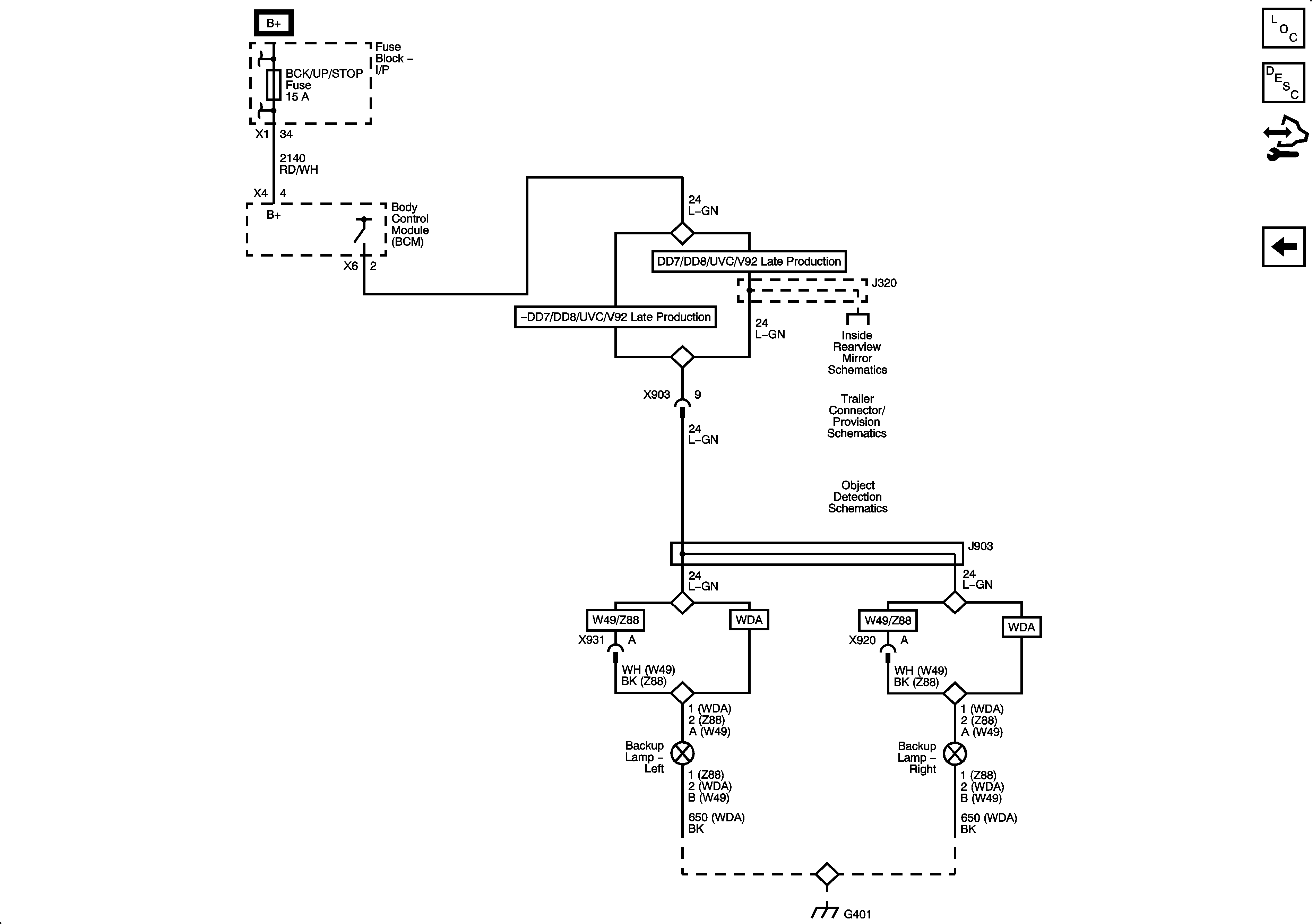

Figure 6:	Back Up Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Rear Turn/Stop Lamps and CHMSL
