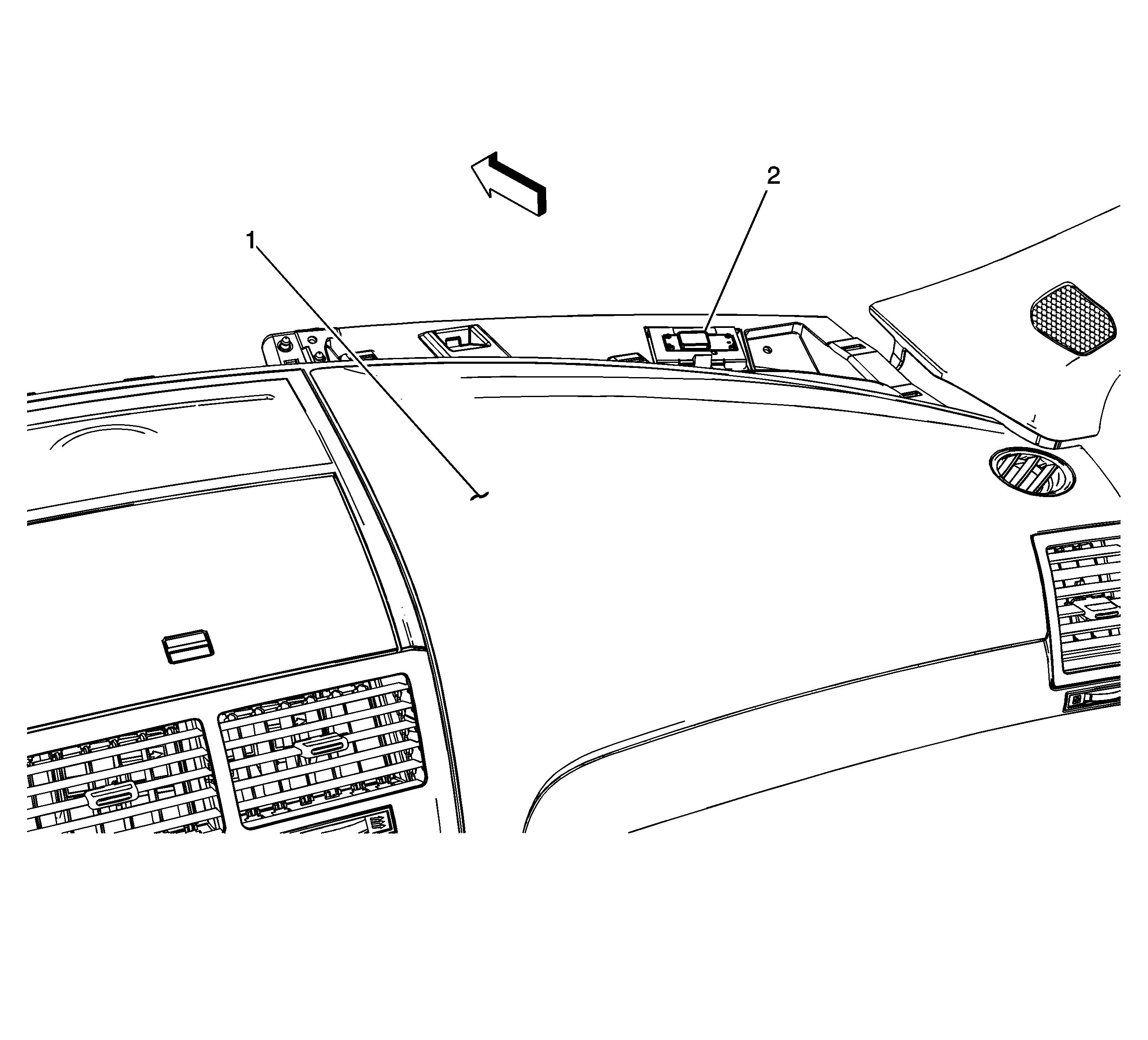

Figure 1:

Near the Passenger A Pillar


(1)	I/P Trim
(2)	Navigation Antenna (U3R or UZR)

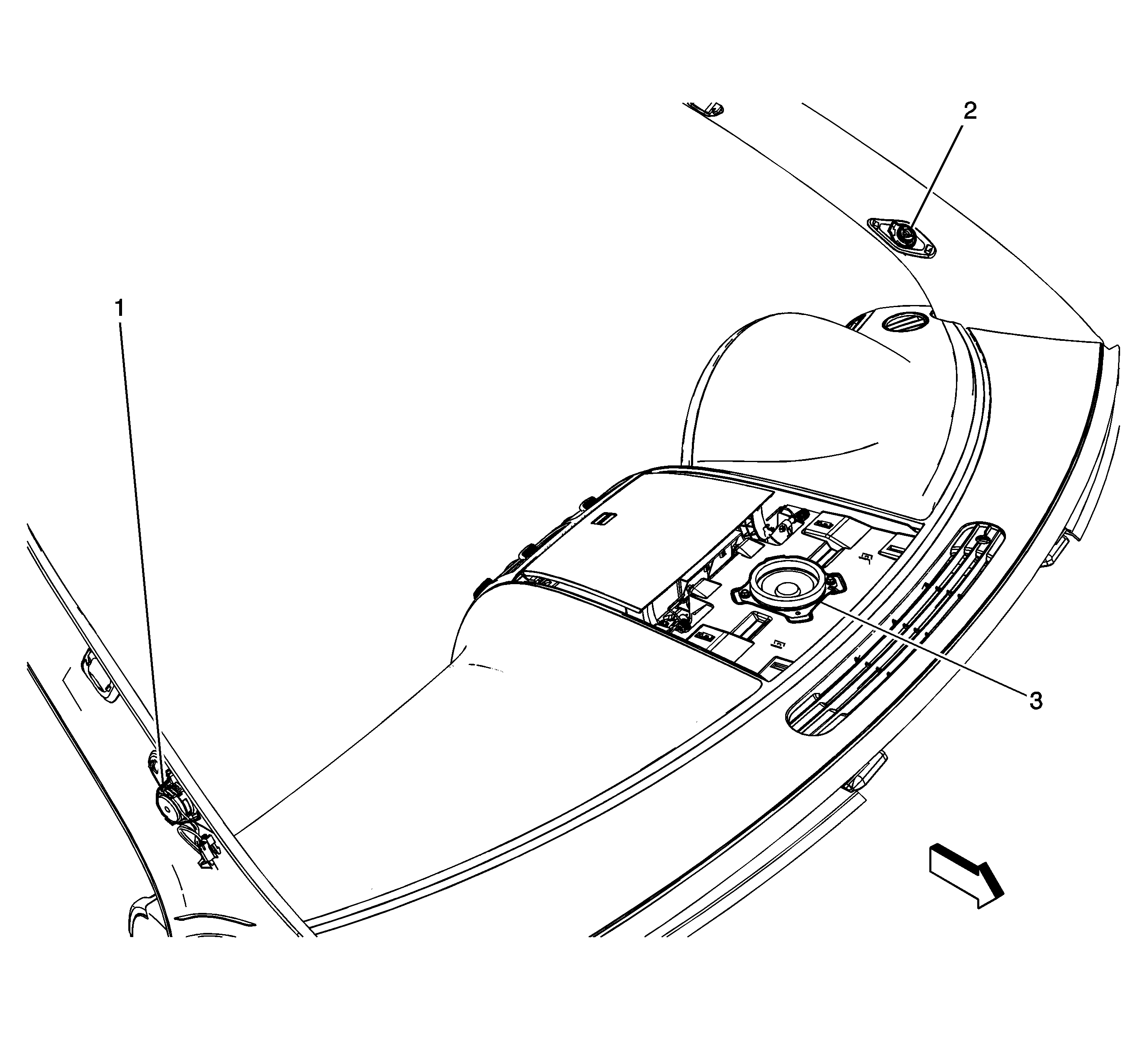

Figure 2:

I/P Speakers


(1)	Speaker - Right Front Tweeter
(2)	Speaker - Left Front Tweeter
(3)	Speaker - Center I/P (UQA or UQG or UQS)

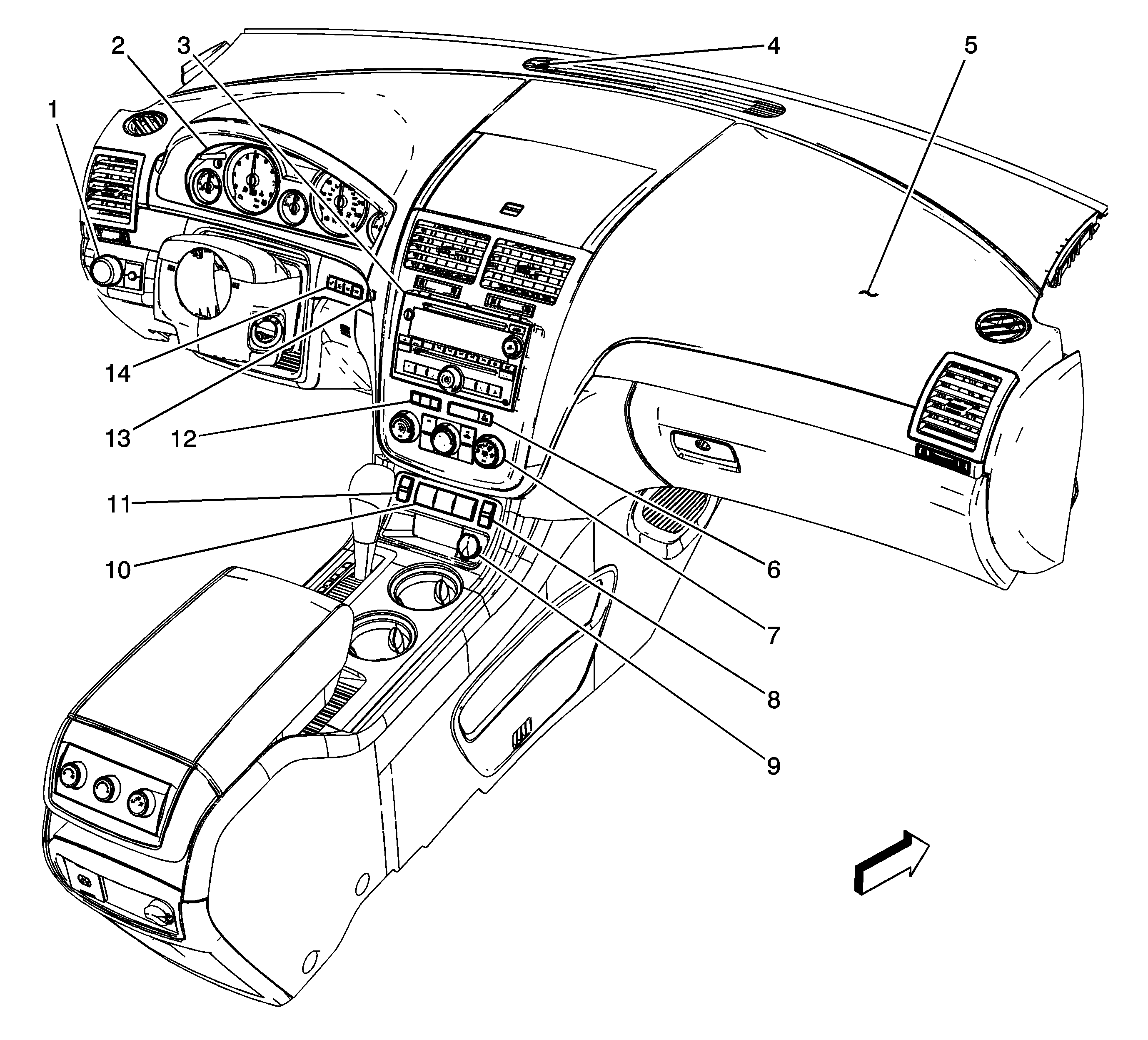

Figure 3:

I/P Components


(1)	Headlamp Switch
(2)	Instrument Panel Cluster (IPC)
(3)	Radio
(4)	Sunload Sensor (CJ2) / Ambient Light Sensor (C67)
(5)	I/P Trim
(6)	Inflatable Restraint PASSENGER AIR BAG ON/OFF Indicator
(7)	HVAC Control Module
(8)	Heated Seat Switch - Passenger (KA1)
(9)	Auxiliary Power Outlet - I/P
(10)	I/P Switch Assembly
(11)	Heated Seat Switch - Driver (KA1)
(12)	Hazard Switch and Driver Information Center (DIC) Switch (W49/Z88)
(13)	Head Up Display (HUD) Switch (WDA with UV6))
(14)	Driver Information Center (DIC) Switch (WDA with UH9)/Head Up Display (HUD) Switch (W49 or Z88 with UV6)

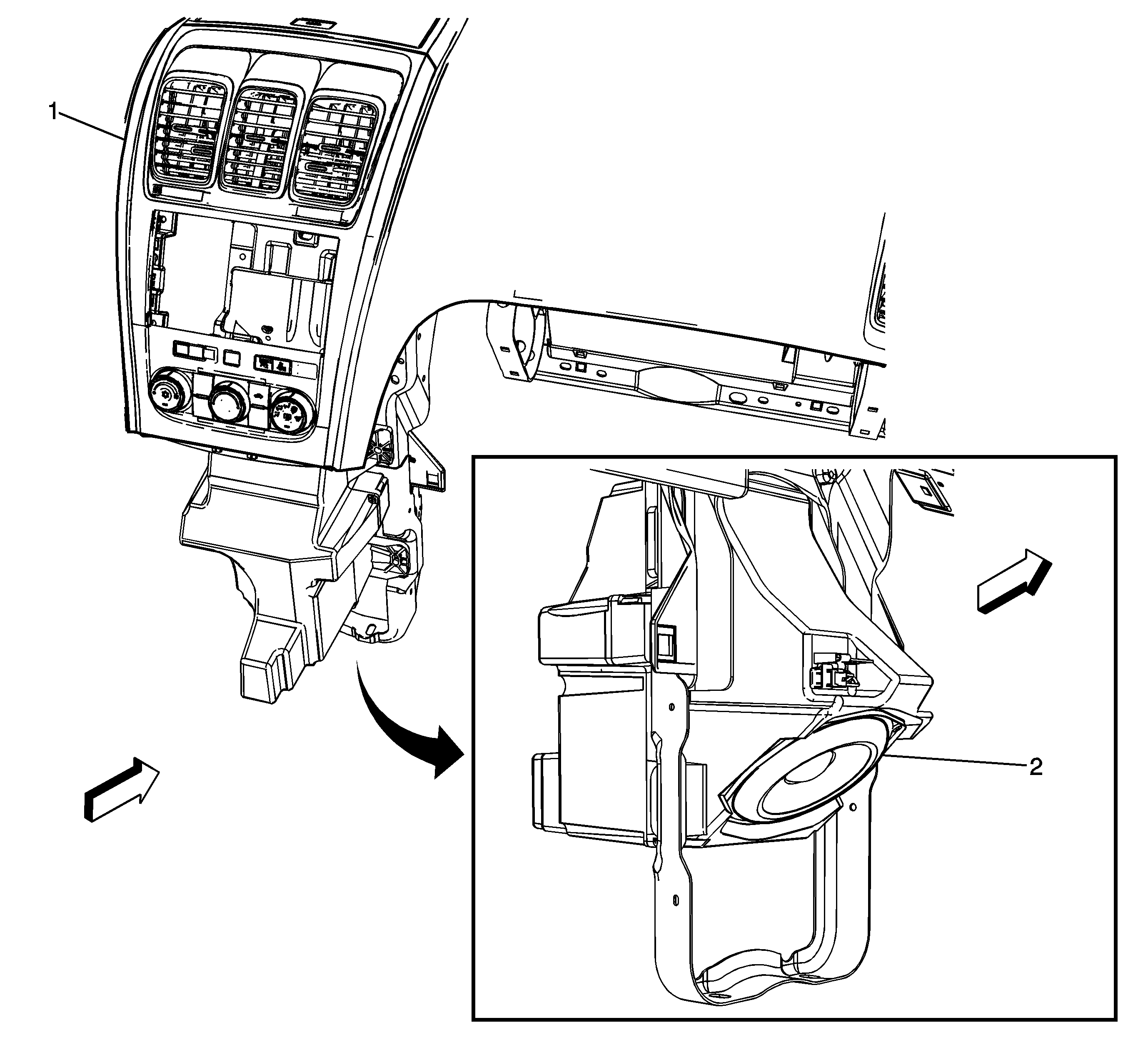

Figure 4:

Below the Center I/P Trim


(1)	I/P Trim
(2)	Speaker - Subwoofer (UQA or UQG or UQS)

Figure 5:

Headliner Components


(1)	Cargo Lamp
(2)	Courtesy/Reading Lamp - Rear
(3)	Infrared Module (U42 with C3U)
(4)	Courtesy/Reading Lamp - Center (U42 with C3U)
(5)	Digital Video Disc (DVD) Display (U42 with C3U)
(6)	Cellular Microphone (UE1)
(7)	Courtesy/Reading Lamp - Front
(8)	Console Flood Lamp
(9)	Garage Door Opener (UG1)
(10)	Vanity Mirror Lamp - Right (DH6)
(11)	Inside Rearview Mirror
(12)	Vanity Mirror Lamp - Left (DH6)
(13)	Digital Video Disc (DVD) Display (U42 without C3U)
(14)	Courtesy/Reading Lamp - Center (without C3U)
(15)	Infrared Module (U42 without C3U)
(16)	Rear Parking Assist (RPA) Display (UD7)
(17)	Remote Control Door Lock Receiver (RCDLR)

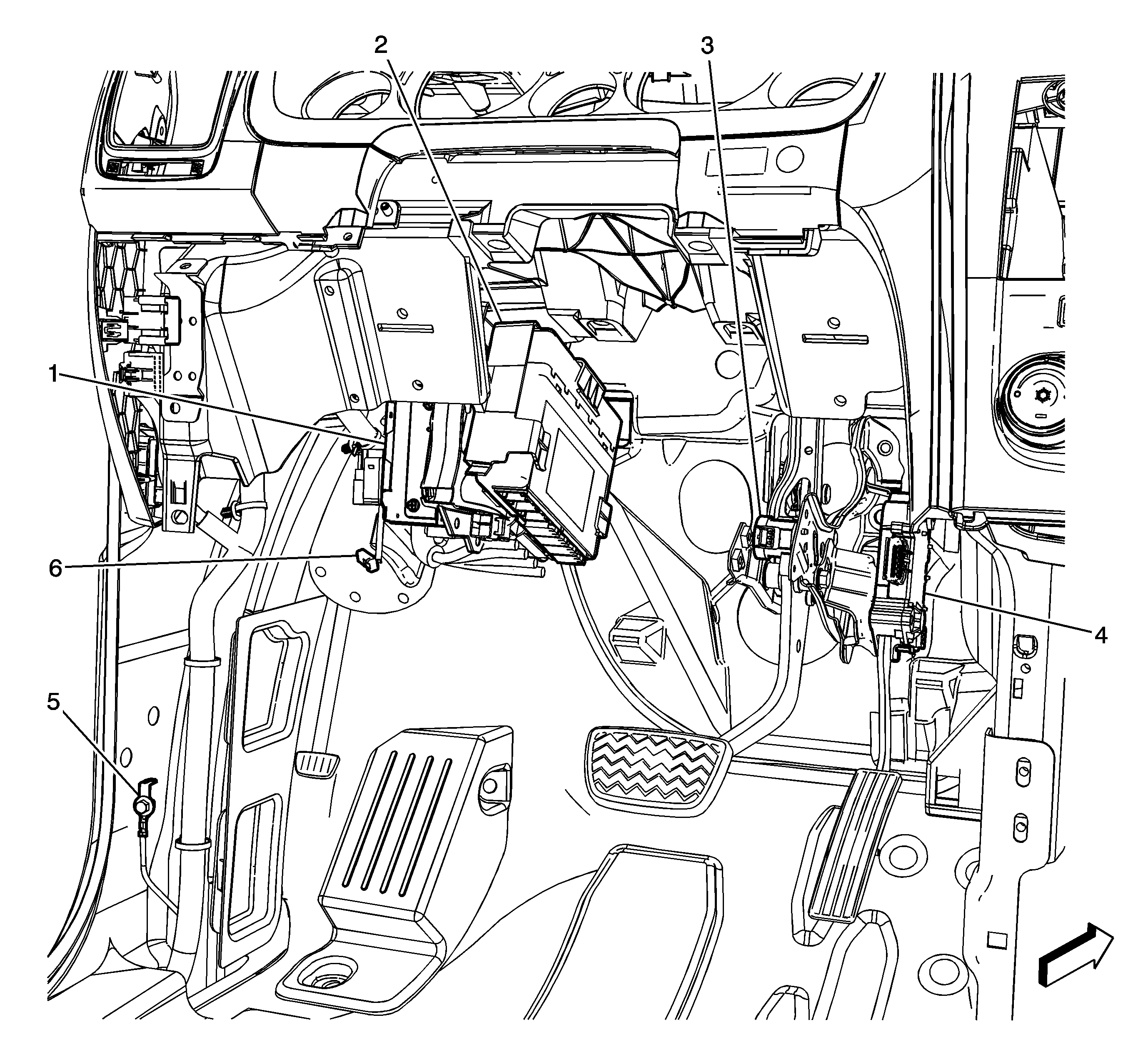

Figure 6:

Below the Driver Side I/P


(1)	Audio Amplifier (UQA or UQG or UQS)
(2)	Body Control Module (BCM)
(3)	Brake Pedal Position Sensor
(4)	Accelerator Pedal Position (APP) Sensor
(5)	G301
(6)	Park Brake Switch

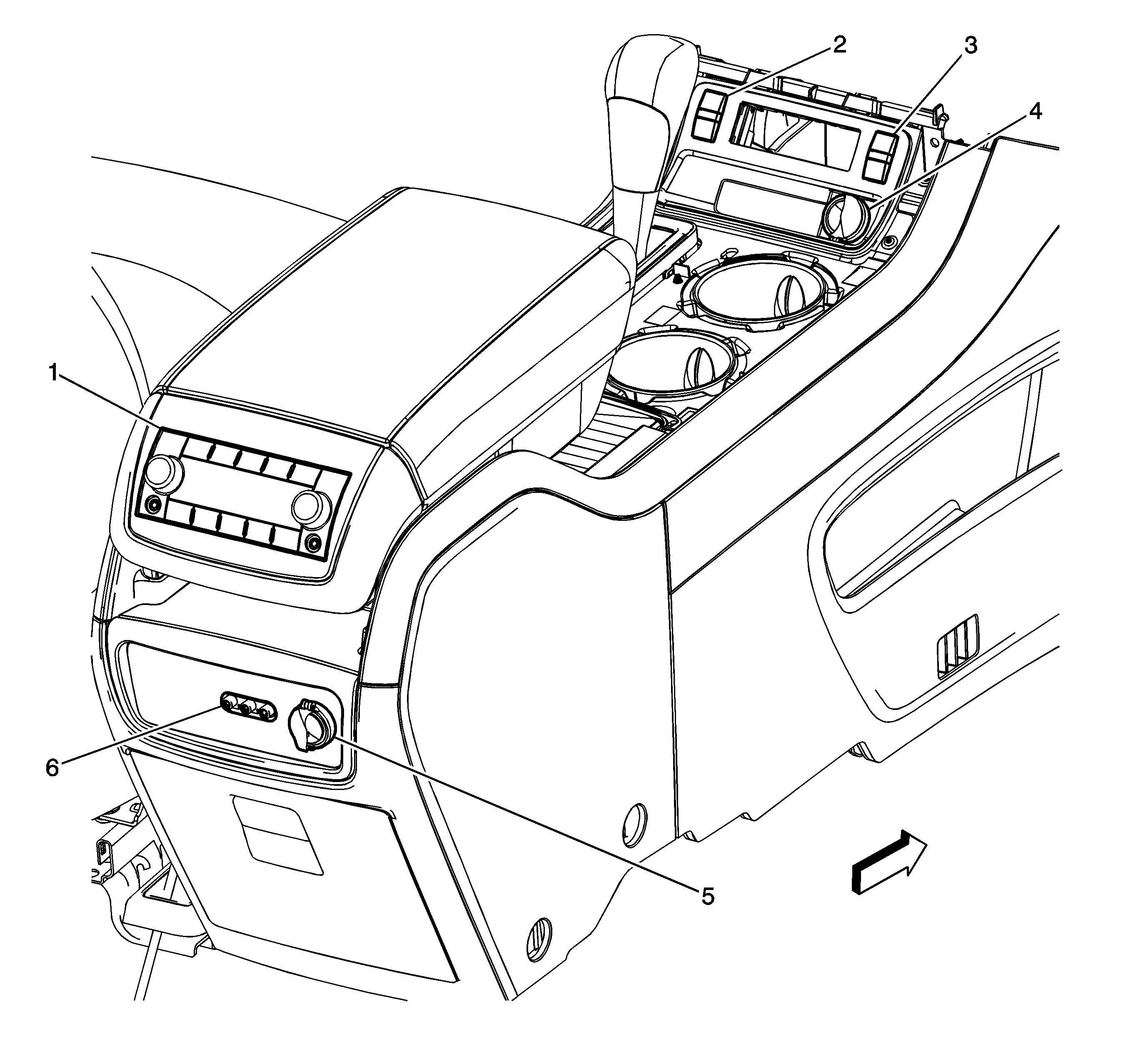

Figure 7:

Console Components


(1)	Rear Audio/HVAC Control (UK6)/HVAC Control Assembly - Auxiliary (without UK6)
(2)	Heated Seat Switch - Driver (KA1)
(3)	Heated Seat Switch - Passenger (KA1)
(4)	Auxiliary Power Outlet - I/P
(5)	Auxiliary Power Outlet - Console Rear
(6)	Audio/Video Adapter (U42)

Figure 8:

Driver Door


(1)	Outside Rearview Mirror - Driver
(2)	Memory Seat Switch (AG3)
(3)	Driver Door Module (DDM) (AXC or AXE)
(4)	Speaker - Left Front Door
(5)	Inflatable Restraint Side Impact Sensing Modu,e (SISM) - Left Front
(6)	Door Latch Assembly - Driver
(7)	Window Motor - Driver
(8)	Turn Signal Lamp (Part of Outside Rearview Mirror) (DNP/DS3)

Figure 9:

Passenger Door


(1)	Outside Rearview Mirror - Passenger
(2)	Turn Signal Lamp (Part of Outside Rearview Mirror) (DNP/DS3)
(3)	Window Motor - Passenger
(4)	Door Latch Assembly - Passenger
(5)	Inflatable Restraint Side Impact Sensing Module (SISM) - Right Front
(6)	Speaker - Right Front Door
(7)	Window Switch - Passenger and Door Lock Switch Passenger (without AXC/AXE)/Passenger Door Module (PDM) (AXC/AXE)

Figure 10:

Left Rear Door


(1)	Door Frame
(2)	Door Latch Assembly - Left Rear
(3)	Window Switch - Left Rear
(4)	Speaker - Left Rear Door
(5)	Window Motor - Left Rear
(6)	Inflatable Restraint Side Impact Sensing Module (SISM) - Left Rear

Figure 11:

Near the Battery


(1)	Floor Panel
(2)	G305
(3)	Battery Current Sensor
(4)	X324
(5)	Onstar Inline Fuse
(6)	X325

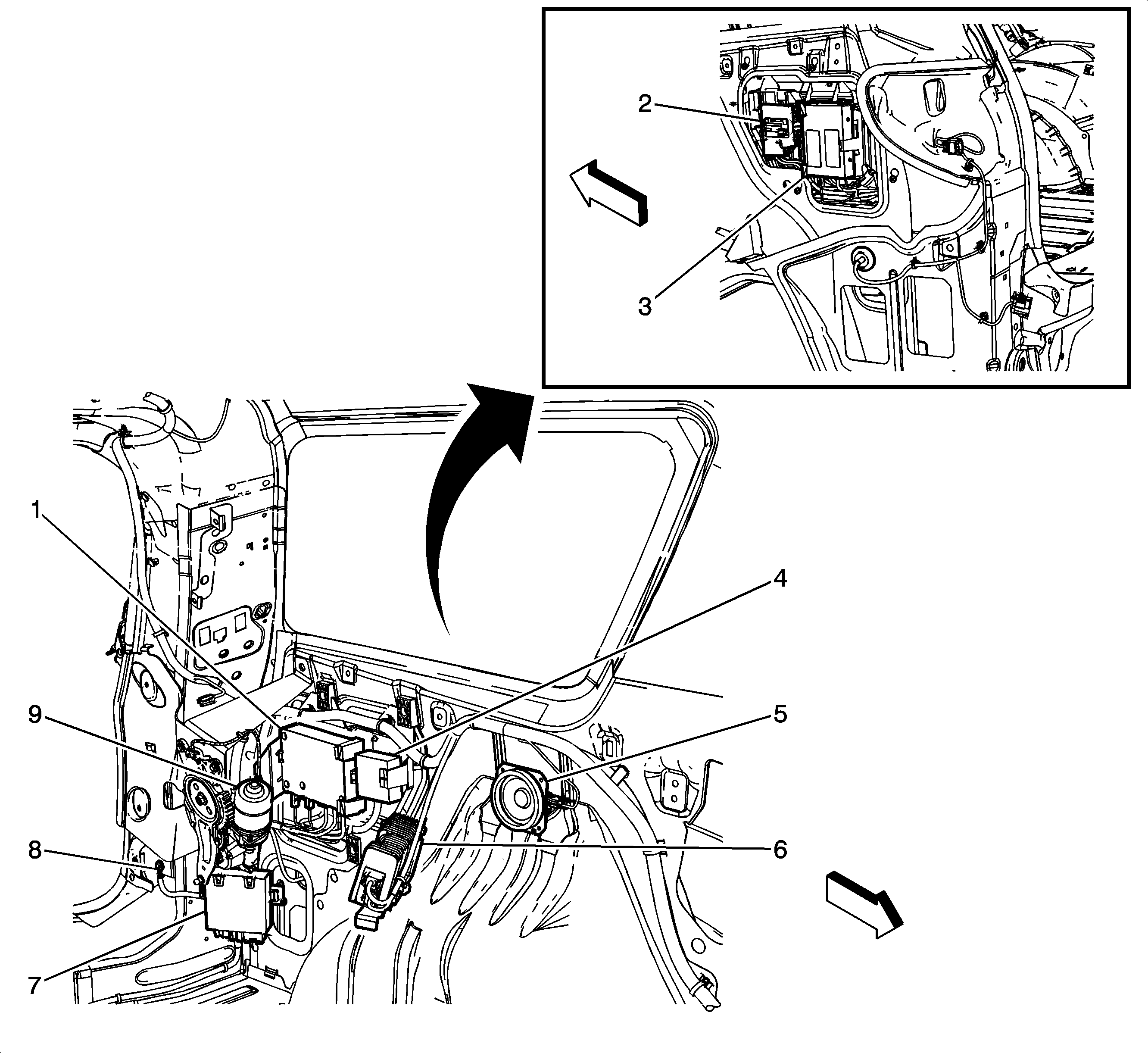

Figure 12:

Left Rear of the Passenger Compartment


(1)	Vehicle Communications Unit (VCU) (UE1)
(2)	Rear Parking Assist (RPA) Module (UD7)
(3)	Digital Radio Receiver (U2K)
(4)	Liftgate Module (LGM) (E61)
(5)	Speaker - Left Rear (UQA/UQG/AQS)
(6)	Accessory AC/DC Power Control Module (KV1)
(7)	Rearview Camera Module (UVC)
(8)	G401
(9)	Liftgate Motor Assembly (E61)

Figure 13:

Trim Panel Components - Left Rear


(1)	Auxiliary Power Outlet - Rear
(2)	Left Rear Trim Panel
(3)	Speaker - Left Rear

Figure 14:

Trim Panel Components - Right Rear


(1)	Speaker - Right Rear (UQA/UQG/UQS)
(2)	Rear Floor Panel
(3)	Trim Panel - Right Rear

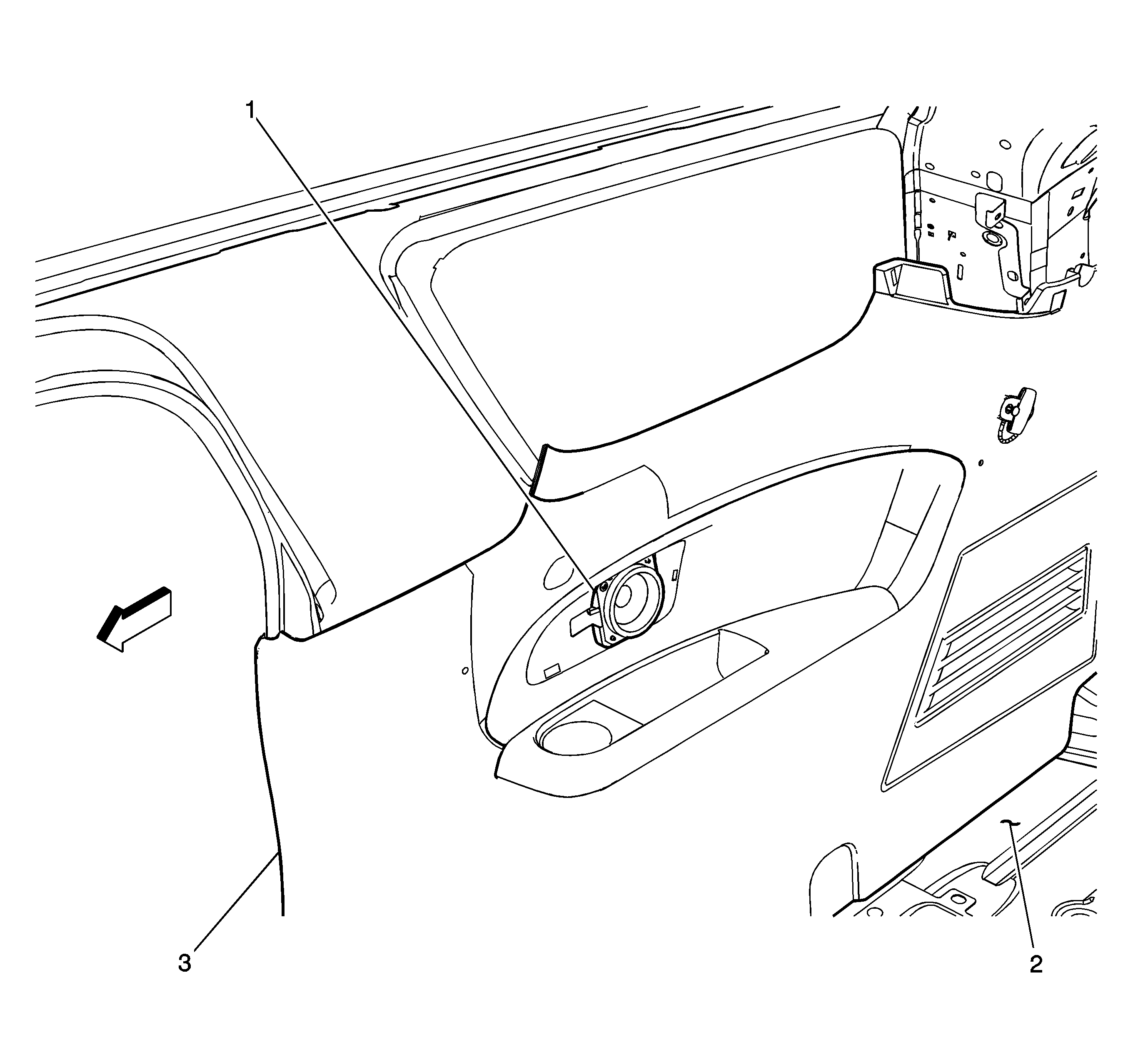

Figure 15:

Right Rear Trim Panel


(1)	Right Rear Trim Panel
(2)	Speaker - Right Rear (UQA/UQG/UQS)
(3)	Rear Seat Audio (RSA) Control (RCA)

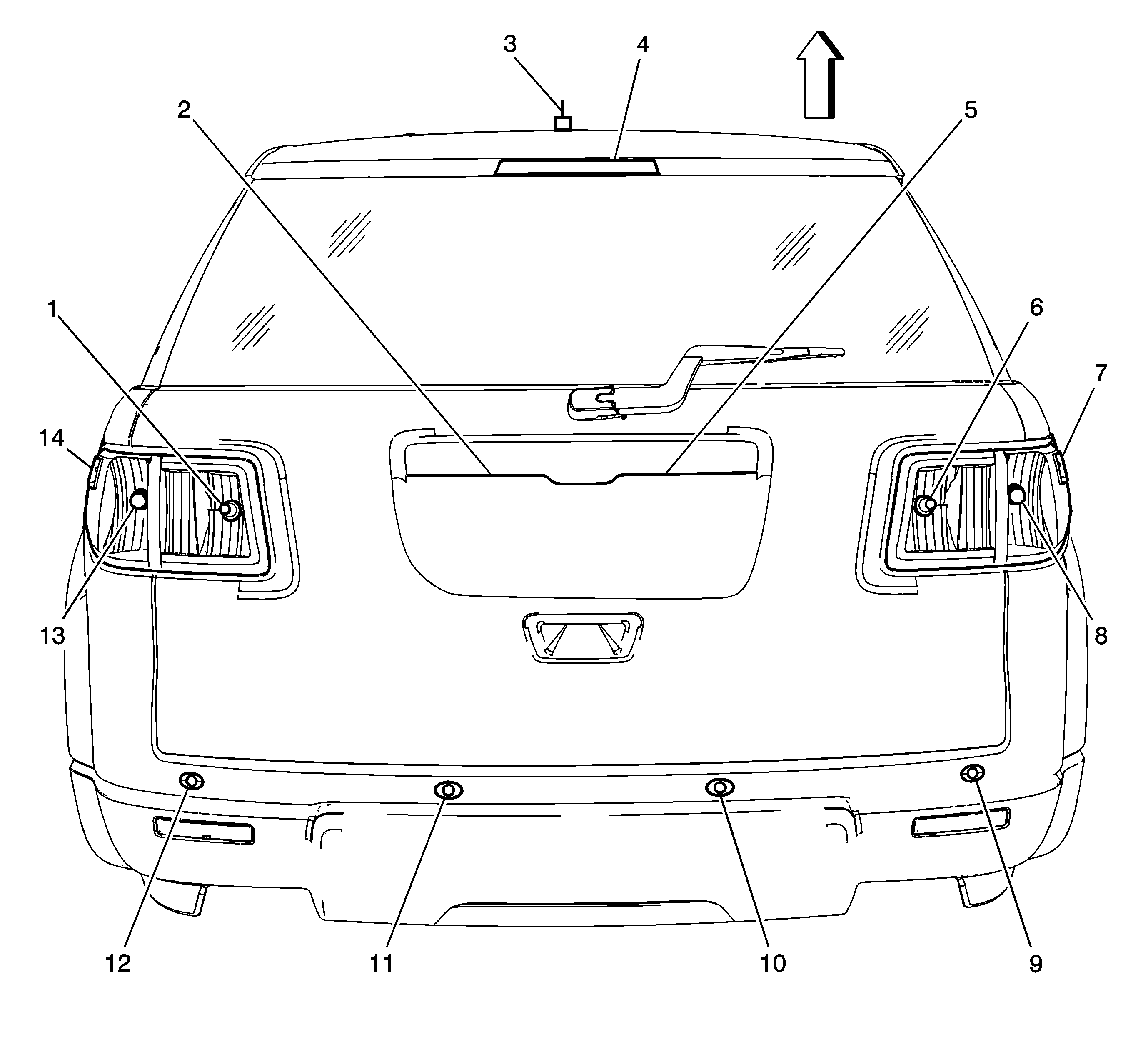

Figure 16:

Rear of the Vehicle - Z88


(1)	Center High Mounted Stop Lamp (CHMSL)
(2)	Radio Antenna
(3)	Rear Window Defogger Grid
(4)	Back Up Lamp - Right
(5)	Tail Lamp Assembly - Right
(6)	Park Lamp - Right Rear
(7)	Object Sensor - Right Rear Corner (UD7)
(8)	Object Sensor - Right Rear Middle (UD7)
(9)	License Lamp - Left/License Lamp - Right
(10)	Object Sensor - Left Rear Middle (UD7)
(11)	Object Sensor - Left Rear Corner (UD7)
(12)	Park Lamp - Left Rear
(13)	Tail Lamp Assembly - Left
(14)	Back Up Lamp - Left

Figure 17:

Rear of the Vehicle (WDA)


(1)	Backup Lamp - Left
(2)	License Lamp - Left
(3)	Radio Antenna
(4)	Center High Mounted Stop Lamp (CHMSL)
(5)	License Lamp - Right
(6)	Backup Lamp - Right
(7)	Marker Lamp - Right Rear
(8)	Tail/Stop and Turn Signal Lamp - Right
(9)	Object Sensor - Right Rear Corner (UD7)
(10)	Object Sensor - Right Rear Middle (UD7)
(11)	Object Sensor - Left Rear Middle (UD7)
(12)	Object Sensor - Left Rear Corner (UD7)
(13)	Tail/Stop and Turn Signal Lamp - Left
(14)	Marker Lamp - Left Rear
