Floor Wet Under Carpet/Engine Continues to Run with Key Off/Possible No Crank/No Start/Communication Loss/Various Electrical Concerns (Seal Seam)

This bulletin is being revised to add information to the Subject and Conditon statements. Please discard Corporate Bulletin Number 08-08-57-003 (Section 08 -- Body and Accessories).

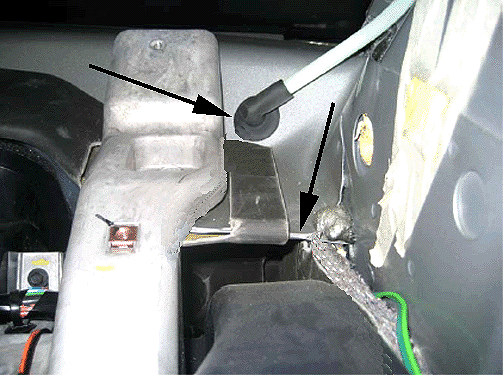

Water from the right front sunroof drain hose exits the vehicle through the plenum (upper arrow) and may re-enter through the un-sealed seam at the front of the dash. Refer to lower arrow in the illustration.

1. Remove the windshield wipers and cowl screen where sealing repair is to be done.

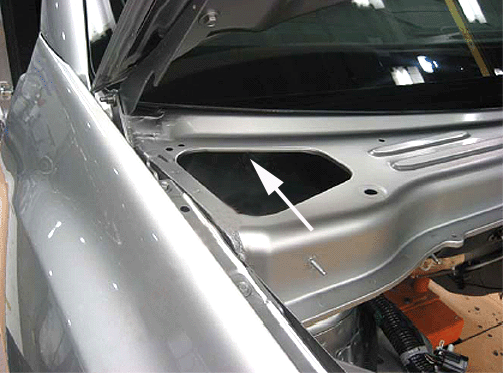

2. In order to verify the waterleak, run a small amount of water into the square hole inside the cowl while looking at the IP BEC.
3. Allow the water to dry and proceed to step 4.

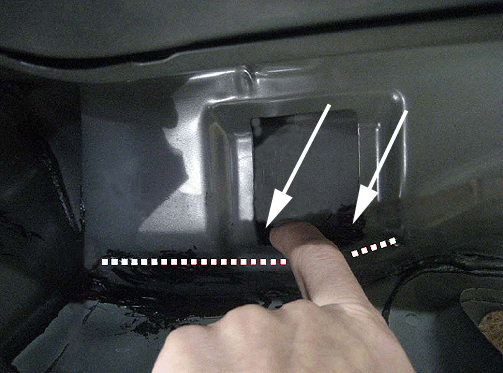

4. Seal the seam INSIDE the opening at the bottom and to the right and left of the arrows in the illustration. Seal the full length of the dotted line. Seal the seam with P/N 12378500 (in Canada, use P/N 10952233) Medium Body Seam Sealing Compound or equivalent.

For vehicles repaired under warranty, use:
