Front Side Marker Lamp Bulb Replacement Traverse

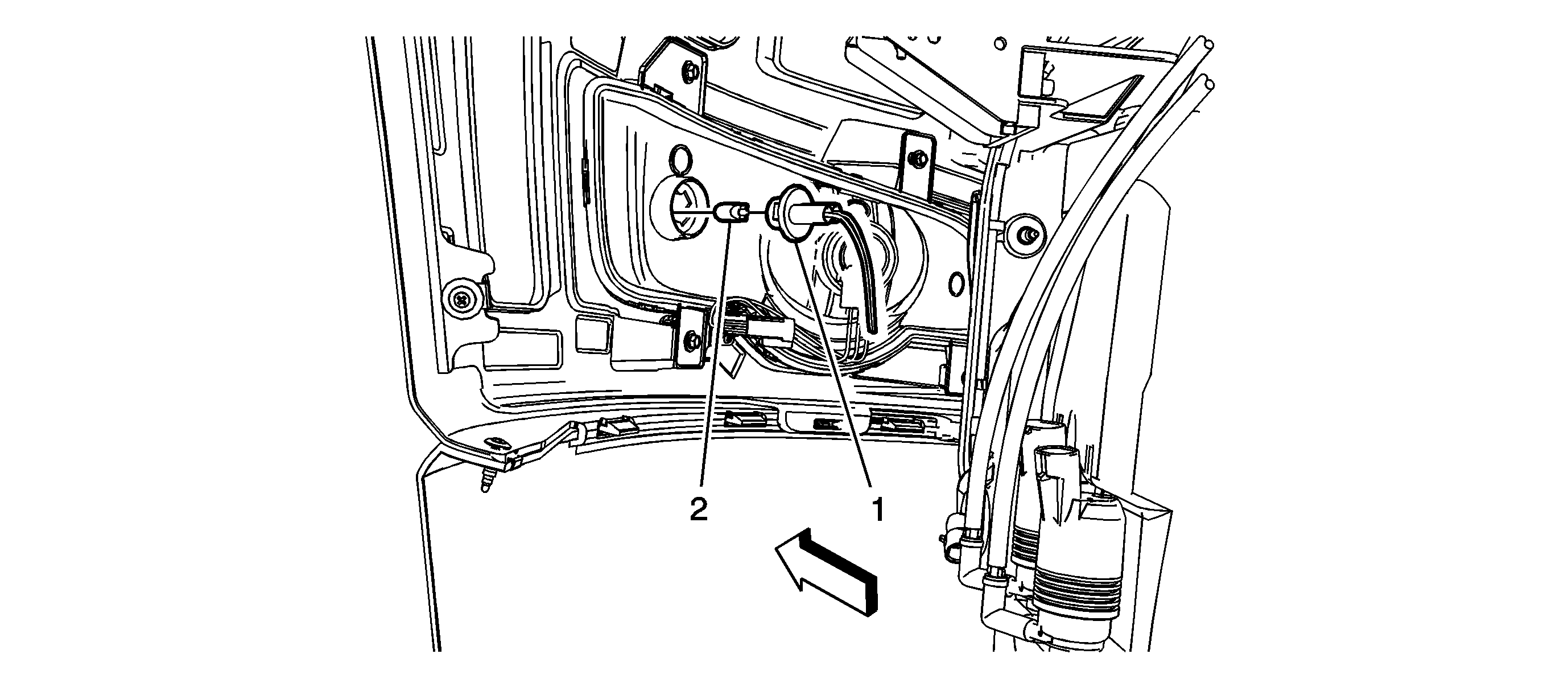

Object Number: 2076953 Size: SF

Callout

Component Name

Preliminary Procedure

Remove the front wheelhouse liner front in order to access the front side marker lamp bulb. Refer to Front Wheelhouse Front Liner Replacement.

1

Front Side Marker Lamp Bulb Socket

Procedure

Rotate the bulb socket counter-clockwise and remove the socket from the park turn lamp housing.

2

Front Side Marker Lamp Bulb

Procedure
Pull the marker lamp bulbs straight from the lamp bulb socket.

Front Side Marker Lamp Bulb Replacement Acadia

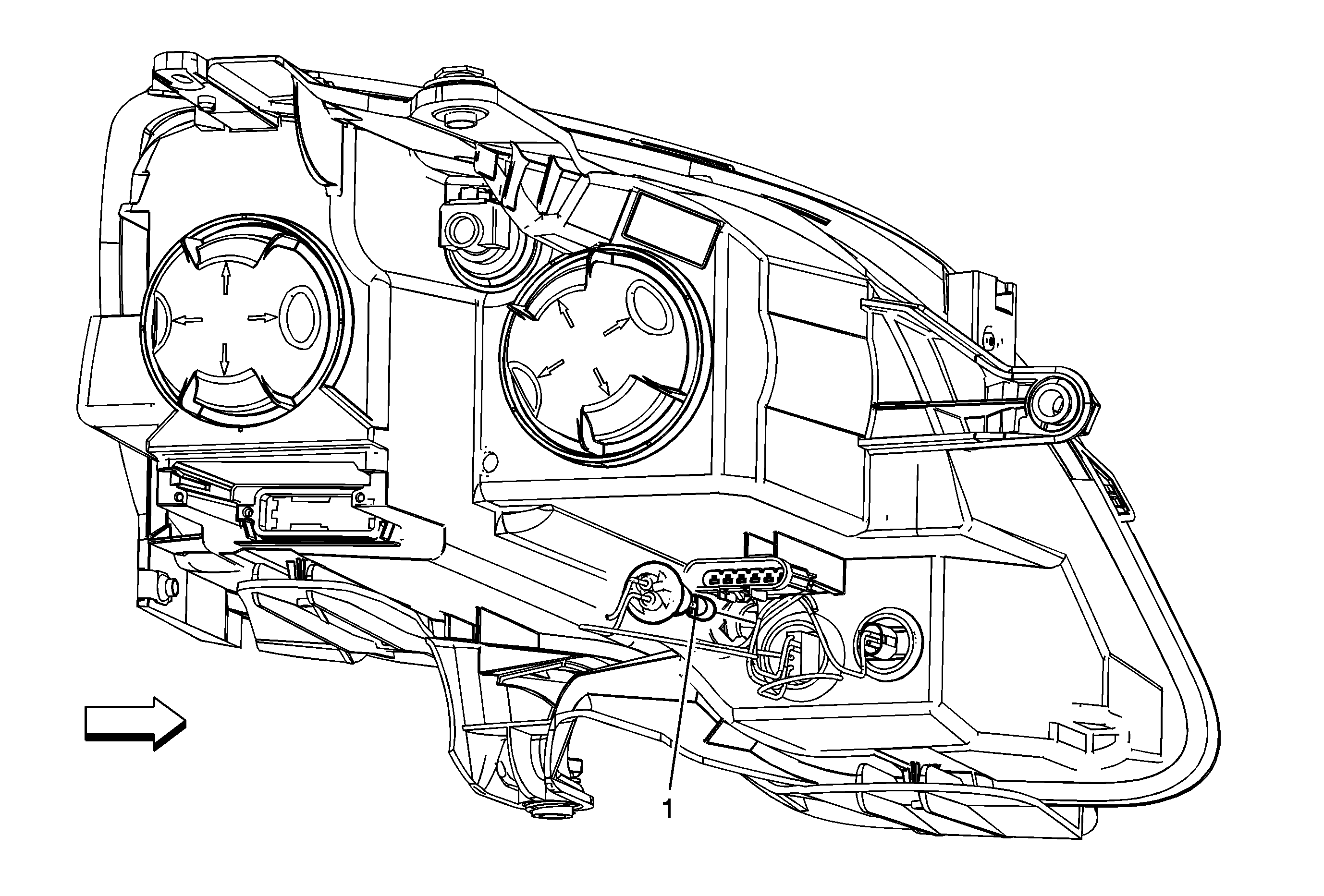

Object Number: 1865112 Size: MF

Callout

Component Name

Preliminary Procedures

  1. Remove the front wheelhouse liner in order to access the front turn signal bulbs. Refer to Front Wheelhouse Front Liner Replacement.
  2. Disconnect the front marker lamp bulb socket from the headlamp assembly.

1

Front Marker Lamp Bulb

Procedure

Pull the marker lamp bulbs straight from the lamp socket.

Front Side Marker Lamp Bulb Replacement Enclave

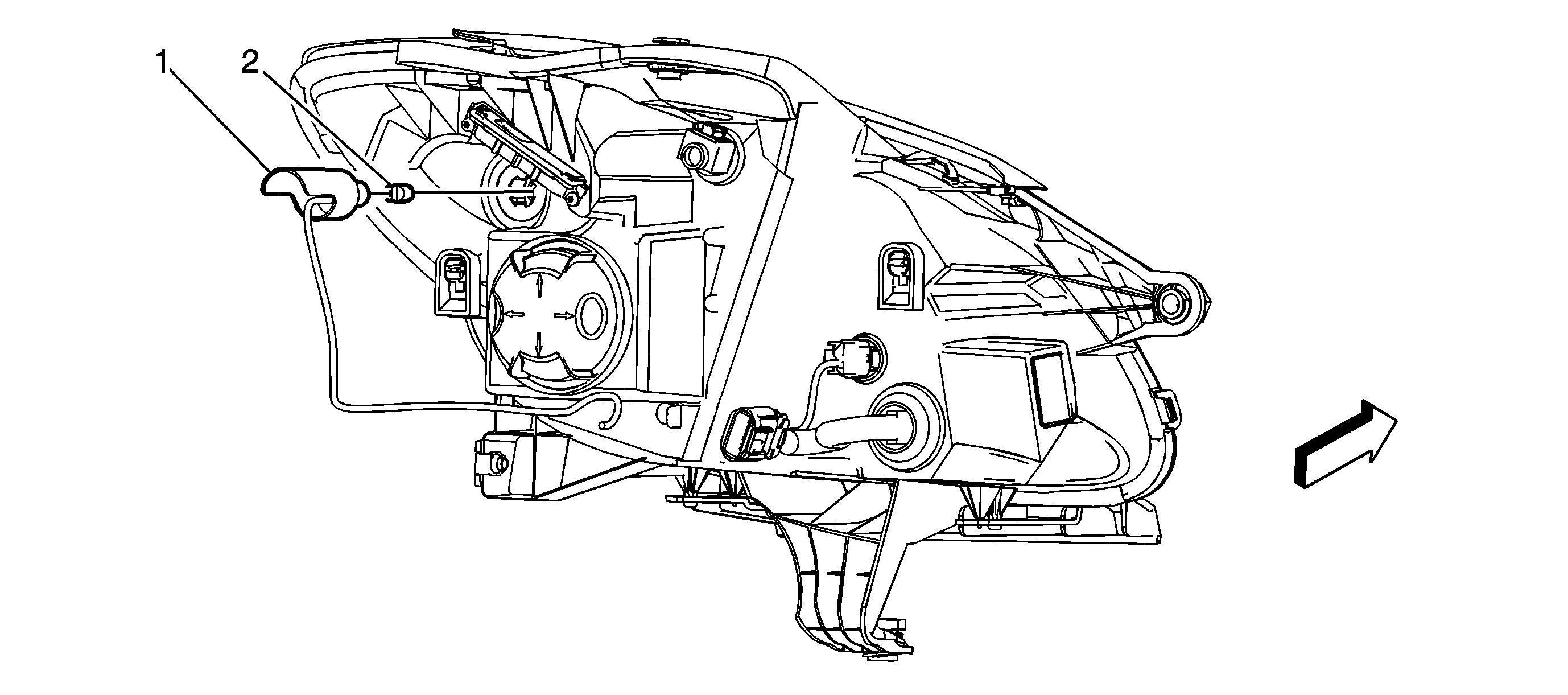

Object Number: 1870062 Size: SF

Callout

Component Name

Preliminary Procedures

  1. Remove the front wheelhouse liner in order to access the front turn signal bulbs. Refer to Front Wheelhouse Front Liner Replacement.
  2. Disconnect the front marker lamp bulb socket from the headlamp assembly.

1

Front Marker Lamp Bulb Cover

Procedure

Rotate the cover counterclockwise and remove the cover from the lamp housing.

2

Front Marker Lamp Bulb

Procedure

Pull the marker lamp bulbs straight from the lamp socket.
